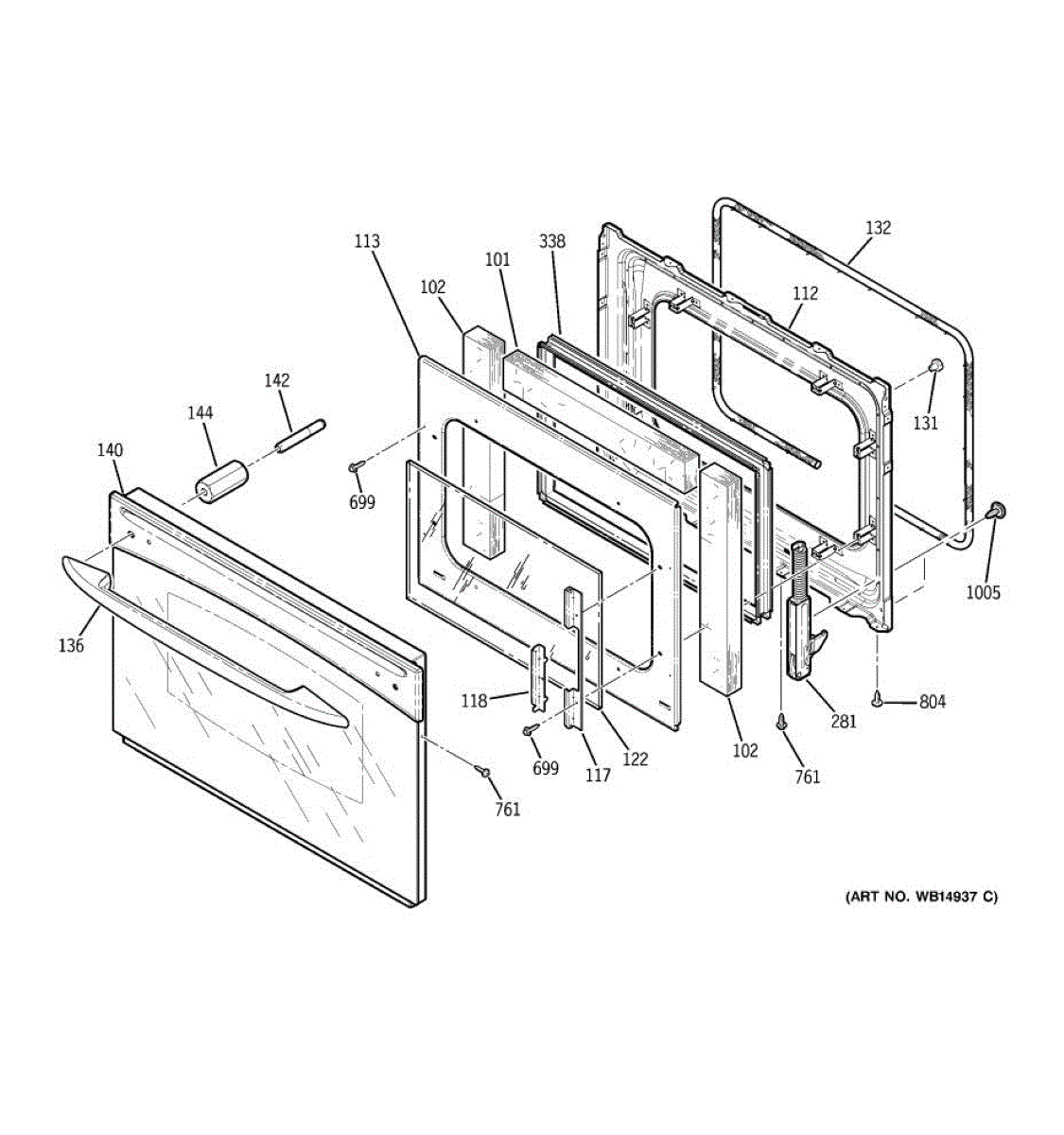

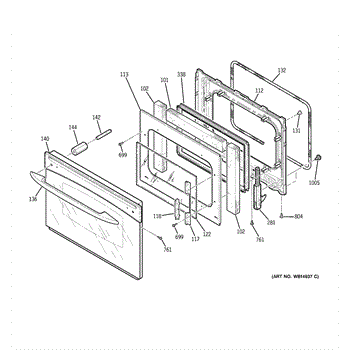

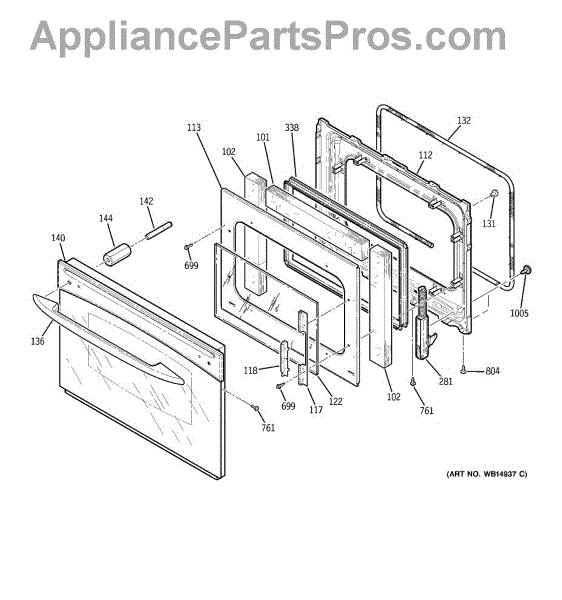

Parts for Ge PS968TP2CC: 04 - Door Parts

This oven door insulation pad replaces the thermal padding inside the oven door to help contain heat for more even cooking and reduce exterior door temperature. Designed as a direct-fit oven door inner insulation. What it does:

• Provides thermal barrier inside the oven door to help retain heat and improve cooking consistency
• Reduces outer door temperature to help protect cabinets and nearby surfaces
• Helps prevent heat-related wear to the door assembly and trim
• Common symptom: oven door feels unusually hot or cooking performance seems affected

• Disconnect power to the appliance before beginning any repair
• Door disassembly is often required; support glass panels and gaskets to avoid damage
• Handle insulation and any sharp sheet-metal edges with gloves and eye protection

This oven door side insulation sits between the inner and outer door panels to limit heat loss and reduce hot spots along the door edge. Replace when the original is burnt, brittle, or missing to help restore safe thermal performance.

• Provides a thermal barrier along the side of the oven door between panels
• Helps retain oven heat and reduce heat transfer to the outer door surface
• Can help address heat escaping around door edges or a door exterior that feels hotter than normal
• Replace if the insulation is charred, frayed, compressed, or contaminated during service

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the door and disassemble per your model's service instructions; work on a padded surface
• Wear gloves and eye protection; handle insulation carefully and avoid compressing it
• Do not block vents or air passages during reassembly; note orientation for proper fit

This oven door insulation retainer secures the insulation inside the oven door, helping maintain proper heat containment and preventing insulation from shifting. It's a small but important clip that keeps the door's inner components stable. What it does:

• Holds inner door insulation in place so insulation stays positioned during use
• Helps maintain consistent heat distribution by preventing insulation gaps
• Reduces rattling or movement of the door interior when opening or closing
• Commonly replaced when insulation is loose, visible, or shifting inside the door

• One oven door insulation retainer

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Access typically requires removing the oven door or inner door panel — follow your model's service instructions
• Handle door panels and insulation carefully to avoid damage; keep fasteners organized for reassembly

The Inner Oven door glass is an OEM replacement part for GE ranges. Located inside the oven door cavity behind an outer steel panel, the inner glass allows viewing food without opening the door for temperature checks. As an insulating barrier, it separates intense oven heat from exterior door surfaces.

Causes of a bad inner door glass can include cracks or chips from heavy impacts over time, scratches clouding visibility, or breaks compromising insulation integrity.

Symptoms of a bad inner door glass include:

• Inability to see cooking progress without opening the door
• Noticeable increase in exterior door temperatures during baking
• Possible oven heat loss if broken glass disrupts insulation values
• Stress cracks spreading that threaten larger pane failures

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore wall oven models.

This foam tape seals and cushions the oven door assembly to reduce vibration and help keep the door glass and inner components stable. It restores proper spacing and helps reduce rattling or light air leaks around the door. What it does:

• Provides a soft, compressible seal between the door and frame to reduce noise and movement
• Cushions and protects glass and trim from contact and vibration
• Helps limit minor air leakage that can allow heat or odors to escape
• Commonly used when door trim or glass is loose, rattling, or shows visible gaps

• One adhesive-backed foam tape strip

• Clean and dry mating surfaces before applying to ensure good adhesive contact
• Measure and trim to fit; press firmly along the full length for proper adhesion
• Replace only with the same style of tape—do not use electrical or non-heat-rated foam in high-temperature areas
• Disconnect power/cool the appliance before working on the door assembly to avoid burns or injury

The Oven Door Gasket is an OEM part for GE ovens. It creates a seal between the oven door and the oven frame, preventing heat from escaping during cooking. This gasket is essential for maintaining consistent oven temperatures, which ensures even cooking and energy efficiency.

You should replace the oven door gasket if it becomes worn or damaged. Common causes of a bad gasket include repeated exposure to high temperatures, normal wear and tear, or physical damage from cleaning or accidental impacts. A compromised gasket can lead to heat loss, uneven cooking, and increased energy consumption.

Symptoms of a bad oven door gasket include:

• Heat escaping from around the oven door
• Longer cooking times or unevenly cooked food
• Visible cracks, tears, or deformation in the gasket
• The oven door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Drawer Handle is an OEM part for GE ranges. This handle is designed to provide a secure and comfortable grip for opening and closing the storage drawer.

Causes of a bad drawer handle can include regular wear and tear, physical damage from impacts, or exposure to high temperatures.

Symptoms of a bad drawer handle include:

• The handle becoming loose or wobbly
• Visible cracks or breaks in the handle material
• Difficulty in gripping the handle securely
• The handle detaching from the drawer

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This composite support stud mounts on the cooktop to provide a stable resting point for the burner grate. It helps keep the grate level and protects the cooktop finish from metal-to-enamel contact.

• Supports and levels the burner grate at its contact point
• Helps protect the porcelain/enamel surface from scratches and chips
• Maintains proper grate alignment over the burner
• Typical symptoms of a failed/missing stud: wobbly or rocking grate, rattling, scuffing around grate landing points

• Disconnect power and shut off gas; allow the surface to cool completely
• Remove the grate and the damaged/missing stud; clean the contact area
• Install the new stud per your model's design and seat it fully without overtightening
• Reinstall the grate and confirm it sits flat and stable

This reinforcement spacer maintains the correct gap and supports the joint between mating parts in your appliance. Replacing a worn or missing spacer helps keep panels, trim, or brackets aligned for a solid fit and smooth operation.

• Maintains proper spacing and alignment between components to prevent rubbing or distortion
• Reinforces mounting points to distribute fastener load and reduce cracking around holes
• Helps reduce rattles and looseness; promotes tight, even gaps
• Common signs include a missing/broken spacer, wobbly panels/trim, rattling noises, or visible misalignment

• Disconnect power; allow the appliance to cool completely. For gas units, shut off the gas supply
• Access the affected area and note the spacer's orientation before removal
• Reuse original hardware and install the spacer in the same position; do not overtighten fasteners
• Reassemble, check clearances and alignment, then test operation

This left-side refrigerator door hinge secures and pivots the door for smooth opening and proper alignment. It restores stable door movement and helps maintain a tight seal to protect internal temperatures and food freshness. What it does:

• Provides a mounting point for the refrigerator door and allows it to swing open and closed
• Keeps the door aligned to ensure consistent sealing and energy efficiency
• Replaces worn, bent or broken hinges that cause sagging, rubbing or uneven gaps
• Works with factory hinge pins and fasteners to restore original door operation

• Intended for the left-side door; verify orientation before installation
• Installation requires basic hand tools and safe handling of the door to avoid damage or injury
• If needed, support the door or have a helper during removal and reattachment to prevent dropping
• Inspect hinge mounting screws and surrounding trim; replace hardware if stripped or damaged

The Window Pack Assembly is an OEM part for GE ranges and ovens. It serves as the inner glass component of the oven door, allowing you to observe the cooking process while providing insulation and protection. It consists of an inner glass panel, frame, and seals to ensure proper insulation and prevent heat loss.

Causes of a faulty window pack assembly can include accidental impact, cracks, or damage to the inner glass panel or frame. These factors can compromise the visibility, insulation, and safety of the oven.

Symptoms of a bad window pack assembly may include:

• Cracked or shattered inner glass panel
• Impaired visibility into the oven cavity
• Heat loss or inadequate insulation

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

ST10-16 X 7/16"

This white trim screw secures panels and plastic trim on the appliance, restoring proper fit and stopping rattles or loose pieces. It's a direct-replacement fastener used where the factory-installed screw has stripped, corroded, or gone missing. What it does

• Fastens trim, panels, or components to maintain proper alignment and fit
• Prevents vibration noise and rattling caused by loose parts
• Replaces stripped, rusted, or lost screws for a clean, finished appearance
• Matches factory finish to remain discreet in visible areas

• Disconnect power to the appliance before starting any repair
• Use the correct-size screwdriver/drill bit to avoid stripping the head
• Tighten securely but do not overtighten; excessive force can crack plastic or strip threads
• Replace only with the same part number to ensure proper fit and finish

This silicon controlled rectifier (SCR) is an electronic switching component that controls current flow in appliance control circuits, helping regulate power to heaters, motors, or other loads for stable operation. What it does:

• Switches and regulates current in control boards and power circuits
• Can prevent power from reaching a heater, motor, or element when failed
• Helps protect downstream components by controlling surge/current flow

• Disconnect power to the appliance before servicing to avoid shock.
• Handle the SCR carefully to avoid electrostatic discharge (ESD) damage.
• May require board-level replacement or soldering skills.

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This is a 6-20 machine screw, 3/8 inch length, used to secure trim, panels, or small components on compatible cooking appliances. Replacing a missing or damaged screw helps keep parts tight and prevents rattles or shifting during use.

• Fastens brackets, panels, or trim in the appliance chassis
• Helps restore a secure fit when the original screw is stripped or lost
• Can resolve issues like loose trim, minor rattling, or misaligned panels
• Nickel finish for corrosion resistance in warm, humid environments

• Disconnect power and allow appliance to cool before servicing
• Remove only the necessary adjacent fasteners to access the mounting point
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any missing clips or spacers originally used with the screw

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
