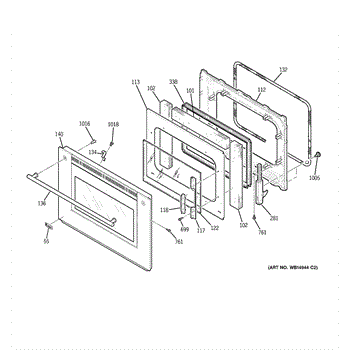

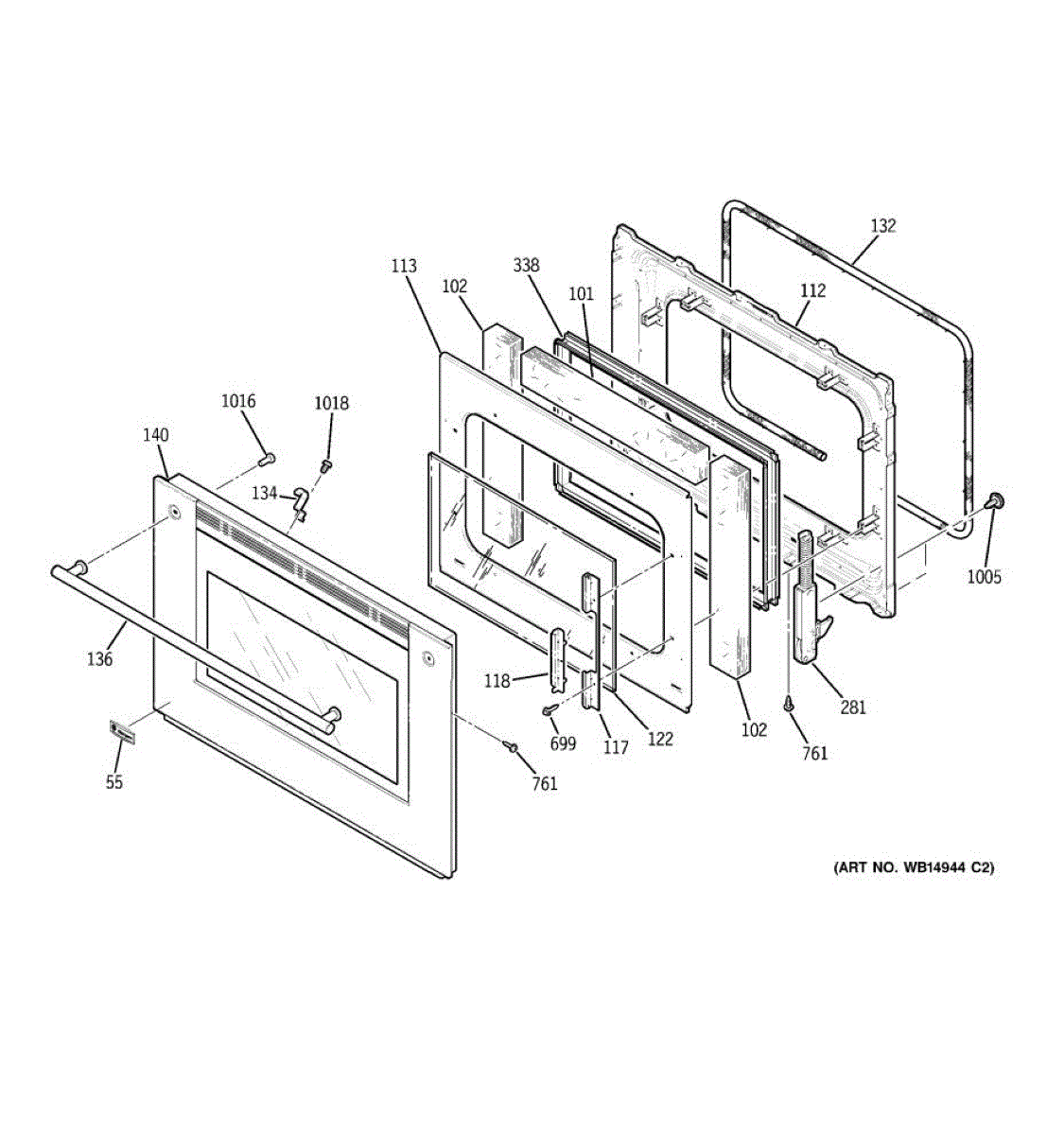

Parts for Ge ZET2RM4SS: 05 - Door Parts

A small adhesive MG logo emblem that restores the original appearance of your appliance. This peel-and-stick badge replaces a worn, faded or missing logo to keep the exterior looking factory-fresh. What it does:

• Cosmetic replacement for a missing, scratched or faded MG emblem
• Adheres to control panels, doors or trim where the original badge was located
• Restores brand identification and a finished appearance to the appliance
• Simple adhesive design avoids the need for fasteners or tools

• Clean and dry the mounting surface before applying to ensure good adhesion
• Peel backing and press firmly in place, aligning carefully before contact
• Avoid repositioning once attached; removal may damage the emblem or finish
• For safety, disconnect power before working near electrical controls or panels

This oven door insulation pad fits behind the inner door liner to help retain heat in the oven cavity and reduce heat transfer to the outer door. It restores proper oven temperature control and improves cooking consistency. What it does:

• Replaces worn or damaged insulation that can allow heat to escape from the oven cavity
• Helps the oven reach and maintain set temperatures for more even baking and roasting
• Reduces excessive outer door temperatures and hot spots on the range front
• Restores the intended thermal barrier between the oven cavity and outer door assembly

• One oven door insulation pad

• Disconnect power to the appliance before starting any repair; allow the oven to cool completely
• Installation commonly requires removing the oven door and inner door liner—follow OEM instructions
• Handle insulation carefully; wear gloves and a dust mask if material is fibrous

This oven door side insulation sits between the inner and outer door panels to limit heat loss and reduce hot spots along the door edge. Replace when the original is burnt, brittle, or missing to help restore safe thermal performance.

• Provides a thermal barrier along the side of the oven door between panels
• Helps retain oven heat and reduce heat transfer to the outer door surface
• Can help address heat escaping around door edges or a door exterior that feels hotter than normal
• Replace if the insulation is charred, frayed, compressed, or contaminated during service

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the door and disassemble per your model's service instructions; work on a padded surface
• Wear gloves and eye protection; handle insulation carefully and avoid compressing it
• Do not block vents or air passages during reassembly; note orientation for proper fit

This oven door insulation retainer secures the insulation inside the oven door, helping maintain proper heat containment and preventing insulation from shifting. It's a small but important clip that keeps the door's inner components stable. What it does:

• Holds inner door insulation in place so insulation stays positioned during use
• Helps maintain consistent heat distribution by preventing insulation gaps
• Reduces rattling or movement of the door interior when opening or closing
• Commonly replaced when insulation is loose, visible, or shifting inside the door

• One oven door insulation retainer

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Access typically requires removing the oven door or inner door panel — follow your model's service instructions
• Handle door panels and insulation carefully to avoid damage; keep fasteners organized for reassembly

The Inner Oven door glass is an OEM replacement part for GE ranges. Located inside the oven door cavity behind an outer steel panel, the inner glass allows viewing food without opening the door for temperature checks. As an insulating barrier, it separates intense oven heat from exterior door surfaces.

Causes of a bad inner door glass can include cracks or chips from heavy impacts over time, scratches clouding visibility, or breaks compromising insulation integrity.

Symptoms of a bad inner door glass include:

• Inability to see cooking progress without opening the door
• Noticeable increase in exterior door temperatures during baking
• Possible oven heat loss if broken glass disrupts insulation values
• Stress cracks spreading that threaten larger pane failures

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore wall oven models.

The Oven Door Gasket is an OEM part for GE ovens. It creates a seal between the oven door and the oven frame, preventing heat from escaping during cooking. This gasket is essential for maintaining consistent oven temperatures, which ensures even cooking and energy efficiency.

You should replace the oven door gasket if it becomes worn or damaged. Common causes of a bad gasket include repeated exposure to high temperatures, normal wear and tear, or physical damage from cleaning or accidental impacts. A compromised gasket can lead to heat loss, uneven cooking, and increased energy consumption.

Symptoms of a bad oven door gasket include:

• Heat escaping from around the oven door
• Longer cooking times or unevenly cooked food
• Visible cracks, tears, or deformation in the gasket
• The oven door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven door clip secures the oven door or inner door components to the hinge assembly, restoring proper door alignment and a stable seal for safe, efficient cooking. It's a compact, direct-fit mounting clip used on many GE ovens. What it does:

• Secures the oven door or inner panel to the hinge or mounting point
• Helps maintain correct door alignment and a tight oven seal
• Can eliminate door movement, sagging, or uneven closing
• Works as a replacement for a worn, broken, or missing door clip

• Disconnect power to the appliance before servicing to avoid electrical shock
• Support the oven door or remove it per manufacturer instructions before replacing the clip
• Use basic hand tools; avoid forcing parts—ensure clip seats fully on the hinge/mount

Right Side

The Door Hinge is an OEM part for GE wall ovens. It acts as the pivot point that allows easy opening and closing of the oven door during use. The durable hinge is responsible for securely yet smoothly swinging the oven door into position.

Causes of failure can be normal wear and tear over extended use. Frequent opening and shutting of a heavy oven door places considerable stress on the hinge. Accidental damage from overloading or impact can also negatively affect performance.

Symptoms of a bad hinge include:

• Difficulty opening or closing the oven door
• Excessive friction or resistance at the hinge
• Noises or squeaking emanating from the hinge area
• Visual defects such as cracks, bending, or loose/missing hardware

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Window Pack Assembly is an OEM part for GE ranges and ovens. It serves as the inner glass component of the oven door, allowing you to observe the cooking process while providing insulation and protection. It consists of an inner glass panel, frame, and seals to ensure proper insulation and prevent heat loss.

Causes of a faulty window pack assembly can include accidental impact, cracks, or damage to the inner glass panel or frame. These factors can compromise the visibility, insulation, and safety of the oven.

Symptoms of a bad window pack assembly may include:

• Cracked or shattered inner glass panel
• Impaired visibility into the oven cavity
• Heat loss or inadequate insulation

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

ST10-16 X 7/16"

This silicon controlled rectifier (SCR) is an electronic switching component that controls current flow in appliance control circuits, helping regulate power to heaters, motors, or other loads for stable operation. What it does:

• Switches and regulates current in control boards and power circuits
• Can prevent power from reaching a heater, motor, or element when failed
• Helps protect downstream components by controlling surge/current flow

• Disconnect power to the appliance before servicing to avoid shock.
• Handle the SCR carefully to avoid electrostatic discharge (ESD) damage.
• May require board-level replacement or soldering skills.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

This is a 1/4-28 hex washer head machine screw with a 7/8 inch length and zinc plating, used to secure components in appliances. It replaces stripped or missing fasteners and restores proper fit and alignment. What it does

• Secures panels, brackets, or hardware where a 1/4-28 hex washer head screw is specified
• Provides a wide bearing surface to reduce pull-through on sheet metal or bracket parts
• Zinc plating resists corrosion in typical household appliance environments
• Common symptom: loose, rattling, or misaligned panels caused by missing or damaged screws

• Replace only with the matching thread size and head style to ensure proper fit
• Hand-start threads to avoid cross-threading; tighten to snug (do not overtighten)
• Use proper safety gear and disconnect power to the appliance if working near electrical components
• If multiple fasteners are corroded or missing, inspect adjacent hardware and replace as needed

This is a 6-20 machine screw, 3/8 inch length, used to secure trim, panels, or small components on compatible cooking appliances. Replacing a missing or damaged screw helps keep parts tight and prevents rattles or shifting during use.

• Fastens brackets, panels, or trim in the appliance chassis
• Helps restore a secure fit when the original screw is stripped or lost
• Can resolve issues like loose trim, minor rattling, or misaligned panels
• Nickel finish for corrosion resistance in warm, humid environments

• Disconnect power and allow appliance to cool before servicing
• Remove only the necessary adjacent fasteners to access the mounting point
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any missing clips or spacers originally used with the screw
