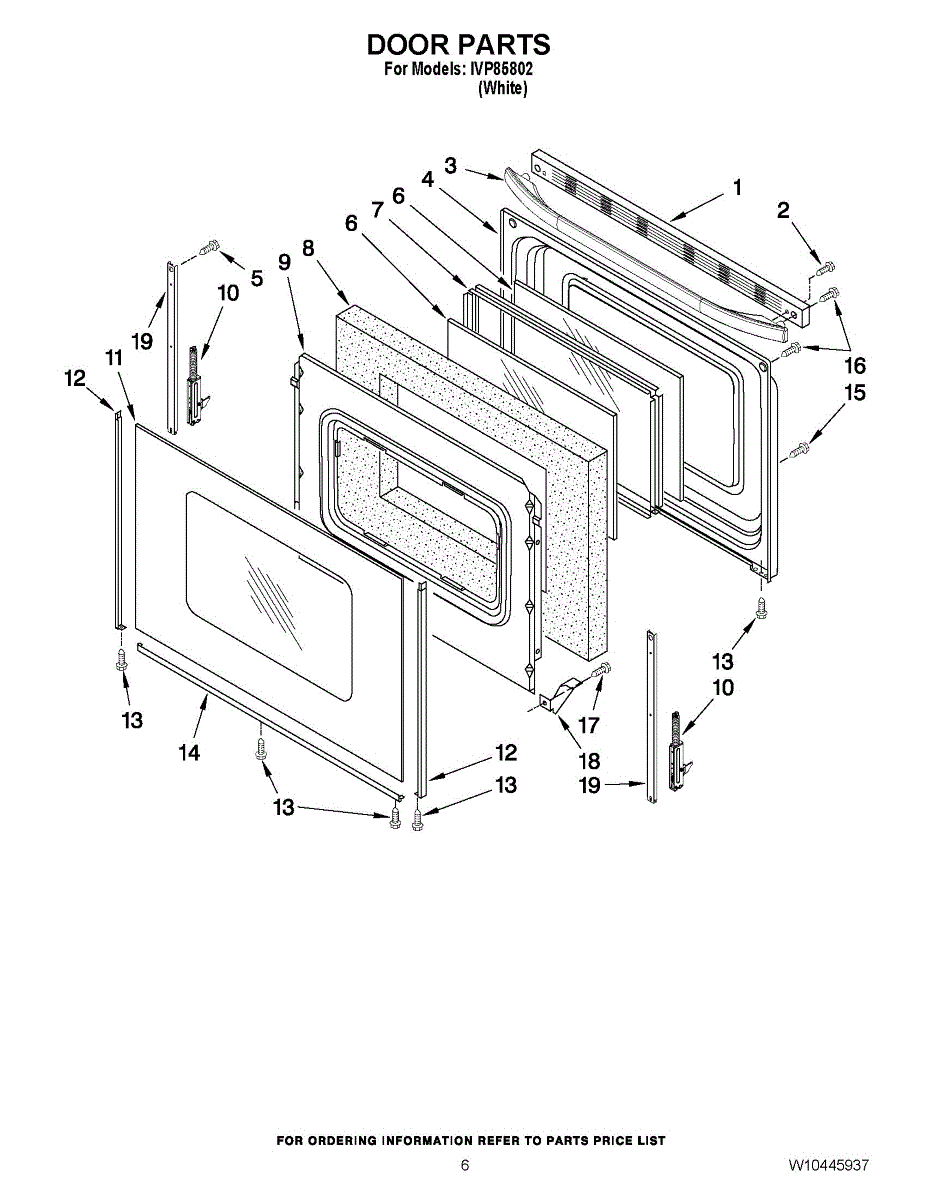

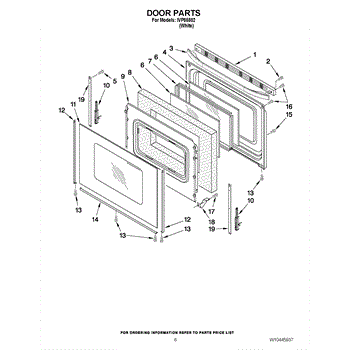

Parts for Whirlpool IVP85802: 05 - Door Parts

Color: White.

The Screw is an OEM part for Whirlpool appliances, commonly utilized in a variety of their products such as washing machines, dryers, refrigerators, and dishwashers. This screw is essential for securing different components, ensuring they are properly attached and aligned to maintain the appliance’s functionality and safety.

Over time, screws can become loose, stripped, or lost due to vibrations, regular use, or during maintenance and repairs. A damaged or missing screw can lead to unstable parts, which may affect the performance and safety of the appliance.

Symptoms of a bad or missing screw include:

• Loose or rattling components
• Misalignment of parts
• Noise during operation
• Panels or parts not staying securely in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This left inner door liner replaces a cracked, stained, or damaged inner door panel to restore the refrigerator/freezer door interior surface and support door-mounted bins and shelving. It helps maintain a clean, secure mounting surface for door accessories. What it does:

• Replaces the inner door panel to cover insulation and provide a finished interior surface
• Provides mounting points and support for door bins, shelves, and hardware
• Helps prevent cold air leaks by restoring the proper door interior assembly fit
• Addresses symptoms like visible cracks, holes, staining, or loose/misaligned door-mounted storage

• One left door liner

• High-level replacement — may require removing the door, inner trim, and any attached bins or shelves
• Keep fasteners and hardware organized; transfer existing gaskets, clips, and brackets as needed
• Disconnect power to the appliance if working near electrical components or lights

The Screw is an OEM part for Whirlpool appliances that is responsible for securing various parts in place. The screw ensures a tight and secure fit, preventing any loose parts. A bad screw can occur due to wear and tear or accidental damage. If the screw becomes stripped, rusted, or lost, it can lead to instability or even malfunction of the affected parts.

Symptoms of a bad screw include:

• Loose or wobbly parts.
• Components not securely fastened.
• Difficulty in assembling or disassembling the appliance.
• Rattling or unusual noises during operation.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Inner Door Glass is an OEM part for Whirlpool ovens. It serves as an inner layer of the oven door, providing a clear view into the oven while helping to maintain the temperature inside. The glass measures approximately 12.8 x 18.5 inch.

Over time, the inner door glass can become damaged or worn out due to regular use, exposure to high temperatures, or accidental impact. These issues can compromise the effectiveness of the oven door, leading to heat loss and inefficient cooking performance.

Symptoms of a bad inner door glass include:

• Visible cracks or chips in the glass
• Heat escaping from the oven
• Difficulty seeing through the glass during cooking

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This frame surrounds and supports the window glass in your oven door, keeping the glass secure and aligned. Replace a bent or corroded frame to address loose glass and restore the door's proper fit and clean appearance.

• Secures the oven door window glass within the door assembly
• Helps maintain alignment and seal around the window area
• Replaces frames that are bent, cracked, or corroded
• Addresses loose, rattling, or misaligned door glass
• Restores the finished look of the door

• Disconnect power and allow the oven to cool completely before service
• Remove the door per your model's instructions and place it on a padded surface
• Handle glass with cut-resistant gloves; keep track of screws, clips, and insulation for transfer
• Seat the glass evenly and avoid overtightening fasteners during reassembly

Qty 4 needed to complete full insulation

The Door Hinge is an OEM replacement part for Whirlpool ranges. It acts as the pivot point to allow access to the oven cavity.

Causes of a bad hinge can include wear over time through repeated use. Damage from excessive force or improper handling are also causes.

Symptoms of a bad hinge include:

• Difficulty latching or locking the door securely
• Gaps appearing around the door seal when closed
• The door not staying firmly in the fully open or closed position
• Grinding or grinding noises coming from the hinge area
• Visible damage, bending, or separation of hinge components

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This Door Hinge is an OEM replacement part for Whirlpool ranges. This door hinge consists of three parts, the spring, the hinge receiver and the hinge arm, which work together to support the weight of the door and ensure proper alignment. It allows the door to swing open and close securely, providing easy access to the appliance's interior.

Causes of a faulty door hinge can include wear and tear over time, loose or damaged hinge parts, or broken springs.

Symptoms of a bad door hinge:

• Difficulty in opening or closing the oven door
• Loose or sagging door
• Uneven or improper sealing, leading to heat loss

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Outer Door Glass is an OEM part for Whirlpool ranges. It serves as the exterior glass panel on the oven door, providing visibility into the oven while protecting the internal components and maintaining the oven’s aesthetic appeal.

Causes of a bad outer door glass can include accidental impacts, thermal stress from frequent heating and cooling, or general wear and tear over time.

Symptoms of a bad outer door glass include:

• Visible cracks or breaks in the glass
• Heat escaping from the oven door
• Difficulty in maintaining consistent oven temperature
• Potential safety hazards due to broken glass shards

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Right Side Door Trim is an OEM part for Whirlpool ranges. This part covers any gaps and protects the internal components from dust and debris.  Note: For Left-Hand use WP8523172

Causes of a bad side door trim can include general wear and tear, accidental damage, or deterioration due to exposure to heat and moisture over time.

Symptoms of a bad side door trim include:

• Visible cracks or breaks in the trim
• Gaps between the range door and cabinetry
• Loose or misaligned trim pieces
• Accumulation of dust or debris inside the range door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Range Side Trim is an OEM replacement part for Whirlpool brand cooking ranges. This decorative trim piece attaches along the sides of the range and protects the outer edge. Left Hand Trim. For the Right Hand use WP8523166

Causes of a bad range trim can include normal wear from regular use of oven and cooktop surfaces over time, as well as potential impact or heat damage.

Symptoms of bad trim include:

• Cracks, peeled paint, or damaged coating on the trim material
• Gaps appearing at trim joints or attachment points
• Reduced aesthetic appeal or protection of the range exterior

This OEM Whirlpool part is also compatible with Kenmore, KitchenAid, Roper, and some Frigidaire cooking ranges.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Bottom Door Trim is an OEM part for Whirlpool ranges. It provides a finished appearance to the bottom edge of the oven door and helps to prevent heat from escaping, ensuring efficient oven operation and consistent cooking results. For Stainless Steel order 8523180, for Black 8523177, and for Bisque 8523178 and for the universal part W10067550.

Causes of a bad bottom door trim include wear and tear from opening and closing the oven door, damage from cleaning processes, or the trim becoming loose or detached due to thermal expansion and contraction.

Symptoms of a bad bottom door trim include:

• Heat escaping from the bottom of the oven door
• Loose or detached trim
• Visible cracks or warping in the trim
• Difficulty in closing the oven door properly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory fastener secures appliance panels, brackets, and internal components. Replacing a missing, stripped, or corroded screw restores proper fit and stability, helping reduce vibration, rattling, and wear during everyday operation.

• Secures covers, brackets, and assemblies to the cabinet or frame
• Restores alignment to reduce gaps, looseness, and vibration
• Replaces lost, damaged, corroded, or stripped hardware
• Matches the original fastener for correct fit and retention

• Disconnect power and shut off water or gas before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent thread or plastic damage
• Inspect receiving threads or clips; repair/replace if stripped or broken

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 8-18 x 1/2 inch.

This support bracket secures an appliance cabinet component or mounting point to restore alignment and reduce movement. It replaces worn or broken supports so panels and internal parts stay properly positioned during normal operation. What it does

• Holds a cabinet panel, frame, or internal component in place to maintain proper alignment.
• Stabilizes mounting points to help reduce vibration, rubbing, or intermittent noise.
• Common replacement when you notice a loose or sagging panel, rattling, or unusual chassis movement.
• Provides a direct mechanical fix—matches the OEM bracket design and fit.

• Disconnect power (and shut off gas supply for gas appliances) before starting any repair.
• Remove necessary panels and fasteners to access the old bracket; keep track of all screws and clips.
• Compare the new bracket to the old part for orientation before installing; secure using the original fasteners—do not overtighten.
