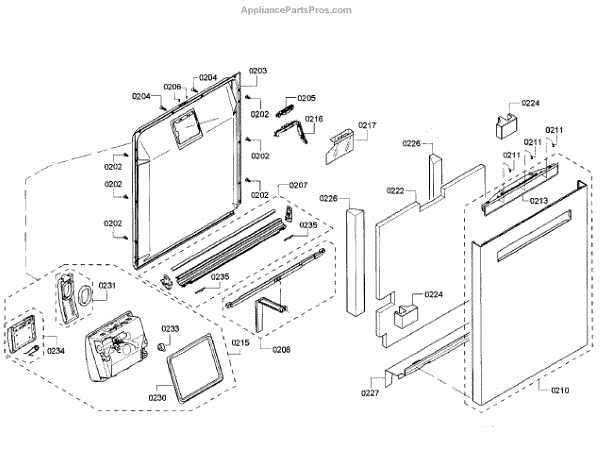

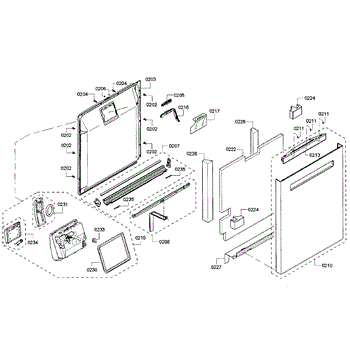

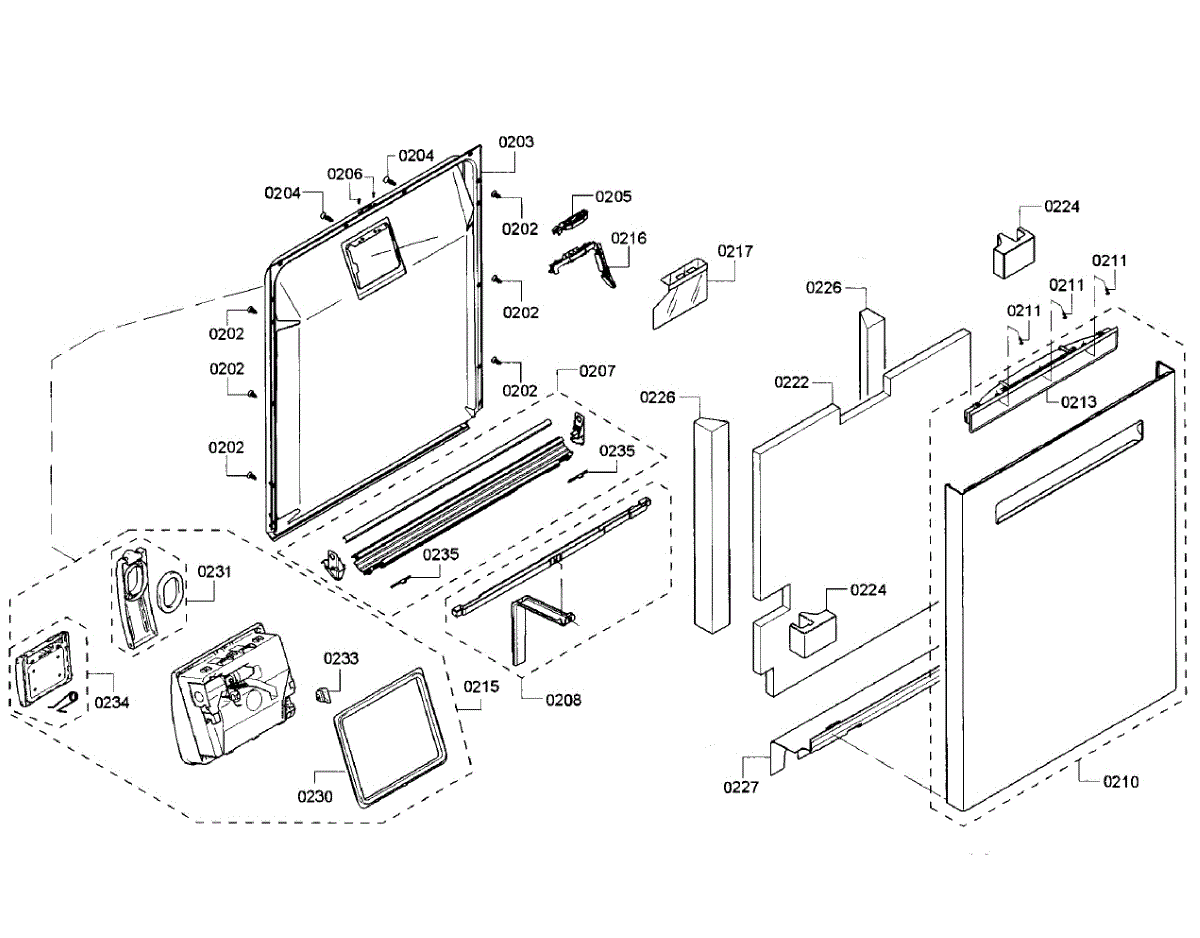

Parts for Bosch SHP7PT55UC/07: Door Section Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Screw Kit (Inner Door) is an OEM part for Bosch dishwashers. It is a comprehensive kit that includes 6 screws required for securing and maintaining the inner door assembly of the dishwasher.

Symptoms of needing a new screw kit:

• Loose or rattling inner door panels
• Inner door components becoming misaligned or detached
• Water leaks or vapor escaping from the inner door area
• Difficulty in opening or closing the dishwasher door smoothly

Causes of a bad screw kit can include missing or stripped screws, corrosion or wear over time, or damage during repair or maintenance work.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwasher models.

This inner door panel forms the inside surface of the dishwasher door. It supports key door components and helps seal the tub, keeping water and heat contained for reliable, quiet operation.

• Provides the structural interior panel of the door
• Mounts the detergent dispenser, latch, and vent components
• Works with the door gasket to contain water and steam
• Typical symptoms include dents/rust, leaks at the door area, or a loose/misaligned dispenser or latch

• Disconnect electrical power and turn off the water supply before starting
• Open the door, support the outer panel, and remove perimeter screws to separate the door halves
• Transfer the dispenser, latch/lock, vent, wiring, and insulation from the old panel to the new one; reuse hardware and seals if in good condition
• Ensure the door gasket seats evenly; after reassembly, run a short test cycle and check for leaks

This replacement screw secures panels, brackets, and internal parts in your appliance for a tight, rattle-free fit. Use it to replace lost, stripped, or corroded hardware and keep components properly fastened.

• Fastens components to the appliance frame or assemblies
• Replaces a missing, stripped, or rusted original screw
• Helps reduce rattling or vibration from loose hardware
• Restores proper alignment of panels or brackets

• Disconnect power and shut off water before servicing
• Refer to your model's parts diagram to locate and place
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening

The Dishwasher Door Lock is an OEM component for Bosch dishwashers. Located internally on the dishwasher door, this locking mechanism securely fastens the door closed during wash cycles.

Causes of a faulty door lock can include wear and tear over time from repeated opening/closing of the door, which strains the locking pins and springs.

Symptoms requiring replacement are:

• The door no longer locks firmly in place during washing
• It unlatches accidentally during active cycles
• Loud rattling noises occur due to loose locking pins

This OEM Bosch part fits additional brand models including Gaggenau, Thermador, and select Kenmore dishwashers.

This factory fastener secures panels, brackets, and internal components in your appliance. Replacing a missing or damaged screw restores a snug fit, reduces vibration and rattles, and keeps assemblies properly aligned during service or reassembly.

• Anchors panels, trim, and internal parts to the appliance frame or subassemblies
• Helps prevent vibration, buzzing, and loose or shifting components
• Ideal replacement for lost, stripped, or corroded hardware
• Common symptoms include loose panels, gaps, rattling noises, or parts that won't stay secured

• Disconnect power and shut off water or gas before servicing
• Match this screw to the original and replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; use the correct driver and do not overtighten
• Inspect the mating clip/insert; replace if stripped or damaged for a secure hold

The Lower Door Seal is an OEM part for Bosch dishwashers. It is installed at the bottom of the dishwasher door to prevent water from leaking out during the washing cycle. This seal ensures that the dishwasher operates efficiently by maintaining a tight closure, keeping water contained within the unit and protecting your kitchen from water damage.

Causes of a bad Lower Door Seal can include general wear and tear, damage from sharp objects, or drying out and cracking due to heat and detergent exposure.

Symptoms of a bad Lower Door Seal include:

• Visible tears or gaps in the seal,
• Water leakage around the dishwasher door,
• Unusual moisture accumulation on the kitchen floor near the dishwasher.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This overflow component directs excess water safely back into the dishwasher's water path to help prevent overfilling and leaks. Replace if damaged to restore correct water management and leak protection.

• Guides overflow water away from the tub into the proper return/drain path
• Helps maintain correct water level during fill
• Can address water collecting in the base pan or leaking from the lower front area
• Useful when the leak protection/float has been tripped or cycles stop due to a detected leak

• Disconnect power and turn off the water supply before servicing
• Access the overflow/water-channel area per your model's service procedure
• Note orientation and transfer any clips or seals from the old part if present
• Reassemble, restore power/water, and run a short cycle to check for leaks

The Outer Door Panel is an OEM part for Bosch dishwashers. It serves as the exterior cover of the dishwasher door, providing protection and contributing to the appliance's overall aesthetic.  Note: Outer door only, the handle is sold separately.
Handle part number 12012913

Causes of a bad outer door panel can include accidental impacts, exposure to harsh cleaning chemicals, or wear and tear over time.

Symptoms of a bad outer door panel include:

• Visible dents or scratches on the panel
• Rust or discoloration
• Loose or misaligned panel
• Difficulty in opening or closing the dishwasher door

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This factory fastener secures panels, brackets, or internal components in your appliance, helping keep assemblies tight and rattle-free. Replace missing or stripped screws to restore a secure fit and dependable operation.

• Fastens components to the appliance frame, chassis, or panel assemblies
• Helps maintain alignment and reduce vibration or rattling
• Replaces lost, rusted, or stripped screws during service
• Common signs it's needed: loose panel or handle, vibration noises, or parts that won't stay secured

• Disconnect power and shut off water or gas before servicing
• Match the screw's location and length to the original from your model
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver type/size specified for your model's screw head

The Door Handle is an OEM replacement part for freestanding dishwashers. Ergonomically designed for comfort and grip, it allows convenient opening and closing of the dishwasher door.

Causes of a bad door handle can include wear and tear from thousands of uses over a decade, exposing the handle's plastic material to damage from hot humidity escaping during cycles.

Symptoms of a bad door handle include:

• Loose or awkward fit that makes operation difficult
• Cracking or breaking of outer plastic casing
• Distortion preventing proper secure latching
• Misalignment causing shutting/opening issues

This genuine Bosch replacement handle is also compatible with Thermador, Gaggenau, and select Kenmore models.

The Detergent Dispenser is an OEM replacement part for Bosch dishwashers. It is located inside the dishwasher and is responsible for properly delivering detergent at the appropriate time during wash cycles. The detergent dispenser has a compartment that holds detergent tablets or pods, and a mechanism that releases the correct amount to efficiently clean dishes.

Causes of a bad dispenser can include clogging or blockage in the dispenser mechanism, damage to the dispenser door or latch, or malfunctioning electronic components that control the dispensing process.

Symptoms of a bad detergent dispenser include:

• Detergent not dispensing or residue left in the dispenser
• Dirty dishes due to insufficient or improper detergent delivery
• Corrosion or buildup inside the dispenser area
• Dispenser door or cover cracked or damaged

This genuine Bosch OEM replacement part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This insulating protection strip shields wiring and nearby components from heat and abrasion, helping maintain safe operation and prevent premature wear. It's a low-profile, heat-resistant sleeve used where wiring passes near hot appliance parts. What it does:

• Provides thermal and abrasion protection for wiring and small components
• Helps prevent shorting or insulation damage from heat exposure
• Reduces wear where wires contact sharp edges or moving parts
• Commonly used when replacing control or harness components near heat sources

• One insulating protection strip/sleeve as shown

• Only install with power disconnected and appliance fully cooled
• Position sleeve fully over exposed wiring or component and secure per OEM routing
• Inspect surrounding wiring and connectors for damage; replace any frayed insulation

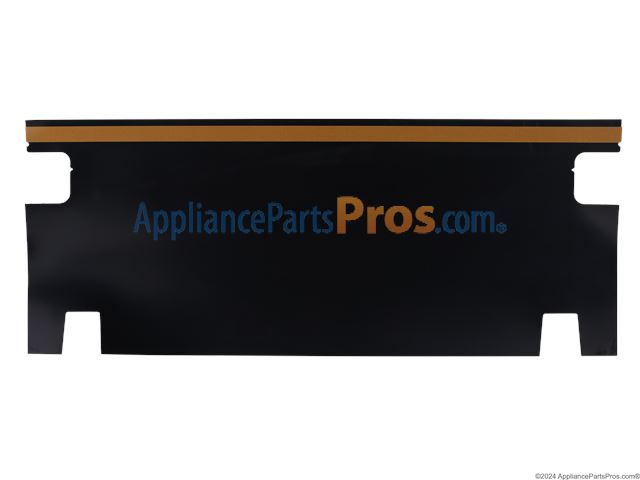

The Insulating Part is an OEM part for Bosch dishwashers. It is located within the bottom interior door panels to insulate this area. Proper insulation helps minimize noise transmission and prevents heat loss through the bottom door.

Causes of a bad insulating part may be normal breakdown over time from repeated door openings and closings or accidental damage from debris or sharp objects left in the bottom door well area.

Symptoms of a bad insulating part include:

• Noticeably warmer bottom door surface after a cycle, indicating heat loss
• Louder noise heard emanating from the lower door area
• More condensation or moisture detected inside lower door panels
• Faster reduction of interior temperatures in lower door area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Detergent Dispenser Seal is an OEM part for Bosch dishwashers. Located inside the detergent dispenser compartment, it creates a water-tight barrier, preventing premature detergent dissolution and leaks. Working seamlessly with the dispenser system, the seal facilitates controlled detergent release for optimum cleaning performance cycle after cycle.

Causes for a bad detergent dispenser seal can include wear and tear from repeated use, deformations due to temperature fluctuations, and cracks or splits from general use.

Symptoms of a bad detergent dispenser seal include:

• Detergent residue or puddles inside the dishwasher
• Premature detergent dissolution before the main wash
• Leaks or drips from the dispenser area when closed
• Ineffective or inconsistent cleaning ability

This genuine Bosch detergent dispenser seal replacement will restore its water-tight barrier. It is also compatible with some Thermador, Siemens, and select Kenmore models.

The Rinse Aid Lid is an OEM part for Bosch dishwashers. It is a component of the rinse aid dispenser system, responsible for covering and sealing the compartment where the rinse aid is stored.

Causes of a bad rinse aid lid may include wear and tear over time, physical impact, or compatibility issues with certain types of rinse aid.

Symptoms of a faulty Rinse Aid Lid include:

• Leaks or drips of rinse aid from the dispenser area
• Improper or inconsistent dispensing of rinse aid during cycles
• The lid not closing or sealing properly
• Visible cracks, warping, or damage to the lid itself

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwasher models.

This temperature sensor (NTC) monitors wash temperature and reports it to the control so the cycle heats and advances correctly. Replacing a faulty sensor can restore proper cleaning performance and normal cycle times. What it does:

• Measures water temperature and sends resistance changes (NTC) to the control
• Helps the control regulate heating and cycle progression
• Failure symptoms can include no/insufficient heat, extended cycles, or poor drying
• May trigger a temperature-sensor fault (e.g., E11 on some models)

• 1 temperature sensor

• Disconnect power and turn off water supply before servicing
• Access is typically at the sump/heat-pump area; remove the toe-kick/lower panel as needed
• Expect some residual water; place a towel or tray to catch drips
• Ensure the sensor seats fully and the seal is in good condition to prevent leaks

This lock clamp secures an appliance component or assembly so it stays properly seated during operation. Replacing a worn or missing clamp helps restore a stable, rattle-free fit and reliable performance. What it does:

• Holds mating parts together to prevent shifting or vibration
• Helps maintain correct alignment of the secured component
• Can resolve issues where a part won't stay attached or seated
• Restore normal operation when the original clamp is broken or missing

• One lock clamp

• Disconnect power (and shut off water/gas if applicable) before servicing
• Note the clamp's original orientation; take a photo to aid reassembly
• Seat the component fully, then engage the clamp securely without over-stressing it
• Reassemble and test for a firm, stable fit before returning the appliance to service
