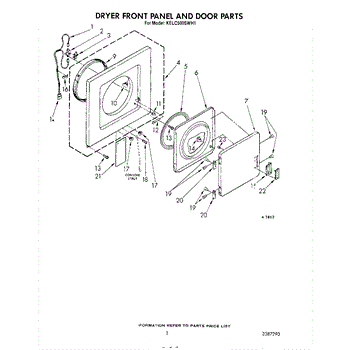

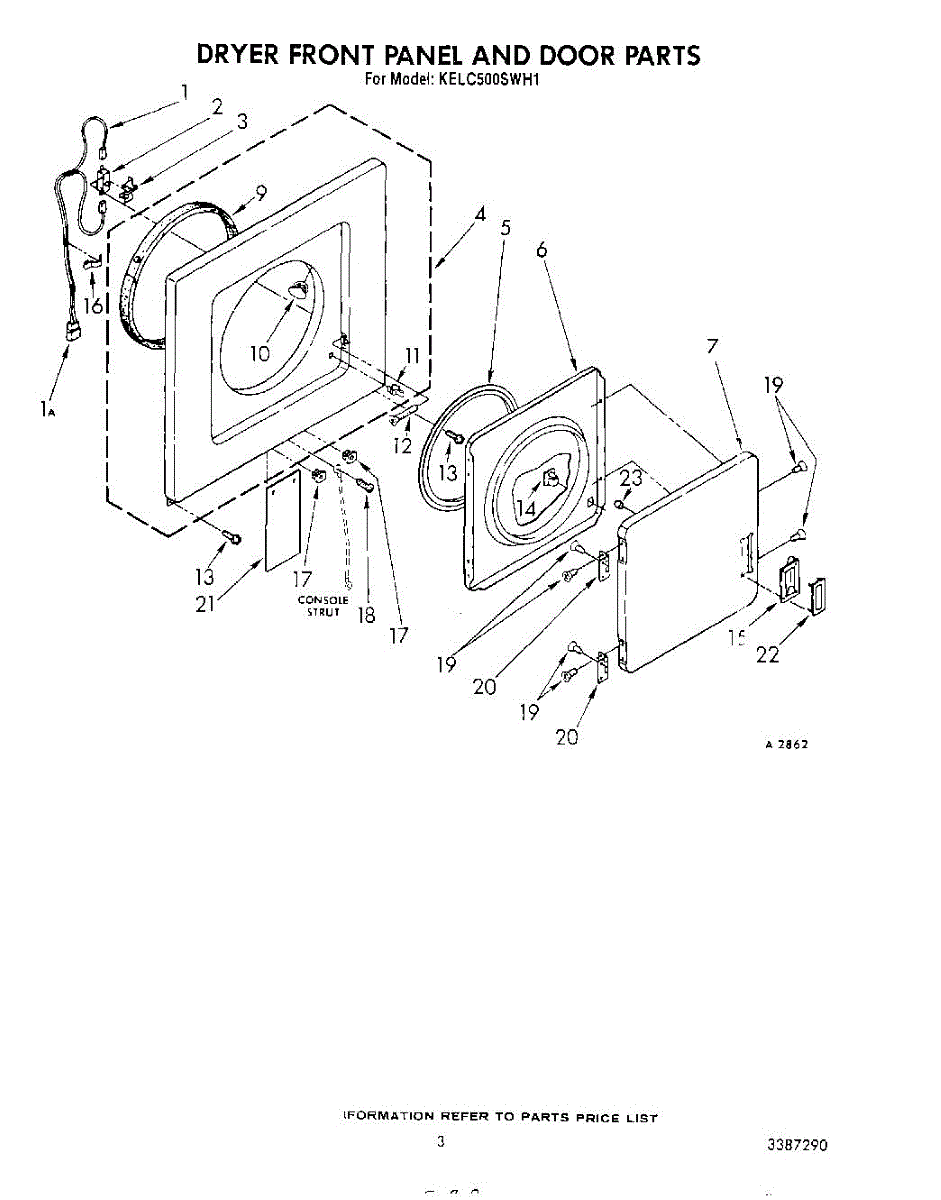

Parts for Kitchenaid KELC500SWH1: 03 - Dryer Front Panel And Door Parts

The Washer Door Switch is an OEM part for Whirlpool washing machines. This component is crucial for ensuring the washer operates safely by detecting whether the door is open or closed. The door switch prevents the washer from starting or continuing its cycle when the door is open, and it allows the machine to function only when the door is securely closed.

Symptoms of a failing Washer Door Switch include:

• The washer not starting or stopping unexpectedly during a cycle
• Error codes related to door closure issues displayed on the washer's control panel
• The washer door not locking properly or the lock mechanism not engaging
• The washer continuing to operate with the door open

Causes of a bad door switch can include wear and tear from frequent use, damage from repeated opening and closing of the door, electrical faults such as short circuits, or physical damage from mishandling or impact.

This OEM Whirlpool part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

The Door Switch Lever is an OEM part for Whirlpool dryers. It plays a vital role in ensuring the dryer only operates when the door is securely closed by engaging with the door switch to signal the door's status.

Causes of a bad door switch lever can include normal wear and tear from repeated use, physical damage from accidental impact, or deformation from heat and humidity inside the dryer. A faulty lever can prevent the dryer from starting or stopping correctly.

Symptoms of a bad door switch lever include:

• Dryer not starting
• Dryer stopping mid-cycle
• Door not latching properly
• The dryer continuing to run with the door open

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement console trim panel restores the appliance's front/control appearance and protects internal controls from spills and dust. It helps keep the control area looking finished while maintaining access to buttons and displays. What it does:

• Replaces a cracked, dented, or faded control-area panel to improve appearance
• Protects buttons, switches and the display opening from debris and moisture
• Keeps the control area properly aligned so buttons and indicators operate cleanly
• Useful when the original panel is damaged but internal electronics are intact

• Disconnect power to the appliance before starting any work
• Remove only the fasteners and trim pieces required to access and replace the panel
• Handle with care to avoid scratching the finished surface during installation

This heat-resistant fiberglass oven door gasket seals the oven cavity perimeter, helping keep heat inside for consistent temperatures and efficient cooking. Replace a worn, frayed, or flattened seal to restore proper door sealing performance. What it does

• Forms a heat-resistant seal around the oven opening to minimize heat loss
• Helps maintain set temperature and overall cooking performance
• Can help address long preheat times, uneven baking, and hot air leaking around the door
• Replace if the gasket is frayed, brittle, compressed, or falling out of its channel

• Includes: 1 fiberglass door gasket

• Disconnect power and allow the oven to cool completely before service
• Remove the old gasket from its mounting slots or clips; clean the channel of debris
• Install the new gasket without stretching; seat it evenly around the perimeter with ends routed as originally positioned
• Close the door and check for uniform contact all around; adjust seating if needed

This outer refrigerator door replaces a damaged or worn exterior door panel so your fridge seals and looks like new. It restores proper closure and helps maintain internal temperature control and appliance appearance. What it does:

• Replaces a damaged, dented or cracked outer refrigerator door panel
• Restores a straight, secure door edge for better sealing and operation
• Helps prevent cold air loss that can cause temperature fluctuations
• Improves appliance appearance by replacing scratched or faded exterior finish

• One outer refrigerator door panel

• Disconnect power and empty the door before starting; remove any screws or hinge covers securing the door
• Lift or support the door while removing hinge fasteners to avoid dropping or damaging the cabinet
• Align hinges and test door swing and seal before tightening all fasteners
• If inner components (bins, trim, gaskets) are attached, they should be properly reinstalled or transferred per manufacturer instructions.

The Front Bearing and Seal Kit is an OEM replacement part for Whirlpool dryers. This kit includes the front bearing and seal for the dryer drum, which work together to provide smooth operation and prevent premature wear.

Causes of a bad front bearing and seal can include regular wear and tear from normal use, heavy loads that place extra strain on the bearings, or debris accumulation causing increased friction.

Symptoms of issues include:

• Noisy or grinding sounds coming from the drum area
• Vibration noticed during the operation
• Difficulty turning or rotating the dryer drum by hand
• Reduced efficiency and longer drying times

This OEM replacement kit is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Includes two bumpers and two locking clips. You will use one or the other depending on hole size.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

Size: 6 - 20 x 1 1/16 inch.

Specs: 10-16 x 1/2 inch.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

10 - 16 x 1/2

This is a replacement side trim screw that secures the refrigerator side trim/finish panel, restoring a snug fit and finished appearance. Designed to match the original factory fit and finish on compatible Whirlpool units. What it does:

• Fastens the side trim/finish panel so the exterior trim sits flush and secure
• Helps stop rattling, shifting, or gaps caused by loose or missing trim screws
• Matches factory color and head style to keep a consistent exterior look
• Small hardware piece used in multiple trim/assembly locations

• One side trim screw (black)

• Use the matching screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can crack trim or strip threads
• Turn power off and remove any nearby panels if needed for safe access
• Replace all to ensure even fit

This hinge pin assembly secures and guides a refrigerator or freezer door, restoring proper alignment and smooth opening. It replaces worn or bent pins so the door closes evenly and reduces rubbing or sagging. What it does:

• Acts as the pivot point for the appliance door, supporting door weight and movement
• Restores correct door alignment to improve sealing and reduce gaps
• Reduces rubbing, scraping, or uneven closing caused by a worn or bent hinge pin
• Helps prevent accelerated wear to door seals and hinge components when functioning properly

• One hinge pin assembly

• Disconnect power and remove food/contents from the door area before starting
• Support the door while removing or installing the hinge to prevent dropping or injury
• Typical installation uses basic hand tools; do not force parts—inspect mating hinge surfaces for damage

This is a genuine lock nut replacement. This is a general piece of hardware that is often used on several types of lawn and garden equipment, including in engines, housing, and other areas. The exact application of this part will vary based on the unit. The lock nut is used to create a more secure seal than a standard nut. When properly secured, the lock nut tightens to a bolt and uses an extra locking washer with teeth to ensure a snug fit.If lock washers do get damaged or lost, they need to be replaced immediately with a genuine OEM replacement. This model is compatible with all types of machines and units since it is a generic part. The washer is sold as an individual part and manufactured by Whirlpool. Lock nuts will need to be installed using a socket wrench or adjustable wrench. Pliers, a screwdriver, or another socket wrench will be needed to hold the bolt while the lock nut is being secured in place. Be sure to thread the lock nut carefully to ensure a strong seal and avoid stripping the bolt or the nut.
