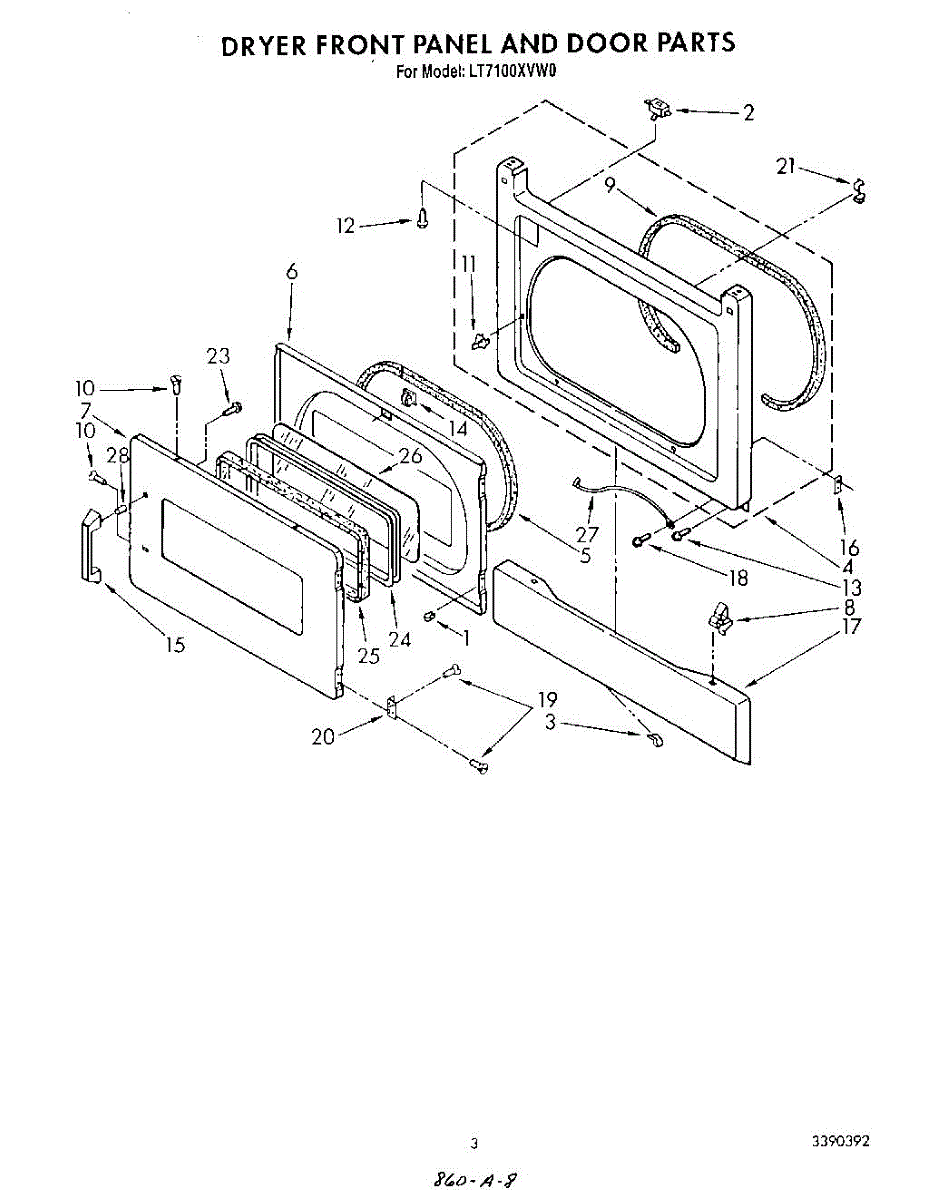

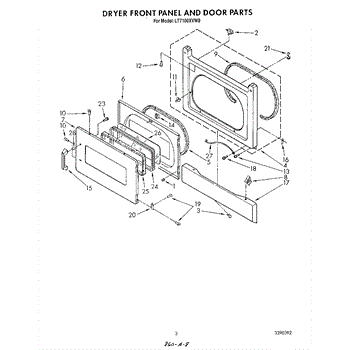

Parts for Whirlpool LT7100XVW0: 03 - Dryer Front Panel And Door Parts

The door switch detects whether the dryer door is open or closed, enabling the motor and heater only when it's safe. Replacing a failed switch restores proper start/stop control and drum light behavior.

• Senses door position and completes or interrupts the dryer's run/heat circuits
• Shuts the dryer off when the door opens for safety
• Common symptoms: dryer won't start with the door closed; doesn't stop when door opens; drum light stays on or won't turn on
• Intermittent operation when the door is moved or pressed

• Disconnect power before servicing; allow components to cool
• Access the switch from the door opening or front panel; remove screws or release locking tabs
• Note wire positions and transfer them one at a time to the new switch
• Verify operation before reassembly: dryer should not run with the door open; drum light should respond

This U-type nut clips over a sheet-metal edge to create a durable threaded anchor for a screw. It helps secure panels, trim, and brackets so fasteners hold tight and components stay aligned and rattle-free. What it does:

• Clips onto thin sheet metal to provide captive threads where a standard nut cannot be used
• Holds screws securely to fasten panels, trim pieces, or mounting brackets
• Addresses issues like loose panels, missing/broken clips, or screws that will not tighten
• Helps reduce vibration and rattling from unsecured components

• 1 U-type nut

• Disconnect power and shut off gas/water before servicing
• Position the U-nut over the panel edge with the threaded side aligned to the hole
• Start the screw by hand to avoid cross-threading; tighten snugly without overtightening
• Replace any damaged or corroded hardware to ensure a secure hold

Vinyl door seal that forms an airtight barrier around the refrigerator or freezer door to help maintain proper temperature and reduce energy loss. Replaces worn gaskets to stop drafts and minimize frost or moisture build-up. What it does:

• Creates a secure, flexible seal around the door to help keep cold air in and warm air out.
• Helps prevent frost, condensation and uneven cooling inside the compartment.
• Commonly replaced when you see visible cracks, tears, gaps, or feel cold air leaking from the door edges.
• Can improve overall temperature consistency and reduce excessive compressor cycling caused by leaks.

• Remove the old gasket and clean the door frame thoroughly before installing the new seal.
• Warm water or a short exposure to gentle heat can soften a stiff gasket to make installation easier; handle carefully.
• Press the seal fully into the channel and check that it seats evenly around the entire door; avoid forcing or trimming unless specified by the OEM.

The Access Panel Spring Retainer is an OEM part for Whirlpool dryers. This part secures the access panel of the dryer, ensuring it stays in place during operation. The spring retainer provides tension and stability, making it easy to open and close the access panel when maintenance or repairs are needed.

Causes of a bad access panel spring retainer can include regular wear and tear, loss of tension, or physical damage.

Symptoms of a bad access panel spring retainer include:

• Access panel not staying securely closed
• Difficulty opening or closing the access panel
• Loose or rattling access panel during dryer operation
• Visible damage or wear on the retainer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Front Panel Seal is an OEM replacement part for Whirlpool dishwashers. Measures 24 inches. This seal is located on the dishwasher's front panel and helps prevent water leaks by creating a watertight barrier during the wash cycle. It ensures efficient operation while protecting your kitchen from potential water damage.

Symptoms of a bad Front Panel Seal include:

• Water leaking from the front of the dishwasher during operation
• Visible wear, cracks, or tears in the seal
• Increased noise or vibration due to improper sealing

Causes of a failing Front Panel Seal can include wear and tear from regular use, exposure to high temperatures and moisture, or improper cleaning methods. A damaged seal can compromise the dishwasher’s efficiency and lead to water leakage.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Sold individually, 2 seals are required on front panel.

This is a replacement side trim screw that secures the refrigerator side trim/finish panel, restoring a snug fit and finished appearance. Designed to match the original factory fit and finish on compatible Whirlpool units. What it does:

• Fastens the side trim/finish panel so the exterior trim sits flush and secure
• Helps stop rattling, shifting, or gaps caused by loose or missing trim screws
• Matches factory color and head style to keep a consistent exterior look
• Small hardware piece used in multiple trim/assembly locations

• One side trim screw (black)

• Use the matching screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can crack trim or strip threads
• Turn power off and remove any nearby panels if needed for safe access
• Replace all to ensure even fit

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

A general-purpose 6-20 screw used to secure panels, brackets and small components on Whirlpool appliances. Replaces stripped or missing fasteners to restore a snug fit and reduce rattling or loose parts. What it does:

• Secures appliance panels, trim, brackets and internal components in original mounting locations.
• Stops panel movement, vibration noise and loose connections caused by missing or corroded screws.
• Fits the OEM 6-20 thread designation used on multiple Whirlpool assembly points.
• Sold individually for spot repairs and small part replacements.

• Disconnect power or gas supply to the appliance before starting any repair.
• Use the correct screwdriver or bit to avoid stripping the head; tighten until snug but do not overtighten.
• Replace like-for-like; stop and verify the correct fastener for the mounting point.
• Check the appliance's parts diagram for the exact screw location and orientation.

Specs: 10-16 x 1/2 inch.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

This white door handle restores a solid, comfortable grip for opening and closing your dryer door. Replace a cracked, loose, or missing handle to keep daily use simple and the door operating as designed.

• Provides the handhold used to open and close the dryer door
• Replaces cracked, broken, loose, or missing handles
• Restores a secure grip and clean appearance
• Symptom clues: handle broken off, difficulty opening the door, sharp or jagged edges

• Disconnect the appliance from power before servicing
• Remove the door and separate inner/outer panels to access the handle's mounting screws or tabs
• Transfer and reuse original mounting hardware; align the new handle and secure
• Reassemble and verify smooth door operation

This door hinge clip secures the hinge assembly to the appliance door so the door stays aligned and opens and closes properly. A small, direct-fit replacement used when the original clip is cracked, broken, or missing. What it does

• Holds the door hinge in position to keep the door aligned and stable
• Prevents the hinge pin or bracket from shifting or coming loose
• Commonly replaced when the clip is cracked, worn, or fails to retain the hinge
• Helps restore normal door movement and reduce sagging or misalignment

• High-level DIY: remove the door/hinge per your model's service instructions before replacing the clip
• Use caution handling the door to avoid injury or damage; support the door while the hinge is disconnected
• Replace only with the exact part number to ensure proper fit and function

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

This factory hinge supports and pivots the appliance door so it opens smoothly and closes square to the cabinet. Replacing a worn or bent hinge restores proper alignment, sealing, and overall door feel.

• Provides the pivot point and carries the door's weight for smooth operation
• Helps keep the door aligned so it closes flush and seals correctly
• Direct replacement for a bent, seized, or excessively worn hinge
• Typical symptoms: door sags or rubs, squeaks/clicks at the hinge, won't close flush or stay closed

• Disconnect power to the appliance before servicing and allow hot surfaces to cool
• Support the door during removal/installation to prevent strain on the remaining hinge
• Transfer any screws, plates, or bushings from the old hinge as shown in your model's diagram
• After installation, check door alignment and gasket contact; adjust per the service instructions if needed
