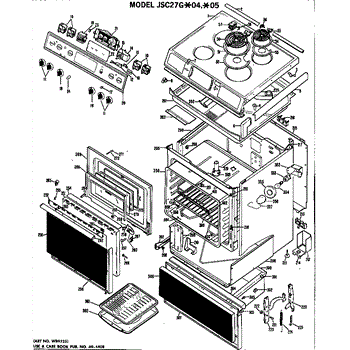

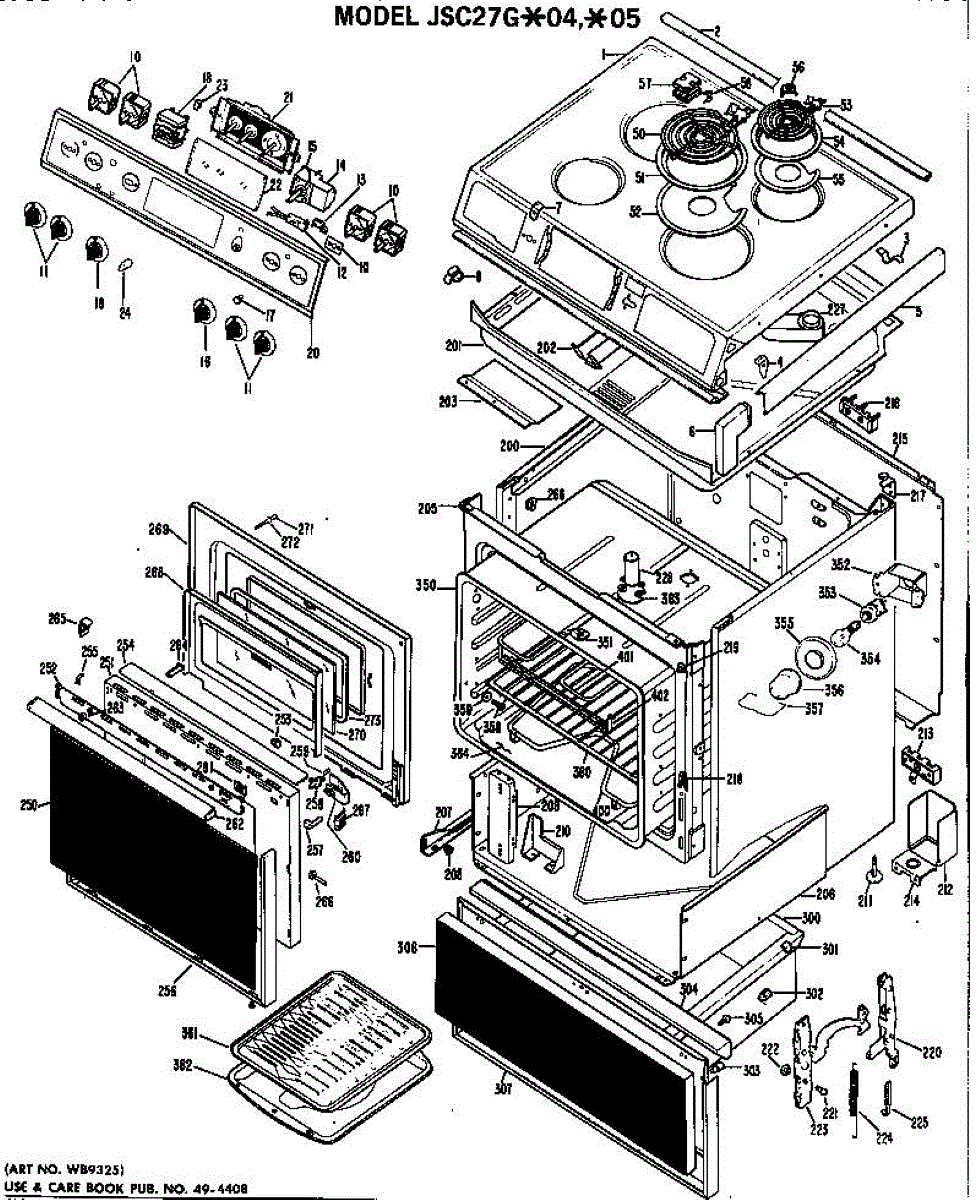

Parts for Ge JSC27G*05: Electric Range Assembly Parts

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Replace your worn, cracked, or missing range control knob. This round knob with splined shaft fits onto the control shaft to restore temperature adjustment.

Decorative lens cover for range control panel indicator lights. Replace when cracked, faded, or missing to restore appearance. Verify fit by model.

Color: Chrome. 3 pack. These range clock knobs are all you need to cover one timer control. For black order WB3X5699.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The 8 Inch Trim Ring is an OEM part for GE ranges and cooktops. It fits around the 8-inch burner elements, providing a clean, finished look while also helping to contain spills and crumbs on the stovetop.

Symptoms of a bad 8 Inch Trim Ring include:

• Misalignment or improper fit around the burner, which can affect cooking performance and cleaning.
• Visible rusting, warping, or deterioration, which can detract from the appearance of the cooktop.
• Loose fitting that may cause the ring to move or rattle during use.

Causes of a bad trim ring can include frequent exposure to high temperatures, spills of acidic or sugary substances that cause corrosion or damage, and general wear and tear from cleaning and use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

If you’re looking to replace all of the trim rings and drip pans:

• 8” Drip Pan - WB32X10013
• 6” Drip Pan - WB32X10012
• 6” Trim Ring - WB31X5013

Replace cracked, rusted, or stained 8-inch drip pans under coil burners on electric ranges and cooktops. Catches spills and protects cooktop surface.

The 6 Inch Trim Ring is an OEM part for GE ranges and cooktops. It fits around the stove's burner, enhancing the appliance's aesthetic while also serving a functional purpose by catching spills and drips. This component helps keep the cooking surface clean and reduces the risk of burns or stains by containing minor spills.

Causes of a bad 6 Inch Trim Ring can include exposure to high temperatures leading to warping or discoloration, accidental damage such as dents or bending from cookware impact, and corrosion from frequent exposure to moisture and cleaning chemicals.

Symptoms of a bad 6 Inch Trim Ring include:

• Loose fit around the burner
• Noticeable rust or corrosion
• Discoloration or uneven surface
• Difficulty cleaning or removing debris from under the ring

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Compatible 6-inch drip pan: WB32X10012. Matching 8-inch drip pan: WB32X10013 and ring: WB31X5014.

This 6-inch drip pan installs under your electric range coil burner to catch spills and boil-overs. Replace when cracked, warped, or excessively worn.

This center trim is the molded bezel that fits the front center of the cooktop/oven control area, restoring a finished look and protecting the control panel edges from heat and grime. What it does:

• Covers and protects the exposed edge of the control panel for a clean appearance
• Hides gaps, chips or discolored trim that make the console look worn
• Helps prevent dirt and grease from getting behind the control assembly
• Restores proper alignment and fit where the original trim is cracked or broken

• Disconnect power to the appliance before starting any repair.
• Typically secures with clips or screws—retain hardware and note orientation when removing old trim.
• Handle edges carefully; replacement may require gentle prying with a trim tool.
• If mounting hardware or support brackets are damaged, replace them separately.

Range won't power on or heats intermittently? A faulty terminal block disrupts electrical connections. This double terminal block restores power flow.

Package of 12

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Right hand side

Left hand side

Includes 12 washers.

This retainer secures the oven door hinges in place and is located at the bottom corners of the oven door frame. Replace if the oven door sags, won't stay closed properly, or if the hinges appear loose or misaligned.

This pad is a small bumper-style cushioning part that protects surfaces, reduces vibration and noise, and prevents metal-on-metal contact in appliance assemblies. It helps maintain quiet, secure operation and prevents cosmetic damage where parts meet. What it does:

• Acts as a cushion between components to absorb shock and reduce rattling or vibration.
• Prevents direct contact and wear between adjacent surfaces or panels.
• Helps keep parts aligned by providing a friction surface that resists shifting.
• Reduces noise caused by vibration or loose-fitting panels.

• One replacement pad.

• Inspect the mounting area and remove any debris or adhesive residue before installing.
• Typically presses or adhesively mounts into place; align carefully to ensure full contact.
• Replace only with the exact part number to ensure fit and function.
• Disconnect power to the appliance or follow model-specific safety precautions before accessing internal panels.

Rubber grommet that cushions and protects range components from vibration and wear. Replace if cracked, torn, or missing to restore proper fit.

Replacement door spacer bushing for electric and gas ranges, ovens, and microwaves. Installs between door and frame to maintain proper alignment.

Includes 12 screws.

8-32 thread screw fastens panels and components inside ranges, ovens, and cooktops. Replace stripped, missing, or damaged screws to secure covers properly.

Replace missing or stripped mounting screws in your washer dryer combo. This 12-pack secures panels, components, and internal parts during assembly or repair.

Replace your oven door gasket when it becomes brittle, cracked, or no longer seals properly. Restores heat containment and energy efficiency. Confirm fit.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

This is a oven rack, and it is made for ranges and ovens. This is a genuine replacement part made by General Electric. There are usually two oven racks in typical ranges or ovens. The oven rack is where dishes or sheet pans are placed so that the food is able to be cooked or baked completely. The oven racks provide a level and sturdy place for dishes.A new oven rack might be needed if the current ones are bend, dented, or broken in any way. Oven racks might become uneven or unlevel overtime and it is common that they might need replacing due to normal wear and tear. Be sure the oven is powered off and cooled down before replacing the oven rack.This is an OEM part sourced directly from the manufacturer. It is sold individually and is compatible with ranges or ovens made by General Electric.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler not heating or glowing red? This broil element restores high-heat broiling from the top of your oven. DIY repair in 15-30 minutes with basic tools.

Package of 12

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damage to the infinite heat switch can include normal wear and tear from frequent use, electrical issues such as short circuits or power surges, and physical damage from cleaning or impact.

Symptoms of a bad Infinite Heat Switch include:

• Burners not heating to the desired temperature, either staying too hot or not getting hot enough.
• The burner not turning on at all, indicating a possible failure in the switch's electrical contacts or circuit.
• Inconsistent cooking temperatures, where the burner cycles on and off too frequently or not often enough, affecting cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
