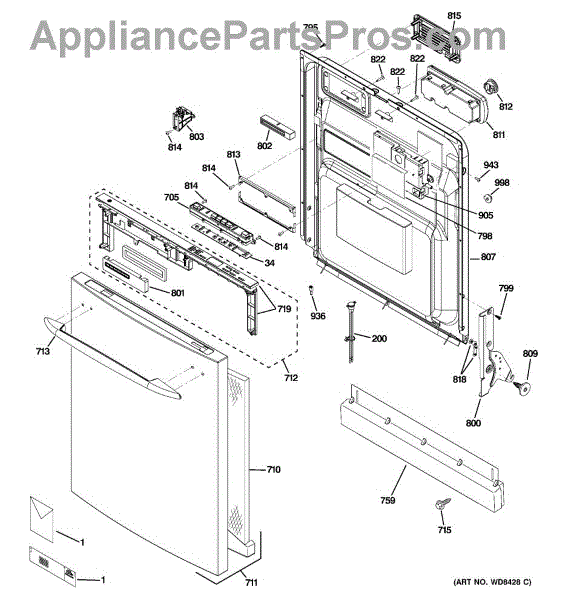

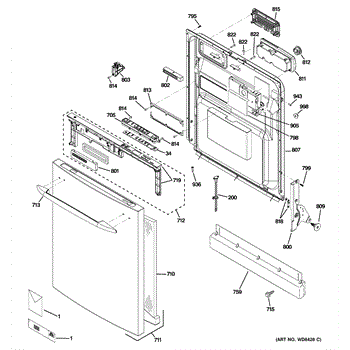

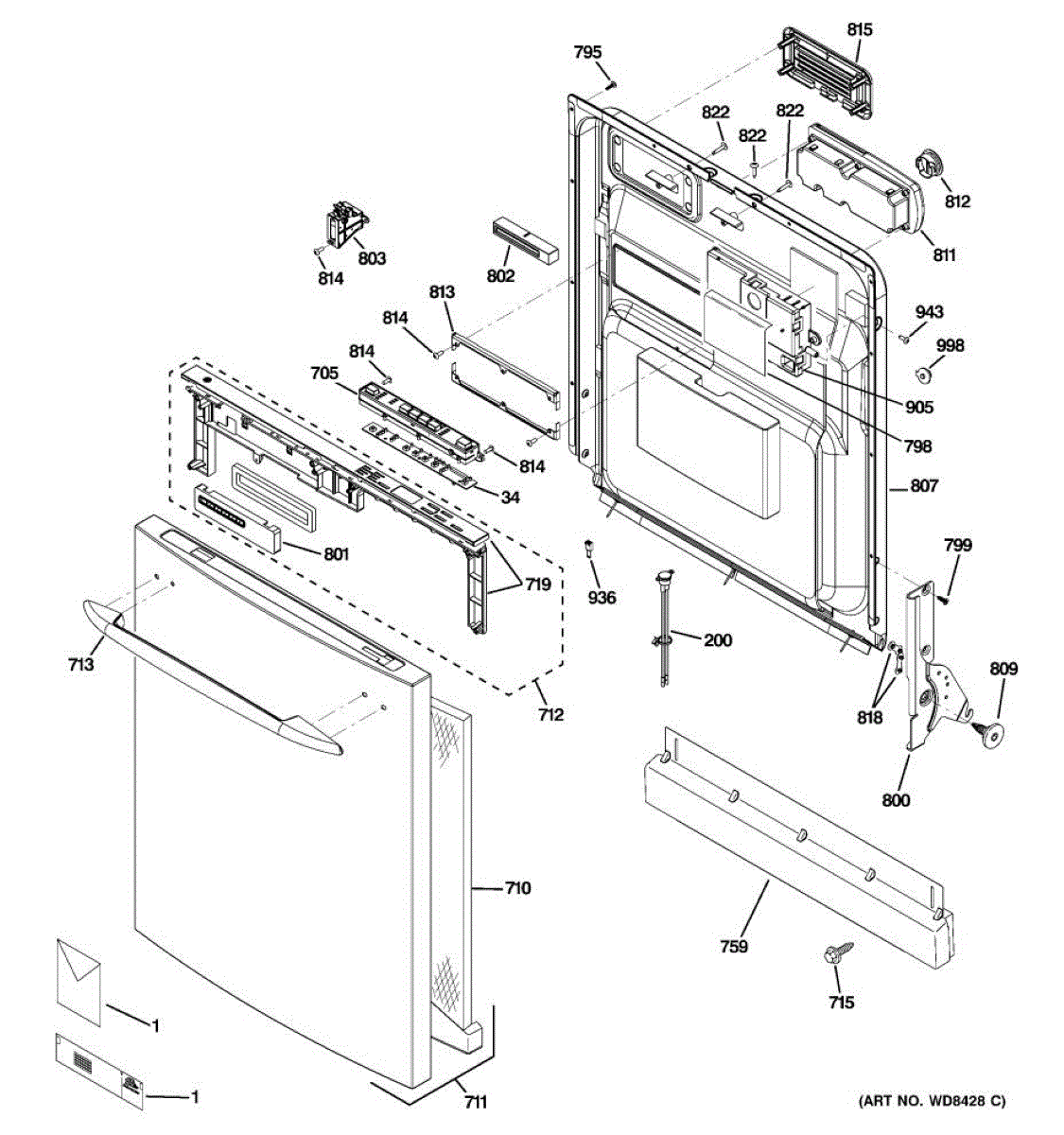

Parts for Ge PDW7800V00CC: 01 - Escutcheon & Door Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Dishes coming out wet or greasy? This high-limit thermostat monitors temperature and controls the heating element. When it fails, water won't heat properly.

Foam insulation block for dishwasher doors. Reduces noise and improves energy efficiency. Replace if cracked, compressed, or missing for proper sound dampening.

This is a white self-tapping screw (size 8-18, 1/2 inch long) used to fasten panels or components within the dishwasher. The white finish helps it blend with light-colored interior or exterior surfaces. Replace this screw if it is stripped, missing, or corroded, which can result in loose or unsecured parts.

Replacement mounting screw for dishwashers. Secures components and panels inside the unit. Order a new screw if yours is stripped, missing, or damaged.

Covers the lower front of your dishwasher to create a finished look. Replace if cracked, broken, or missing to protect the base and prevent debris.

This dishwasher toe kick assembly covers the bottom front area of your dishwasher for a finished appearance. It protects internal components while providing access for maintenance when needed. Replace if the toe kick is damaged, doesn't fit properly, or has become discolored or warped.

Mounting screw for refrigerator interior components like fan brackets, ice maker assemblies, and shelving. Replace if stripped, missing, or corroded.

Replacement 8-32 x 1/4 screw with HXP head for securing dishwasher panels, brackets, and assemblies. Replaces stripped, missing, or damaged screws.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This door latch assembly secures the dishwasher door and contains two interlock switches that signal the control when the door is fully closed. Replacing a worn latch restores consistent door engagement so cycles can start and run correctly.

• Locks the door closed and keeps it from opening during operation
• Houses two micro switches that confirm door-closed status to the control
• Common symptoms: dishwasher won't start, needs pressure on the door to run, stops when jostled, or won't latch securely
• Restores reliable door closure and proper safety interlock function

What's included: 1 door latch assembly with dual micro switches. Installation notes:

• Disconnect power at the breaker before servicing
• Remove inner door panel screws to access the latch area
• Note wire positions on both switches; move connectors to the same terminals on the new assembly
• After installation, verify latch engagement with the door strike and test a short cycle

This hex washer-head screw is used in dishwashers to secure panels, brackets, and other hardware. Replacing a missing or corroded fastener restores a tight, stable installation and helps stop looseness or vibration during cycles.

• Fastens dishwasher panels, brackets, trim, or mounts to the cabinet/frame
• Replaces lost or stripped hardware after service or installation
• Helps address loose or rattling panels and minor misalignment
• Stainless steel construction per OEM spec for moisture-prone environments

• Disconnect power and water supply before servicing the dishwasher
• Wear gloves; sheet metal edges can be sharp
• Start threads by hand to avoid cross-threading; tighten with an appropriate driver
• Do not overtighten, especially when threading into plastic

Detergent door won't stay closed or latch broken? This dishwasher dispenser releases soap and rinse aid during cycles. DIY repair in 20-30 minutes.

Replacement cap that seals the rinse aid dispenser on your dishwasher door. Replace if cracked, broken, warped from heat, or missing to prevent leaks.

This mounting bracket secures the dishwasher rinse module/dispenser assembly so the dispenser stays properly positioned for reliable rinse-aid delivery. A correctly seated bracket helps prevent dispenser misalignment and related rinse-aid issues. What it does:

• Holds the rinse module/dispenser firmly in place inside the dishwasher tub or door
• Keeps the dispenser aligned so rinse aid can be released as designed
• Helps prevent dispenser rattling, shifting, or partial seating during cycles
• Can reduce symptoms like poor rinsing, visible spots, or uneven rinse-aid release

• Disconnect power to the appliance before starting any work for safety
• Basic hand tools (screwdriver, nut driver) are typically needed; follow OEM instructions
• Align the bracket and secure fasteners without over-tightening to avoid damage

The GE screw is an OEM replacement part responsible for securing various components and parts of the dishwasher together. The screw is designed to provide a tight and secure connection for different panels, brackets, or other elements within the dishwasher. It plays a crucial role in maintaining the structural integrity of the appliance by preventing loose parts.

Common causes of a bad screw can include regular wear and tear from frequent use, exposure to moisture leading to corrosion, or damage from over-tightening. A compromised screw can result in loose or unstable components, which can affect the dishwasher's performance and safety.

Symptoms of a bad screw include:

• Loose or wobbly components within the dishwasher
• Difficulty in securing parts properly
• Visible rust or corrosion on the screw
• The screw head being stripped or damaged

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Fix moisture buildup or poor drying with this dishwasher exhaust vent. Channels hot air away from the tub to improve drying performance. Direct-fit part.

The Hinge Arm Link is an OEM part for GE dishwashers. This component functions as a connection point between the dishwasher door and the hinge mechanism, allowing the door to open and close smoothly. The hinge arm link ensures that the door can bear the weight of itself, often laden with a mounted dish rack when fully loaded, without straining the hinges or misaligning.

Causes of damage to the hinge arm link often involve regular wear and tear from the constant motion of opening and closing the dishwasher door.

Symptoms of a bad Hinge Arm Link include:

• Difficulty opening or closing the dishwasher door
• A door that won't stay closed or opens unexpectedly
• Visible wear or damage to the hinge arm link, such as bending, breaking, or severe wear marks

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement mounting screw for dishwashers. Secures internal components, panels, and brackets. Needed when original screws are stripped, missing, or lost.

Fix unresponsive buttons or frozen LEDs on your dishwasher. This tactile control assembly restores keypad function. DIY-friendly repair takes 15-45 minutes.

Includes 12 screws.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
