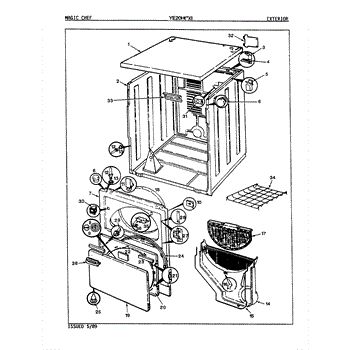

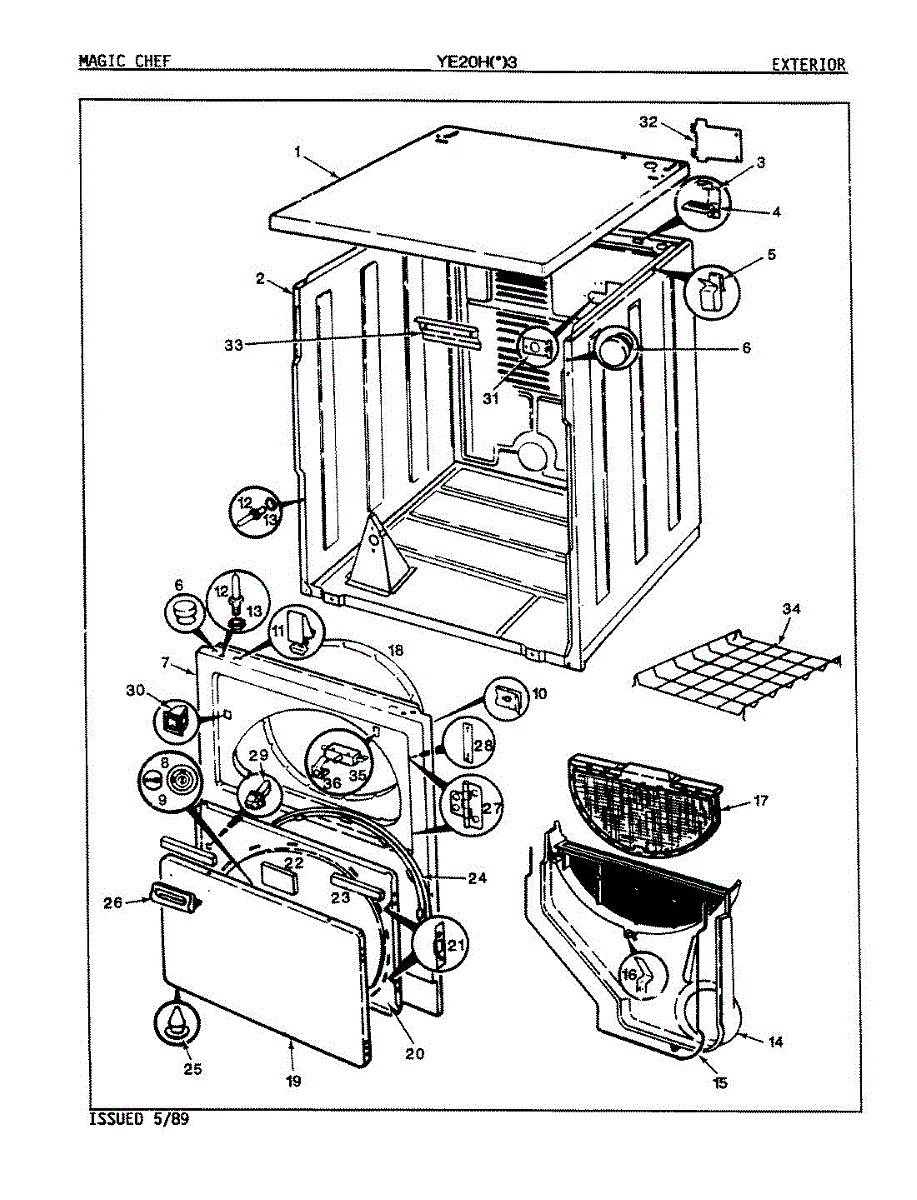

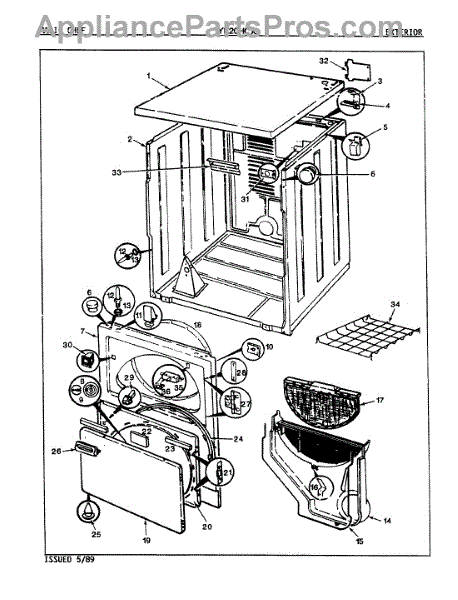

Parts for Magic Chef YE20HA3: 07 - Exterior (Rev. E-F) Parts

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This part has been discontinued by the manufacturer and is no longer available.

Size: 8 x 1/2 ab.

This cabinet top clip is a small plastic retainer that secures the appliance's top/cabinet to the chassis, keeping the cabinet aligned and preventing movement or rattling. It restores a flush fit between the cabinet and body. What it does:

• Secures the top/cabinet panel to the appliance frame so the cabinet stays in place
• Prevents the cabinet from shifting, vibrating, or sitting unevenly
• Helps stop gaps that can let dirt or moisture into cabinet seams
• Common symptom: loose, rattling, or misaligned cabinet top or trim

• One cabinet top clip

• Always disconnect power before servicing the appliance
• Remove necessary trim or panels to access the cabinet clip; a screwdriver or trim tool may be needed
• Replace broken or worn clips with matching parts only; inspect surrounding fasteners for damage

Size: 10-32

Size: 10-32

This is a small replacement screw used to fasten appliance panels and internal components, restoring secure connections and reducing rattles or loose parts. Ideal when original screws are missing or damaged. What it does:

• Secures access panels, mounting brackets, or internal assemblies to prevent vibration and movement
• Helps maintain electrical and mechanical connections by keeping components properly aligned
• Common fix for loose control panels, trim pieces, or internal module attachments

• One replacement screw as shown

• Use the matching driver (Phillips, hex, or Torx) and hand-start the screw to avoid cross-threading
• Tighten until snug; do not over-torque to prevent stripping or cracking surrounding material
• Disconnect power to the appliance before accessing internal parts to avoid injury
• If the original screw is corroded or broken, replace with the same type and length for best fit

This genuine replacement screw secures appliance panels and trim so covers, consoles, and components stay firmly in place for safe, quiet operation. It replaces worn or missing fasteners to restore proper fit and reduce vibration and rattling. What it does:

• Secures control panels, trim pieces, or access panels to the appliance frame
• Keeps panels aligned to prevent gaps and light leaks
• Reduces vibration-related noise from loose panels or components
• Helps maintain safe operation by keeping covers and guards properly attached

• The replacement screw shown/listed

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or driver bit to avoid stripping the head
• Start the screw by hand to ensure proper thread engagement, then tighten securely but do not overtighten

Replace a damaged collector duct to restore proper ventilation airflow. This kit channels air from the appliance's intake to the exhaust path, helping reduce leaks, noise, and recirculation for consistent capture performance.

• Directs airflow from the intake/collector to the exhaust duct path
• Helps maintain proper airflow and capture efficiency
• Provides a sealed transition to minimize air leaks and recirculation
• Common symptoms: poor vent suction, smoke/steam lingering, rattling vibrations, visible damage or gaps

• Disconnect power at the breaker; shut off gas before servicing
• Wear cut-resistant gloves—sheet-metal edges can be sharp
• Note airflow orientation and gasket locations; dry-fit before fastening
• Seal joints with UL-listed foil HVAC tape; do not use cloth duct tape

The Lint Screen is an OEM part for Whirlpool dryers. It is designed to trap lint and debris from the drying clothes, preventing these materials from clogging the dryer vent and ensuring efficient airflow.

Causes of a bad lint screen can include wear and tear over time, damage from improper cleaning methods, or the accumulation of lint and debris that is difficult to remove. The mesh can become torn or the frame can crack, which reduces its effectiveness.

Symptoms of a bad lint screen include:

• Excess lint on clothes after drying
• Longer drying times
• Overheating of the dryer
• Lint buildup in the dryer vent system

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Seal assembly replaces the washer's front tub seal to prevent water from leaking around the cylinder, helping stop puddles under the machine and protecting internal components from water exposure. What it does:

• Forms a watertight seal between the front of the tub/cylinder and the outer housing.
• Helps stop leaks that occur during fill, wash, or spin cycles; replacement commonly resolves visible water at the front/base of the washer.
• Use when the seal shows cracks, tears, hardening, or other visible damage.
• Replacement restores proper sealing to help protect bearings and electronics from water intrusion.

• Disconnect power and turn off the water supply before servicing.
• Replacement typically requires front access and partial disassembly of the tub/cabinet; follow the manufacturer service manual and use appropriate tools.
• Clean and inspect the mating surfaces and the shaft for wear or contamination before installing the new seal.
• If you find bearing noise, oil residue, or extensive corrosion, consider replacing affected components.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This door seal replaces a worn or damaged gasket around the oven door, creating a tight barrier between the door and the front frame. A fresh seal helps the appliance heat efficiently and maintain steady cooking temperatures. What it does:

• Seals the gap between the door and oven frame to minimize heat loss
• Helps the oven preheat faster and hold set temperatures more consistently
• Replace if the gasket is torn, brittle, flattened, or frayed
• Common signs include heat escaping around the door edge and longer cook times

• 1 door seal

• Disconnect power and allow the oven to cool completely before beginning
• Open the door and carefully remove the old seal, noting its routing and attachment points
• Clean the mating surface to remove debris for a proper seal
• Install the new seal evenly without stretching; ensure all ends and anchors are fully seated

This push-in plug button is a small replacement cap that covers and seals an unused opening or socket on compatible appliances, keeping the area clean and helping prevent debris and moisture entry. What it does:

• Covers an unused plug hole or access port to block dust, dirt, and moisture.
• Provides a finished appearance by hiding raw openings in panels or control housings.
• Helps keep internal components protected from contaminants that can affect operation.
• Snaps into place for a secure fit without adhesives.

• Disconnect power to the appliance before accessing panels or openings.
• Typically installs by pressing into the opening until it snaps flush; no special tools required.
• Verify correct fit and orientation before final reassembly.
• If panel damage is present or the button does not seat securely, inspect mating opening or surrounding clips.

This genuine replacement screw secures appliance panels and trim so covers, consoles, and components stay firmly in place for safe, quiet operation. It replaces worn or missing fasteners to restore proper fit and reduce vibration and rattling. What it does:

• Secures control panels, trim pieces, or access panels to the appliance frame
• Keeps panels aligned to prevent gaps and light leaks
• Reduces vibration-related noise from loose panels or components
• Helps maintain safe operation by keeping covers and guards properly attached

• The replacement screw shown/listed

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or driver bit to avoid stripping the head
• Start the screw by hand to ensure proper thread engagement, then tighten securely but do not overtighten

The Door Catch Kit is an OEM part for Whirlpool dryers. It includes the door catch and the necessary mounting hardware to secure it in place. This kit ensures the dryer door remains securely closed during operation, preventing heat loss and ensuring the appliance functions efficiently.

Causes of a bad door catch include regular wear and tear, physical damage, or misalignment of the door, which can impact the catch's ability to latch properly.

Symptoms of a bad door catch include:

• The dryer door not staying closed
• Difficulty latching the door shut
• The dryer stopping mid-cycle due to the door opening

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Catch Kit is an OEM part for Whirlpool dryers. It includes the door catch and the necessary mounting hardware to secure it in place. This kit ensures the dryer door remains securely closed during operation, preventing heat loss and ensuring the appliance functions efficiently.

Causes of a bad door catch include regular wear and tear, physical damage, or misalignment of the door, which can impact the catch's ability to latch properly.

Symptoms of a bad door catch include:

• The dryer door not staying closed
• Difficulty latching the door shut
• The dryer stopping mid-cycle due to the door opening

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Catch Kit is an OEM part for Whirlpool dryers. It includes the door catch and the necessary mounting hardware to secure it in place. This kit ensures the dryer door remains securely closed during operation, preventing heat loss and ensuring the appliance functions efficiently.

Causes of a bad door catch include regular wear and tear, physical damage, or misalignment of the door, which can impact the catch's ability to latch properly.

Symptoms of a bad door catch include:

• The dryer door not staying closed
• Difficulty latching the door shut
• The dryer stopping mid-cycle due to the door opening

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

Kit includes door switch and mounting clip. For the switch only order WP53-0148.

This is the door switch only. For the door switch including the mounting clip order LA-1005.

This switch retainer clip secures a small appliance switch in place so the switch stays aligned and operates correctly. It helps maintain reliable switch contact for normal door or control functions. What it does:

• Holds the door/control switch securely to prevent movement or misalignment
• Helps ensure consistent on/off contact for the related switch
• Can prevent intermittent operation or failure caused by a loose switch
• Small plastic/metal retainer designed for exact OEM fit in the switch assembly

• Disconnect power to the appliance before servicing to avoid electric shock
• Typically installs by snapping or sliding onto the switch or bracket; no special tools usually required
• Inspect surrounding switch and wiring for damage; replace if wiring or switch is compromised
