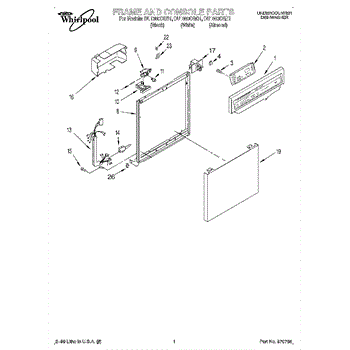

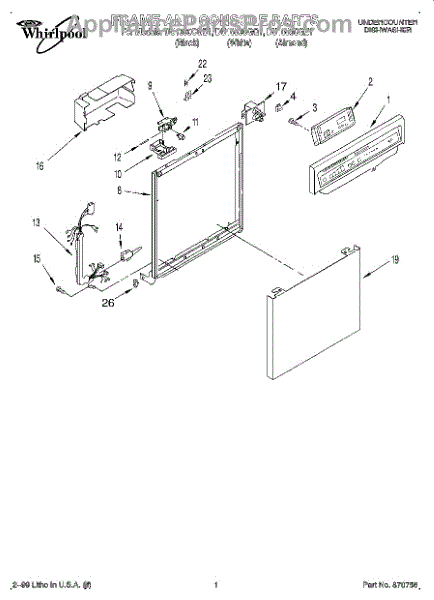

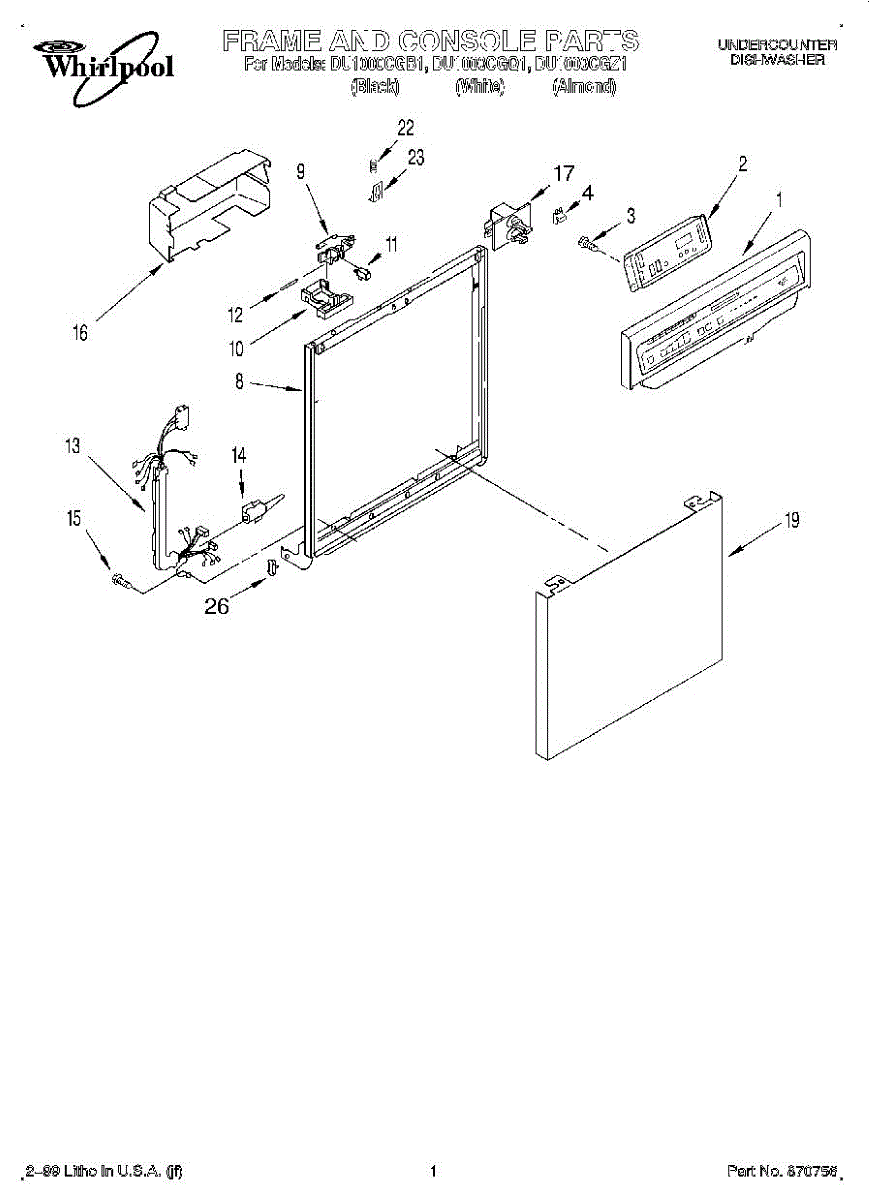

Parts for Whirlpool DU1000CGB1: 01 - Frame And Console Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Note: If no display on the control panel, check the thermal fuse on board first before ordering this part.

Size: 8-18 x 1/2 inch.

The Thermal Fuse is an OEM part for Whirlpool dishwashers. It serves as a crucial safety component that prevents the appliance from overheating by cutting off electrical power if the temperature inside the dishwasher becomes too high. This helps protect both the dishwasher and your home from potential fire hazards.

Causes of a bad thermal fuse can include overheating due to blocked air vents, malfunctioning components that lead to excessive heat, or electrical surges that damage the fuse. Over time, regular wear and tear can also contribute to the fuse's failure.

Symptoms of a bad thermal fuse include:

• The dishwasher not starting or running
• The control panel not responding
• The dishwasher stopping unexpectedly mid-cycle
• No indicator lights or sounds when attempting to operate the dishwasher

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Structural door frame for dishwashers. Mounts to the tub and supports the door panel. Replace if cracked, rusted, warped, or damaged from corrosion.

Color: Black. For almond use WP3369457. For biscuit use 3375062. White is no longer available.

The Latch Switch Kit, an OEM Replacement Part is designed to ensure the safe operation of your Whirlpool dishwasher. The kit includes two microswitches and a wiring harness. It prevents the appliance from running when the door is open. If defective, the door switch may prevent the dishwasher from operating even when the door is closed.

Causes of a bad door switch can include wear and tear, exposure to moisture, or a broken actuator.

Symptoms of a bad door switch include:

• Dishwasher not starting
• Dishwasher stopping mid-cycle
• Error codes related to door issues
• Dishwasher running with the door open

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Wire harness elbow connector for dishwashers. Replaces damaged, cracked, or broken electrical connectors that route power between components.

Size: 8-32 x 1/4 inch.

Timer control cover.

The dispenser actuator is a dual-motor mechanism that controls the automatic release of detergent and rinse aid during wash cycles. This component opens and closes dispenser compartments at the proper times during the dishwashing process. Replace it when detergent doesn't dispense properly, compartments don't open, or you hear clicking noises from the dispenser area.

Color: White. For almond use WP8054178. For biscuit use WP8054178. For black use WP3379375.

Color: Bisque. For almond use WP8054178. For white use WP3379376. For black use WP3379375.

Color: Black. For almond use WP8054178. For white use WP3379376. For bisque use WP8054178.

This door catch and strike work together to keep the door securely closed and engage the safety interlock switch. Replacing worn pieces restores a firm latch and reliable operation when the door is properly shut.

• Aligns and engages the latch so the door stays closed during operation
• Activates the door switch so cycles can start
• Helps prevent the door from popping open mid-cycle
• Common symptoms: door won't latch without force, unit won't start, visible wear or a bent strike

• Disconnect power to the appliance before servicing
• Open the door and remove mounting fasteners to swap the catch and strike
• Adjust strike alignment/depth so the latch engages fully and the door sits flush
• Restore power and test for smooth closing and proper cycle start

This door catch and strike work together to keep the door securely closed and engage the safety interlock switch. Replacing worn pieces restores a firm latch and reliable operation when the door is properly shut.

• Aligns and engages the latch so the door stays closed during operation
• Activates the door switch so cycles can start
• Helps prevent the door from popping open mid-cycle
• Common symptoms: door won't latch without force, unit won't start, visible wear or a bent strike

• Disconnect power to the appliance before servicing
• Open the door and remove mounting fasteners to swap the catch and strike
• Adjust strike alignment/depth so the latch engages fully and the door sits flush
• Restore power and test for smooth closing and proper cycle start

Provides pivot point for dishwasher door spring to reduce wear. Replace if door drops, slams, or balance is off. Confirm fit with your model number.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Color: White.

Color: Almond.

Instruction sheet included. This is a heavy duty spring kit used for heavy doors. Kit includes 2 springs.

Color: Blue. Includes 125 caps used to cover damaged tips on your dishracks. For white order 675679. For gray order 676458. To attach these tine tips you will need to order the dishrack blue touch-up paint W10840471.

Color: White. Size: 13 oz. Spray paint primer. can.

Touch-up paint for repairing chipped, scratched, or rusted dishwasher racks. Brush-on formula restores appearance where coating is worn or missing.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: White. Includes 125 caps used to cover damaged tips on your dishracks. For blue order 12022. For grey order 676458. To attach these tine tips you will need to order the dishrack white touch-up paint WP676453.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

Color: White. 4oz bottle with brush used for touching up damage to your dishracks. For blue use W10840471. For grey use WP676455. For tips use 675679

Grey vinyl touch-up paint for repairing chipped, rusted, or damaged dishwasher rack coating. 4oz bottle with brush. Restores protective coating.

Gray protective caps cover damaged or rusting dishwasher rack tine tips. 125-pack slides over worn tine ends to restore your dishrack and protect dishes.

High-temperature adhesive secures gaskets, seals, and feet in hot zones. Replace when parts loosen or seals fail. Confirm fit with your model number.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
