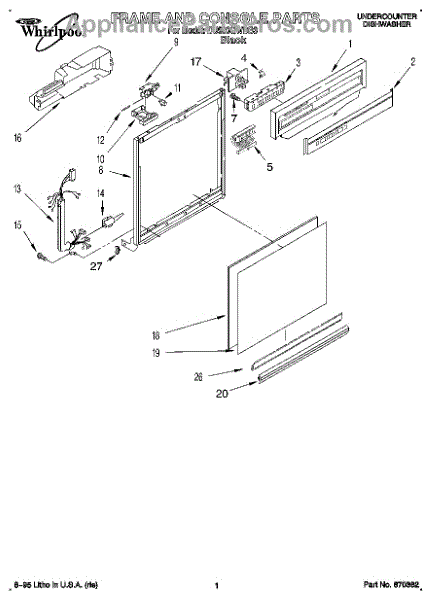

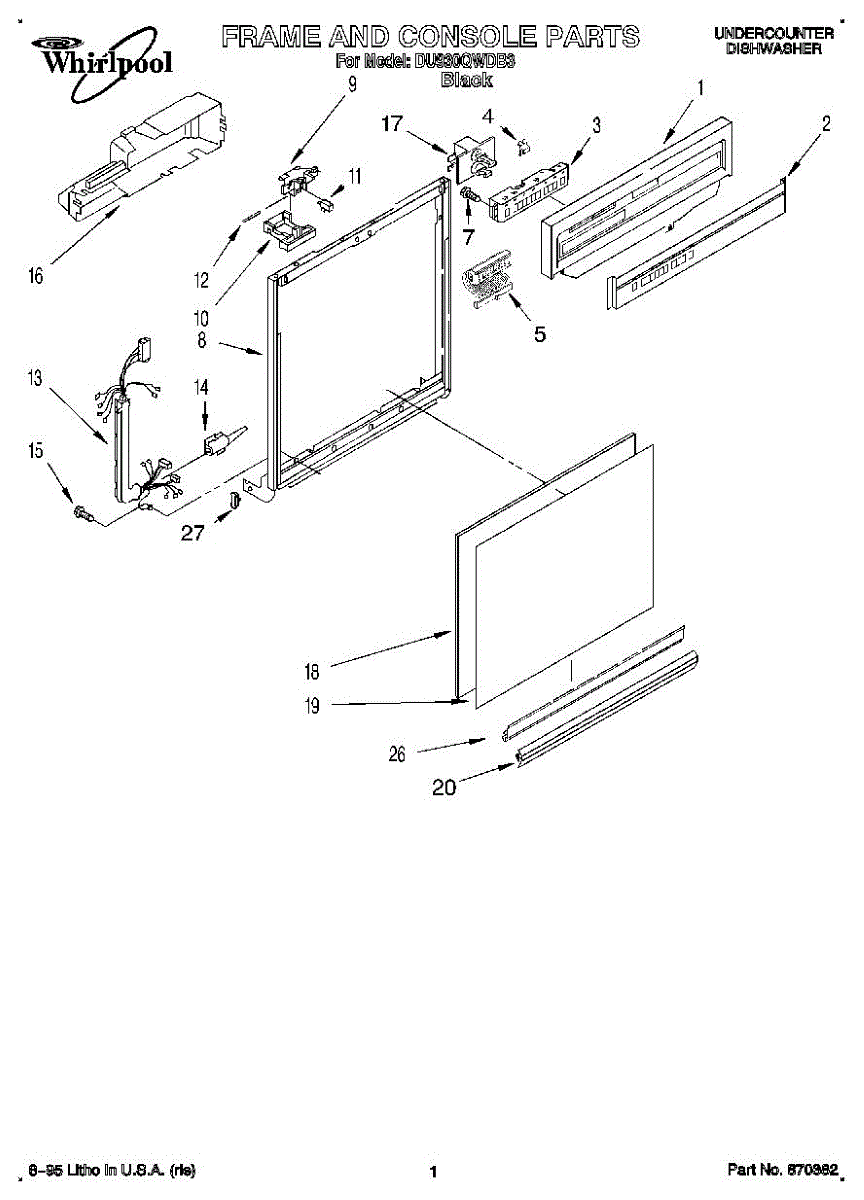

Parts for Whirlpool DU930QWDB3: 01 - Frame And Console Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Electronic control assembly. Fuse not included. To order fuse use 675796.

The Thermal Fuse is an OEM part for Whirlpool dishwashers. It serves as a crucial safety component that prevents the appliance from overheating by cutting off electrical power if the temperature inside the dishwasher becomes too high. This helps protect both the dishwasher and your home from potential fire hazards.

Causes of a bad thermal fuse can include overheating due to blocked air vents, malfunctioning components that lead to excessive heat, or electrical surges that damage the fuse. Over time, regular wear and tear can also contribute to the fuse's failure.

Symptoms of a bad thermal fuse include:

• The dishwasher not starting or running
• The control panel not responding
• The dishwasher stopping unexpectedly mid-cycle
• No indicator lights or sounds when attempting to operate the dishwasher

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8-18 x 1/2 inch.

Black dishwasher door frame trim that surrounds the interior door opening. Replaces cracked, broken, or discolored trim pieces. Direct fit installation.

The Latch Bolt is an OEM replacement part for Whirlpool dishwashers. This component is essential for securing the dishwasher door during operation, ensuring that it remains tightly closed to prevent water leaks and allow the dishwasher to run properly. The latch bolt engages with the door latch assembly, creating a secure seal.

Causes of a bad latch bolt can include regular wear and tear, damage from forceful closing of the dishwasher door, or misalignment that affects the latch's engagement.

Symptoms of a bad Latch Bolt include:

• The dishwasher door not staying closed
• Water leaking from the door during operation
• Difficulty in latching or unlatching the door
• The dishwasher not starting because it detects an open door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

For black lever order WP3369457. For white use WP3369457. For biscuit use 3375062

Color: Black. For almond use WP3369457. For biscuit use 3375062. White is no longer available.

The Latch Switch Kit, an OEM Replacement Part is designed to ensure the safe operation of your Whirlpool dishwasher. The kit includes two microswitches and a wiring harness. It prevents the appliance from running when the door is open. If defective, the door switch may prevent the dishwasher from operating even when the door is closed.

Causes of a bad door switch can include wear and tear, exposure to moisture, or a broken actuator.

Symptoms of a bad door switch include:

• Dishwasher not starting
• Dishwasher stopping mid-cycle
• Error codes related to door issues
• Dishwasher running with the door open

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Wire harness elbow connector for dishwashers. Replaces damaged, cracked, or broken electrical connectors that route power between components.

Size: 8-32 x 1/4 inch.

Wax motor for dispenser.

Reversible dishwasher door panel insert in black and white. Replaces dented, rusted, or worn door panels to refresh your dishwasher's appearance.

Color: Black. Other colors: For white use 3374011, for almond use 3374012.

This channel retainer secures the appliance's front/side panel to the cabinet so panels stay aligned and stable during use. It replaces a worn or broken retainer to reduce panel movement and rattling. What it does:

• Holds the panel channel in place to keep exterior panels aligned
• Prevents panel looseness, shifting, and vibration noise during operation
• Restores proper fit where a cracked or broken retainer allowed gaps
• Works as a direct-fit replacement for the OEM channel retainer

• One channel retainer as shown

• Inspect surrounding clips and screws; replace any damaged fasteners for best fit
• Use basic hand tools; avoid over-tightening fasteners which can crack plastic retainers
• Disconnect power (or unplug) the appliance before accessing panels

Provides pivot point for dishwasher door spring to reduce wear. Replace if door drops, slams, or balance is off. Confirm fit with your model number.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
