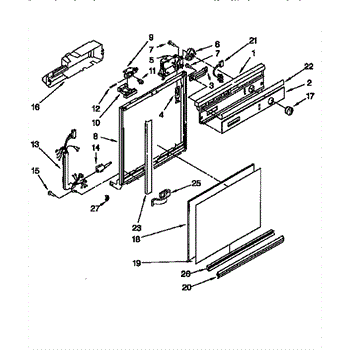

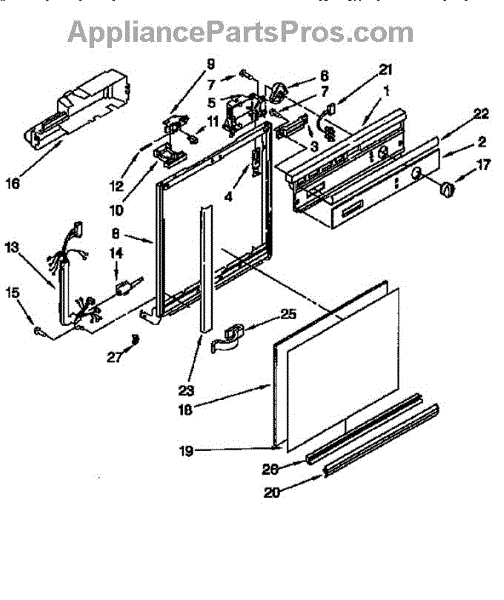

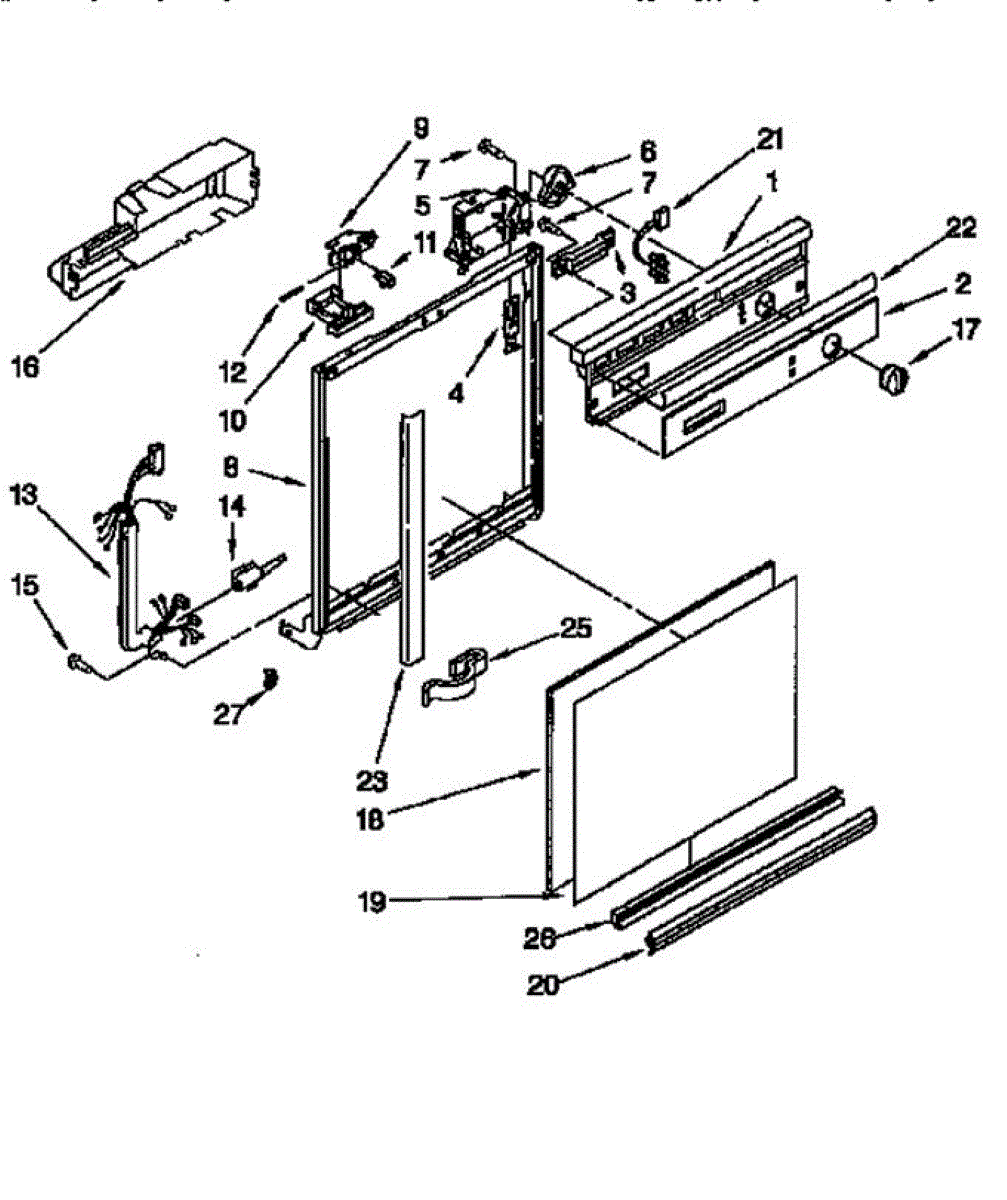

Parts for Whirlpool DU9800XB0: Frame And Console Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This part has been discontinued and is no longer available.

This premium dispenser cam engages the dispenser mechanism to control door/lever movement and ensure reliable dispense actions. It replaces a worn cam to restore proper dispenser function and consistent operation. What it does:

• Rotates and times the dispenser lever/door so the dispenser opens and closes correctly
• Transfers motion from the actuator to the dispenser linkage or switch
• Commonly used when the dispenser lever feels loose, doesn't return, or dispensing is intermittent
• Helps stop unwanted continuous dispensing caused by a worn cam surface

• Disconnect power (and water supply if applicable) before starting work
• Access the dispenser assembly; removal of the dispenser bezel or control housing may be required
• Handle small plastic parts carefully to avoid breaking tabs; align cam on shaft before reassembly
• Test dispenser operation after reassembly to ensure correct movement and sealing

Size: 8-18 x 1/2 inch.

Color: Black. For white use 3374712. For almond use 3374713

The Latch Bolt is an OEM replacement part for Whirlpool dishwashers. This component is essential for securing the dishwasher door during operation, ensuring that it remains tightly closed to prevent water leaks and allow the dishwasher to run properly. The latch bolt engages with the door latch assembly, creating a secure seal.

Causes of a bad latch bolt can include regular wear and tear, damage from forceful closing of the dishwasher door, or misalignment that affects the latch's engagement.

Symptoms of a bad Latch Bolt include:

• The dishwasher door not staying closed
• Water leaking from the door during operation
• Difficulty in latching or unlatching the door
• The dishwasher not starting because it detects an open door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

For black lever order WP3369457. For white use WP3369457. For biscuit use 3375062

This is a replacement lever latch that secures and releases the appliance door so it closes and opens properly. It restores a worn, broken or cracked lever to help the door latch reliably. What it does:

• Replaces a damaged or worn door latch lever that prevents the door from engaging
• Allows the latch assembly to release so the door can open smoothly
• Common symptom: door won't stay closed, won't latch, or feels loose when closing
• Works as the user-operable lever portion of the door latch mechanism

• Disconnect power (and water if applicable) before servicing the appliance
• Typically snaps or screws into the latch housing—retain fasteners and note orientation
• Inspect latch housing and striker for damage and replace if necessary

The Latch Switch Kit, an OEM Replacement Part is designed to ensure the safe operation of your Whirlpool dishwasher. The kit includes two microswitches and a wiring harness. It prevents the appliance from running when the door is open. If defective, the door switch may prevent the dishwasher from operating even when the door is closed.

Causes of a bad door switch can include wear and tear, exposure to moisture, or a broken actuator.

Symptoms of a bad door switch include:

• Dishwasher not starting
• Dishwasher stopping mid-cycle
• Error codes related to door issues
• Dishwasher running with the door open

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8-32 x 1/4 inch.

Dishwasher door panel insert. Reversible: white color on one side, black on the other.

Color: Black. Other colors: For white use 3374011, for almond use 3374012.

This dishwasher door spring bushing—also called a door spring bearing—sits at the spring's frame anchor to provide a pivot and reduce wear. Replacing a worn bushing restores door balance and helps prevent the door from dropping or slamming open.

• Provides the pivot/anchor surface for the door spring at the cabinet frame
• Maintains balanced door opening and closing force
• Reduces friction, wear, and squeaks at the spring connection

• Disconnect power at the breaker and shut off water supply.
• Remove the toe panel and mounting screws; slide the dishwasher out slightly to access the door springs.
• Support the door, release spring tension, replace the bushing at the frame anchor, and reattach the spring.
• Inspect both sides and replace worn components in pairs to keep door tension even.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Color: Almond

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Color: White. Size: 13 oz. Spray paint primer. can.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Color: White.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Color: Almond.

Instruction sheet included. This is a heavy duty spring kit used for heavy doors. Kit includes 2 springs.

Touch-up paint for repairing small chips, scratches and scuffs on painted appliance surfaces. Restores the appearance of localized damage so repaired areas better blend with the surrounding finish. What it does:

• Covers small chips and surface scratches to improve cosmetic appearance.
• Helps conceal finish wear on painted metal and plastic trim.
• Lets you spot-repair without replacing large panels or parts.
• Works for quick, visible fixes where full repainting isn't needed.

• Clean and dry the repair area thoroughly before applying; remove loose paint or rust.
• Test on an inconspicuous area first to confirm color match and compatibility.
• Apply sparingly in thin coats with a small brush or cotton swab; allow each coat to dry before adding more.
• Use in a well-ventilated area and keep out of reach of children; follow any handling instructions on the product label.

Color: Blue. Includes 125 caps used to cover damaged tips on your dishracks. For white order 675679. For gray order 676458. To attach these tine tips you will need to order the dishrack blue touch-up paint W10840471.

Color: White. 4oz bottle with brush used for touching up damage to your dishracks. For blue use W10840471. For grey use WP676455. For tips use 675679

Color: White. Includes 125 caps used to cover damaged tips on your dishracks. For blue order 12022. For grey order 676458. To attach these tine tips you will need to order the dishrack white touch-up paint WP676453.

Color: Grey. 4oz bottle with brush used for touching up damage to your dishracks. For blue use W10840471. For white use WP676453. For tips use 676458.

Color: Gray. Includes 125 caps used to cover damaged tips on your dishracks. For blue order 12022. For white order 675679. To attach these tine tips you will need to order the dishrack gray touch-up paintWP676455.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
