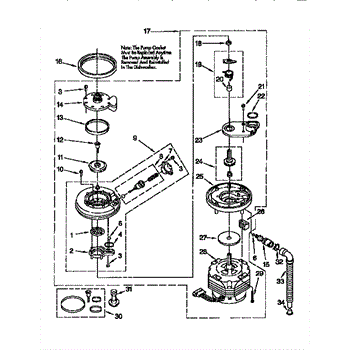

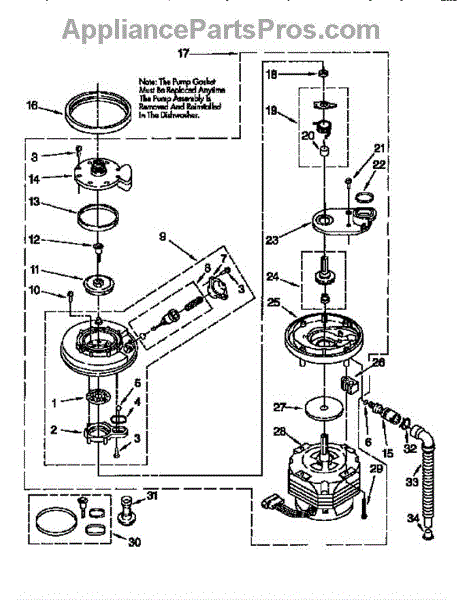

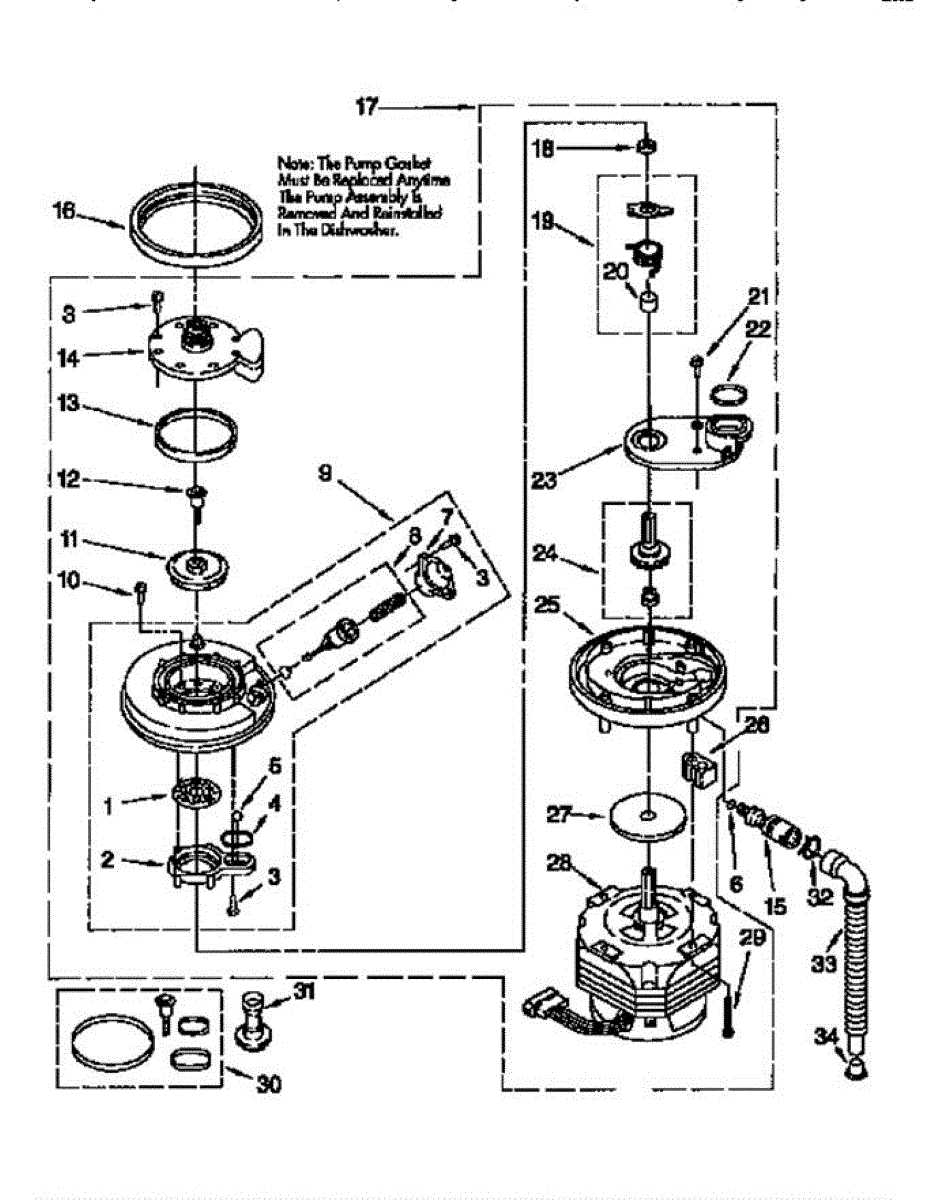

Parts for Whirlpool DU9800XB0: Pump And Motor Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Also order pump seal kit

Also includes perforated plate and check ball. Also order pump seal kit

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

This inlet base seal is a gasket that fits between the inlet base and its mating surface. Replacing a worn seal helps maintain proper airflow through the inlet path and keeps spills and debris out of internal components.

• Forms a tight, continuous seal at the inlet base-to-housing joint
• Helps preserve correct airflow through the inlet path
• Blocks liquids, grease, and crumbs from leaking into the appliance interior
• Replace if the seal is cracked, flattened, brittle, loose, or you see visible gaps

• Disconnect power to the appliance before servicing
• Remove grates/cartridges, filters, or trim as needed to access the inlet base
• Clean and dry mating surfaces; install the new seal in the same orientation without stretching or twisting
• Reassemble and verify the seal sits evenly with no gaps

Kit includes: valve stem, valve seat, valve spring, pump oulet seal, shaft screw with gasket and drain cover seal.

The Drain & Wash Impeller Kit is an OEM part for Whirlpool dishwashers. This kit includes components critical for the efficient movement of water within the dishwasher, both for washing the dishes and draining the water at the end of the cycle. The impeller aids in creating the necessary water pressure to clean dishes effectively and ensures that water is properly expelled from the dishwasher.

Symptoms of a failing Drain & Wash Impeller Kit include:

• Dishes not being cleaned thoroughly
• Water not draining properly from the dishwasher, leaving standing water
• Unusual noises during the wash or drain cycles, such as grinding or humming
• The dishwasher cycle taking longer than usual or not completing
• Visible damage or wear to the impeller components

Causes of a bad impeller kit can include normal wear and tear from regular use, blockages or debris that damage the impeller blades, or issues with the motor that affect impeller performance.

This OEM part is also compatible with some models from brands such as Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Screw for wash impeller.

This pump outlet seal sits on the discharge side of the dishwasher pump to keep the outlet connection watertight. Replacing a worn seal helps stop leaks and keeps wash water contained during the cycle. What it does:

• Seals the joint at the pump outlet to prevent water leakage
• Helps maintain proper circulation by keeping the pump discharge airtight/watertight
• Common symptoms of failure include water under the unit, drips near the pump area, or a flattened/cracked/hardened old seal

• 1 pump outlet seal

• Disconnect power and shut off the water supply before servicing
• Remove the toe-kick/lower access panel to reach the pump area; place a towel or pan to catch residual water
• Note seal orientation; clean mating surfaces before installing the new seal
• Seat the seal evenly; reassemble and run a short test to check for leaks

The Check Valve Assembly is an OEM replacement part for Whirlpool dishwashers. It is a component that regulates water flow and pressure, allowing water to enter the dishwasher during designated cycles but preventing backflow. The check valve plays an important role in the overall water distribution system of the dishwasher.

Causes of a bad check valve can include mineral buildup blocking the valve ports over time, damage to the valve mechanism or seals, or decreased valve integrity from wear and repeated use.

Symptoms of a bad check valve include:

• Leaks or water not properly entering the dishwasher
• Incomplete or inefficient washing and rinsing cycles
• Strange sounds coming from the water inlet area
• Higher water usage due to faulty draining

Note: O-ring included.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This seal kit is for the main tub. It goes around the pump housing.

The Drain & Wash Impeller Kit is an OEM part for Whirlpool dishwashers. This kit includes components critical for the efficient movement of water within the dishwasher, both for washing the dishes and draining the water at the end of the cycle. The impeller aids in creating the necessary water pressure to clean dishes effectively and ensures that water is properly expelled from the dishwasher.

Symptoms of a failing Drain & Wash Impeller Kit include:

• Dishes not being cleaned thoroughly
• Water not draining properly from the dishwasher, leaving standing water
• Unusual noises during the wash or drain cycles, such as grinding or humming
• The dishwasher cycle taking longer than usual or not completing
• Visible damage or wear to the impeller components

Causes of a bad impeller kit can include normal wear and tear from regular use, blockages or debris that damage the impeller blades, or issues with the motor that affect impeller performance.

This OEM part is also compatible with some models from brands such as Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

The Drain & Wash Impeller Kit is an OEM part for Whirlpool dishwashers. This kit includes components critical for the efficient movement of water within the dishwasher, both for washing the dishes and draining the water at the end of the cycle. The impeller aids in creating the necessary water pressure to clean dishes effectively and ensures that water is properly expelled from the dishwasher.

Symptoms of a failing Drain & Wash Impeller Kit include:

• Dishes not being cleaned thoroughly
• Water not draining properly from the dishwasher, leaving standing water
• Unusual noises during the wash or drain cycles, such as grinding or humming
• The dishwasher cycle taking longer than usual or not completing
• Visible damage or wear to the impeller components

Causes of a bad impeller kit can include normal wear and tear from regular use, blockages or debris that damage the impeller blades, or issues with the motor that affect impeller performance.

This OEM part is also compatible with some models from brands such as Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Comes with slinger. Also order pump seal kit.

Size: 13-18 x 1-1/2 inch.

Kit includes rubber rings, impeller screw with seal and fiber gasket.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Almond

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Color: White. Size: 13 oz. Spray paint primer. can.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Color: White.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Color: Almond.

Instruction sheet included. This is a heavy duty spring kit used for heavy doors. Kit includes 2 springs.

Touch-up paint for repairing small chips, scratches and scuffs on painted appliance surfaces. Restores the appearance of localized damage so repaired areas better blend with the surrounding finish. What it does:

• Covers small chips and surface scratches to improve cosmetic appearance.
• Helps conceal finish wear on painted metal and plastic trim.
• Lets you spot-repair without replacing large panels or parts.
• Works for quick, visible fixes where full repainting isn't needed.

• Clean and dry the repair area thoroughly before applying; remove loose paint or rust.
• Test on an inconspicuous area first to confirm color match and compatibility.
• Apply sparingly in thin coats with a small brush or cotton swab; allow each coat to dry before adding more.
• Use in a well-ventilated area and keep out of reach of children; follow any handling instructions on the product label.

Color: Blue. Includes 125 caps used to cover damaged tips on your dishracks. For white order 675679. For gray order 676458. To attach these tine tips you will need to order the dishrack blue touch-up paint W10840471.

Color: White. 4oz bottle with brush used for touching up damage to your dishracks. For blue use W10840471. For grey use WP676455. For tips use 675679

Color: White. Includes 125 caps used to cover damaged tips on your dishracks. For blue order 12022. For grey order 676458. To attach these tine tips you will need to order the dishrack white touch-up paint WP676453.

Color: Grey. 4oz bottle with brush used for touching up damage to your dishracks. For blue use W10840471. For white use WP676453. For tips use 676458.

Color: Gray. Includes 125 caps used to cover damaged tips on your dishracks. For blue order 12022. For white order 675679. To attach these tine tips you will need to order the dishrack gray touch-up paintWP676455.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.
