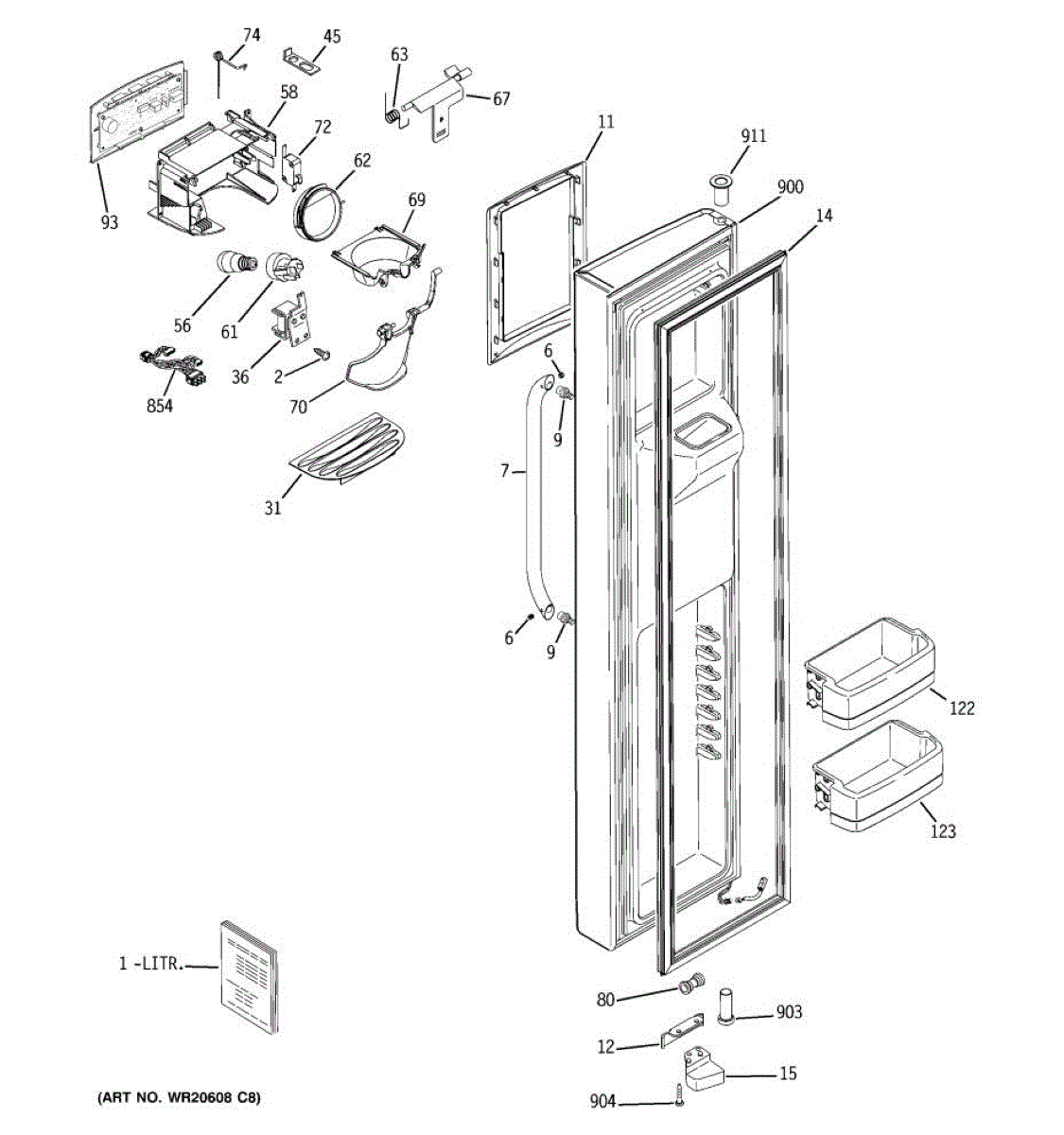

Parts for Ge GSHS3KGXGCSS: 01 - Freezer Door Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This factory screw secures panels, brackets, and other components inside your refrigerator. Replacing a missing or stripped fastener restores a tight fit, reduces vibration, and helps keep parts aligned so covers and assemblies stay in place.

• Fastens sheet-metal, plastic, and bracket assemblies to the cabinet or liner
• Replaces lost, corroded, or stripped hardware
• Can help address loose or rattling parts and minor misalignment
• Fits original threaded mounting points for a proper, secure hold

• Disconnect power; shut off water supply if working near water lines
• Match to the original location; start threads by hand to avoid cross-threading
• Tighten snugly only—overtightening can strip threads or crack plastic

The Set Screw is an OEM part for GE refrigerators. It is used to secure various components within the refrigerator, ensuring they remain firmly in place during operation.

Over time, a set screw can become worn, stripped, or lost due to regular use or during repairs. A missing or damaged set screw can lead to loose components, which may cause operational issues or even damage other parts of the refrigerator.

Symptoms of a bad Set Screw include:

• Loose or rattling components inside the refrigerator
• Difficulty in keeping parts securely fastened
• Noise coming from the area where the screw is used
• Misalignment of parts, leading to improper functioning

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This tubular door handle assembly replaces a worn, cracked or missing refrigerator door handle so you can open the door easily and restore the appliance's appearance. Durable construction matches original mounting points for a direct fit. What it does

• Replaces a damaged or broken tubular-style door handle
• Restores secure grip and smooth door operation
• Reduces rattling from a loose or bent handle
• Helps maintain the appliance's original look and ergonomics

• One tubular door handle assembly

• No specialized tools required; typically installed with basic hand tools (screwdriver or nut driver)
• Support the door while removing or installing the handle to avoid stress on hinges or gaskets
• Hand-tighten fasteners and avoid over-torquing to prevent damage to the handle or door

This door handle fastener secures the refrigerator handle to the door so it stays tight and aligned. Replace a missing or stripped fastener to eliminate wobble and restore a solid, reliable grip.

• Attaches and locks the handle to the door or handle mounting point
• Maintains proper handle alignment and feel during daily use
• Common fix for a loose, wobbly, or falling-off handle
• Replace when the original fastener is missing, stripped, or damaged

• Protect the door finish with tape or a cloth around the work area
• Support and align the handle; start the fastener by hand to avoid cross-threading
• Tighten with the correct driver (hex/Allen or Torx, depending on model) until snug; do not overtighten

The Door Stop is an OEM component for GE refrigerator models. It is a small component located at the base of the refrigerator door that stops the door from opening past 90 degrees.

Symptoms of a bad door stop include:

• Door being able to open past 90 degrees
• Hitting other parts of the refrigerator or interior shelves

Causes of a bad door stop include cracking or breaking of the plastic material due to impact or excess force on the door over its lifespan. Small flaws present during manufacturing could also lead to premature wear. With its compact design and durable plastic, the door stop safely limits door movement.

This OEM GE part is also compatible with some Kenmore refrigerator models.

The Freezer Door Cam Closure is an OEM replacement part for GE side-by-side refrigerators. As a primary security component, it utilizes a cam mechanism to firmly latch the freezer door shut.

Causes of failure include wear from years of operation, and broken or misaligned cam parts reducing secure closure power.

Symptoms involve:

• Air leaks detectable around door seals when closure frozen
• Freezer door no longer clamping fully closed
• Light penetration into gasket if door poorly seated

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.

Color: Black - It measures about 7-1/2 inches wide by 4 inches deep. For Chrome, order WR17X12320.

The Ice Dispenser Solenoid is an OEM replacement part for GE refrigerators. It is a crucial component that controls the flow of ice from the ice maker to the dispenser chute.

Symptoms of a bad ice dispenser solenoid include:

• Failure to dispense ice from the dispenser
• Ice getting stuck or jammed in the dispenser chute
• Continuous flow of ice even when the dispenser is not activated

Causes of a bad solenoid can include electrical malfunctions, physical obstructions preventing proper operation, or simply wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

The Dispenser Light is an OEM part for GE refrigerators. It illuminates the water and ice dispenser area, providing visibility when accessing these features in low-light conditions. This light enhances user convenience and helps to ensure accurate and spill-free operation.

Causes of a bad dispenser light can include burnout from regular use, electrical issues, or damage from moisture or impacts. A faulty light can compromise visibility and the overall functionality of the dispenser area.

Symptoms of a bad dispenser light include:

• The light not turning on when using the dispenser
• Flickering or dim illumination
• Complete failure of the light to activate
• Inconsistent or intermittent lighting

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dispenser housing shield replaces the plastic housing that protects and supports the refrigerator dispenser assembly, restoring a clean, secure dispenser opening and helping prevent leaks or damage. Ideal for cracked, warped, or broken dispenser trim. What it does

• Covers and protects the dispenser opening and internal dispenser components
• Provides a stable mount for dispenser controls and actuators
• Helps prevent water from leaking into the cabinet around the dispenser
• Restores appearance and function when the dispenser trim is cracked, split, or warped

• Disconnect power and water supply before starting any work
• Remove the dispenser bezel or door trim to access the housing; keep fasteners for reassembly
• Handle plastic parts gently to avoid cracking; use appropriate trim tools if needed

This refrigerator lamp socket holds an E12-base appliance bulb and provides the electrical connection for the light fixture. Replace it when the light won't turn on or flickers despite a known-good bulb and functioning door switch.

• Secures an E12 (candelabra) bulb and supplies power to it
• Works with the door/light switch to illuminate the compartment or dispenser area
• Typical failures include heat damage, cracking, or internal contact wear
• Symptoms: no light, intermittent flicker, or a bulb that won't seat firmly

• Disconnect power to the refrigerator before servicing
• Remove any lens/cover, note wire placement, and install the new socket in the original orientation
• Use an E12-base appliance bulb with the wattage specified on your model's rating label
• Restore power and verify operation with the door switch

The Ice Door Assembly is an OEM part for GE refrigerators. It is integral to the ice dispenser system, controlling access to the ice chute. This component ensures the efficient delivery of ice cubes or crushed ice when activated and seals off the chute when not in use to maintain the freezer's temperature and prevent frost buildup.

Symptoms of a bad Ice Door Assembly include:

• Frost or ice buildup around the dispenser area
• Ice escaping from the dispenser when not in use
• Failure to dispense ice
• Noise during operation indicating misalignment or malfunction

Causes of a bad Ice Door Assembly can include mechanical wear from frequent use, failure of the spring mechanism or solenoid that operates the door, or damage to the sealing surfaces that leads to air leaks.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This spring restores the return tension on the refrigerator's dispenser recess door so it closes properly after use. Replacing a weak or broken spring helps keep the dispenser area tidy and operating as intended.

• Provides the closing force for the dispenser recess door
• Helps reduce warm air and moisture entering the dispenser area when the door is at rest
• Replaces a stretched, bent, or broken spring
• Common signs: door won't close on its own, sags open, or feels loose/floppy

• Disconnect power and shut off water before servicing the dispenser
• Use caution—spring is under tension; wear eye protection and gloves
• Note orientation and pre-load during removal; transfer the new spring exactly as found
• Operate the door by hand to ensure smooth return before reassembling trim

This lever links the dispenser actuator/solenoid to the recess (chute) door in your refrigerator dispenser. It opens the flap during dispensing and helps it close afterward to maintain a proper seal and reduce frost and moisture.

• Couples the solenoid/actuator to the dispenser recess door flapper
• Opens the chute door for dispensing; returns it closed when released
• Helps maintain an air seal at the dispenser to limit warm-air leaks
• Common symptoms of a worn or broken crank: chute door won't open/close, frost or condensation around the dispenser, poor sealing

• Unplug the refrigerator before servicing
• Remove the dispenser trim/panel to access the recess-door mechanism
• Note spring/linkage positions and transfer them to the new crank
• Verify smooth movement and proper door seal before reassembly, then restore power and test

This dispenser ice funnel guides cubed or crushed ice from the door chute into your glass for clean, accurate dispensing. Replace a cracked or missing funnel to stop stray ice and keep the dispenser area tidy. What it does:

• Directs ice from the dispenser chute into your container to minimize scatter and spills
• Common fix for ice missing the glass, shooting to the side, or creating a mess at the dispenser
• Replace when the funnel is cracked, warped, loose, or has broken mounting tabs
• Helps restore smooth, consistent ice dispensing

• 1 dispenser ice funnel

• Disconnect power to the refrigerator; turn off the water supply if working around the dispenser area
• Remove the dispenser front panel/trim to access the funnel
• Release screws or locking tabs, remove the old funnel, and reuse existing hardware
• Seat and align the new funnel, secure it, restore power, and test ice dispensing

The ice dispenser paddle is the front lever you press with a glass to activate ice dispensing from the freezer door. Replacing a cracked or sticking paddle restores dependable dispensing and keeps the dispenser area looking clean and finished.

• Transfers your push to the dispenser switch to start the ice dispensing cycle
• Helps ensure consistent activation when dispensing cubed or crushed ice
• Common failure signs: cracked or broken paddle, lever feels loose or sticks, must press very hard, intermittent or no ice when pressed
• Cosmetic wear at the dispenser opening

• Disconnect power to the refrigerator before servicing
• Remove the drip tray and carefully release the dispenser trim/control panel to access the paddle
• Remove mounting screws or tabs, note lever orientation, and transfer any reusable hardware from the old paddle
• Reassemble, restore power, and test dispenser operation

The Dispenser Switch is an OEM replacement part for GE refrigerators. This switch is crucial for the functionality of the water and ice dispenser, as it activates the dispensing mechanism when the user presses the lever or button. The switch ensures that the refrigerator dispenses water or ice on demand, providing convenience and ease of use.

Over time, the dispenser switch can wear out or become damaged due to frequent use, exposure to moisture, or electrical issues. This can result in the switch failing to activate the dispenser properly, impacting the performance of the refrigerator's dispensing system.

Symptoms of a bad dispenser switch include:

• The water or ice dispenser not responding when the lever or button is pressed
• Intermittent or inconsistent dispensing of water or ice
• The dispenser working only occasionally or requiring excessive pressure to activate
• No audible click or feedback when pressing the dispenser lever or button

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dispenser Arm Spring is an OEM part for GE refrigerators. This spring is a crucial component that helps control the movement of the dispenser arm, ensuring it returns to its original position after use. It plays a key role in the functionality of the ice and water dispenser, allowing for smooth operation and consistent performance. Please note the springs are sold individually.

Causes of a bad Dispenser Arm Spring can include wear and tear from frequent use, corrosion due to moisture exposure, or accidental damage from excessive force. A malfunctioning spring can lead to operational issues with the dispenser.

Symptoms of a bad Dispenser Arm Spring include:

• The dispenser arm not returning to its resting position
• Difficulty or resistance when using the dispenser
• Unusual noises during the dispenser operation
• Inconsistent dispensing of ice or water

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This fixed freezer module shelf provides a secure mounting platform for the freezer control module and related components, helping keep electronics stable and organized inside the freezer compartment. What it does:

• Holds and stabilizes the freezer control module and attached wiring or components
• Prevents module movement that can cause noise or connection issues
• Helps maintain proper clearance around electronics for ventilation
• Supports safe routing of wires to reduce pinching or abrasion

• One fixed freezer module shelf

• Disconnect power to the appliance before starting any repair
• Typically installs with a few screws; access may require removing the freezer inner liner or nearby trim
• Handle plastic parts carefully to avoid cracking; support the module while fastening shelf

This freezer shelf module restores a stable, level storage surface inside the freezer so you can organize and access frozen foods. Replace it if the shelf is cracked, warped, missing, or no longer seats securely in its supports.

• Provides a sturdy, level surface for storing frozen items
• Helps organize contents and maintain proper spacing for airflow
• Replaces a damaged, bowed, or missing shelf
• Symptoms include cracked/broken components, broken tabs, sagging, or a shelf that won't sit flat or lock in place

• Clear the area and remove the old shelf; retain any trim or hardware your model may use
• Align the new shelf with the correct mounting points and seat it fully and evenly
• If your shelf has a glass insert, handle with care; wear cut-resistant gloves
• Do not overload the shelf; refer to your owner's manual for placement and weight guidance

The Freezer Door Lower Hinge Bushing is an OEM replacement part for GE refrigerators. It is a component located within the freezer door hinge.

Causes of failure typically involve normal wear over extended use. Refrigerator doors experience frequent adjustment which can deteriorate hinge bushings.

Symptoms of a bad lower hinge bushing include:

• The freezer door being loose or wobbly in its closed position
• Excessive noise, grinding, or vibration coming from the door hinge area
• Difficulty smoothly opening or closing the door

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

This replacement screw fastens refrigerator components securely, restoring a tight, rattle-free fit when original hardware is missing, stripped, or corroded. Use it to secure panels, brackets, or trim and keep parts properly aligned.

• Secures panels, brackets, covers, or trim in place
• Helps maintain correct alignment of components and hardware
• Reduces vibration and rattling caused by loose or missing screws
• Replaces lost, rusted, or stripped screws

• Unplug the refrigerator and turn off water supply if working near water components
• Match thread and length to the removed fastener; hand-start threads to avoid cross-threading
• Tighten snugly; do not overtighten into plastic or thin sheet metal
• Keep track of any spacers or washers reused from the original assembly

This door thimble is the bushing that lines the upper hinge on your refrigerator door, supporting the hinge pin so the door swings smoothly, stays aligned, and helps reduce squeaks and wear.

• Provides a smooth bearing surface for the upper hinge pin
• Helps keep the door level and properly aligned with the cabinet
• Reduces friction and noise when opening and closing
• Replace if cracked, worn, or missing, which can cause door sagging, scraping, or poor closing

• Disconnect power and remove items from the door before servicing
• Support the door; remove the upper hinge cover and screws
• Lift the door off the hinge pin and remove the worn bushing from the hinge bracket
• Press the new thimble fully into place, reinstall the door, and verify proper alignment and seal
