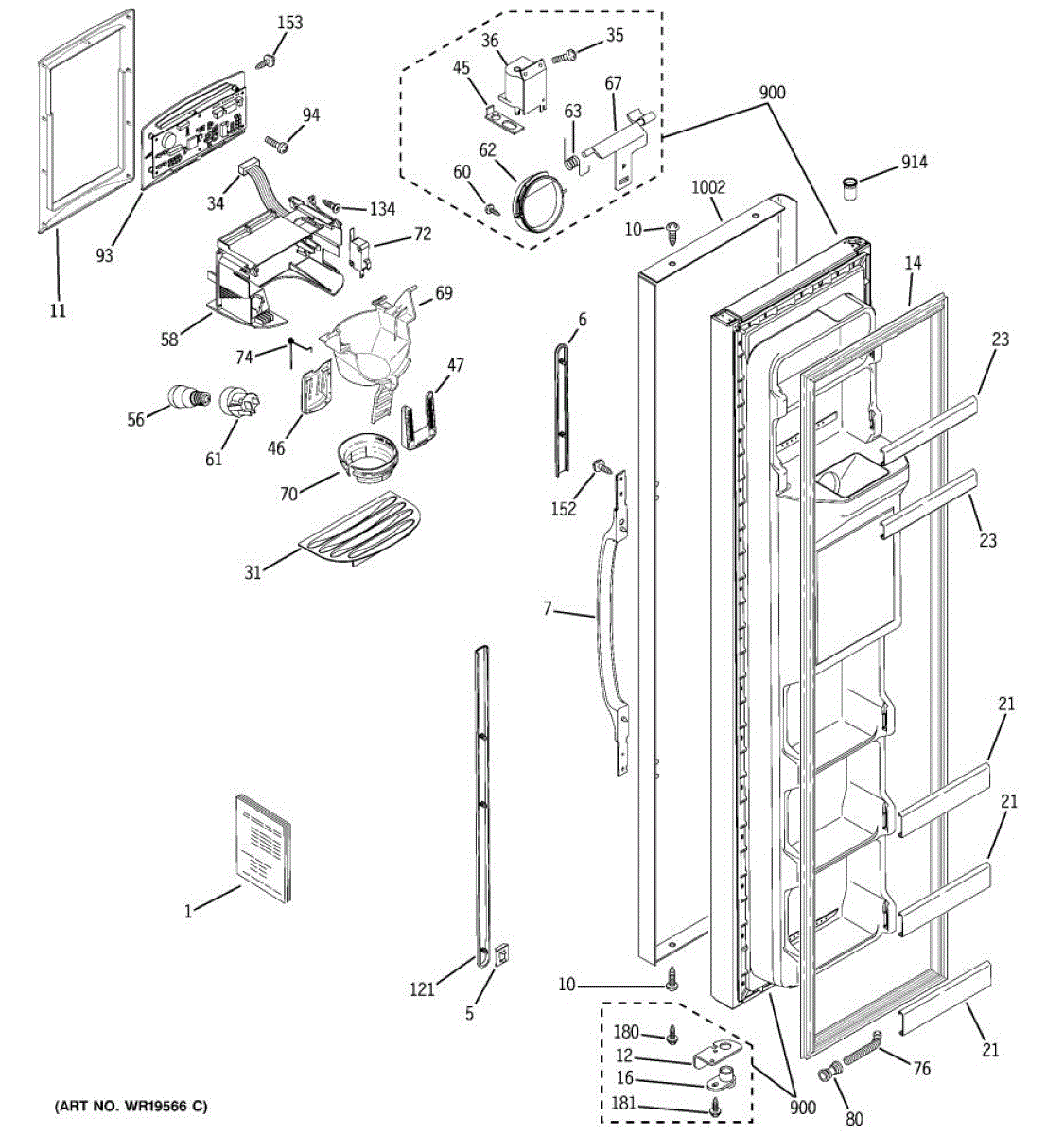

Parts for Ge PSA22SIPHFBS: 01 - Freezer Door Parts

This in-line water filtration system reduces water contaminants and improves taste of drinking water and ice. Reduces the taste and odor of chlorine through high quality carbon block media without removing minerals beneficial to your health. The filter should be replaced every six months or 300 galleons for best performance. The Quick Connect feature makes filter replacement fast and easy. Flow rate: 0.5 gpm/1.9 lpm. 1/4" quick connect fittings on both ends.

Size: 10-32 GXTT FLP.595 S

This freezer door stop plate helps position and secure the door by limiting its swing, restoring proper alignment and preventing over-rotation that can cause gaps or rubbing. Simple replacement for worn or damaged stops. What it does:

• Stops the freezer door at the correct open/closed position so the door seals properly
• Prevents the door from swinging too far and rubbing or catching on the cabinet
• Restores consistent door alignment when the original stop is bent, broken, or missing
• Reduces wear on hinge and gasket areas caused by improper door travel

• One freezer door stop plate

• Disconnect power to the appliance before starting any repair to avoid injury
• Remove the freezer door or access panel as needed to reach the stop plate
• Use hand tools to remove/install mounting screws; align the plate before tightening to avoid misalignment
• Do not force parts; if mounting holes are damaged, assess bracket/hinge condition before finalizing repair

This freezer door gasket creates an airtight seal around the door to keep cold air in and moisture out. Replacing a worn seal helps restore stable temperatures, reduce frost and condensation, and improve overall efficiency. What it does:

• Seals the perimeter of the freezer door to prevent air leaks and humidity intrusion
• Helps maintain consistent internal temperature and energy performance
• Replaces gaskets that are torn, warped, brittle, or won't stay seated
• Common symptoms include excess frost or ice near the door, condensation around the frame, or the door not closing flush

• 1 freezer door gasket

• Disconnect power before servicing
• Warm the new gasket in hot water or with a low-heat hair dryer to improve flexibility
• Remove the old gasket and press the new gasket fully into the door channel, starting at the corners
• Close the door and check for an even seal (use a "dollar bill" test); allow up to 24 hours for the gasket to relax and conform

The Dispenser Drip Tray is an OEM part for GE refrigerators. It's placed beneath the water and ice dispenser to catch drips and spills, preventing water from running down the front of the refrigerator or onto the floor. This part not only helps in keeping the dispensing area clean but also minimizes the risk of slip hazards caused by wet floors.

Over time, the dispenser drip tray can become stained, cracked, or warped, affecting its appearance and functionality.

Symptoms of a bad Dispenser Drip Tray include:

• Persistent stains or discoloration that cannot be cleaned
• Cracks or warping that prevent the tray from fitting properly
• Water leakage due to the tray not catching drips efficiently

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This SCR is a solid-state switching module that controls on/off power flow in select appliance circuits. Replacing a failed SCR helps stop intermittent operation and restores reliable switching for affected motors or heating elements. What it does:

• Regulates electrical switching in the control circuit to turn motors or heaters on and off.
• Used where a solid-state switch is required for smooth, repeatable control.
• Symptoms of a failing SCR: appliance won't start, runs intermittently, hums without operating, or a controlled circuit does not respond.
• Restores proper switching when the original SCR is shorted, open, or erratic.

• Disconnect power to the appliance before beginning service; follow lockout/tagout procedures.
• Handle as an electronic component—avoid static discharge and protect the spade terminals from bending or contamination.
• Ensure correct orientation and secure mounting; reconnect wiring exactly as shown on the appliance wiring diagram.

The Ice Dispenser Solenoid is an OEM replacement part for GE refrigerators. It is a crucial component that controls the flow of ice from the ice maker to the dispenser chute.

Symptoms of a bad ice dispenser solenoid include:

• Failure to dispense ice from the dispenser
• Ice getting stuck or jammed in the dispenser chute
• Continuous flow of ice even when the dispenser is not activated

Causes of a bad solenoid can include electrical malfunctions, physical obstructions preventing proper operation, or simply wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

The Dispenser Light is an OEM part for GE refrigerators. It illuminates the water and ice dispenser area, providing visibility when accessing these features in low-light conditions. This light enhances user convenience and helps to ensure accurate and spill-free operation.

Causes of a bad dispenser light can include burnout from regular use, electrical issues, or damage from moisture or impacts. A faulty light can compromise visibility and the overall functionality of the dispenser area.

Symptoms of a bad dispenser light include:

• The light not turning on when using the dispenser
• Flickering or dim illumination
• Complete failure of the light to activate
• Inconsistent or intermittent lighting

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dispenser Housing Shield is an OEM part for GE refrigerators. This component plays a crucial role in protecting the internal mechanisms of the water and ice dispenser from damage and contamination. It ensures that the dispenser operates efficiently and maintains hygiene standards by shielding the delicate internal parts from debris and moisture.

Causes of a bad dispenser housing shield can include wear and tear over time, physical damage from excessive force or mishandling, or exposure to moisture that leads to material degradation. Regular inspection and maintenance can help in identifying issues before they affect the dispenser's functionality.

Symptoms of a bad dispenser housing shield include:

• Water or ice leakage from the dispenser area
• Visible cracks or damage to the shield
• Poor water or ice flow
• Contamination of dispensed water or ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This plug-in SCR is a solid-state replacement that controls electrical power to appliance circuits, restoring reliable on/off control and helping eliminate intermittent operation. It's a direct-fit replacement when the original SCR fails. What it does

• Regulates current flow in the control circuit to switch power to motors or heating loads.
• Stops erratic cycling or loss of power caused by a failed control semiconductor.
• Helps restore consistent operation when an appliance has intermittent start, no heat, or no motor run.
• Provides a rugged, compact replacement with a 5/16" connection style.

• One plug-in SCR

• Disconnect power to the appliance before accessing or replacing the SCR.
• Remove the appliance's control or access panel to reach the control board; note wire locations before unplugging.
• Plug the new SCR into the original connector or replace per the service manual.
• Verify correct operation after installation and reassemble all panels before restoring power.

This refrigerator lamp socket holds an E12-base appliance bulb and provides the electrical connection for the light fixture. Replace it when the light won't turn on or flickers despite a known-good bulb and functioning door switch.

• Secures an E12 (candelabra) bulb and supplies power to it
• Works with the door/light switch to illuminate the compartment or dispenser area
• Typical failures include heat damage, cracking, or internal contact wear
• Symptoms: no light, intermittent flicker, or a bulb that won't seat firmly

• Disconnect power to the refrigerator before servicing
• Remove any lens/cover, note wire placement, and install the new socket in the original orientation
• Use an E12-base appliance bulb with the wattage specified on your model's rating label
• Restore power and verify operation with the door switch

The Ice Door Assembly is an OEM part for GE refrigerators. It is integral to the ice dispenser system, controlling access to the ice chute. This component ensures the efficient delivery of ice cubes or crushed ice when activated and seals off the chute when not in use to maintain the freezer's temperature and prevent frost buildup.

Symptoms of a bad Ice Door Assembly include:

• Frost or ice buildup around the dispenser area
• Ice escaping from the dispenser when not in use
• Failure to dispense ice
• Noise during operation indicating misalignment or malfunction

Causes of a bad Ice Door Assembly can include mechanical wear from frequent use, failure of the spring mechanism or solenoid that operates the door, or damage to the sealing surfaces that leads to air leaks.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Recess Spring is an OEM replacement part for GE side-by-side refrigerators. It sits within the icemaker door frame to control movement and allow smooth closing/opening of the access point.

Causes of a bad icemaker door recess spring include wear and tear of thin metal coils repeatedly compressing over many years of filling cycles. Exposure to humidity intrusions from melting ice accumulates oxidation shortening spring elasticity.

Symptoms of a bad icemaker door recess spring include:

• Difficulty opening and shutting the icemaker access door securely
• Excessive slamming noise caused by abrupt closing
• Sagging or improper alignment of the door against the frame
• Struggles retaining positioning of the transparent plastic doorway

This genuine GE replacement spring is compatible with Hotpoint, RCA and Kenmore models.

The Dispenser Door Recess Crank is an OEM part for GE refrigerators. This crank is a crucial component of the refrigerator's ice and water dispenser system, helping to operate the dispenser door by opening and closing it when activated. It ensures that ice or water is dispensed efficiently and prevents unwanted air from entering the freezer compartment.

You should replace the dispenser door recess crank if it becomes faulty or damaged. Causes of a bad crank can include wear and tear from frequent use, accidental damage, or mechanical failure. A malfunctioning crank can lead to issues with the dispenser door's operation.

Symptoms of a bad dispenser door recess crank include:

• The dispenser door not opening or closing properly
• Ice or water not dispensing correctly
• Unusual noises during the dispensing process
• The dispenser door staying open or not sealing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This refrigerator dispenser funnel extension attaches at the front of the dispenser to better direct the stream into your cup. Replacing a cracked or missing extension reduces splashing and helps keep the dispenser area cleaner.

• Directs the dispenser stream to help prevent splashes and drips
• Extends the spout area for easier filling of glasses and bottles
• Restores fit and appearance when the original is cracked, warped, or missing
• Common symptoms: water splashing at the dispenser, loose/broken piece, water running down the door

• Unplug the refrigerator and shut off water before servicing the dispenser area
• Remove the old extension by releasing its retaining tabs, if present
• Align the new extension with the slots and press until it snaps securely into place
• Restore power/water and test the dispenser to verify proper flow and a secure fit

The Dispenser Switch is an OEM replacement part for GE refrigerators. This switch is crucial for the functionality of the water and ice dispenser, as it activates the dispensing mechanism when the user presses the lever or button. The switch ensures that the refrigerator dispenses water or ice on demand, providing convenience and ease of use.

Over time, the dispenser switch can wear out or become damaged due to frequent use, exposure to moisture, or electrical issues. This can result in the switch failing to activate the dispenser properly, impacting the performance of the refrigerator's dispensing system.

Symptoms of a bad dispenser switch include:

• The water or ice dispenser not responding when the lever or button is pressed
• Intermittent or inconsistent dispensing of water or ice
• The dispenser working only occasionally or requiring excessive pressure to activate
• No audible click or feedback when pressing the dispenser lever or button

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Torsion Spring is an OEM part for GE refrigerators. It is essential for maintaining the proper tension and operation of the refrigerator door. This spring ensures the door closes smoothly and stays securely shut, preventing cold air from escaping and maintaining the appliance’s efficiency.

Causes of a bad torsion spring can include metal fatigue from regular use, corrosion from exposure to moisture, or damage due to excessive force or mishandling. Over time, these factors can weaken the spring, affecting the door’s performance.

Symptoms of a bad Torsion Spring include:

• Door not staying closed
• Difficulty in opening or closing the door
• Door feels loose or unbalanced
• Unusual noises when operating the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

6 - 10 pl flp 1/2 s

This is a screw intended for use in refrigerators, specifically as the top mounting screw for the handle. If the screw in the handle is missing, stripped, or otherwise not performing its function, a replacement screw should be ordered.A visual inspection will determine if a screw is missing. If the door handle is loose or falling off from the top, it is a sign that a replacement screw is required. This repair is a quick and easy process. It involves the use of a screwdriver. Remove the old screw if there is one in place. Line up the holes on the door and the door handle component before twisting the new screw into position. Wear gloves to protect hands during the repair.This screw is a genuine OEM replacement part. It is sourced directly from the manufacturer. The screw is sold individually. The screw is compatible with several different models of refrigerators. It can be installed in ranges made by Electrolux, Frigidaire, Gibson, Westinghouse, and Kelvinator.

Includes 12 screws.

8 - 18 x .375

10-32 F HXW 3/4 S

This kit is required when replacing the freezer door. For the freezer door order by model number.

This genuine replacement thimble door top restores the finished trim and secure fit at the top of the thimble/door opening. It helps keep the thimble aligned and prevents gaps that can allow debris or air leaks. What it does:

• Replaces a cracked, chipped or worn top trim piece on the thimble/door opening
• Helps hold the thimble in place and maintain a snug, even fit
• Restores a clean finished appearance to the opening
• Can reduce rattling or movement caused by a loose or damaged top trim

What's included:

• One thimble door top

Install notes:

• Disconnect power to the appliance before starting any work
• Remove any retaining screws or clips and gently lift out the old trim; keep fasteners if undamaged
• Align the new top trim into the opening and secure with the original screws or clips
• If you encounter resistance, stop and confirm orientation to avoid cracking the replacement
