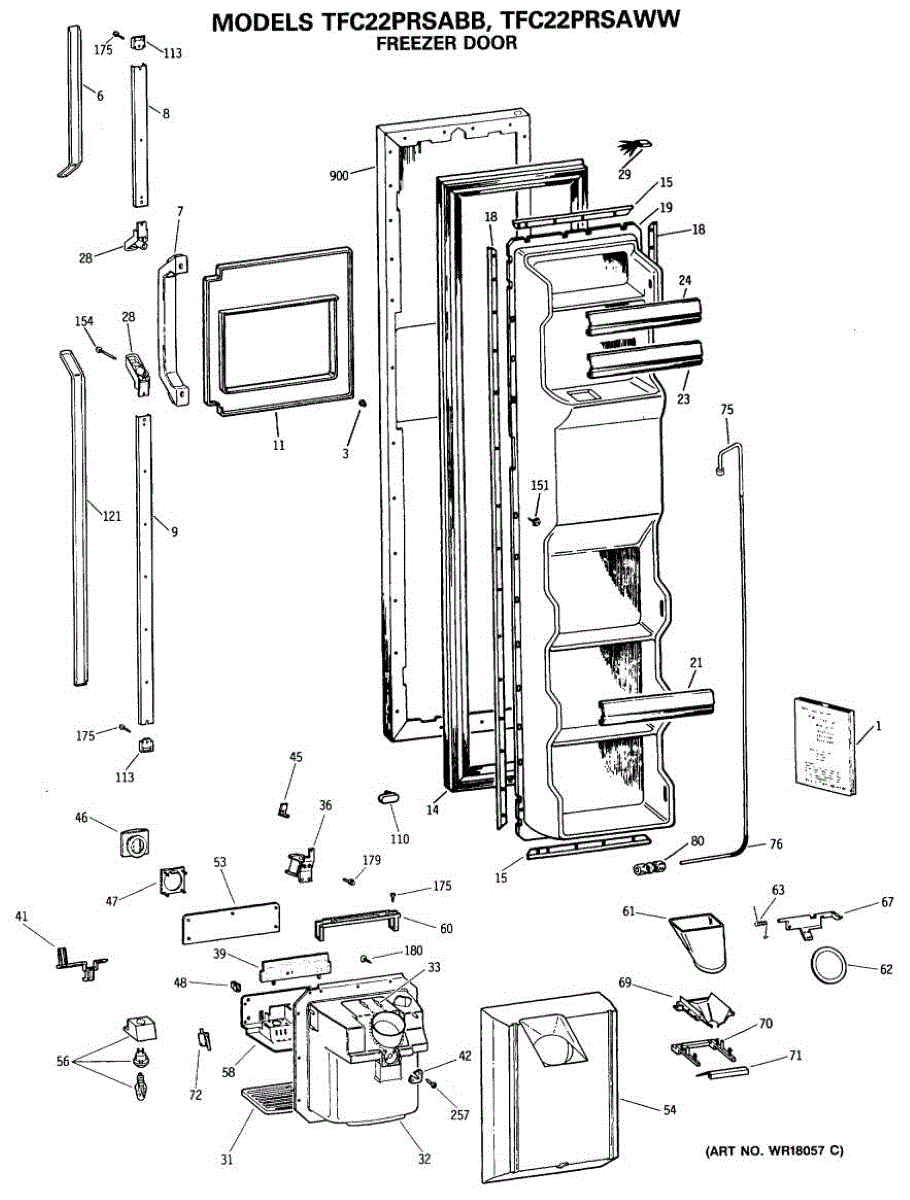

Parts for Ge TFC22PRSABB: 01 - Freezer Door Parts

Color: Black.

Color: Black.

Door solenoid with plunger.

This control board comes with 2 slide switches and is mounted in the dispenser area.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

Color: Black.

This nameplate recess assembly is the molded trim piece that holds and protects the appliance's front badge and control label, restoring a clean, finished appearance. It replaces a cracked, loose, or missing nameplate pocket to secure the ID plate. What it does:

• Provides a recessed mounting pocket for the appliance nameplate or badge.
• Covers and protects mounting hardware and underlying fascia from dirt and damage.
• Restores proper fit-and-finish where the original recess is cracked or broken.
• Helps prevent the nameplate from rattling or falling out during use.

• Disconnect power to the appliance before starting any work.
• Typically secures with clips or screws; use appropriate hand tools and avoid overtightening.
• Handle the trim carefully to avoid scratching the finish; replace any broken retainers.

Color: clear. It's 7 watts 130 volts.

Color: Black.

The Ice Door Assembly is an OEM part for GE refrigerators. It is integral to the ice dispenser system, controlling access to the ice chute. This component ensures the efficient delivery of ice cubes or crushed ice when activated and seals off the chute when not in use to maintain the freezer's temperature and prevent frost buildup.

Symptoms of a bad Ice Door Assembly include:

• Frost or ice buildup around the dispenser area
• Ice escaping from the dispenser when not in use
• Failure to dispense ice
• Noise during operation indicating misalignment or malfunction

Causes of a bad Ice Door Assembly can include mechanical wear from frequent use, failure of the spring mechanism or solenoid that operates the door, or damage to the sealing surfaces that leads to air leaks.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Door Spring is an OEM part compatible with GE refrigerators. It is responsible for providing tension and support to the ice chute door, allowing it to open and close smoothly. When you activate the ice dispenser, the spring helps to release the door and allow the ice to pass through. After dispensing, the spring assists in closing the door to prevent cold air leakage and maintain the desired temperature inside the refrigerator.

You should replace the ice door spring if it loses tension or breaks, which can happen due to regular wear and tear, frequent use, or accidental damage. A faulty spring can lead to issues with the ice dispenser's operation and overall efficiency.

Symptoms of a bad ice door spring may include:

• Difficulty in opening or closing the ice chute door
• Ice dispensing issues, such as the door not opening when the dispenser is activated
• Cold air leakage from the ice chute area
• Ice buildup on the front of the icemaker

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws.

This dispenser crank links the dispenser solenoid and the ice chute door. When you press the dispenser lever, the crank pivots to open and close the ice door so cubes or crushed ice can dispense cleanly without warm air leaking into the freezer.

• Connects the solenoid to the ice chute door to control door movement
• Helps seal the chute when not dispensing to reduce frost and moisture issues
• Common failure signs include ice door not opening/closing, constant frost around chute, or warm/moist air leakage at dispenser
• Can cause ice clumping, frost buildup, or water/ice dispensed irregularly when worn or broken

• Disconnect power before servicing the dispenser area
• Access typically requires removing the dispenser front panel and trim; use care with plastic tabs and wiring
• Note linkage orientation to the solenoid and door flap before removal
• Inspect related parts for wear while open

Color: Black.

Color: Black.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws. Size: 8-18 ab.

This is a replacement 8-18 x 9/16 machine screw used to secure internal and external appliance components. It restores proper fastening and helps stop rattling or loose panels caused by worn or missing fasteners. What it does

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Replaces stripped, corroded, or missing screws that can cause rattling or misalignment
• Helps maintain electrical and mechanical connections by holding parts in proper position
• Appropriate where an 8-18 thread size and 9/16" length are required

• Replacement screw

• Disconnect power to the appliance before accessing internal components
• Use the correct driver to avoid stripping the screw head and ensure proper torque
• Do not overtighten; snug until secure to avoid damaging threads or parts

Includes 12 screws.

Includes 12 screws.

The Defrost Timer is an OEM part for GE refrigerators. It serves as a crucial component in managing the defrost cycle of the refrigerator, ensuring that frost buildup is regularly melted away from the evaporator coils. This timer periodically switches the refrigerator between cooling and defrost mode, helping to maintain efficient operation and prevent overcooling or excessive ice accumulation.

Symptoms of a bad Defrost Timer include:

• Frost building up more than usual in the freezer compartment.
• The refrigerator or freezer sections becoming too warm due to prolonged defrost cycles.
• The refrigerator not transitioning out of defrost mode, leading to spoiled food due to inadequate cooling.

Causes of a bad defrost timer can include mechanical wear from continuous use, electrical failures that impede the timer’s operation, or simply aging components that no longer function reliably.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pivot is the replacement pivot piece that supports and guides a refrigerator door or sliding drawer, restoring proper alignment for smooth opening and closing. Fits original equipment pivot points. What it does:

• Supports the weight of a door or drawer and keeps it aligned on its track
• Guides smooth opening and closing and prevents binding or sagging
• Restores proper contact and seal when a worn pivot causes misalignment
• Helps reduce noise from loose or worn pivot points

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels, trim, or the drawer/door per model instructions
• Handle carefully to avoid scratching sealed surfaces; replace worn fasteners if needed
• If alignment issues persist after replacement, check related hinges, tracks, and mounting hardware

This replacement part is an ice dispenser deflector, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. Ice dispenser deflectors are found inside of the ice-making assembly and are an important part of many freezers. The ice dispenser deflector allows the ice to come down from the tray into the dispensing area. A new ice dispenser deflector might be needed if the current one has become too brittle and has even cracked or broken. Be sure that the refrigerator is completely powered off before starting this repair. The user must have access to the ice maker assembly and will need common household tools like a screwdriver and pliers. The user might also need working gloves as some parts in and around the assembly have sharp edges or blades.Note that this part is sold individually. This ice dispenser deflector is sourced directly from the manufacturer and is a genuine OEM replacement part.

2 wire insulator.

Size: 10-16 ab.

Size: 8-32 t. Includes 12 screws.

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.

Package of 12

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.
