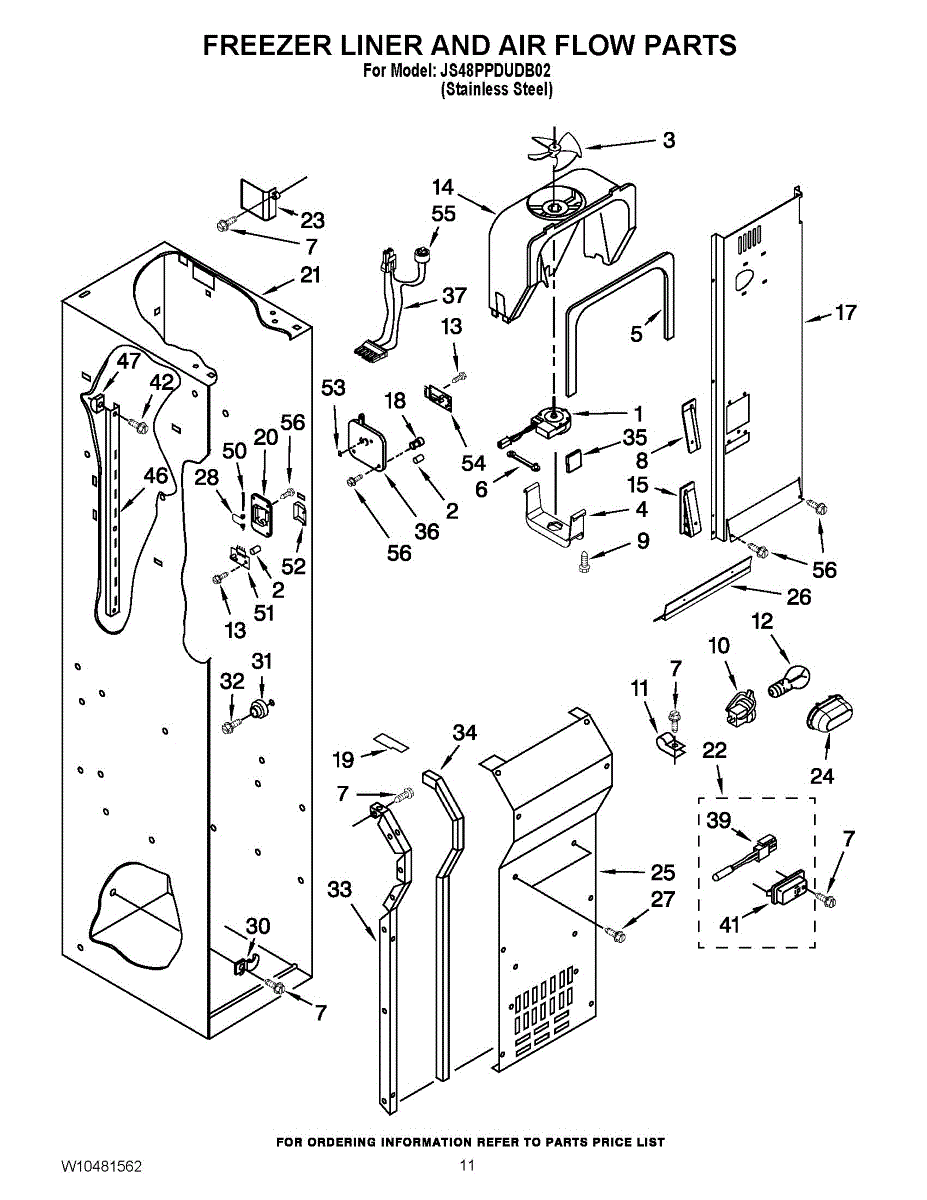

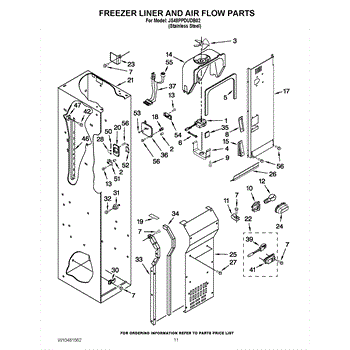

Parts for Jenn-Air JS48PPDUDB02: 08 - Freezer Liner And Air Flow Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

If your fridge isn't cooling or freezer is making loud noises, the evaporator fan motor may have failed. Moderately easy DIY repair with video guide.

Water supply tube for refrigerators. Connects water line to dispenser or ice maker. Replace if cracked, leaking, kinked, or damaged to restore proper flow.

Loud noise or freezer warming up? This evaporator fan blade circulates cold air over coils. Simple DIY fix—most repairs done in under an hour.

Instruction sheet included.

Replace your refrigerator door gasket to restore proper sealing and energy efficiency. Prevents warm air leaks and frost buildup. Verify fit with model.

Refrigerator making loud vibrating noise? This motor grommet cushions the motor mount to reduce vibration and noise. Simple DIY fix in 15 minutes.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Air duct wedge for side-by-side refrigerators. Secures and positions air duct assembly in place. Replace if cracked, broken, or missing.

Light bulb socket holds and powers the bulb inside your refrigerator. Replace if lights don't work despite new bulbs or if socket is cracked or damaged.

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

Illuminates appliance interior. Replace when burned out or dimming. Verify wattage and base type match your model before ordering. Easy DIY fix.

6 - 19 x .250

This is a metal mounting bracket that secures the evaporator fan motor in place inside the freezer compartment. It ensures the fan motor is properly positioned to circulate cold air throughout the refrigerator and freezer sections. Replace this bracket if the fan motor is loose, vibrating excessively, or if the original bracket is cracked or bent.

This replacement receiver lens covers and protects the appliance's infrared/receiver area and indicator light while allowing signals and status lights to show through clearly. It restores proper protection and visibility for the sensor/indicator assembly. What it does:

• Protects the IR/receiver and indicator area from dust, spills, and impact
• Allows remote/IR signals and indicator lights to pass through without obstruction
• Replaces cracked, discolored or missing lens that can hide status lights or reduce signal clarity
• Helps maintain original appearance of the control/console area

• Disconnect power to the appliance before beginning any repair.
• Remove the control console or front panel per the service manual to access the lens.
• Handle the lens gently to avoid scratching; seat it into the bezel until it snaps or rests securely.

Left hand side

Foam air baffle block that installs between the evaporator fan housing and side wall. Replace if cracked, broken, or missing to restore airflow.

This is a protective cover used inside the refrigerator compartment. It shields internal components from moisture, frost, or accidental contact. Replace this cover if it is cracked, warped, or missing, which can expose internal parts and potentially affect the refrigerator's performance.

Air outlet cover for side-by-side refrigerators. Installs over internal air vent to direct cold air. Replace if cracked, broken, or missing.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Fix ice clumping and frost buildup in your dispenser chute. This flipper spring returns the ice door to closed position, keeping warm air out. Easy DIY fix.

Replacement support stud that holds refrigerator shelves securely in place. Needed when original peg is broken, cracked, or missing from shelf wall.

This factory fastener secures panels, brackets, or internal components in your appliance. Replacing a missing or damaged screw restores a tight fit, reduces rattles, and keeps assemblies properly aligned for dependable operation.

• Fastens sheet-metal panels, braces, and trim to the cabinet/frame
• Helps maintain alignment and structural integrity of assemblies
• Can reduce vibration noises and looseness caused by missing/stripped hardware
• Replace if the head is rounded, threads are worn, or the screw is corroded

• Disconnect power; for gas or water appliances, also shut off the supply
• Match location and start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening

Left hand side

Right hand side

Seals the evaporator cover to the cabinet, preventing air leaks and frost buildup. Replace if you notice excessive frost or cooling issues. Verify fit.

Factory-style wire harness that routes power between refrigerator components. Replaces damaged, broken, or worn wiring and connector assemblies.

Refrigerator not cooling properly or freezing food? This temperature sensor thermistor monitors internal temps and signals the control board. DIY fix.

This is a protective cover used inside the refrigerator compartment. It shields internal components from moisture, frost, or accidental contact. Replace this cover if it is cracked, warped, or missing, which can expose internal parts and potentially affect the refrigerator's performance.

This replacement screw secures appliance panels and components to restore proper fit and stop loose or rattling parts. A simple, OEM-compatible fastener that helps maintain safe, stable operation and original assembly alignment. What it does:

• Secures panels, trim, brackets or components to prevent movement and vibration
• Restores proper fit when a screw is missing or stripped
• Helps eliminate rattling, gaps, or misaligned parts
• Fits the OEM threaded holes and fastening points

• Disconnect power (and gas if applicable) before accessing internal components
• Use the correct driver to avoid stripping the head; hand-start threads before final tightening
• Do not overtighten—stop when snug to avoid damaging threads or plastic parts
• Keep removed hardware organized to ensure correct reassembly

Ice maker not dispensing or flipper assembly loose? This small pin secures the flipper emitter mechanism for reliable ice dispensing. Simple fix.

Ice maker stopped working or not producing ice? This control board monitors ice levels and regulates production. DIY-friendly repair, most installs in 10-20 minutes.

Protective cover for the ice maker's infrared emitter sensor in the freezer compartment. Replace if cracked, broken, or missing to shield the sensor.

This slide is the replacement rack or drawer support that restores smooth, stable movement and keeps interior racks or drawers aligned. It helps parts glide in and out without binding or sagging. What it does:

• Replaces a worn or broken rack/drawer support to restore smooth sliding motion
• Keeps the rack or drawer level and prevents tilting or falling when extended
• Reduces noise and binding from damaged or loose slide hardware
• Commonly replaced when drawers or racks stick, sag, drop, or slide unevenly

• One replacement slide

• High-level home repair — unplug the appliance or shut off power before working near electrical components
• Remove the rack/drawer and follow OEM instructions for accessing and fastening the slide
• Use basic hand tools; keep fasteners and clips from the old slide to match new installation
• If the slide secures to water or electrical assemblies, turn off the water or power and consult the OEM guide.

Ice maker stopped working or not producing ice? This control board monitors ice levels and regulates production. DIY-friendly repair, most installs in 10-20 minutes.

Fix frost buildup and warm fridge temps. This defrost thermostat monitors evaporator temperature to prevent overheating during defrost cycles.

Replacement screw that fastens panels, brackets, and internal components. Install when original is stripped, rusted, missing, or lost during repairs.
