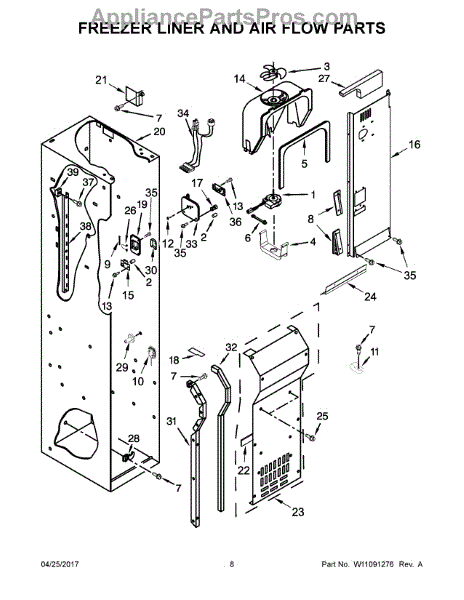

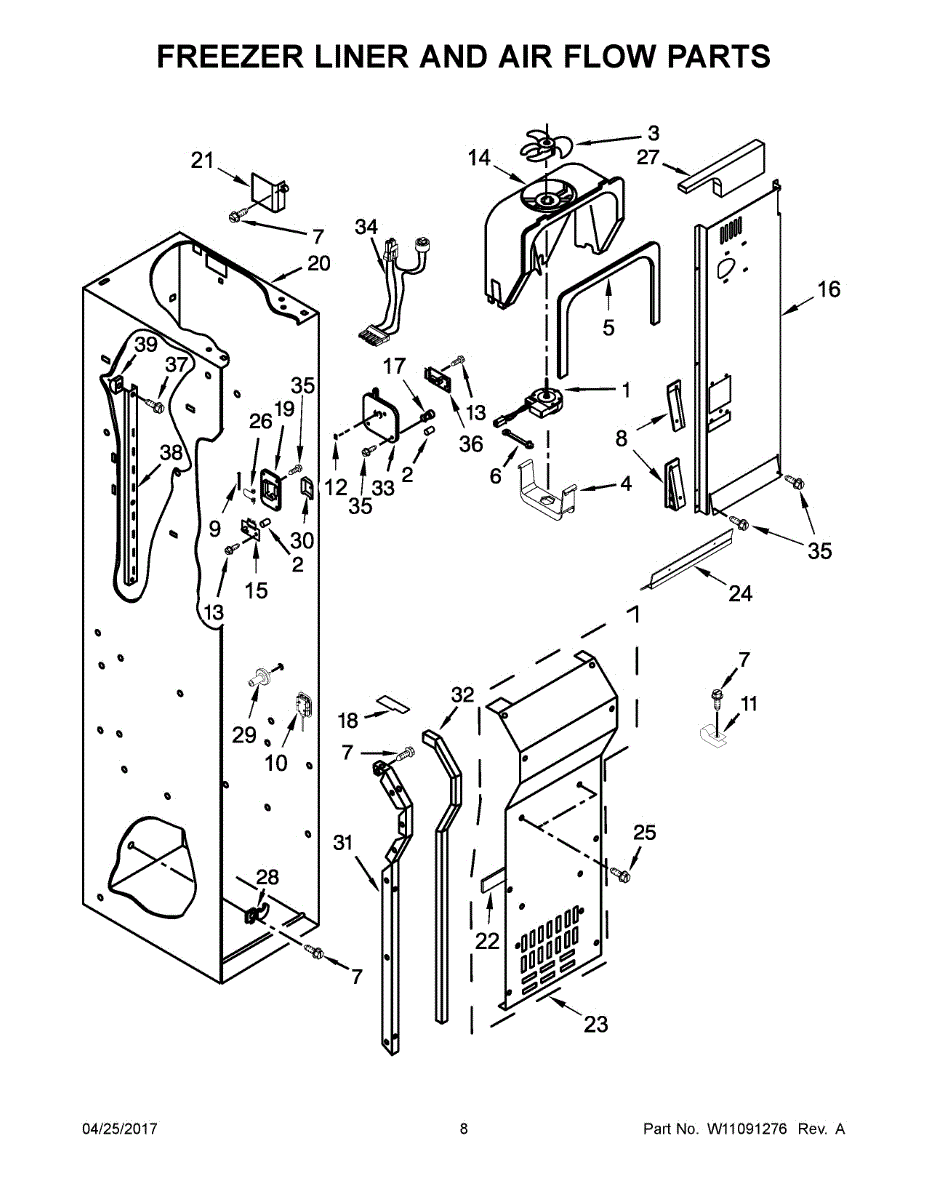

Parts for Kitchenaid KBSD606ESS01: 05 - Freezer Liner And Air Flow Parts

The Motor-Evap DC is an OEM part for Whirlpool refrigerators. As the evaporator fan motor, it is responsible for circulating air within the refrigerator compartment.

Causes of a bad evaporator fan motor can include normal wear and tear over time, overheating due to inadequate ventilation or dust buildup restricting airflow, or failure due to power surges or spikes.

Symptoms of a bad evaporator fan motor include:

• Inadequate or inconsistent air circulation and cooling within the refrigerator
• Frost or ice buildup due to stagnant air
• Unpleasant odors from lack of air movement
• Abnormally high energy usage
• Strange noises emanating from the cooling system

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This retainer secures the dryer fan motor to its housing so the blower assembly stays aligned and runs quietly. Replacing a worn retainer restores proper motor mounting and reduces vibration or rubbing noise. What it does:

• Holds the fan motor in place to maintain correct blower alignment
• Prevents the motor or fan from shifting, which can cause noise or rubbing
• Helps avoid airflow loss that can lead to poor drying performance
• Reduces vibration that can stress mounts and fasteners

• One fan motor retainer

• Disconnect power before starting any repair to avoid shock or injury
• Basic hand tools are usually required; retain original fasteners unless replacements are provided
• Inspect surrounding mounts and the blower wheel for damage while accessing the motor

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

A small replacement pin that secures the flipper emitter assembly, restoring correct movement and alignment so the flipper can engage and operate reliably. Ideal when the original pin is bent, worn, or missing. What it does:

• Holds the flipper emitter or lever in place so the mechanism can pivot correctly
• Restores proper movement when a loose or broken pin causes misalignment
• Helps stop clicking, scraping, or intermittent operation related to a damaged fastener
• Serves as a direct-fit replacement designed for the OEM emitter/lever assembly

• One replacement pin as shown

• Disconnect power to the appliance before beginning any repair
• Handle small parts carefully; keep screws and pins organized during disassembly
• Use basic hand tools; no special tools or adhesives are typically required

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

6 - 19 x .250

This fan scroll is the molded blower housing that directs airflow from the appliance fan for efficient cooling and ventilation. Replacing a damaged scroll restores proper air path and reduces airflow noise or performance issues. What it does

• Channels air coming off the fan to the condenser/evaporator or vent area for effective heat exchange
• Holds and aligns the fan wheel and motor to maintain correct clearances and quiet operation
• Worn, cracked or broken scrolls can cause increased fan noise or reduced airflow
• Proper airflow helps the appliance maintain intended operating temperatures

• One fan scroll

• Disconnect power before servicing; follow basic electrical safety
• Access may require removing exterior panels or the condenser/evaporator cover
• Handle the molded housing carefully to avoid cracking; reuse mounting hardware unless damaged
• Fan wheel spins freely and is properly centered in the scroll during reassembly

The Ice Level Control Board is an OEM part for Whirlpool refrigerators. It is an electronic component responsible for monitoring and regulating ice production in the icemaker. The board works with sensors to detect the level of ice in the bucket and control the icemaker accordingly. It plays a vital role in ensuring a consistent ice supply.

Symptoms of a bad control board include:

• Irregular or inconsistent ice production
• The icemaker failing to turn on at all
• Error codes displayed related to the icemaker
• Sensors providing inaccurate readings to the control board

Causes of a bad control board can include failure over time due to normal wear and tear, exposure to moisture or temperature fluctuations, or damage due to electrical surges.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement receiver lens covers and protects the appliance's infrared/receiver area and indicator light while allowing signals and status lights to show through clearly. It restores proper protection and visibility for the sensor/indicator assembly. What it does:

• Protects the IR/receiver and indicator area from dust, spills, and impact
• Allows remote/IR signals and indicator lights to pass through without obstruction
• Replaces cracked, discolored or missing lens that can hide status lights or reduce signal clarity
• Helps maintain original appearance of the control/console area

• Disconnect power to the appliance before beginning any repair.
• Remove the control console or front panel per the service manual to access the lens.
• Handle the lens gently to avoid scratching; seat it into the bezel until it snaps or rests securely.

Left hand side

Right hand side

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This flipper spring returns the refrigerator's ice dispenser door (chute flapper) to the closed position after dispensing. It helps keep warm air and moisture out to minimize frost at the chute and reduce ice clumping in the bin.

• Provides the closing tension for the ice chute door/flapper
• Helps maintain a proper seal at the dispenser opening
• If worn or broken, you may notice the flapper not closing fully
• Frost/condensation around the chute or ice clumping in the bucket may occur

• Disconnect power to the refrigerator before servicing
• Remove dispenser trim/control to access the ice chute door assembly; note spring orientation and anchor points
• Install the new spring in the same orientation; the flapper moves freely and closes under spring tension
• Wear gloves and use caution—metal edges in the dispenser area can be sharp

The Shelf Stud is an OEM part for Whirlpool refrigerators. It serves as a support peg that holds the refrigerator shelves in place, ensuring they remain stable and properly positioned.

Causes of a bad shelf stud can include wear and tear from regular use, accidental impact that causes the stud to break, or repeated removal and reinstallation of shelves leading to loosening or damage.

Symptoms of a bad shelf stud include:

• Shelves not staying securely in place
• Shelves tilting or collapsing
• Visible cracks or damage to the stud
• Difficulty in inserting or removing shelves

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a rear stud with a screw. For the front stud with screw use part number W11223328. For studs with no screw use kit part number 4388538.

The Emitter Cover is an OEM part for Whirlpool refrigerators. It is designed to protect the ice maker's emitter sensor, which plays a crucial role in detecting the level of ice in the ice bin and controlling the ice production process. This cover ensures the sensor operates correctly by shielding it from debris and damage.

Common causes of a bad emitter cover include accidental impacts, wear and tear from regular use, or exposure to moisture.

Symptoms of a bad emitter cover include:

• Inconsistent ice production
• The ice maker not turning off when the bin is full
• Visible damage or cracks on the cover
• The ice maker failing to detect the ice level properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Right hand side

Left hand side

This evaporator cover gasket seals the evaporator cover to the refrigerator cabinet, helping maintain proper airflow and reducing frost buildup behind the back wall. It restores a tight seal for more reliable cooling performance. What it does:

• Seals the evaporator cover to prevent air leaks that can cause frost or ice buildup
• Helps maintain consistent cold-air circulation in the freezer/refrigerator compartment
• Reduces chances of excessive frost, water pooling, or longer run cycles tied to air infiltration
• Supports normal defrost operation by keeping warm, moist air out of the evaporator cavity

• Disconnect power before servicing and allow the appliance to defrost if needed
• Remove the evaporator cover carefully; watch for sharp sheet-metal edges and retain fasteners
• Position gasket evenly around the cover mating surface; avoid stretching or creasing the seal
• If adhesive or clips are used, replace or reapply per OEM guidance to ensure a secure fit

A replacement receiver cover that protects and conceals the receiver/control housing, keeping internal components safe from dust and damage while restoring the appliance's finished appearance. Fits where the original receiver cover was installed. What it does:

• Covers and protects the receiver/control housing from dust, moisture, and accidental contact
• Helps secure wiring and small components inside the control area
• Restores the appliance's exterior appearance when the original cover is cracked or missing
• Can reduce intermittent issues caused by exposed connections when used as intended

• Disconnect power (unplug appliance or turn off breaker) before servicing to avoid electrical shock
• Remove the old cover by removing visible screws or clips; keep hardware if reusing is possible
• Align the replacement cover carefully and fasten with the original screws or clips; do not force parts into position
• If you see damaged wiring or mounting tabs, inspect further.

This replacement screw fastens panels, brackets, and internal components so they stay secure during operation. Replace worn, rusted, or missing screws to restore a solid fit and help reduce vibration, rattles, and misalignment.

• Secures appliance parts to maintain proper fit and alignment
• Helps reduce noise and vibration from loose panels or trim
• Replaces stripped, corroded, or missing fasteners
• Can resolve issues like rattling, gaps, or shifting components

• Disconnect power; turn off gas/water if applicable before servicing
• Match to the original screw and start threads by hand to avoid cross-threading
• Use the correct driver and tighten snugly; do not overtighten into plastic or thin sheet metal
• Replace additional worn fasteners in the same location if needed for even clamping

The Ice Level Control Board is an OEM part for Whirlpool refrigerators. It is an electronic component responsible for monitoring and regulating ice production in the icemaker. The board works with sensors to detect the level of ice in the bucket and control the icemaker accordingly. It plays a vital role in ensuring a consistent ice supply.

Symptoms of a bad control board include:

• Irregular or inconsistent ice production
• The icemaker failing to turn on at all
• Error codes displayed related to the icemaker
• Sensors providing inaccurate readings to the control board

Causes of a bad control board can include failure over time due to normal wear and tear, exposure to moisture or temperature fluctuations, or damage due to electrical surges.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
