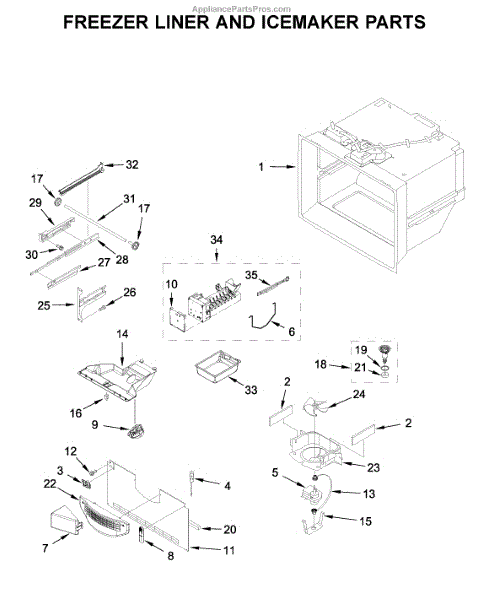

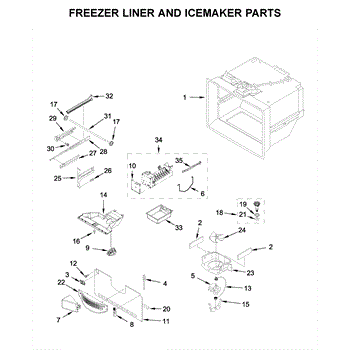

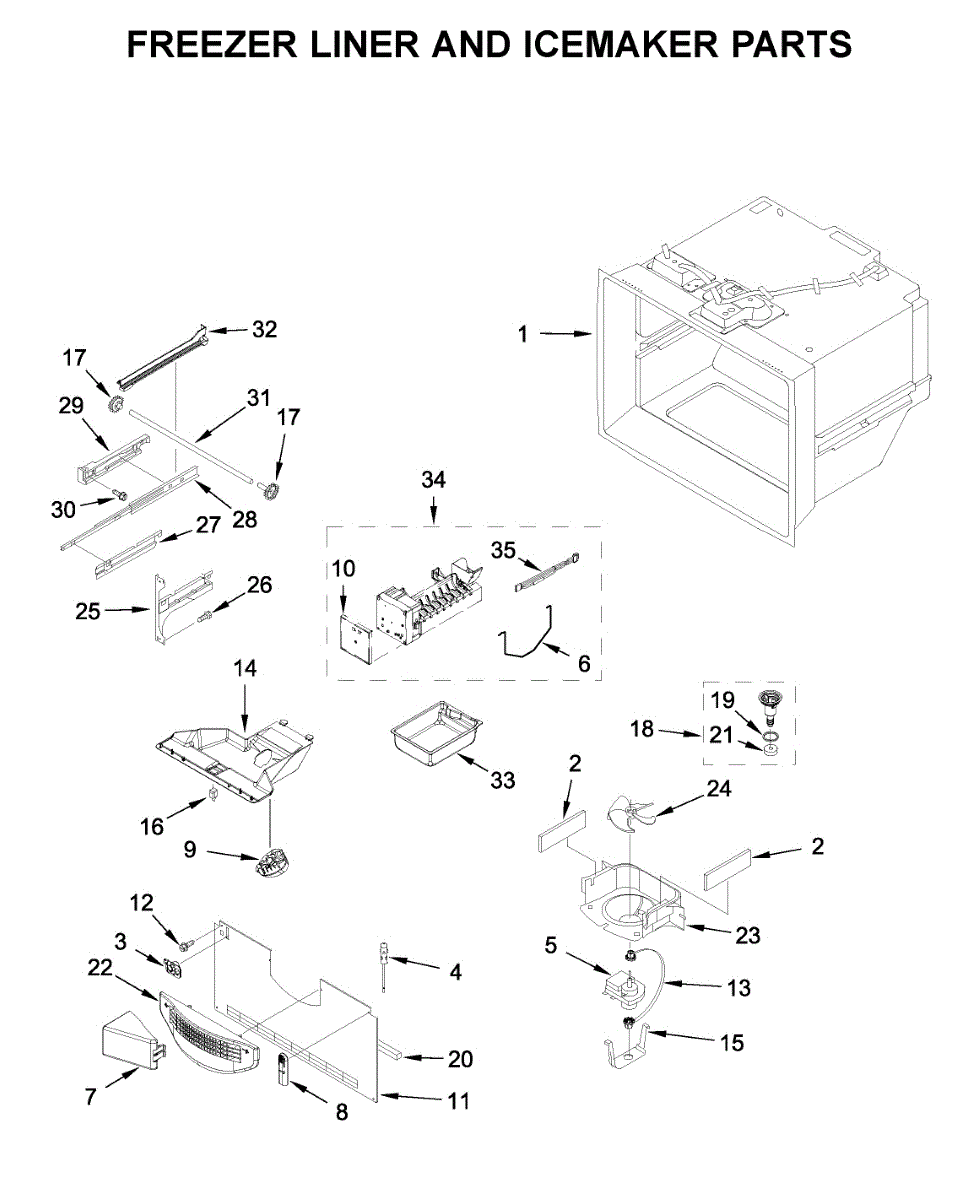

Parts for Kitchenaid KRFF302EBS01: Freezer Liner And Icemaker Parts

The shut-off arm is the lever that tells the ice maker when to stop and start making ice. Replace a bent, missing, or jammed arm to restore proper ice production control and prevent bin overfilling. What it does:

• Lowers to allow ice production; raises to stop cycles when the bin is full (down = on, up = off)
• Helps prevent overfilling, spills, and auger jams
• Common symptoms: ice maker won't stop making ice, no ice when the arm is stuck up, inconsistent ice production from misalignment
• Restores proper ice level sensing when the original lever is damaged or missing

• One shut-off arm

• Disconnect power and shut off water before servicing
• Remove the ice bin to access the ice maker
• Seat the arm's pivot ends fully in the ice maker head; avoid bending the lever
• The arm moves freely up/down and clears the bin before restoring power

The LED Light Module is an OEM replacement part for Whirlpool refrigerators. This lighting module is responsible for providing illumination inside the refrigerator and freezer compartments. It contains energy-efficient LEDs that produce a bright, consistent light.

Causes of a bad LED Light Module can include failing or damaged LEDs due to age or accidental impact. Sensor or electrical issues within the module itself could also cause lighting problems.

Symptoms of a bad LED Light Module include:

• Dim, flickering, or non-functioning lights
• Parts of the lighting not working properly
• Premature burning out of LEDs
• Electrical humming or buzzing from the lighting area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This ice maker cover shields the front of the ice maker assembly, protecting the module and moving parts from dust and accidental contact. Replacing a cracked or missing cover restores a clean, finished appearance and keeps components protected.

• Shields the ice maker's front components and control module
• Helps keep dust, splashes, and debris out of the mechanism
• Prevents accidental contact with moving ejector parts
• Replace if the cover is cracked, warped, missing, or will not stay attached

• Unplug the refrigerator before servicing
• Access the ice maker in the freezer compartment
• Carefully release the retaining tabs and remove the old cover; note orientation
• Align the new cover and press until it snaps securely into place—do not force the tabs

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A molded defrost drain funnel that routes condensation and melted frost into the refrigerator's drain to help prevent pooling and interior leaks. Replaces cracked or clogged funnels to restore proper water flow in the drain path. What it does

• Guides defrost and condensation water from the evaporator area into the fridge drain system.
• Helps prevent water pooling inside the fresh-food or freezer compartments.
• Worn, cracked or clogged funnels can cause dripping, pooling or frost build-up near the evaporator.
• Restores a secure, directed path for meltwater to reach the drain tube and pan.

• Disconnect power to the appliance before accessing internal components to reduce shock risk.
• Remove food and any removable shelving to access the evaporator/drain area; handle plastic trim carefully to avoid breakage.
• Inspect surrounding drain area for ice, debris or clogs and clear before reinstalling the funnel.
• If clips or screws secure the funnel, retain hardware and reinstall securely; test a small amount of water to ensure proper drainage.

This right-hand slide bracket secures and supports a cabinet or drawer slide assembly so drawers and shelves open and close smoothly. It restores alignment and support for proper sliding action. What it does:

• Anchors the right-side slide or rail to the cabinet frame or drawer assembly
• Keeps the slide aligned to prevent binding, sagging, or uneven travel
• Helps restore smooth opening and closing when the drawer or shelf sticks
• Works with the existing slide/rail hardware; replaces damaged or broken brackets

• One right-hand slide bracket

• Turn off power to any nearby powered components and remove contents before starting
• Remove the drawer or shelf to access the bracket
• Typical installation requires basic hand tools (screwdriver or nut driver) and original fasteners; retain screws for reuse unless replacement is specified
• Inspect mating slide/rail and adjacent brackets for wear and replace any damaged components to ensure proper function

This left-side slide bracket secures and guides a sliding assembly so drawers or components open smoothly and stay aligned. It replaces a worn or broken bracket to restore proper support and reduce binding or sagging. What it does:

• Provides structural support for the left side of a sliding drawer/assembly
• Keeps slides aligned so the drawer opens and closes smoothly
• Helps stop sagging, catching, or uneven movement of the sliding part
• Replaces cracked, bent, or damaged brackets that interfere with operation

• Disconnect power and/or unplug the appliance before starting any repair
• Remove any outer panels or drawer components as needed to access the bracket
• Keep original fasteners; install bracket in the same orientation and tighten screws securely but do not overtighten
• If movement still feels restricted after replacement, check mating slide components and alignment

The Refrigerator Slide is an OEM replacment part specific to Whirlpool refrigerators. It is the component that provides extension and retraction of refrigerator shelves. This allows for adjustable shelf positioning to accommodate varied food and beverage storage needs.

Causes of a bad refrigerator slide can include wear and tear of moving parts over time, shelf overload that places strain on slide mechanics, and damage from occasional mishandling.

Symptoms of a bad refrigerator slide include:

• Shelves not sliding smoothly or becoming stuck in place
• Gaps appearing between shelves and refrigerator walls
• Noises or squeaking emanating from shelf tracks
• Visible damage or deformities on slide components

This OEM Whirlpool refrigerator part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement agitator shaft restores the connection between the washer transmission and agitator so laundry moves properly during the cycle. Replaces a worn or damaged shaft to help eliminate agitation failure and restore normal washing action. What it does:

• Transfers rotational force from the transmission to the agitator so clothes are moved and cleaned
• Commonly replaced when the agitator refuses to move, spins freely, or washing action is inconsistent
• Can address grinding or knocking noises coming from the transmission/agitator area
• Works as a direct-fit service part when matched to the correct washer model

• Disconnect power and water before beginning any repair
• Follow the washer's service manual or OEM exploded diagram for removal and installation steps
• Inspect surrounding components (agitator, transmission seals, fasteners) and replace if worn

The Drawer Slide Rail is an OEM part for Whirlpool refrigerators. It allows movement of the refrigerator drawer.

A bad drawer slide rail can be caused by regular use, wear and tear, or accidental damage. If you experience issues such as the drawer sticking, not sliding smoothly, or falling off the rail, it may indicate a problem with the slide rail.

Symptoms of a bad drawer slide rail include:

• Difficulty in opening or closing the refrigerator drawer
• Uneven or jerky movement of the drawer
• Drawer falling off or not staying in place

Replace your faulty drawer slide rail with this genuine OEM part to restore your refrigerator.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Side Rack is an OEM part for refrigerators. It is designed to ensure movement of the freezer drawer, allowing easy access to frozen items.

A bad freezer drawer slide rail can be caused by regular use, wear and tear, or accidental damage. If you notice issues such as the freezer drawer sticking, not sliding smoothly, or falling off the rail, it may indicate a problem with the slide rail.

Symptoms of a bad drawer rail include:

• Difficulty in opening or closing the freezer drawer
• Uneven movement of the drawer
• Freezer drawer falling off

Replace your faulty freezer drawer slide rail with this genuine OEM part to restore smooth functionality and convenient access to your frozen goods.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This ice container stores the ice your refrigerator makes and interfaces with the dispenser drive so cubes reach the door. Replacing a cracked or worn bin restores smooth, sanitary ice storage and dependable dispensing.

• Holds and organizes ice beneath the icemaker
• Guides cubes to the dispenser drive for cube or crushed delivery on models with a dispenser
• Helps prevent spills and stray ice in the freezer
• Common failure signs: cracked bin, ice not dispensing, clumping/jamming, or frost/shavings around the bucket area

• Unplug the refrigerator or switch off power before servicing; empty the old bin
• Slide the bin straight out and clear frost/debris from rails or the mounting area
• Align the drive connection (if present) and fully seat the new container so it sits flush or latches
• Restore power and test the ice dispense function

The Ice Maker is an OEM part compatible with Whirlpool refrigerators. It is a crucial component responsible for producing and dispensing ice cubes for your convenience and enjoyment.

Note: This replacement icemaker has a plastic tray on the bottom. If you are replacing this part the original icemaker you have to remove the plastic tray from this icemaker so the bracket will connect to hold the icemaker in place

Symptoms of needing to replace the ice maker include:

• Reduced or no ice production
• Ice cubes sticking together or clumping
• Unusual noises or grinding sounds from the ice maker
• Water leaks or condensation buildup around the ice maker area

Causes of needing a new ice maker can include normal wear and tear over time, issues with the water supply or filtration system, or physical damage due to impact or mishandling.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This wire harness supplies the factory wiring connections between appliance components to restore reliable electrical communication and control. It replaces a damaged or faulty harness to help eliminate intermittent power or control problems. What it does:

• Carries electrical signals and power between switches, sensors, motors and control boards
• Restores lost or intermittent connections that can cause controls, lights or components to stop working
• Prevents arcing and unreliable operation caused by frayed, burned or loose wires
• Ensures correct connector fit and factory routing for safe operation

• Disconnect power (unplug or shut off breaker) before starting any repair
• Match connector shapes and routing to the original harness; do not force connectors
• Inspect mating terminals and grounding points; replace or repair damaged terminals per OEM guidance
