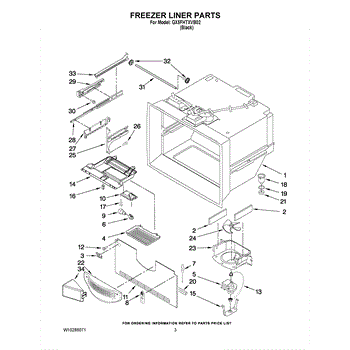

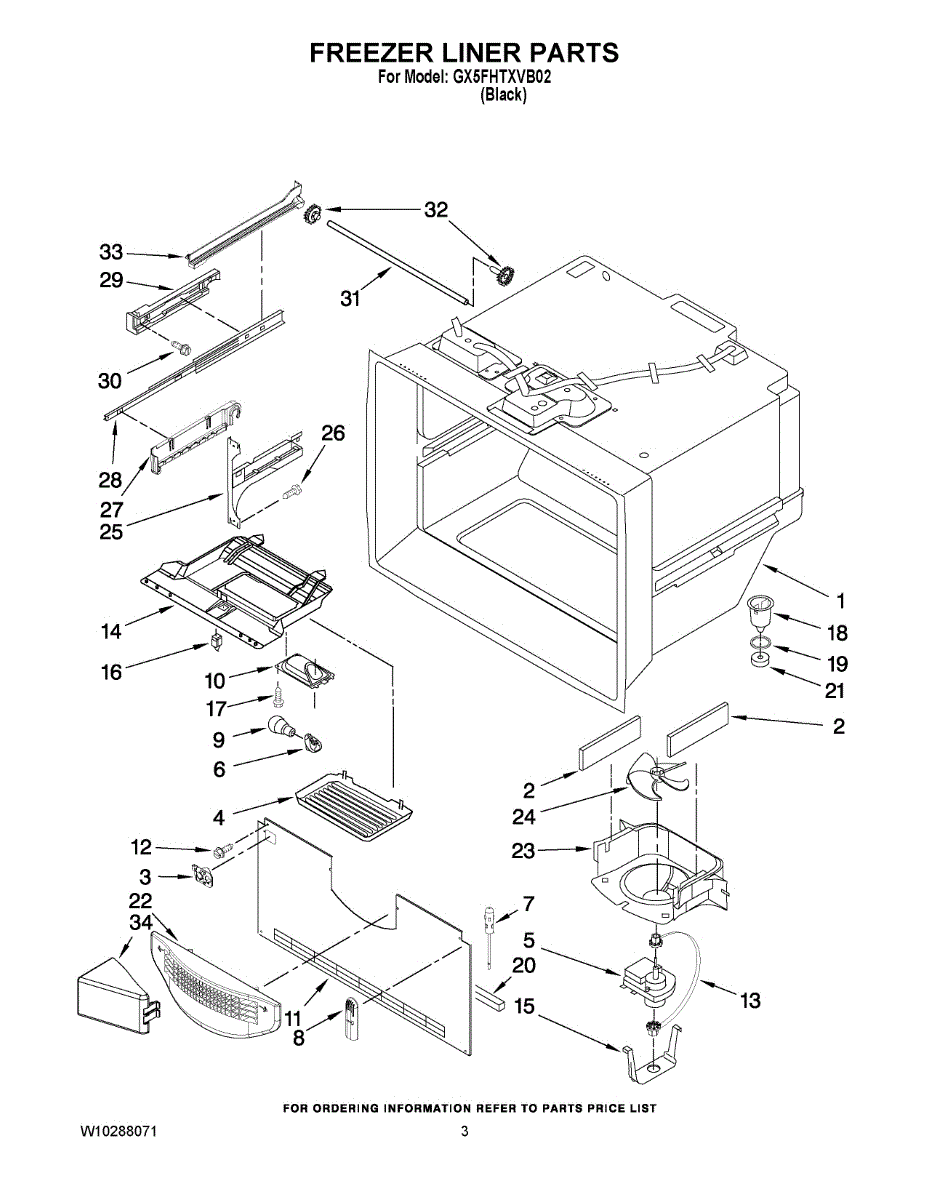

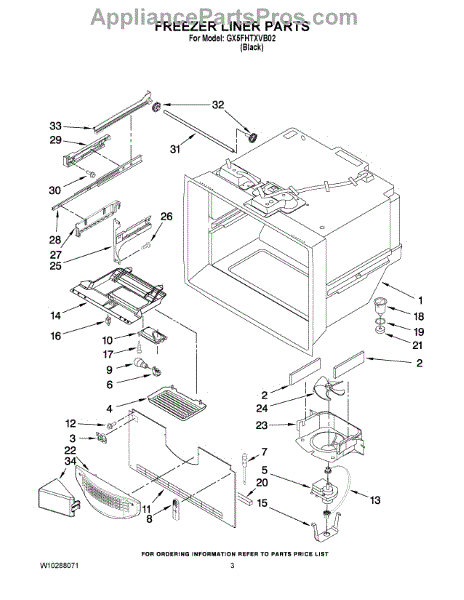

Parts for Whirlpool GX5FHTXVB02: 02 - Freezer Liner Parts

Seals refrigerator or freezer door to prevent air leaks and maintain temperature. Replace if torn, deformed, or door won't close tightly. Confirm fit.

Replace your refrigerator's fill tube guide if cracked, broken, or missing. This plastic guide sleeve directs the water fill tube in your ice maker assembly.

Freezer cold but fridge warm? Your evaporator fan motor circulates air between compartments. Most DIYers complete this repair in 1 hour with our video.

Freezer or fridge light not working even with a new bulb? This light socket provides the electrical connection. Basic DIY repair with video guide.

Freezer freezing up or fridge running warm? This thermistor monitors temperature to control defrost cycles. DIY repair takes 1-2 hours with basic tools.

Freezer running too warm or too cold? This thermistor cover shields the temperature sensor for accurate cooling. Simple snap-in installation fixes misreads.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This outer cabinet housing provides a durable structural shell that supports internal components and protects them from debris and wear. It restores proper alignment and enclosure for safe, stable appliance operation. What it does:

• Replaces a cracked, dented, or misshapen outer housing that can allow debris or moisture into the appliance
• Restores proper mounting surfaces and clearances for panels, controls, and internal assemblies
• Helps reduce rattling or vibration caused by a compromised cabinet
• Prevents exposure of internal wiring and components to contaminants

• One outer cabinet housing

• Recommended for experienced DIYers; some disassembly of panels and components is required
• Disconnect power and any water lines before beginning work
• Keep track of screws and brackets; some fasteners may be reused

Plastic evaporator cover for refrigerators. Installs over the evaporator coil in the freezer section. Replace if cracked, broken, or missing.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Rubber grommet that cushions wiring and panels passing through sheet metal in your refrigerator. Replace if cracked, missing, or worn to protect wires.

Replaces the freezer control module housing on your refrigerator. Needed when the original cover is cracked, broken, or missing, leaving internal components exposed.

Secures panels, trim, and wire harnesses in your refrigerator to reduce vibration and rattling. Replace when clips break or parts become loose. Confirm fit with your model number before ordering.

Interior lights staying on or not working? This door switch controls refrigerator lighting and functions. Moderate DIY repair with video guide available.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Water pooling in freezer or fridge? A clogged or cracked defrost drain funnel causes leaks. DIY fix in 30-45 minutes by accessing the rear freezer panel.

Creates a watertight seal at water connections to prevent leaks. Replace when cracked, flattened, or worn. Confirm fit with your model number.

Creates an airtight seal to keep cold air in and moisture out. Replace when worn or torn to restore cooling performance and prevent frost buildup.

Seals the drain tube connection to prevent leaks and ice buildup in your freezer. Replace if you see water pooling or ice forming at the freezer bottom.

Restore the clean look and proper ventilation of your microwave with this air grille. It covers the upper front vent opening, helps guide airflow through the vent path, and shields internal components for reliable performance.

• Covers the upper/front vent opening while allowing proper airflow
• Helps secure the charcoal filter on many recirculating models
• Restores appearance and fit when the original grille is cracked or missing
• Common fix for a loose, rattling, or broken vent cover

• Disconnect power to the microwave before servicing
• Open the door (most models), remove the screws along the top edge, and slide the old grille to release its tabs
• Position the new grille, ensure tabs engage fully, and reinstall the screws without overtightening

Protective housing that covers refrigerator fan components. Replace if cracked or broken to ensure proper airflow and protection. Confirm fit with model.

Loud noise or freezer warming up? This evaporator fan blade circulates cold air over coils. Simple DIY fix—most repairs done in under an hour.

Right-hand slide bracket secures drawer or shelf slide assemblies in refrigerators. Replace if cracked, broken, or causing misalignment issues.

Left-side slide bracket that secures and guides drawer assemblies in refrigerators. Replaces worn, cracked, or broken brackets to restore alignment.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Supports and secures the freezer basket in proper position for smooth sliding. Replace if cracked, broken, or missing to restore basket alignment.

Support bracket that holds the freezer basket in position and allows it to slide smoothly. Replace if cracked, broken, or basket won't stay aligned.

Extends and retracts freezer drawer in bottom-mount refrigerators. Replace if the spring broke, plastic tab cracked, or drawer won't close properly.

Left-hand adapter bracket secures freezer drawer rails in bottom-mount refrigerators. Replace if cracked, broken, or missing to restore proper alignment.

Right-hand mounting adapter bracket secures end caps, trim, or shelf assemblies to your refrigerator cabinet wall. Replace if cracked, broken, or worn.

Size: 8 x 1-1/4 inch.

The Shaft is an OEM part for Whirlpool refrigerators. This component serves as the axle for the refrigerator's wheels, allowing for smooth movement when repositioning or cleaning the appliance. It is designed to fit securely and ensure stability during use. The shaft's approximate length is 26 inches.

Common causes of a bad wheel shaft include excessive weight, rough handling during relocation, or wear and tear over time.

Symptoms of a bad wheel shaft include:

• Difficulty moving the refrigerator
• Unstable or wobbly positioning
• Visible bending or damage to the shaft
• Unusual noises when moving the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Repair kit for refrigerator drawer slide mechanisms. Includes gears and rod to replace stripped, broken, or missing components in pull-out drawer rails.

The Side Rack is an OEM part for refrigerators. It is designed to ensure movement of the freezer drawer, allowing easy access to frozen items.

A bad freezer drawer slide rail can be caused by regular use, wear and tear, or accidental damage. If you notice issues such as the freezer drawer sticking, not sliding smoothly, or falling off the rail, it may indicate a problem with the slide rail.

Symptoms of a bad drawer rail include:

• Difficulty in opening or closing the freezer drawer
• Uneven movement of the drawer
• Freezer drawer falling off

Replace your faulty freezer drawer slide rail with this genuine OEM part to restore smooth functionality and convenient access to your frozen goods.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Drawer Slide Rail is an OEM part for Whirlpool refrigerators. It allows movement of the refrigerator drawer.

A bad drawer slide rail can be caused by regular use, wear and tear, or accidental damage. If you experience issues such as the drawer sticking, not sliding smoothly, or falling off the rail, it may indicate a problem with the slide rail.

Symptoms of a bad drawer slide rail include:

• Difficulty in opening or closing the refrigerator drawer
• Uneven or jerky movement of the drawer
• Drawer falling off or not staying in place

Replace your faulty drawer slide rail with this genuine OEM part to restore your refrigerator.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Replacement airflow deflector for refrigerators. Redirects air and shields internal components. Needed when original is cracked, broken, or missing.
