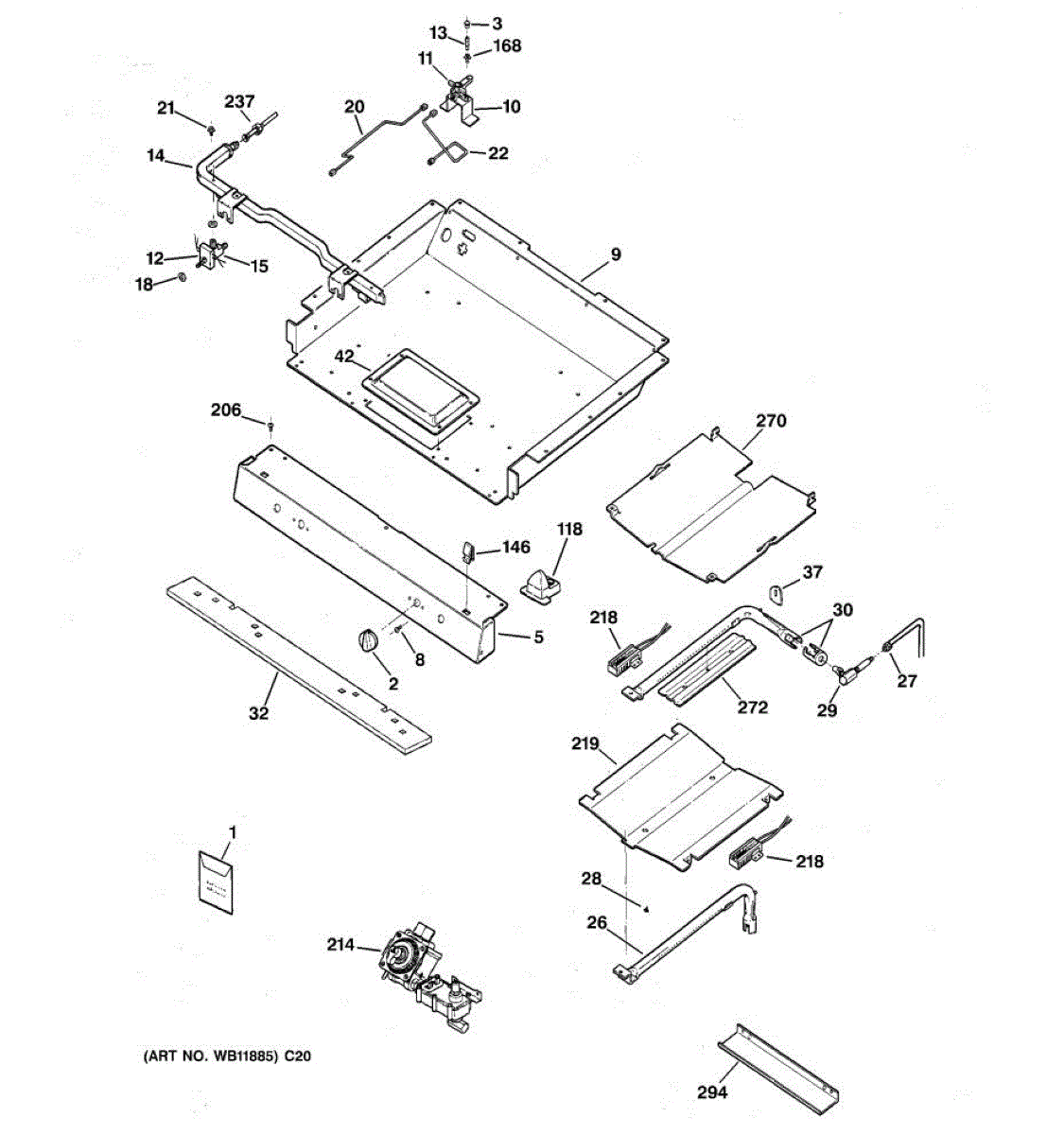

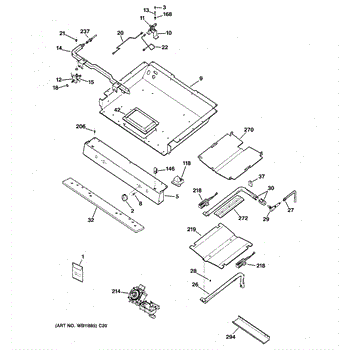

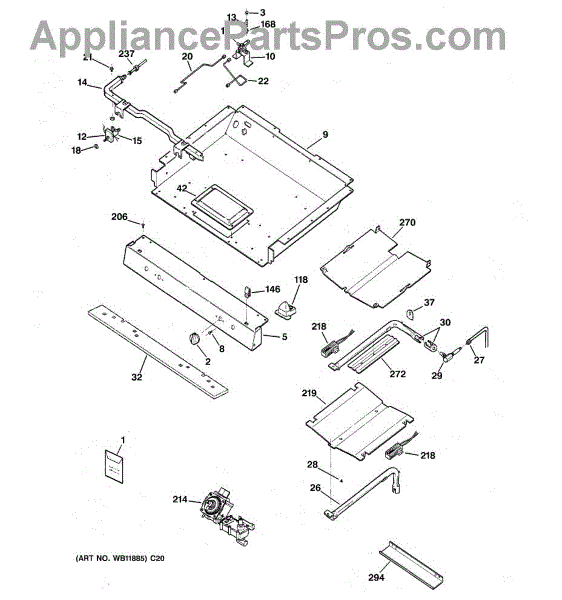

Parts for Ge JGB920SEF2SS: 01 - Gas & Burner Parts

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.

Size: 1.02 mm. Liquid propane

Includes the natural gas orifice

Size: 0.74 mm. Liquid propane

Size: 0.90 mm. Liquid propane

Includes the natural gas orifice

Includes the natural gas orifice

Size: 8 - 32 inch.

Includes the natural gas orifice

Includes the natural gas orifice

Includes the natural gas orifice

This valve switch includes a orange hub and sparks at the 11 o'clock position. For the gray hub valve switch order WB24K10003.

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

This is the screw that secures the burner valve to the appliance, keeping the valve and associated controls fastened for reliable operation. Replaces a worn or missing mounting fastener to restore proper valve alignment and support. What it does:

• Secures the burner valve assembly to the appliance frame or manifold
• Keeps valve position stable to help maintain reliable burner operation
• Helps prevent movement that can cause loose connections or intermittent function
• Used when original screw is stripped, missing, or corroded

• One burner valve mounting screw

• Turn off power and gas supply to the appliance before starting any repair
• Use the correct size driver and avoid over-tightening to prevent stripping the screw or damaging the valve
• Confirm valve and surrounding components are properly aligned before final tightening

This Bake Burner Assembly is an OEM part for GE ovens and ranges. The bake burner assembly includes both the igniter and the burner tube. It is responsible for producing the flame that heats the air inside the oven cavity during baking and broiling.

Causes of a bad bake burner can include wear and tear from frequent use, clogging or blockage of gas ports, or damage from exposure to high temperatures and spills.

Symptoms of a bad bake burner include:

• Uneven baking or cooking results
• The oven not heating up properly or taking too long to reach the desired temperature
• Visible damage or corrosion on the burner
• The oven emitting unusual smells or noises during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This burner supply tube delivers gas from the range manifold to an individual surface burner, restoring proper fuel flow so burners ignite and produce an even flame. Direct replacement for the corresponding OEM supply line. What it does:

• Channels gas from the manifold to a specific surface burner for normal operation
• Helps restore ignition when a burner won't light or has a weak/uneven flame
• Replaces corroded, cracked or bent tubing that can restrict gas flow
• Designed to match the original routing and connection points for proper fit

• Turn off the appliance gas supply and electrical power before beginning any work.
• Confirm the correct tube orientation and secure fittings to the manifold and burner assembly.
• After installation, check all connections for leaks with a soapy-water solution or approved leak detector; do not use an open flame.

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This igniter cover is a replacement protective shield that helps protect the oven igniter from food spills and debris, extending the igniter's service life and helping the burner ignite reliably. What it does:

• Shields the oven igniter from direct contact with spills, drips and falling debris
• Helps prevent premature igniter damage that can lead to ignition problems
• Can reduce the chance of shorting or erratic ignition caused by contamination
• Matches original shape to ensure proper fit and clearance around the igniter

• Disconnect power to the appliance (and shut off gas if applicable) before servicing
• Allow the oven to cool completely and wear gloves to avoid cuts from sheet metal
• Handle the igniter and cover carefully; avoid touching the igniter surface directly
• Test appliance operation after reinstall

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 10-32 GXTT FLP.595 S

Includes the oven safety gas valve and pressure regulator.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

This terminal cover protects the oven/range power connection by covering the appliance's rear terminal block, helping prevent accidental contact and keeping wiring secure. It's a direct-replacement exterior cover for the unit's power terminals. What it does:

• Covers the appliance's electrical terminal block to help protect wiring and connectors from damage
• Reduces risk of accidental contact with live terminals when the access panel is opened
• Keeps the terminal area tidier and helps prevent debris buildup around connections
• Commonly replaced when the original cover is cracked, broken, or missing

• One terminal cover

• High-level replacement: remove rear access panel to access the terminal block, then replace the cover and secure with existing screws
• Always disconnect power (unplug or switch off the breaker) before servicing electrical components
• No special tools required beyond a screwdriver; follow OEM instructions if available
