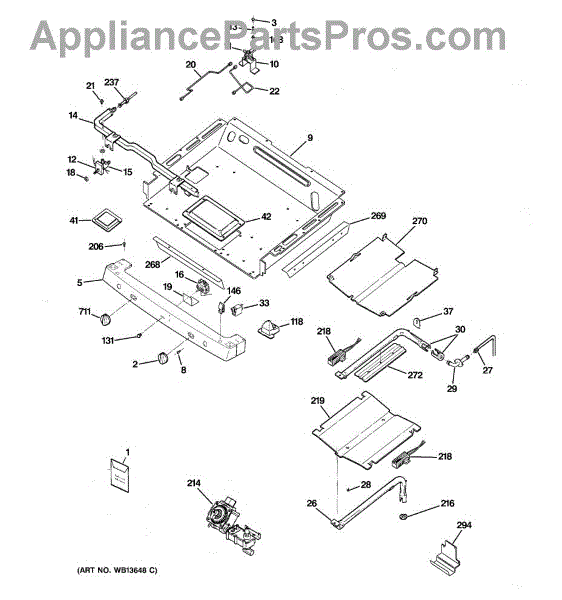

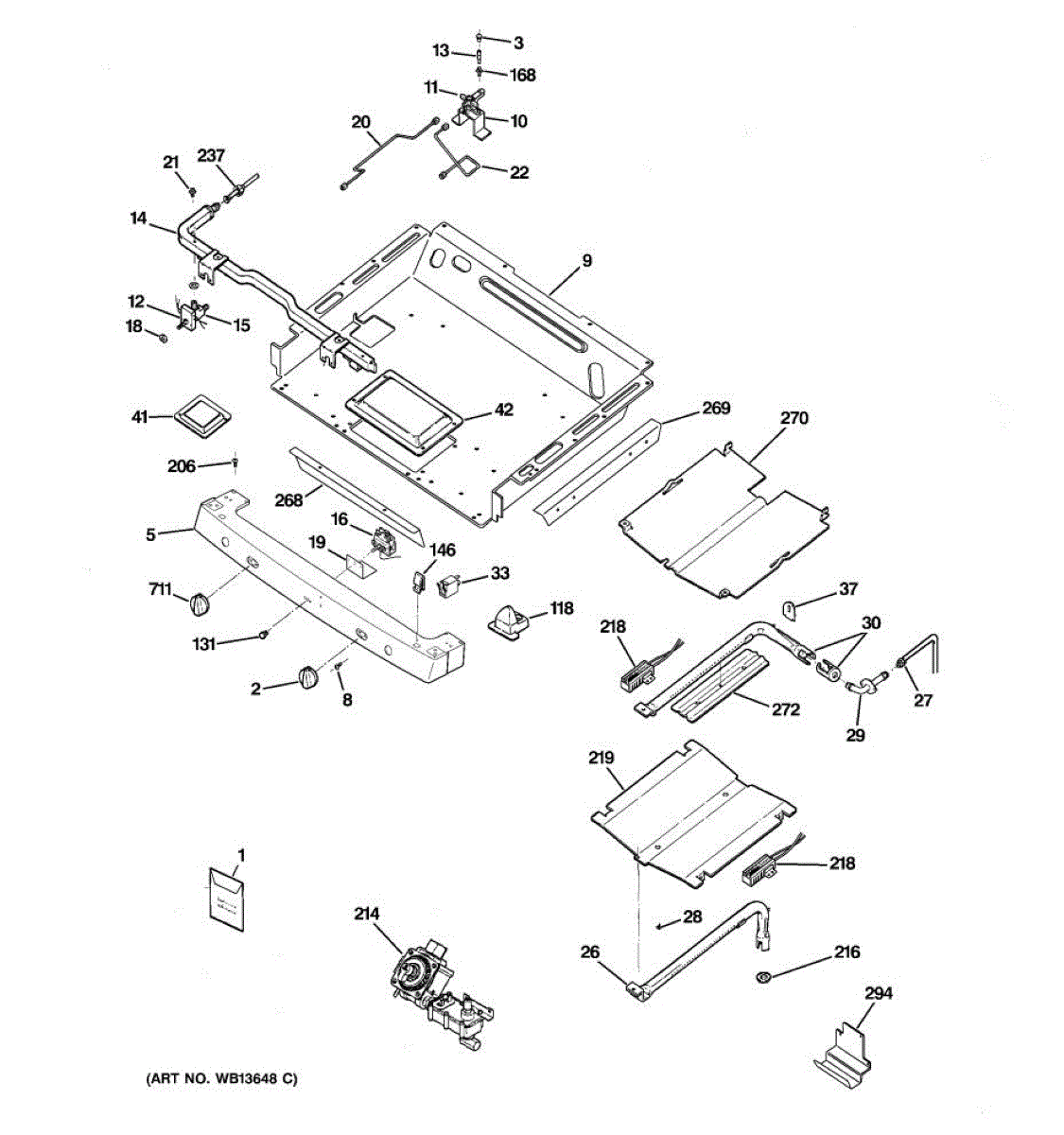

Parts for Ge JGB928KEK6CC: 01 - Gas & Burner Parts

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.

Color: Biscuit. For black order WB03K10135. For white WB03K10137.

Includes the natural gas orifice

Includes the natural gas orifice

Includes the natural gas orifice

Size: 0.74 mm. Liquid propane

Size: 1.02 mm. Liquid propane

Size: 0.90 mm. Liquid propane

Size: 8 - 32 inch.

Includes the natural gas orifice

Includes the natural gas orifice

Includes the natural gas orifice

This oven thermostat monitors and regulates oven temperature so your range maintains consistent baking and roasting results. It replaces a failed or inaccurate thermostat to restore proper oven temperature control. What it does:

• Senses oven temperature and signals the heating element or burner to cycle on and off
• Helps correct ovens that run too hot, too cold, or have inconsistent temperatures
• Restores temperature regulation for better baking and cooking performance
• Works with oven control systems that use a mechanical/electromechanical thermostat

• 1 oven thermostat

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Access may require removing the oven control panel or inner back panel; follow your model's service manual
• Replace with the exact part number shown on your appliance or parts list to ensure fit and function

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

12-24 unc

This is the screw that secures the burner valve to the appliance, keeping the valve and associated controls fastened for reliable operation. Replaces a worn or missing mounting fastener to restore proper valve alignment and support. What it does:

• Secures the burner valve assembly to the appliance frame or manifold
• Keeps valve position stable to help maintain reliable burner operation
• Helps prevent movement that can cause loose connections or intermittent function
• Used when original screw is stripped, missing, or corroded

• One burner valve mounting screw

• Turn off power and gas supply to the appliance before starting any repair
• Use the correct size driver and avoid over-tightening to prevent stripping the screw or damaging the valve
• Confirm valve and surrounding components are properly aligned before final tightening

This burner supply tube delivers gas from the range manifold to an individual surface burner, restoring proper fuel flow so burners ignite and produce an even flame. Direct replacement for the corresponding OEM supply line. What it does:

• Channels gas from the manifold to a specific surface burner for normal operation
• Helps restore ignition when a burner won't light or has a weak/uneven flame
• Replaces corroded, cracked or bent tubing that can restrict gas flow
• Designed to match the original routing and connection points for proper fit

• Turn off the appliance gas supply and electrical power before beginning any work.
• Confirm the correct tube orientation and secure fittings to the manifold and burner assembly.
• After installation, check all connections for leaks with a soapy-water solution or approved leak detector; do not use an open flame.

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pilot indicator light mounts in the control panel and illuminates to show when a surface element or another heating circuit is powered. Replace a burned-out or stuck-on light to restore a clear, reliable power-on warning.

• Lights when the corresponding heating circuit is energized
• Alerts users that heating components are active
• Common symptoms: light does not turn on, stays on constantly, flickers, or is very dim
• Shows physical damage to the lens or terminals when failed

• Disconnect power at the breaker before servicing
• Remove the backguard or control panel cover to access the indicator light from behind
• Note wire positions; move connectors to the new light one at a time and secure the light in the panel
• Restore power and test operation before reassembly

This igniter cover is a replacement protective shield that helps protect the oven igniter from food spills and debris, extending the igniter's service life and helping the burner ignite reliably. What it does:

• Shields the oven igniter from direct contact with spills, drips and falling debris
• Helps prevent premature igniter damage that can lead to ignition problems
• Can reduce the chance of shorting or erratic ignition caused by contamination
• Matches original shape to ensure proper fit and clearance around the igniter

• Disconnect power to the appliance (and shut off gas if applicable) before servicing
• Allow the oven to cool completely and wear gloves to avoid cuts from sheet metal
• Handle the igniter and cover carefully; avoid touching the igniter surface directly
• Test appliance operation after reinstall

This replacement indicator light lens covers the lamp opening on the control panel, protecting the opening while keeping the ON indicator easy to see. Replacing a cracked or missing lens restores visibility and a finished look.

• Covers and protects the indicator lamp opening in the panel
• Diffuses light so the appliance's ON status is easy to see
• Helps keep dust, grease, and moisture out of the control area
• Common signs to replace: lens cracked, missing, cloudy/discolored, or won't stay seated

• Disconnect power by unplugging the appliance or switching off the circuit breaker
• Access the panel area; release the old lens tabs or retainer from the back side and remove
• Align and press the new lens fully into the opening until it sits flush
• Restore power and verify the indicator illuminates correctly

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 10-32 GXTT FLP.595 S

Includes the oven safety gas valve and pressure regulator.

This is a replacement igniter glowbar. This is a genuine OEM part made by General Electric and has been sourced directly from the manufacturer. This part is intended to replace defective or burnt-out igniter glowbars in a variety of gas powered oven and stove models. A glowbar igniter works to electrically ignite the gas source on a stove or range. A defective glowbar will prevent the burner from lighting and emitting a flame. Always make sure that the stove is entirely disconnected from power and gas before starting any repair work. Proper tools are required to replace this part. Please ensure the appropriate safety precautions are followed when attempting to fix any appliances. For more accurate information on how and where to install this igniter glowbar, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this igniter glowbar is suitable for use on several different models of gas-powered ovens, stoves, and ranges manufactured by General Electric and Hotpoint. This is a genuine part made of high-quality, durable materials and is sold individually.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

This manifold supply tube carries gas from the pressure regulator to the burner valve manifold on your gas range or cooktop. Replacing a damaged tube restores safe, consistent fuel flow for reliable ignition and steady flames.

• Routes regulated gas to the burner valve manifold
• Restores proper fuel flow when the original tube is kinked, cracked, or corroded
• Typical symptoms include weak or no flame, delayed ignition, or a fuel odor near the manifold
• Replace if leaking or visibly damaged

• Disconnect power and shut off the gas supply; allow the appliance to cool.
• Photograph the original routing and fittings before removal; transfer any clips or brackets.
• Route and support the new tube exactly like the original; avoid kinks or sharp bends.
• After reassembly, check all joints with an approved leak-detection solution—never with an open flame.

Color: Bisque
