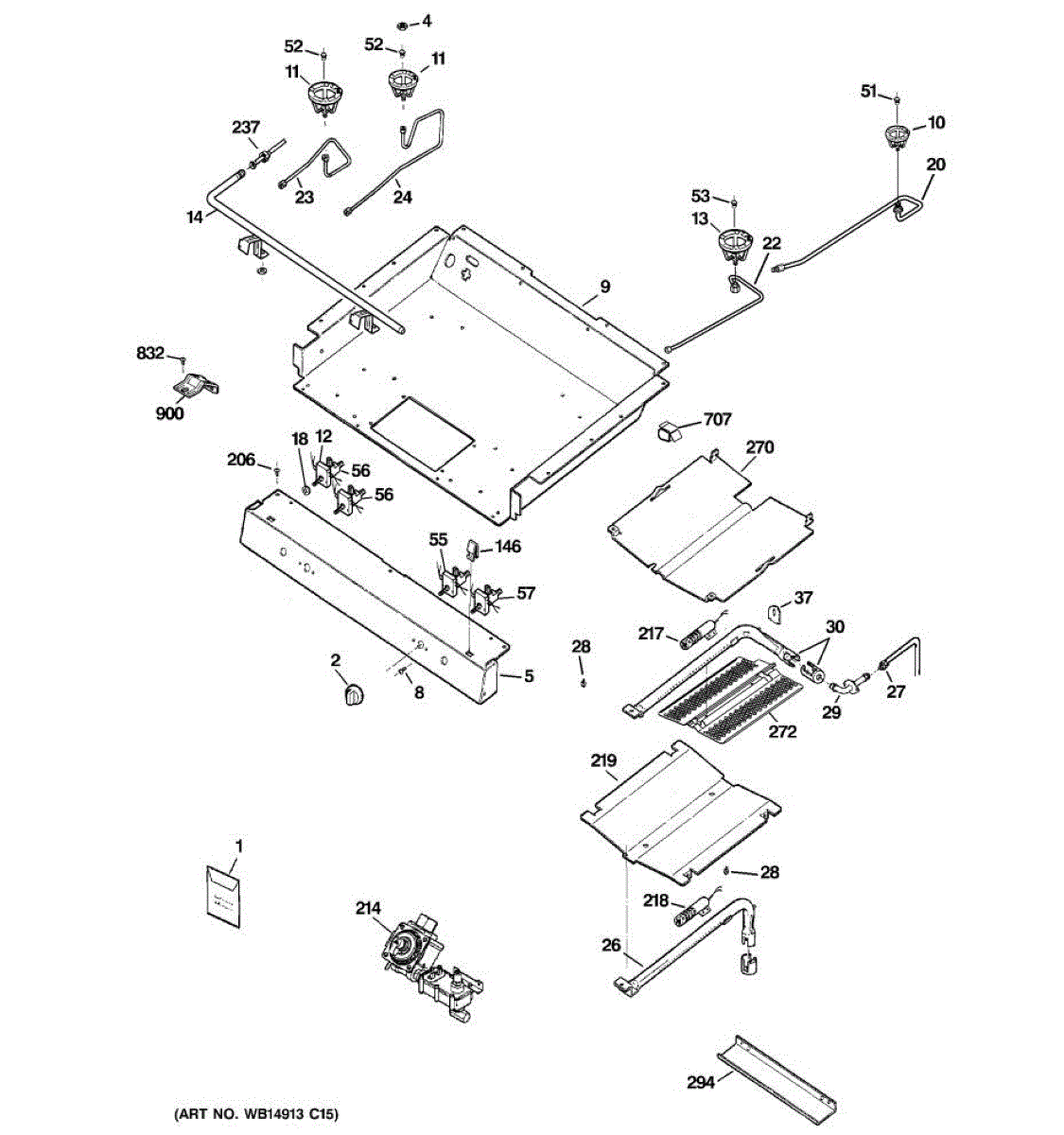

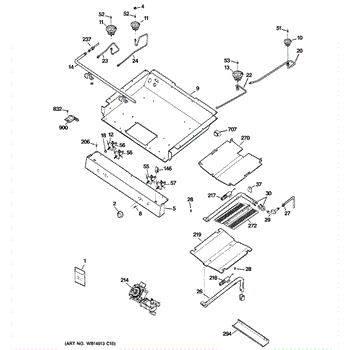

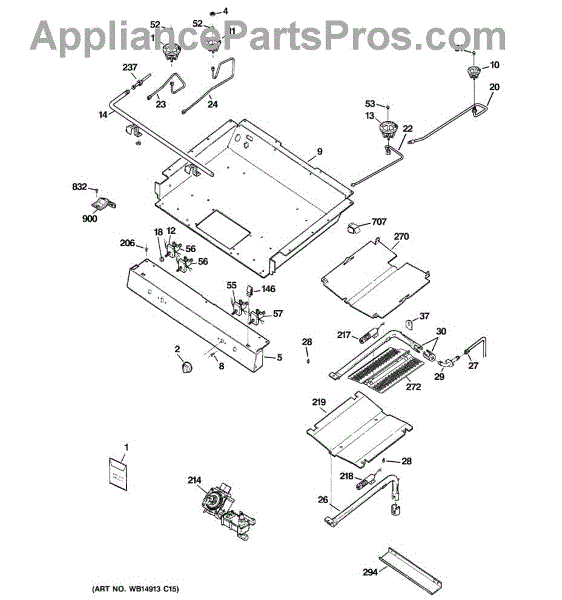

Parts for Ge JGBP33DET2BB: 01 - Gas & Burner Parts

Color: Bisque

Color: White

The Mini Valve Knob is an OEM replacement part for GE ovens and ranges. This small but crucial component allows users to control the oven's gas flow or temperature settings with precision. The knob fits onto the valve stem and provides a user-friendly interface for adjusting cooking settings.

You should replace the mini valve knob if it becomes worn, cracked, or damaged. Causes of a bad valve knob can include regular use, physical damage from accidental impacts, or exposure to high temperatures that can cause the plastic to degrade.

Symptoms of a bad Mini Valve Knob include:

• The knob not turning smoothly or becoming stuck
• Cracks or breaks in the knob
• Difficulty in adjusting the gas flow or temperature settings
• The knob slipping or not fitting securely on the valve stem

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

This manifold panel is the front trim piece that covers and supports the cooktop manifold and controls, restoring the appliance's finished appearance and helping protect internal components from spills and debris. What it does:

• Replaces a cracked, bent, or visibly damaged front manifold trim
• Restores proper alignment and fit of the cooktop front and control area
• Helps protect valves, orifices and internal components from grease and spills
• Improves appearance when the original panel is scratched, dented, or corroded

• Designed for drop-in replacement; follow your model's service manual for disassembly order
• Disconnect power and gas supply before starting work
• Handle edges carefully and support the panel during removal to avoid scratching surrounding surfaces

Size: 8 - 32 inch.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

This bracket secures the cooktop/main top to the appliance chassis to keep the surface stable and properly aligned. Replacing a bent or missing bracket can eliminate looseness, rattles, and visible gaps so the top seats correctly.

• Anchors the cooktop/main top to the frame
• Maintains proper spacing and alignment of the top
• Helps prevent vibration and movement during use and cleaning
• A damaged or missing bracket can cause a loose, uneven, or rattling cooktop

• Disconnect power and, for gas units, shut off the gas supply before servicing
• Access the bracket location per your model's service procedure (top may need to be lifted or removed)
• Transfer and reuse mounting screws/clips from the original bracket if required
• Install in the same orientation, check alignment, and tighten fasteners securely before restoring service

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

This rear orifice holder mounts beneath the cooktop to route gas from the valve to the rear surface burner. It positions the orifice correctly for reliable ignition and a stable, even flame at the rear burner.

• Channels gas from the valve through the orifice to the rear surface burner
• Aligns and supports the orifice spud for proper flame shape and height
• Helps address delayed ignition, weak/uneven or yellow flames at the rear burner
• A damaged or loose holder can contribute to clicking without lighting or a gas odor near the burner

• Shut off gas supply and power; allow the cooktop to cool before servicing
• Remove grates, burner caps/heads, and lift or release the cooktop to access the manifold area
• Detach the old holder from the valve and mounting points; note orientation and transfer the existing orifice spud to the new holder
• Reassemble, restore gas, and check all connections for leaks with a soapy-water solution; verify proper ignition and flame

This front orifice holder sits under the cooktop's front burner, channeling gas from the control valve through the orifice to the burner head. Replacing a damaged holder restores proper flame and dependable ignition on the front burner position.

• Channels gas from the valve to the burner head and secures the orifice spud in place
• Maintains correct alignment and seal for consistent flame size and distribution
• Helps resolve issues like front burner not lighting, repeated clicking without ignition, or weak/uneven flame
• Designed for the designated front burner position per the model's gas manifold layout

• Shut off gas supply and disconnect power; allow the appliance to cool before servicing
• Remove grates, caps, and burner head; lift or open the cooktop as required for access
• Transfer the existing orifice spud and mounting hardware to the new holder; tighten fittings and check with an approved leak-detection solution
• Test ignition and flame; adjust only per manufacturer instructions

The Front Orifice Holder is an OEM part for GE gas ranges and cooktops. This part holds the gas orifice in place at the front burner. This part is essential for the proper delivery and distribution of gas to the burner, facilitating precise flame control and consistent cooking performance.

Causes for issues with the orifice holder often involve normal wear and tear, exposure to high temperatures and cooking spills, or physical damage during cleaning or maintenance activities.

Symptoms of a malfunctioning Front Orifice Holder include:

• Inconsistent flame size or shape at the burner
• Difficulty igniting the burner or experiencing uneven heating
• Signs of damage or corrosion on the holder itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rear Orifice Holder is an OEM part for GE gas ranges. This part holds the orifice that regulates the flow of gas to the rear burner, ensuring proper gas distribution and efficient burner operation.

Causes of a bad orifice holder can include wear and tear from regular use, corrosion from exposure to cooking residues, or physical damage.

Symptoms of a bad rear orifice holder include:

• The rear burner not lighting or staying lit
• Uneven or weak flame on the rear burner
• Gas odors around the burner area
• Visible damage or corrosion on the holder

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Bake Burner Assembly is an OEM part for GE ovens and ranges. The bake burner assembly includes both the igniter and the burner tube. It is responsible for producing the flame that heats the air inside the oven cavity during baking and broiling.

Causes of a bad bake burner can include wear and tear from frequent use, clogging or blockage of gas ports, or damage from exposure to high temperatures and spills.

Symptoms of a bad bake burner include:

• Uneven baking or cooking results
• The oven not heating up properly or taking too long to reach the desired temperature
• Visible damage or corrosion on the burner
• The oven emitting unusual smells or noises during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This burner supply tube delivers gas from the range manifold to an individual surface burner, restoring proper fuel flow so burners ignite and produce an even flame. Direct replacement for the corresponding OEM supply line. What it does:

• Channels gas from the manifold to a specific surface burner for normal operation
• Helps restore ignition when a burner won't light or has a weak/uneven flame
• Replaces corroded, cracked or bent tubing that can restrict gas flow
• Designed to match the original routing and connection points for proper fit

• Turn off the appliance gas supply and electrical power before beginning any work.
• Confirm the correct tube orientation and secure fittings to the manifold and burner assembly.
• After installation, check all connections for leaks with a soapy-water solution or approved leak detector; do not use an open flame.

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This igniter cover is a replacement protective shield that helps protect the oven igniter from food spills and debris, extending the igniter's service life and helping the burner ignite reliably. What it does:

• Shields the oven igniter from direct contact with spills, drips and falling debris
• Helps prevent premature igniter damage that can lead to ignition problems
• Can reduce the chance of shorting or erratic ignition caused by contamination
• Matches original shape to ensure proper fit and clearance around the igniter

• Disconnect power to the appliance (and shut off gas if applicable) before servicing
• Allow the oven to cool completely and wear gloves to avoid cuts from sheet metal
• Handle the igniter and cover carefully; avoid touching the igniter surface directly
• Test appliance operation after reinstall

LP gas. SM .63mm

The Orifice Spud is an OEM part for GE ranges and cooktops. It is a small, precise component responsible for regulating the flow of gas to the burner, ensuring a controlled and efficient flame for cooking. This spud is essential for maintaining the correct gas pressure and flame size.

Over time, orifice spuds can become clogged or damaged due to residue buildup, corrosion, or improper cleaning. These issues can lead to inefficient burner performance or safety hazards.

Symptoms of a bad orifice spud include:

• Uneven or weak burner flames
• Difficulty in igniting the burner
• Yellow or flickering flames
• Gas odors near the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

LP Gas. LG .99mm

This 270° burner valve controls gas flow to a single cooktop or range burner, restoring predictable flame adjustment and reliable ignition so you can cook safely and accurately. What it does:

• Regulates gas flow to the burner so flame height responds to the control knob
• Enables proper ignition and consistent flame during use
• Common symptoms indicating a faulty valve: burner won't light, flame stays too low or high, or burner only lights intermittently
• Stops gas flow when set to off to help prevent unintended flow

• One 270° burner valve

• Turn off gas supply and power to the appliance before replacing the valve
• Use appropriate wrenching tools and avoid torqueing valve fittings; follow OEM torque guidance if available
• After installation, check all connections for leaks (soap-and-water test) and verify correct burner operation

This surface burner valve (270-degree) controls gas flow to a single cooktop/range burner. Replacing a worn valve restores smooth flame control and reliable shutoff when you turn the burner knob.

• Regulates and shuts off gas to one surface burner
• Addresses a stiff or hard-to-turn valve shaft
• Can correct a condition where the burner continues to flame after the knob is turned off

• Disconnect power and shut off gas supply before servicing
• Note valve orientation; transfer the orifice spud and any mounting hardware from the old valve if applicable
• Use approved thread sealant on pipe threads as required; do not use sealant on flare connections
• After assembly, leak-check all connections with a non-corrosive leak-detection solution—never with an open flame

This surface burner valve controls gas flow to a range or cooktop's top burner. The 270-degree design restores precise flame control and reliable shutoff when the original valve becomes worn, leaks, or is difficult to turn.

• Regulates gas from the manifold to the surface burner
• Provides positive on/off shutoff for the burner
• Works with the control knob to set and maintain flame size
• Common signs of failure: stiff or loose knob action, inconsistent flame adjustment, gas odor near the valve area, or a burner that won't shut off fully

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool; remove the knob and access panel to reach the manifold/valve
• Match the 270-degree orientation to the original valve; transfer existing mounting hardware as needed
• After installation, perform a leak check with an approved bubble solution; if gas odor is present at any time, stop.

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This valve control assembly regulates gas flow to a range or oven burner, replacing a failed valve to restore proper ignition and heat control. Designed as a direct-replacement service part to help return safe, reliable operation. What it does:

• Controls gas flow to burners or the oven burner so you can set and maintain heat levels
• Replaces a valve that is stuck, not opening, or not responding to temperature/knob input
• Commonly used when burners or oven won't light or when heat output is inconsistent
• Works with existing manifold and burner hardware when the valve assembly is the faulty component

• Turn off electrical power and shut off the gas supply before beginning work
• Only install the exact replacement PN for this appliance;
• Use approved fittings and test all gas connections for leaks (soap solution) after installation
• If you detect a gas odor or are unsure about any step, stop.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

This broil shield protects the oven interior above the broiler, helping direct heat and shielding the oven cavity from intense broiling temperatures for safer, more consistent broiling results. Durable metal construction resists warping. What it does:

• Shields the oven top and components from direct broiler heat to prevent damage and discoloration
• Helps maintain more even broiling by directing heat where food is placed
• Reduces the risk of flare-ups reaching wiring or insulation behind the oven liner
• Restores proper clearance between the burner and oven liner for safe operation

• One broil shield

• Disconnect power (and gas, if applicable) and allow the oven to cool completely before starting
• Remove oven racks and access the broiler area to unfasten and replace the shield using basic hand tools
• Inspect mounting tabs and surrounding liner; replace any damaged clips or screws as needed

This terminal cover protects the oven/range power connection by covering the appliance's rear terminal block, helping prevent accidental contact and keeping wiring secure. It's a direct-replacement exterior cover for the unit's power terminals. What it does:

• Covers the appliance's electrical terminal block to help protect wiring and connectors from damage
• Reduces risk of accidental contact with live terminals when the access panel is opened
• Keeps the terminal area tidier and helps prevent debris buildup around connections
• Commonly replaced when the original cover is cracked, broken, or missing

• One terminal cover

• High-level replacement: remove rear access panel to access the terminal block, then replace the cover and secure with existing screws
• Always disconnect power (unplug or switch off the breaker) before servicing electrical components
• No special tools required beyond a screwdriver; follow OEM instructions if available
