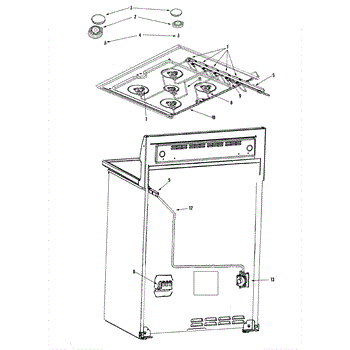

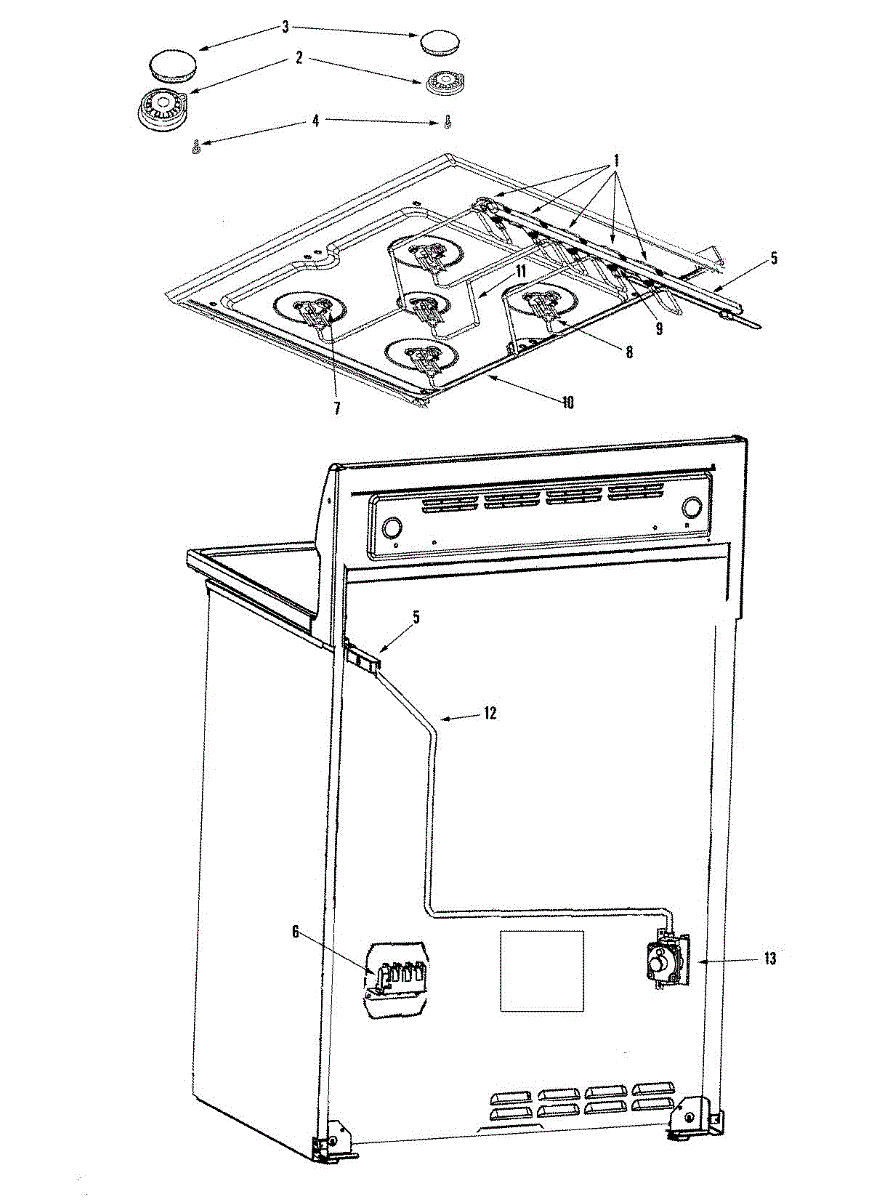

Parts for Jenn-Air JDR8895AAB: 05 - Gas Controls Parts

5K. Mueller

9K. Mueller.

16K. Mueller.

This gas surface burner head sits on the burner base and channels gas through precision ports for quick ignition and an even flame. Replacing a worn or clogged head helps restore reliable lighting and consistent heat.

• Distributes gas from the burner base to the flame ports for even flame patterns
• Interfaces with the spark electrode to enable ignition
• Helps maintain proper flame shape and heat output
• Common symptoms include burner won't light, weak/uneven or yellow flames, delayed ignition, or continuous clicking

• Disconnect power and shut off the gas supply before servicing
• Remove grate and burner cap; lift the old burner head off the base
• Clean the burner base and electrode area; align the new head with locator pins and the electrode opening, then seat fully
• Reinstall cap and grate; restore gas/power and test ignition and flame

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: Black. Size: Large.

6,000 BTU. Color: Coal matte black. Measures about 2 inches in diameter.

Spark module that controls the ignition sequence for gas range surface burners, producing the spark needed to light burners. Replacing a faulty module restores proper sparking and helps eliminate persistent clicking or no-ignite conditions. What it does:

• Generates high-voltage sparks to the burner igniters so gas burners light reliably; failure can cause burners not to ignite.
• Directs spark timing for individual surface burners; symptoms of failure include continuous clicking, intermittent sparks, or one or more burners failing to light.
• Works with the range's ignition system to coordinate spark and valve operation; does not include igniters or valves.

• Disconnect electrical power (and gas supply where applicable) before beginning any repairs.
• Photograph wiring connections before removal to ensure correct reconnection; reconnect wires to matching terminals.
• Use the exact OEM part number and replace with the same module to ensure proper fit and operation.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Surface Burner Spark Electrode is an OEM part for Whirlpool gas ranges. This electrode is responsible for generating the spark that ignites the gas burner, allowing the burner to produce a flame for cooking.

Over time, the spark electrode can become faulty due to exposure to high temperatures, grease, and general wear and tear. This can lead to unreliable ignition or complete failure to ignite the burner.

Symptoms of a bad surface burner spark electrode include:

• The burner not igniting
• Weak or intermittent spark
• Clicking sound without ignition
• Burner flame going out soon after ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This orifice holder secures the center burner orifice on gas ranges, keeping the orifice aligned so the burner lights and burns properly. Replaces a worn or damaged holder to restore consistent pilot/flame position and performance. What it does:

• Holds the center burner orifice in the correct position for proper gas flow
• Helps maintain an even, reliable flame at the center burner
• Can address symptoms like a center burner that won't light or has an uneven/weak flame
• Works as the mounting piece for the matched orifice insert

• Turn off the appliance and shut off the gas supply before servicing
• Only install the exact replacement part for your model; check the appliance parts diagram
• Use basic hand tools; avoid overtightening to protect threads and seals

The Orifice Holder is an OEM part for Whirlpool gas ranges. It includes the spark electrode and the 9.2k orifice, which are essential components for proper ignition and gas flow in the burner assembly.

Causes of a faulty orifice holder can include wear and tear over time, damage from corrosion or debris, or improper adjustment.

Symptoms of a bad orifice holder may include:

• Weak or no ignition spark
• An uneven or weak flame
• Difficulty in adjusting the burner flame
• Gas odor or leakage

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This orifice holder supports and aligns the 16K burner orifice, channeling gas from the valve to the burner for a steady flame and dependable ignition. It mounts under the cooktop and secures the high-output burner assembly.

• Aligns and supports the 16K burner's orifice and burner base beneath the cooktop
• Directs gas from the valve to the burner for correct flame pattern
• Can help restore consistent ignition and heat at the designated 16K burner location
• Typical signs to check: burner won't ignite, weak or uneven flame, or stripped/damaged mounting threads

• Shut off gas supply and disconnect power before servicing
• Remove grates and burner parts; lift the cooktop as required to access the holder
• Transfer the existing orifice to the new holder and ensure proper alignment before tightening
• After reassembly, leak-check gas connections per manufacturer instructions and verify flame performance

This orifice holder routes gas from the surface burner valve to the burner head. Sized for a 12K burner, it restores proper gas flow and reliable ignition when the original holder is damaged, clogged, or misaligned.

• Positions the orifice and channels gas to the burner head on a 12,000-BTU burner
• Maintains correct gas flow for a steady, consistent flame
• Common symptoms: burner won't ignite though the igniter sparks, weak/uneven flame, or stripped/damaged threads at the holder
• Match the 12K rating to the correct burner location per your model's parts diagram

• Disconnect power and shut off gas supply before servicing
• Remove grates and burner parts; lift the cooktop as needed to access the holder
• Transfer any brackets/gaskets from the original and install squarely; do not overtighten fittings
• Restore gas and check all connections with a non-corrosive leak-detection solution; verify ignition and flame quality

This surface burner ignition switch with protective shield mounts on the gas valve stem. When you turn the knob, it closes the circuit to the spark module to ignite the burner and the shield helps protect the switch from spills. What it does:

• Triggers the spark module to create a spark when the surface burner knob is turned
• Shield helps protect the switch from moisture, grease, and heat
• Typical symptoms of a failed switch: no spark, intermittent sparking, or continuous clicking
• One switch is used per burner valve; replace only the failed switch(es)

• 1 ignition switch with protective shield

• Disconnect electrical power and shut off gas supply before servicing
• Pull the knob straight off and remove the control/manifold panel to access the switch
• Transfer wires one at a time to the new switch; align on the valve stem and position the shield correctly
• Reassemble, restore power and gas, and verify proper spark at each burner

This replacement right-side top burner tubing routes gas to the burner assembly and restores proper fuel flow for even ignition. Designed to match OEM fit, it helps resolve burner fuel delivery issues safely and reliably. What it does

• Replaces damaged or corroded right-side top burner tubing that can cause weak flame or failed ignition
• Restores a sealed gas path to prevent leaks and maintain consistent burner performance
• Helps eliminate clicking or delayed ignition caused by interrupted fuel flow
• Matches OEM routing and connection points for a direct replacement

• Two right-side top burner tubing pieces

• Install only if this tubing is specified for your model; verify orientation before starting
• Work with the gas supply turned off and follow local codes
• Check all fittings for tightness and test for leaks with a soap solution after installation
• Do not rig or modify tubing; use only approved replacement parts for gas connections
