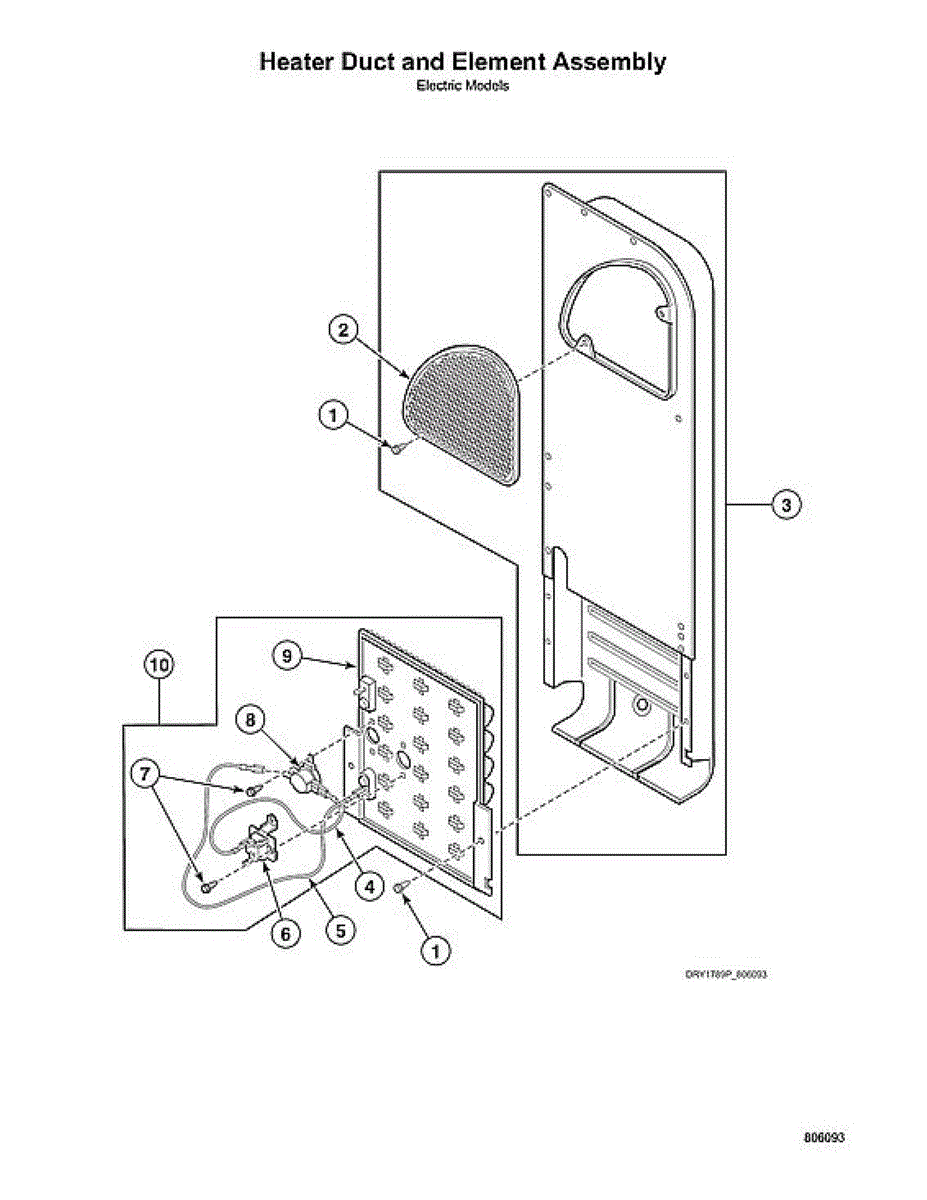

Parts for Speed Queen ATEE9ASP175TW01: Heater Duct / Element Assy Parts

This appliance screw replaces a missing or damaged fastener to secure panels and brackets. With a 10B-16 thread and 0.34-inch length, it restores a tight fit to help reduce vibration, rattles, and loosening.

• Fastens sheet-metal parts, brackets, and covers in the appliance cabinet
• Helps maintain alignment and support of components subject to vibration
• Direct replacement for stripped, rusted, or missing hardware
• Can help resolve symptoms like loose panels, rattling noises, or gaps

• Disconnect power; shut off gas/water as applicable before servicing
• Start threads by hand in the original hole or clip to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping
• If the receiving clip/nut is damaged, repair or replace it for a secure hold

The Outlet Cover is an OEM part for SpeedQueen dryers. It is a protective plate located at the rear of the dryer that covers the outlet vent during operation. The outlet cover plays an important safety role by preventing objects from accidentally entering the vent area.

Causes of a bad outlet cover can include normal wear and tear over extended use, damage from being struck or impacted, or loose screws/fasteners that no longer hold it tightly in place.

Symptoms of a bad dryer outlet cover include:

• Cracks, fractures or missing pieces that compromise the cover's protective function
• Looseness, rattling or inability to properly secure over the outlet vent

The Cover Outlet-Perforated is an OEM part for Speed Queen dryers. It functions as a protective cover, allowing proper airflow while preventing debris or foreign objects from entering the exhaust system. This part is designed to ensure efficient air circulation during the drying process, aiding in optimal dryer performance.

Causes of a bad Cover Outlet-Perforated can include physical damage due to wear over time, exposure to high heat cycles, or accidental impacts. Cracks or breaks in the cover may also result from improper handling during maintenance or cleaning.

Symptoms of a bad Cover Outlet-Perforated include:

• Reduced drying efficiency or extended drying times
• Visible cracks, warping, or other damage to the cover
• Accumulation of lint or debris around the exhaust area

This OEM Speed Queen part is also compatible with Alliance laundry equipment.

This heater duct assembly routes heated air from the dryer's heating unit to the drum so your loads dry efficiently and evenly. It replaces a damaged or obstructed duct to restore proper airflow and drying performance. What it does

• Channels hot air from the heating element into the drum for consistent drying.
• Restores airflow if a cracked or broken duct was leaking heat inside the cabinet.
• Helps address symptoms like reduced drying performance or longer cycle times.
• Prevents heat loss that can cause the dryer to run inefficiently.

• Disconnect power (unplug electric or shut off gas and unplug) before beginning any repair.
• High-level access may require removing the dryer's front or top panel; use basic hand tools and follow the dryer's service manual.
• Inspect surrounding seals and fasteners; replace any damaged clips or gaskets for a proper fit.
• Never operate the dryer with the duct disconnected or obstructed; ensure lint is cleared before reassembly.

The Heater Assembly Wire is an OEM component specifically designed for Speed Queen commercial and industrial washing machines. The heater assembly wire works with electronic controls to rapidly heat water on demand. This allows different cycles to use water temperatures best suited to each load type. Precise heating saves energy and leads to more consistent cleaning and rinsing results.

Symptoms of a bad heater assembly wire include:

• Inability to heat water effectively or reach required temperatures
• Fluctuations in temperature readings and unstable heating
• Error codes related to heating issues displayed

Causes are typically cracks, corrosion or breaks in the heating element over extended usage.

This is a replacement black wire assembly used to restore a secure electrical connection between components in your appliance. It replaces damaged or worn wiring to help re-establish reliable power/signal routing. What it does

• Carries power or signal between internal components to enable normal operation
• Replaces frayed, cut or damaged wiring that can cause intermittent operation
• Helps eliminate loose or corroded connections that can result in failure to start or inconsistent performance
• Prevents arcing or shorting when insulation or connectors are compromised

• One black wire assembly as shown

• Disconnect all power to the appliance before beginning work to avoid shock or injury
• Match wire routing and connector orientation to the original; refer to the appliance wiring diagram
• Make sure connectors are fully seated and any strain reliefs or clips are secured away from moving parts and heat sources
• If insulation or connector damage is present elsewhere, inspect and replace affected parts rather than making temporary repairs

The Thermal Fuse Assembly is an OEM part for Speed Queen dryers. This part prevents the dryer from overheating by cutting off the electrical power if the temperature exceeds safe levels.

Causes of a bad thermal fuse assembly can include lint build-up, restricted airflow, or a malfunctioning thermostat.

Symptoms of a bad thermal fuse assembly include:

• The dryer not starting
• The dryer shutting off mid-cycle
• The drum turning without producing heat
• The dryer running but clothes remaining damp

This OEM Speed Queen part ensures reliable and safe operation and is designed to meet the specifications of your dryer.

The Thermostat is an OEM part for SpeedQueen dryers. The thermostat monitors and regulates the temperature inside the dryer drum during operation. It is responsible for sensing the dryer heat and activating the heating element at the selected temperature setting.

Causes of a bad thermostat can include overheating over time, fluctuations in electrical current that may damage components, or impact damage.

Symptoms of a bad thermostat include:

• The dryer not heating up or heating unevenly
• Constantly shutting off due to overheating errors
• Inability to select desired temperature settings
• Premature ending of dry cycles

The Heater Assembly is an OEM replacement part for Speed Queen dryers. This component generates the heat necessary to dry clothes effectively, working in conjunction with the blower to distribute warm air evenly throughout the drum. It is essential for proper drying performance and efficiency.

Causes of a bad heater assembly include electrical failure, damage to the heating element, or issues such as lint buildup leading to overheating. Prolonged use and normal wear can also lead to the element burning out.

Symptoms of a bad heater assembly include:

• Dryer not producing heat
• Clothes taking longer than usual to dry
• Dryer shutting off unexpectedly due to overheating
• Error codes related to heating issues

This OEM part ensures compatibility and performance in Speed Queen dryers.

The Heater Kit is an OEM replacement part for Speed Queen dryers. This kit includes the heating element, which generates the heat necessary to dry clothes during the drying cycle. Rated at 5350 watts and compatible with 240-volt systems, it ensures efficient heating for optimal drying performance.

Causes of a bad Heater Kit can include normal wear over time, damage due to power surges or electrical issues, or overheating caused by restricted airflow. Accumulated lint or obstructions in the venting system can also contribute to heater failure.

Symptoms of a bad Heater Kit include:

• Dryer not producing any heat
• Clothes taking significantly longer to dry
• Burning smell during operation
• Visible damage to the heating element or wiring

This OEM Speed Queen part is also compatible with Alliance laundry equipment.
