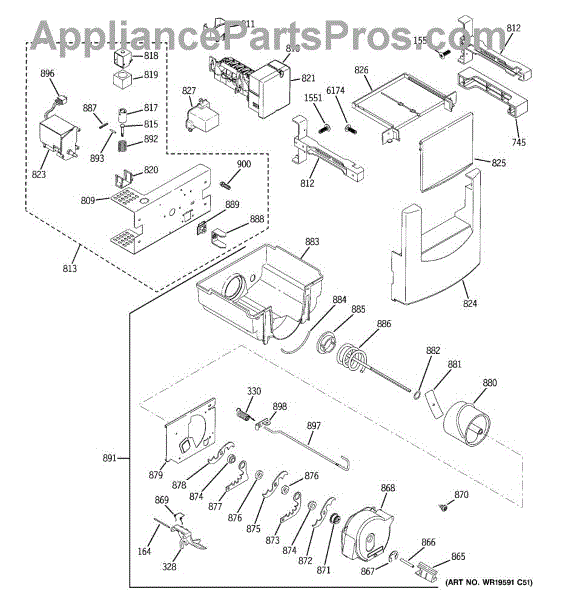

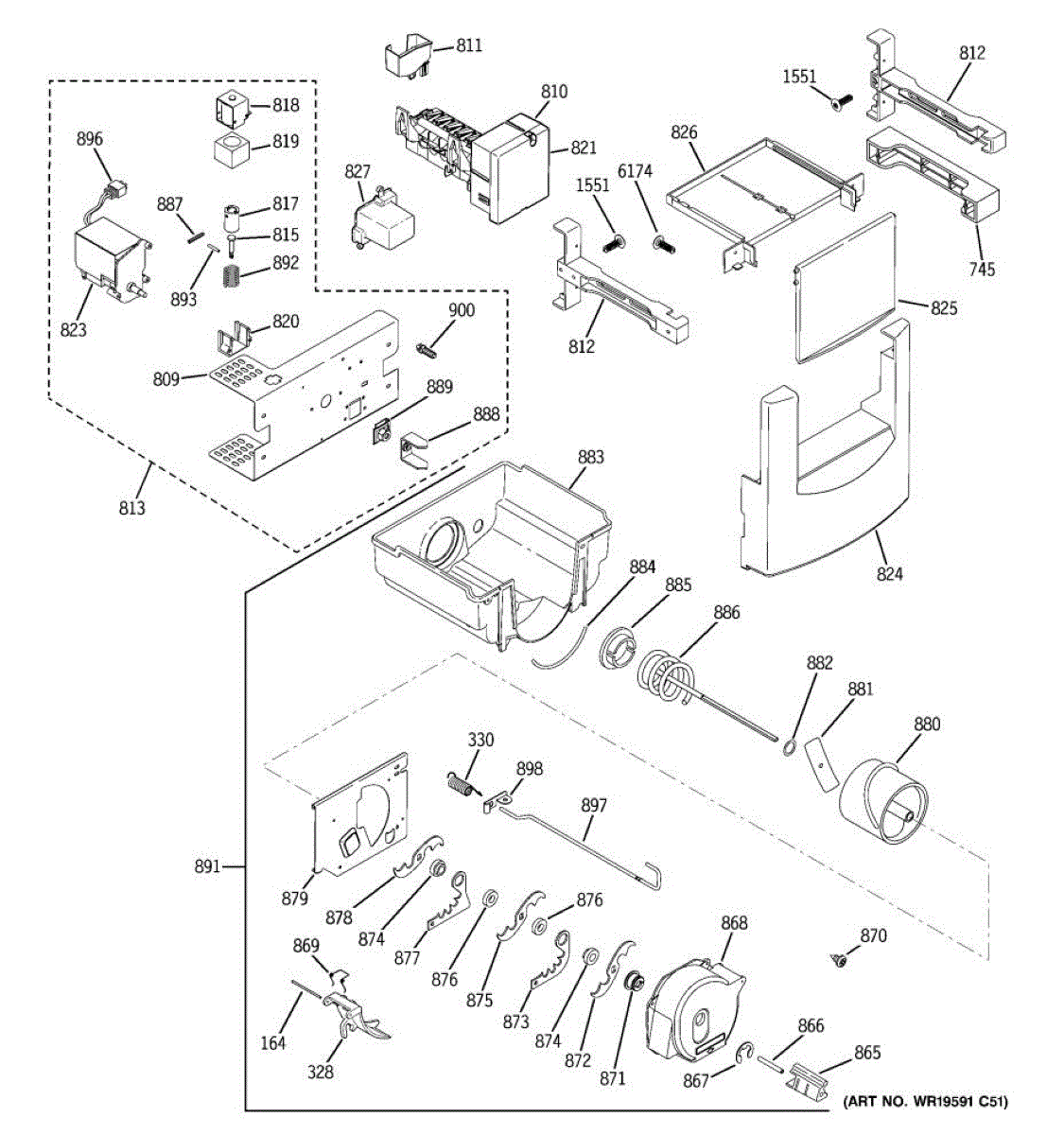

Parts for Ge ZISP480DXBSS: 06 - Ice Maker & Dispenser Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This pivot is the replacement pivot piece that supports and guides a refrigerator door or sliding drawer, restoring proper alignment for smooth opening and closing. Fits original equipment pivot points. What it does:

• Supports the weight of a door or drawer and keeps it aligned on its track
• Guides smooth opening and closing and prevents binding or sagging
• Restores proper contact and seal when a worn pivot causes misalignment
• Helps reduce noise from loose or worn pivot points

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels, trim, or the drawer/door per model instructions
• Handle carefully to avoid scratching sealed surfaces; replace worn fasteners if needed
• If alignment issues persist after replacement, check related hinges, tracks, and mounting hardware

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

This ice maker fill cup directs water from the refrigerator fill tube into the ice maker mold so each cycle fills correctly. Replacing a damaged cup restores consistent ice production and helps prevent water spills. What it does:

• Channels water from the fill tube into the ice maker mold for proper tray filling.
• Prevents water from dripping into the freezer compartment when intact.
• A cracked, warped, or missing fill cup can cause underfilled ice cubes, overflowing molds, or water pooling in the freezer.
• Compatible with common top/front-mounted household ice makers that use a separate plastic fill cup.

• Disconnect power and shut off the water supply before starting work.
• Remove the ice bin or ice maker assembly as needed to access the fill cup.
• The cup typically snaps or slides into place; use gentle pressure and avoid forcing plastic tabs.

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This solenoid saddle is a small mounting bracket that secures a refrigerator solenoid in the correct position. By preventing movement and misalignment, it helps the linked mechanism engage smoothly and consistently.

• Secures the solenoid to its housing or frame to prevent shifting
• Maintains proper alignment for reliable actuation
• A worn or broken saddle can cause buzzing/chattering and intermittent operation
• Restores stable mounting to help the connected mechanism work correctly

• Disconnect power; shut off water supply if working near water lines
• Access the solenoid assembly and note the original saddle's orientation
• Transfer the solenoid into the new saddle and reuse existing fasteners/clips
• Smooth operation before reassembling panels

This replacement motor powers the dispenser's auger/crusher mechanism to move ice from the bucket to the chute. Replacing a weak or seized motor helps restore reliable cube or crushed-ice dispensing from the freezer door.

• Drives the ice auger/crusher to feed ice from the bucket through the dispenser chute
• Helps deliver cubes or crushed ice, depending on the control selection
• Common symptoms: no ice dispensing, auger not turning, loud humming or grinding, intermittent or weak dispensing
• Located in the freezer-door dispenser assembly and engages the ice bucket coupler

• Disconnect power to the refrigerator before servicing
• Remove the ice bucket and dispenser trim/panel to access the motor; note wire orientation and fasteners
• Transfer any mounting hardware or coupler from the old motor
• Reassemble, restore power, and test ice dispensing

This ice bin front is the replacement front panel that restores the ice storage compartment door and helps keep ice contained and accessible. Fits refrigerators that use a separate ice bucket front panel. What it does

• Replaces a cracked, chipped, or broken ice bin front to prevent ice spillage
• Restores the bin door/face for easy access to the ice bucket
• Helps maintain a proper seal between the ice compartment and refrigerator interior
• Useful when the original front panel is scratched, warped, or missing

• One ice bin front panel

• High-level replacement — remove the ice bin or access panel and swap the front panel; your model's service guide
• Power off or disconnect refrigerator per manufacturer instructions before working near electrical components
• Handle the plastic parts carefully to avoid cracking; use appropriate trim clips or screws if provided by your model

This door ice bin is the removable plastic container that stores ice made by your refrigerator's icemaker. It keeps ice contained in the door for easy access and helps prevent spills inside the fresh-food compartment. What it does

• Holds and stores cubed ice produced by the icemaker so it's ready at the door
• Keeps ice from spilling into the refrigerator cavity when the door is opened
• Replaces cracked, damaged, or missing ice storage bins that cause leaks or loose ice
• Restores proper alignment with the door shelf for smooth removal and replacement

• Empty any loose ice before removing the old bin to avoid spills
• Typically installs by sliding into the door shelf track; lift slightly to remove
• Inspect door shelf guides for damage and align bin carefully when reinstalling
• Wear gloves when handling cold ice and avoid forcing the bin to prevent cracking

This replacement ice bin door track guides the dispenser door or ice bin slide so the ice chute opens and closes smoothly, helping restore proper ice dispensing and reduce jams or binding. What it does:

• Provides the sliding/tongue surface for the ice bin door to move smoothly.
• Restores proper alignment when the dispenser door sticks or drags.
• Helps stop the ice bin door from binding or catching during operation.
• Useful when worn, cracked, or damaged track edges cause noisy or uneven motion.

• Disconnect power to the refrigerator before beginning any repair.
• Inspect surrounding trim and fasteners; replace any stripped screws to ensure secure fit.
• Installation typically requires basic hand tools; handle plastic parts carefully to avoid cracking.

Includes 12 retainer rings.

Includes 12 screws.

This spacer is a small mounting support used to maintain proper clearance and alignment between refrigerator panels, doors, or components. It helps reduce rubbing, vibration, and noise by restoring correct spacing and fit. What it does:

• Keeps panels, trim, or components spaced correctly to prevent metal-on-metal contact and wear
• Helps align doors and panels for a flush fit and smoother operation
• Reduces vibration and rattling caused by misaligned parts
• Used wherever a fixed clearance or gap is required during reassembly

• Disconnect power to the appliance before beginning any service that requires panel or component removal
• Inspect mating surfaces for damage or debris before installing the spacer; replace any damaged fasteners
• Install in the same orientation and location as the original spacer; do not overtighten mounting hardware

This stationary display blade secures and positions the appliance's front display/overlay so controls and indicators stay aligned and visible. It replaces a cracked, loose, or missing display blade to restore a stable display surface. What it does:

• Holds the display/overlay in the correct position behind the control panel
• Prevents the display from rattling or shifting during normal use
• Restores a flush, aligned appearance when the original blade is broken or worn
• Helps keep buttons and indicators properly supported for reliable operation

• Disconnect power to the appliance before starting any repair.
• Removal usually requires removing the front/display trim or bezel; use basic hand tools.
• Handle small plastic parts carefully to avoid cracking during removal/installation.

This front dispenser plate replaces the exterior trim that surrounds the refrigerator dispenser opening, restoring a clean look and proper alignment for the ice and water dispenser area. It helps seal and protect internal dispenser components from dirt and damage. What it does:

• Covers the dispenser opening and provides a finished surface for the ice/water delivery area
• Helps guide ice and water into the drip tray and prevents interference with dispensing
• Protects internal dispenser switches and mechanisms from spills and debris
• Common signs you need this part: cracked, broken, warped or missing trim; loose or misaligned dispenser face

• Disconnect power to the appliance before beginning any work
• Removal typically requires releasing trim clips or removing a few screws; keep hardware for reassembly
• Handle carefully to avoid scratching the finish; align clips/screw holes before securing

According to GE you must also replace part number WR17X4341 auger when replacing this part.

Includes 12 washers.

This replacement ice bin holds and delivers cubed ice from the freezer dispenser so your fridge dispenses ice reliably. Fits refrigerators with top-mount icemaker dispensers. What it does

• Holds and stores ice produced by the icemaker for dispenser use
• Guides ice toward the dispenser chute for smooth delivery
• Helps prevent ice jams when the bucket is intact and properly positioned
• Replaces cracked, warped or damaged bins that cause leaks or dispensing problems

• One replacement ice bucket

• Disconnect power to the appliance before removing or installing the bucket
• Remove any shelf or freezer components blocking access; handle the bucket carefully to avoid damage
• Ensure the bucket is seated and aligned with the dispenser mechanism before restoring power
• If dispensing problems persist after installation, check the actuator/drive components and icemaker assembly

Replacement bucket seal that fits around the refrigerator ice bucket to restore a snug fit and help keep ice contained while reducing frost, spills and water pooling. What it does

• Seals the ice bucket to the cabinet/shelf to help keep ice from spilling or shifting.
• Reduces frost build-up and melting around the ice bin area.
• Helps prevent minor water pooling from melting ice.
• Restores proper fit so the bucket sits flush and operates as intended.

• Disconnect power to the appliance before beginning any service.
• Remove the ice bucket and carefully peel out the old seal; clean the mounting surface of ice, debris and residue.
• Press the new seal into place, making sure it is fully seated and oriented correctly around the bucket.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

Includes 12 clips.

The Ice Bucket is an OEM replacement part for GE refrigerators. It stores and dispenses ice from the freezer compartment. Causes of a bad ice bucket can include wear and tear over time or damage to the bucket or its parts due to mishandling or impact.

Symptoms of a faulty ice bucket include:

• Ice not dispensing properly or getting stuck
• Leaks or drips from the ice dispenser
• Difficulty removing ice from the bucket

If you notice cracks, breaks, or any damage to the ice bucket, it may be time for a replacement. This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

Size: 8-16 x 2 inch ss.

A 6 x 1/2 inch pan-head Phillips screw used to fasten panels, trim, brackets and small assemblies on appliances. Replacing worn or missing screws restores secure mounting and reduces vibration or rattling. What it does:

• Fastens panels, brackets and trim where a 6 x 1/2 in. pan-head Phillips screw is required.
• Stops loose or rattling parts caused by missing, stripped or corroded screws.
• Provides the correct head profile for a Phillips driver to allow proper torque and seating.
• Used in non-structural fastening points on appliances.

• Always disconnect power and unplug the appliance before beginning repairs.
• Use the correct-size Phillips screwdriver to avoid cam-out and head damage.
• Do not over-tighten; over-torquing can strip threads or deform mating parts.
• Inspect mating threads and replace damaged components before installation.
