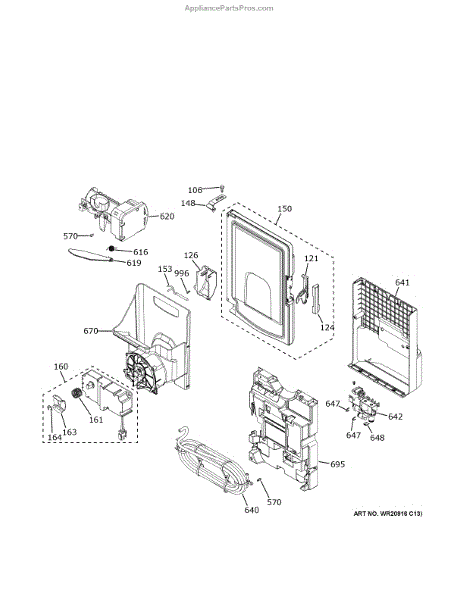

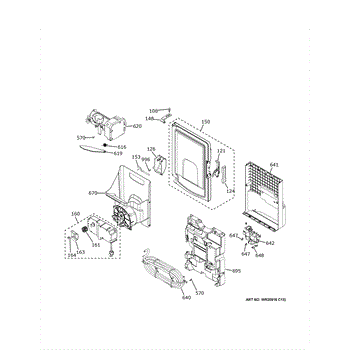

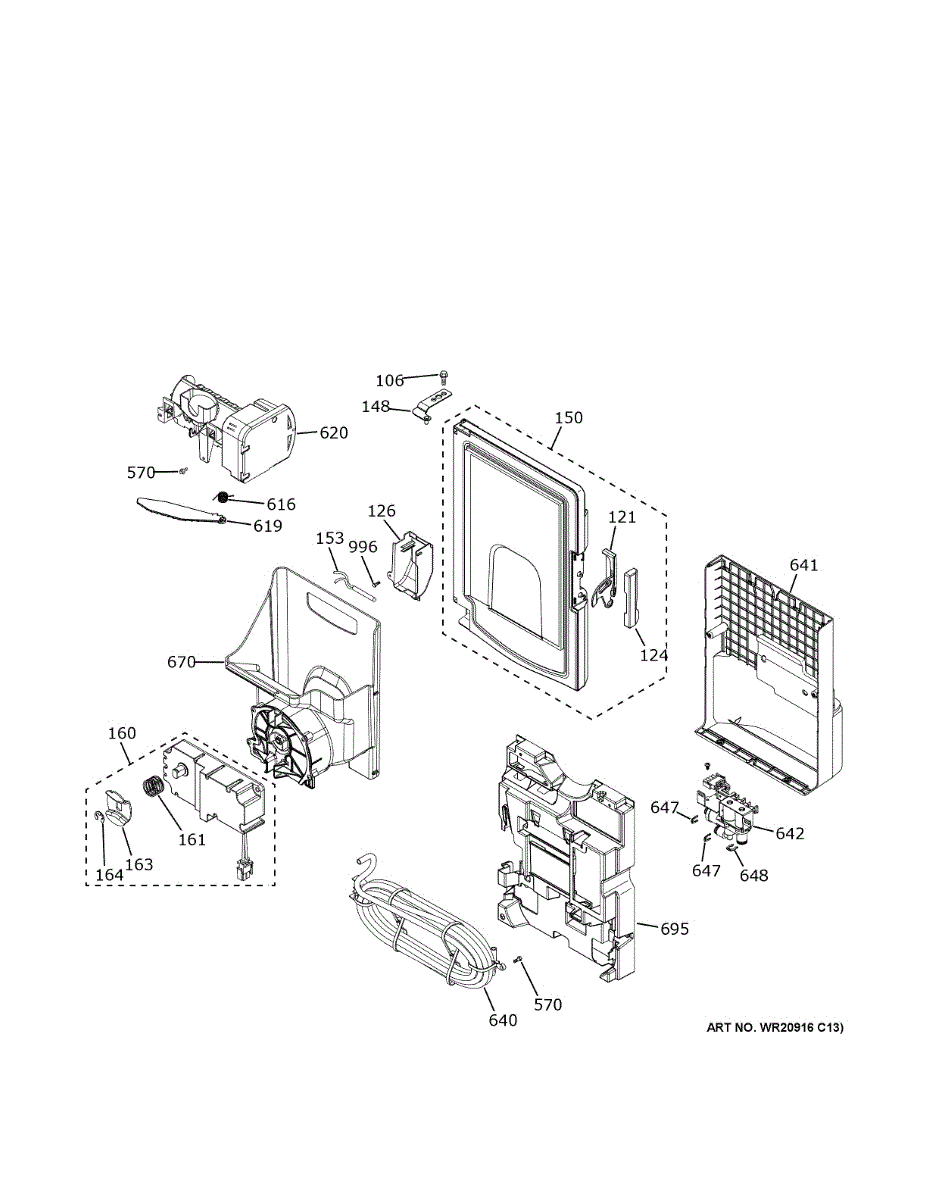

Parts for Ge GFE28GYNJFS: Ice Maker & Dispenser Parts

The Icebox Door Latch is an OEM replacement part for GE refrigerators. This latch helps securely close and lock the icebox door to prevent it from accidentally opening during use.

Symptoms of a bad icebox door latch include:

• The icebox door not closing or latching properly
• The door popping or popping open unintentionally
• Cracks or damage that compromise the structural integrity of the latch

Over time and with repeated use, latches can become worn down and fail to function as intended.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Cover Latch is an OEM part for GE refrigerators. This part serves as a cover for the latch handle, ensuring a seamless look for the appliance while protecting the latch handle from damage and wear.

Causes of a bad Cover Latch can include wear and tear over time, impact or mishandling that leads to cracks or breaks, or general deterioration due to prolonged use.

Symptoms of a bad Cover Latch include:

• Visible cracks or breaks
• The latch handle not being properly covered
• Difficulty in operating the latch handle
• Loose or missing cover latch

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Box Door Assy is an OEM part for GE refrigerators. It is the complete door assembly housing the storage bins for ice cubes on the fresh food door.

The Ice Box Door Assy keeps ice conveniently accessible while maintaining cold air containment in the fresh food section.

Causes can involve normal wear over time from frequent use. Accidental dings or impacts can also damage fresh food door components.

Symptoms of a bad Ice Box Door Assy include:

• Difficulty opening or closing the ice box door
• Improper sealing letting warm air enter the freezer
• Damage or cracks in the plastic door assembly

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This auger motor powers the ice-dispensing auger, turning and feeding ice from the freezer bin to the dispenser for smooth delivery. Replaces a worn or non-turning dispenser motor to restore ice dispensing function. What it does:

• Drives the auger shaft in the ice bin so ice is moved forward to the dispenser chute
• Stops rotation if motor fails, causing no ice to dispense
• Helps eliminate intermittent dispensing or reduced ice output when functioning properly

• Disconnect power to the appliance before beginning any work
• Remove the ice bin and access panels per your model's service instructions
• Inspect the auger, shaft, and bin for jams or broken fins before replacing the motor

This clutch spring restores proper tension in the dispenser drive so the auger can engage and disengage as designed. Replacing a fatigued or broken spring helps bring back smooth, reliable ice dispensing performance. What it does:

• Maintains the correct preload on the dispenser clutch for positive auger engagement
• Allows controlled slip to protect the auger motor during jams
• Can address loud clicking/grinding from the ice dispenser when activated

• 1 clutch spring

• Disconnect power before servicing; remove the ice bin to access the auger/clutch area
• Note the spring's orientation during disassembly for correct reinstallation
• Control small retainers/clips that may be released when removing the clutch components
• After installation, rotate the auger by hand to ensure smooth clutch action before restoring power

This clutch coupling connects the washer motor/clutch to the agitator so the tub agitates properly during the wash cycle. Replaces a worn or broken coupling to restore normal agitation and reduce slipping or grinding. What it does:

• Transfers motor/clutch rotation to the agitator so clothes move during wash cycles.
• Commonly used when the washer spins but does not agitate or when agitation is weak.
• Helps eliminate slipping, grinding, or unusual noise from a failing coupling.
• Works as the mechanical link between the drive system and agitator assembly.

• One clutch coupling as pictured and specified by the OEM.

• Disconnect power and water supply before starting any repair.
• Basic mechanical skills and common hand tools required; follow OEM disassembly steps for safe access.
• Inspect related parts (agitator, drive shaft, clutch) for wear and replace as needed.

This E-clip is a small metal retaining ring that secures shafts, pins, and other round components in appliance assemblies, helping keep moving parts properly seated and preventing unwanted disassembly. What it does:

• Clips onto a shaft or pin to hold components in place and maintain alignment
• Prevents parts from sliding off during operation, reducing noise and wear
• Common symptom: loose or rattling components where a retaining clip is missing or damaged
• Common symptom: assembly falling apart or not engaging correctly due to a failed clip

• One E-clip

• Small part — use needle-nose pliers or snap-ring pliers to install and keep fingers clear
• Disconnect power and/or water to the appliance before servicing to avoid injury
• Wear safety glasses to protect against the clip snapping during installation

This spring feeler arm is the replacement sensing arm used with the refrigerator ice maker assembly to detect ice level and help actuate the ice-making mechanism. Restores proper ice sensing and helps prevent overfill or stoppage. What it does:

• Acts as the ice maker's feeler/bail arm to detect when the ice bin is full or empty.
• Triggers the ice maker to stop or continue cycles based on ice level.
• Helps prevent overfilling and reduces ice production problems caused by a bent or broken arm.
• Can stop erratic ice maker behavior when the original arm is damaged or worn.

• Disconnect power to the refrigerator before beginning any repair.
• Handle the arm carefully and inspect the ice maker mounting points for damage before installation.
• Reuse factory hardware if undamaged; replace any stripped or missing fasteners.

This ice maker feeler arm senses the ice level in the bin and controls when the icemaker starts and stops. Replacing a bent, missing, or stuck arm restores correct shutoff and helps prevent overfilling or no-ice conditions.

• Monitors the ice bucket level and raises/lowers to start or stop ice production
• Shuts the icemaker off when the bin is full; allows production when lowered
• Common symptoms: ice maker won't stop making ice/overflows, no ice when the arm is stuck up, loose or missing arm
• Restores proper on/off control of the icemaker cycle

• Disconnect power and turn off the water supply before servicing
• Remove the ice bin and, the icemaker assembly to access the arm
• Transfer any reusable hardware; seat the arm fully in its pivot points so it moves freely
• Restore power, lower the arm to the On position, and allow time for the icemaker to cycle

The Icemaker is an OEM replacement part for GE refrigerators. It is responsible for producing and dispensing ice cubes, ensuring a constant supply of fresh ice for your beverages and other cooling needs.

Symptoms of a bad icemaker include:

• Not producing any ice or producing insufficient quantities
• Ice cubes that are misshapen, clumped together, or have an off-taste
• Leaks or water buildup in the icemaker compartment
• Strange noises or grinding sounds during ice production

Causes of a bad icemaker can include water supply issues, such as low water pressure or a blocked water line, electrical malfunctions, or mechanical problems with the icemaker components, like a faulty ice mold or ejector arm.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Coiled Cold Water Tank is an OEM part for GE refrigerators. This part is responsible for storing and cooling the water that is dispensed through the refrigerator's water dispenser. It ensures that you have access to refreshing cold water whenever you need it. The coiled design allows for efficient cooling and helps maintain the desired temperature of the water.

A bad coiled cold water tank can occur due to wear and tear, leaks, or other factors. If you notice symptoms such as water not being dispensed properly, frozen water, or leaks around the tank, it may be time to replace it with a new one.

Symptoms of a bad coiled cold water tank include:

• Improper water dispensing
• Frozen water tank
• Leaks around the tank

Ensure the availability of dispensed cold water by replacing the faulty coiled cold water tank with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The Valve Dual Water is an OEM part for GE refrigerators, specifically designed to control the flow of water to both the icemaker and the water dispenser. This dual-function valve ensures that water is properly directed to the icemaker for ice production and to the dispenser for fresh drinking water, maintaining an optimal flow and pressure that is crucial for the refrigerator's operation.

Over time, the dual water valve can fail due to mineral deposits from hard water, wear and tear from regular use, or electrical issues. A malfunctioning valve can disrupt the water supply to the ice maker and water dispenser, affecting their performance.

Symptoms of a bad Valve Dual Water include:

• No water dispensing at the dispenser
• Irregular or no ice production
• Leaks or drips from the water inlet area
• Unusual noises coming from the valve when it’s supposed to be operating

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 1/4-inch quick-connect locking clip secures water tubing in push-to-connect fittings on your refrigerator's water and ice system. It locks the tube in place to help prevent leaks and accidental disconnection at the fitting. What it does:

• Locks 1/4-inch OD tubing into compatible push-to-connect fittings
• Helps maintain a secure seal to reduce drips at water line connections
• Replaces a missing, cracked, or loose clip on filter heads, inlet valves, or inline couplers
• Symptoms include leaks at a fitting or a tube that won't stay seated

• One 1/4-inch quick-connect locking clip

• Disconnect power and shut off the water supply before servicing; dispense water to relieve pressure
• Remove the old clip; ensure the tubing end is clean and cut square
• Fully insert the tube into the fitting until it bottoms out, tug lightly to seat, then install the clip in the collet groove
• Restore water and check all connections for leaks

• Designed for fittings that use 1/4-inch OD tubing. It will not fit 5/16-inch or 3/8-inch quick-connect fittings.

This quick-connect clip secures 5/16-inch water tubing in push-to-connect fittings to prevent accidental release and leaks at the joint. Restore a reliable hold on dispenser and icemaker lines when the original clip is missing or damaged. What it does:

• Locks the release ring (collet) on a 5/16-inch quick-connect fitting to retain tubing
• Helps prevent water drips or leaks at the connector
• Keeps tubing from slipping out, supporting steady water flow to dispenser/ice maker
• Common symptoms: leak at fitting, loose/disconnected tubing, no/low water or ice

• 1 quick-connect clip (5/16)

• Unplug the appliance and shut off the water supply; dispense water to relieve line pressure
• Ensure the tubing end is cut square; push it fully into the fitting until seated
• Insert the clip beneath the fitting's collet to lock; tug gently to verify retention
• Restore water and power, then check all connections for leaks

• Designed for 5/16-inch OD water tubing quick-connect fittings

The Ice Bucket and Crusher is an OEM component for GE side-by-side refrigerators equipped with an internal ice system and ice crusher feature. Located in the freezer section, it provides filtered ice-crushing and storage abilities. Consistent icemaking depends on an intact ice-handling mechanism.

Symptoms of a faulty bucket and crusher include:

• Gradual accumulation of uncrushed ice cubes within the storage bin
• Drive motor straining or temporarily ceasing during heavy usage
• Partial blockage of ice chute restricting flow into glasses

Causes range from mineral contamination slowing mechanical components to wear from constant high-volume usage dulling edges or linkages over time. Regular cleaning helps but replacement maintains long-term efficiency.

Replacing with this genuine GE bucket and crusher restores optimized ice handling performance through engineered durability and precision mechanisms. Compatible replacements suit Hotpoint, RCA, or Kenmore models seeking automated, whole-home ice production and retrieval cycles without interruption.


This housing tray valve tank is the replacement housing that supports and secures the tray valve assembly, helping control water flow in the appliance. It restores proper valve positioning and prevents leaks from a damaged housing. What it does:

• Holds and aligns the tray valve assembly so the valve operates correctly.
• Provides a sealed mount to help prevent water leaks around the valve area.
• Replaces cracked, warped or otherwise damaged housings that cause misalignment or water seepage.
• Helps restore normal water delivery functions when the housing is the source of valve problems.

• One housing tray valve tank (housing) as shown

• Disconnect power and shut off the water supply before starting any work.
• Basic hand tools are normally required; handle plastic parts carefully to avoid cracking.
• Verify correct orientation and secure all fasteners and seals; test for leaks after re-connecting water.
