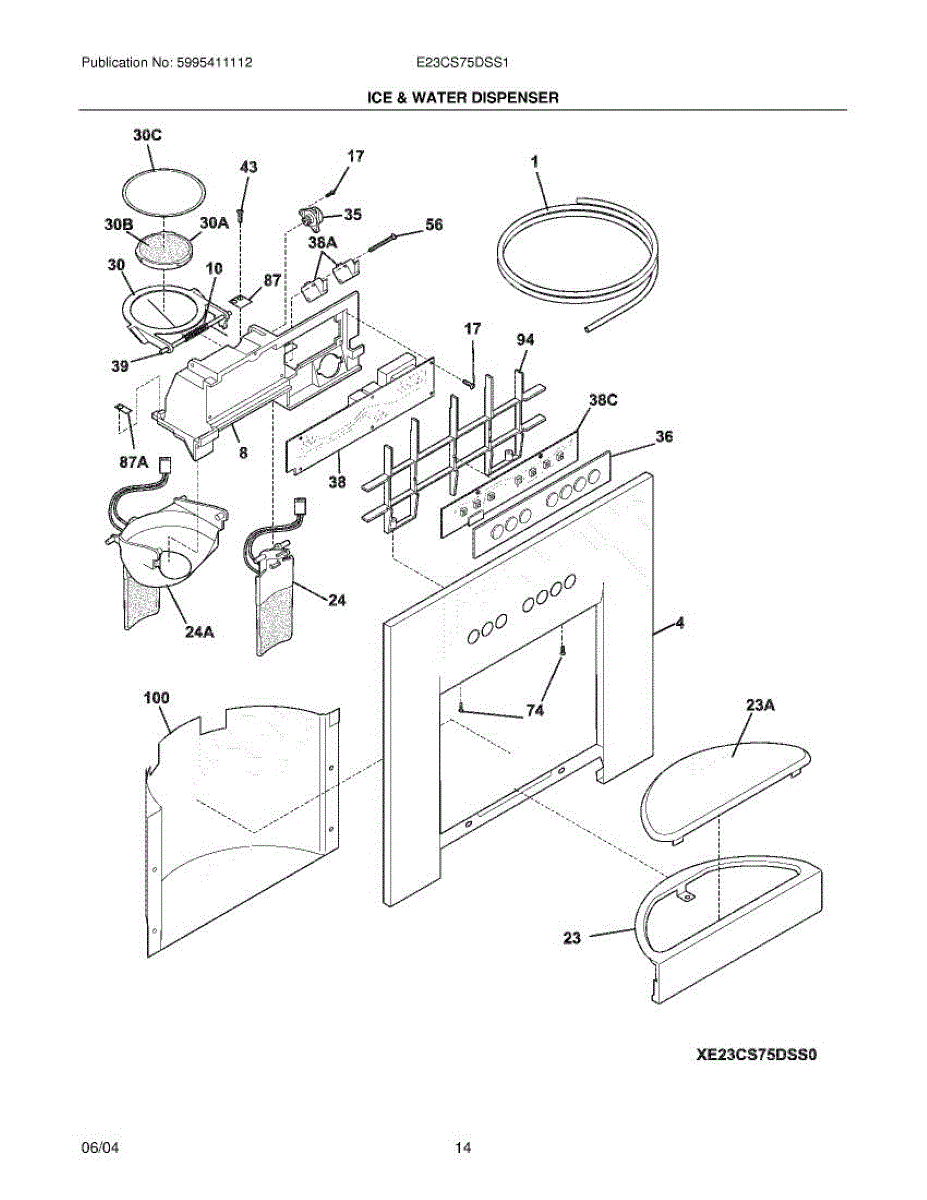

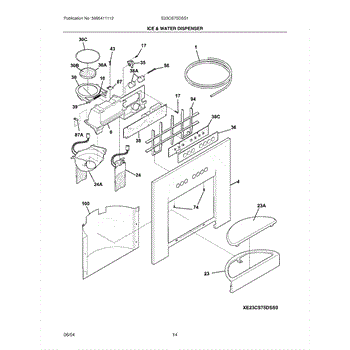

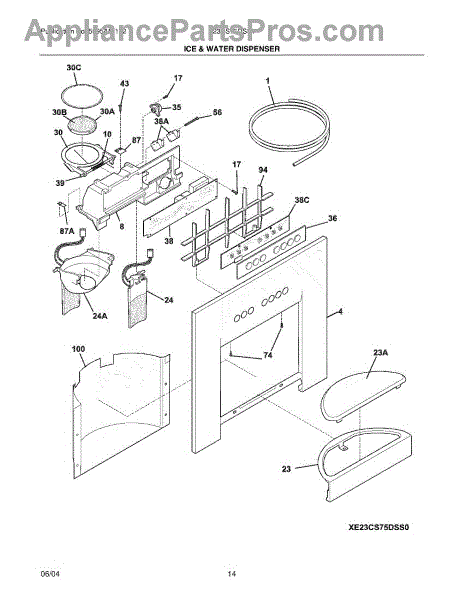

Parts for Electrolux E23CS75DSS1: 15 - Ice & Water Dispenser Parts

The Water Tube is an OEM part for Frigidaire refrigerators. It is responsible for transporting water from the supply line to various components such as the ice maker and water dispenser. Ensuring a steady and reliable flow of water, this tube is essential for the proper functioning of these features.

Causes of a bad water tube can include cracks or splits due to temperature fluctuations, clogging from mineral deposits, or damage from bending and kinking.

Symptoms of a bad water tube include:

• Water leaks inside or outside the refrigerator
• Reduced or no water flow to the ice maker or water dispenser
• Visible cracks or kinks in the tube
• Water tasting off due to contaminants

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This torsion spring mounts in the dispenser to return the ice chute door/flapper to the closed position after dispensing. Replacing a weak or broken spring helps stop warm air leaks, frost, and ice clumping in the chute.

• Provides the closing force for the dispenser ice door
• Helps seal the ice chute to reduce frost and moisture intrusion
• Typical symptoms: ice door won't close fully, frost/ice buildup around the chute, cubes dropping after dispensing, or air leakage at the dispenser
• Replace if the spring is broken, deformed, or has lost tension

• Disconnect power before servicing; shut off water if working near the dispenser area
• Remove dispenser trim/bezel and control panel to access the ice door assembly; support wiring harnesses
• Note spring orientation and preload before removal; install the new spring on the same hinge posts in the same direction
• Manually cycle the flapper to ensure smooth return and a full seal before reassembly

A single replacement mounting screw used to secure appliance panels and components. Restores proper fit and prevents rattling or loose parts so trims and panels stay aligned during normal use. What it does:

• Fastens panels, brackets or trim pieces to the appliance frame
• Replaces worn, stripped or missing screws that cause loose or rattling parts
• Helps restore secure alignment for doors and access panels
• Works where the OEM lists a basic machine/fastener screw

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread by hand to start, then tighten until snug—do not overtighten
• Keep small parts away from children and pets during installation

This replacement drip tray collects and directs defrost and condensate water to the evaporation area, helping prevent pooling under the refrigerator. Durable plastic construction fits under the freezer compartment to manage normal defrost runoff. What it does:

• Catches defrost and condensation water so it safely drains to the evaporator pan
• Helps stop water from pooling on the floor or under the refrigerator
• Reduces risk of mold or odors caused by standing water
• Restores proper water flow if a cracked or warped tray was leaking

• One drip tray

• Disconnect power to the appliance before accessing the tray
• Remove kick plate/low access panel and slide out the old tray; inspect mounting tabs for damage
• Clean surrounding area and any drain or tubing before installing the new tray
• Reinstall access panel and restore power; check for proper drainage during the next defrost cycle

The Ice Dispenser Actuator is an OEM replacement part specific to Frigidaire refrigerators. It is the electronic component responsible for actuating and operating the ice and water dispenser.

Symptoms of a bad ice dispenser actuator include:

• The ice or water dispenser not working or dispensing intermittently
• No signal or responsiveness from the dispenser button
• Ice cubes were dispensed incorrectly in large clumps instead of individually

Causes of failure can be related to wear and tear of moving parts over time, failures in the small electronic circuit board, or damage to wiring affecting power delivery to the actuator motor.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Water Dispenser Actuator is an OEM part for Frigidaire refrigerators. It is responsible for activating the water dispenser when you press a glass or container against it, allowing water to flow from the dispenser.

You should replace this water dispenser actuator if it stops functioning properly. Causes of a bad actuator can include wear and tear from frequent use, damage from excessive force or impact, or electrical faults within the actuator mechanism.

Symptoms of a bad water dispenser actuator include:

• Water not dispensing when the actuator is pressed
• The actuator sticking or not returning to its original position
• Unusual noises when attempting to dispense water
• Water dispensing intermittently or uncontrollably

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Chute Door Insulation is an OEM replacement part for Frigidaire refrigerators. It is installed on the ice chute door to prevent warm air infiltration and moisture buildup around the ice dispenser.

Causes may include compression or cracking of insulating foam/material from normal use stress. Spills exposing it to liquid are also damaging.

Symptoms of defective insulation consist of:

• Ice accumulating within the chute cover area
• Condensation visible on exterior chute surfaces
• Inefficient icemaker performance due to altered temperatures

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Center is an OEM part for Frigidaire refrigerators. This component is part of the ice dispenser system, managing the release of ice through the dispenser chute. It helps prevent cold air from escaping the freezer, maintaining energy efficiency and preserving the ice supply.

You should replace the ice door center if it becomes damaged or fails to seal properly. Causes of a bad ice door center can include regular wear and tear, damage from repeated use, or build-up of ice and debris obstructing its movement.

Symptoms of a bad ice door center include:

• Ice dispenser not working correctly
• Ice build-up around the dispenser area
• Warm air entering the freezer, causing ice to melt or clump
• Increased energy consumption due to poor sealing

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Seal is an OEM part for Frigidaire refrigerators. This seal is designed to create an airtight barrier around the ice dispenser door, preventing warm air from entering the freezer and maintaining optimal temperature inside the ice compartment. Please note, this listing is for the seal only, other components are sold separately.

Over time, the ice door seal can become worn out or damaged due to frequent use, exposure to varying temperatures, and regular opening and closing. Causes of a bad ice door seal include cracking, tearing, or loss of elasticity, which can lead to air leaks.

Symptoms of a bad ice door seal include:

• Frost or ice buildup around the ice dispenser
• Warm air entering the freezer compartment
• Increased energy consumption
• Water or condensation around the ice dispenser area
• The ice door not closing properly or sealing tightly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Bracket is an OEM part for Frigidaire refrigerators. It is a critical component of the ice dispenser mechanism, designed to support and align the ice door properly. This bracket ensures the ice door opens and closes smoothly, maintaining an airtight seal to prevent warm air from entering the freezer compartment and causing frost buildup.

Symptoms of a bad Ice Door Bracket include:

• The ice dispenser door failing to close completely, which can lead to ice melting and freezer burn.
• Excessive frost or ice accumulation near the dispenser area.
• Unusual noise when the dispenser is activated, indicating misalignment or instability.

Causes of a bad ice door bracket can include mechanical stress from repeated use, accidental damage from impact, or wear and tear that weakens the structural integrity of the bracket.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement board-switch is the electronic control that manages user inputs and basic appliance functions, restoring reliable response from the control panel. Use it to replace a faulty board causing unresponsive or erratic controls. What it does:

• Routes user inputs to the appliance's control system so buttons, knobs or touchpads register correctly.
• Activates internal relays/outputs that initiate functions; failure can cause controls to be unresponsive or commands not to execute.
• Helps stop intermittent or erratic behavior caused by a damaged or corroded control board.
• Resolves symptoms such as non-working control buttons, blank or flickering display, or inconsistent function selection.

• Always disconnect power at the breaker or unplug the appliance before starting work to avoid shock.
• Handle the board by its edges and avoid touching components; use an anti-static strap if available.
• Keep track of screws and wire connections; label or photograph harness locations before removal for correct reassembly.

The Ribbon Cable Harness is an OEM part for Frigidaire refrigerators. It connects various electronic components within the refrigerator, facilitating communication and control signals between them. This harness is essential for the proper functioning of the refrigerator's electronic systems.

Causes of a bad cable harness can include physical damage from bending or pinching, wear and tear from regular use, or electrical failures that disrupt signal transmission. Ensuring the integrity of this component is crucial for maintaining the appliance's performance.

Symptoms of a bad ribbon cable harness include:

• Intermittent or complete loss of electronic functions
• Error codes or malfunctioning display
• Unresponsive buttons or controls
• Inconsistent operation of refrigerator features

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dispenser Switch is an OEM replacement part for Frigidaire refrigerators. It is a component that controls the operation of the water and ice dispenser, allowing users to conveniently access chilled water, cubed ice, or crushed ice from the refrigerator door.

Symptoms of a bad dispenser switch:

• Failure of the water or ice to dispense when the lever or button is activated
• Erratic or inconsistent dispensing behavior
• Water or ice continuously dispensing without user input
• Leaks or moisture around the dispenser area

Causes of a bad dispenser switch can include mechanical wear and tear, electrical malfunctions, or physical damage due to mishandling or impact.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This door hinge pin forms the pivot for the refrigerator door hinge, keeping the door supported and aligned. Replacing a worn or missing pin restores smooth door movement and consistent sealing.

• Acts as the hinge's pivot shaft to support the door
• Helps maintain door alignment so the gasket can seal properly
• Reduces wobble and scraping at the hinge point
• Typical failure symptoms: door sagging, misalignment, poor closing, or a loose/wobbly hinge

• Unplug the refrigerator and remove items from the door to reduce weight.
• Support the door; remove hinge cover and screws, then lift the door off the hinge.
• Replace the hinge pin in the hinge bracket; transfer any existing spacers/bushings as designed.
• Reinstall and align the door; tighten hardware and verify smooth operation and seal contact.

Pan head

Inlet valve filter
