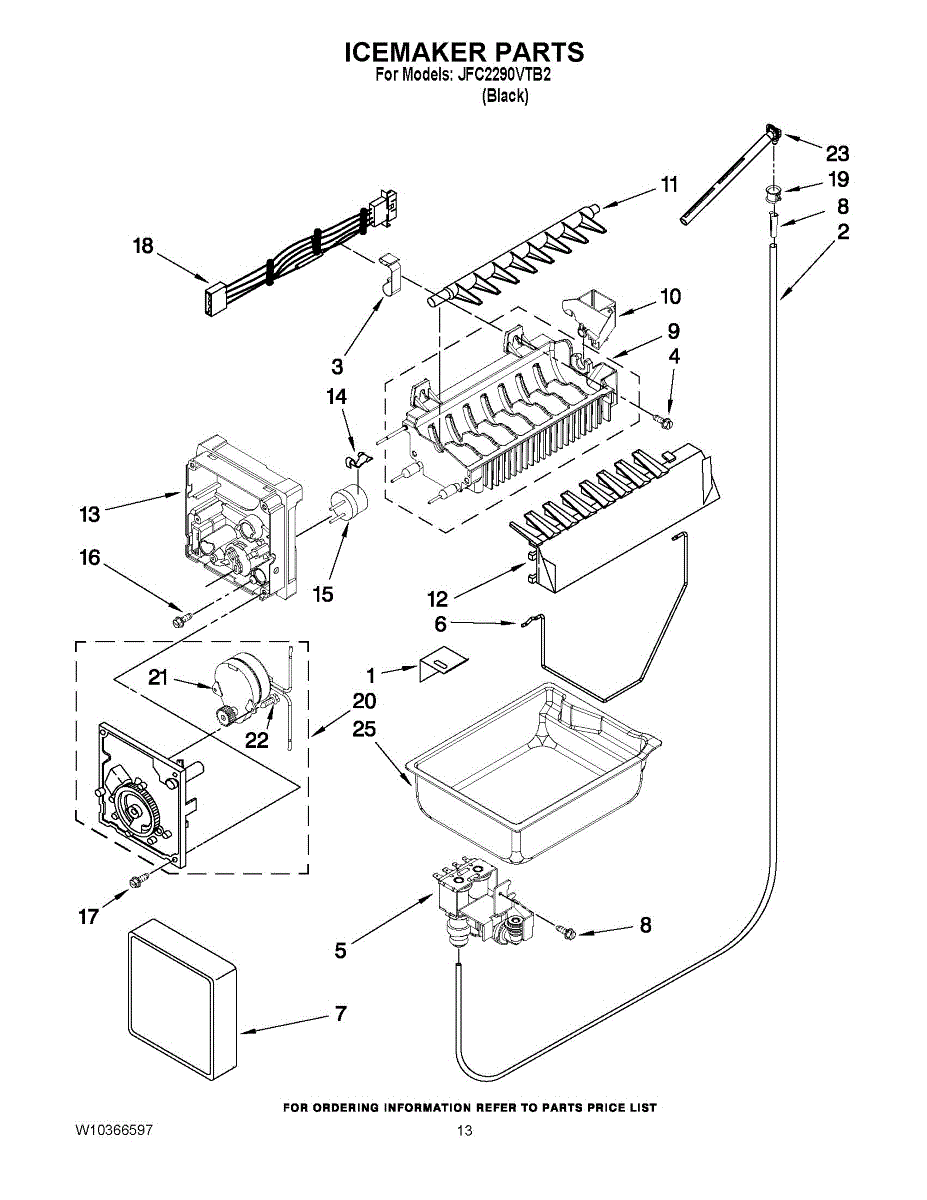

Parts for Jenn-Air JFC2290VTB2: 07 - Icemaker Parts

Replace your refrigerator water filter every 6 months to ensure clean, fresh-tasting water and ice. Easy twist-on installation. Verify fit with your model.

Ice maker shifting or loose? This mounting bracket secures your ice maker assembly in place to restore stable positioning and reliable ice production.

Ice maker not filling or leaking? This water tube routes water from the inlet to the ice maker fill valve. Replaces cracked or clogged tubing in your fridge.

Mounting screw for refrigerator ice maker assembly. Secures components to maintain structural integrity. Replace if lost, stripped, or corroded.

Ice maker not filling or water dispenser not working? This refrigerator water inlet valve controls water flow to both systems. Push-fit connections.

The shut-off arm is the lever that tells the ice maker when to stop and start making ice. Replace a bent, missing, or jammed arm to restore proper ice production control and prevent bin overfilling. What it does:

• Lowers to allow ice production; raises to stop cycles when the bin is full (down = on, up = off)
• Helps prevent overfilling, spills, and auger jams
• Common symptoms: ice maker won't stop making ice, no ice when the arm is stuck up, inconsistent ice production from misalignment
• Restores proper ice level sensing when the original lever is damaged or missing

• One shut-off arm

• Disconnect power and shut off water before servicing
• Remove the ice bin to access the ice maker
• Seat the arm's pivot ends fully in the ice maker head; avoid bending the lever
• The arm moves freely up/down and clears the bin before restoring power

This front cover replaces a damaged or worn cabinet front panel to restore the appliance's appearance and protect internal components. It provides a clean, finished look and secures the front of the appliance. What it does:

• Replaces cracked, dented, or warped cabinet front panels to improve cosmetic appearance
• Covers and protects internal parts from dust and debris
• Helps maintain proper alignment of the front assembly
• Reduces gaps that can collect lint or moisture around the appliance opening

• One front cover

• Disconnect power (and gas, if applicable) before beginning any repair
• Removal typically requires unscrewing the old front panel and detaching any connected trim or brackets
• Handle panel carefully to avoid scratching paint or bending mounting tabs

Fix water leaks in your refrigerator's ice maker or water line. This tube insert reinforces plastic tubing for leak-resistant compression fittings.

The Ice Mold is an OEM part for Whirlpool refrigerators. This component forms the ice cubes in the icemaker, shaping the water into cubes as it freezes. The ice mold is crucial for the efficient production of ice, ensuring that each cube is properly formed and easily released into the ice bucket.

You should replace the ice mold if it shows signs of wear or damage. Causes of a bad ice mold can include mineral buildup from hard water, physical damage to the mold surface, or malfunctioning heating elements that prevent ice from releasing properly.

Symptoms of a bad Ice Mold include:

• Ice cubes not forming correctly or being irregular in shape
• Ice cubes sticking to the mold and not dispensing
• The icemaker not producing ice at all
• Leaks around the icemaker area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Ice maker not filling properly or water leaking in freezer? A cracked fill cup causes inconsistent fills and leaks. Simple DIY fix guides water correctly.

Ice cubes stuck in tray and won't eject? This ejector arm pushes ice from the mold into the bin. Simple snap-in install restores ice production.

Ice stripper removes ice cubes from the ice maker mold so the dispenser or storage bin fills properly. Replacing a worn or broken stripper helps the ice maker eject cubes cleanly and reduces ice jams or stuck cubes. What it does:

• Pushes or guides harvested cubes out of the ice mold into the bin during the ice maker's harvest cycle.
• Prevents cubes from sticking in the mold; a damaged stripper can cause incomplete ejection or leftover ice in the mold.
• Works with the ice maker's ejector mechanism to maintain consistent cube release and storage.
• A faulty or broken stripper may lead to noisy operation, partial fills, or visible ice build-up in the mold.

• Disconnect power to the appliance before starting any repair to avoid electrical shock.
• Remove the ice maker or access panel per the manufacturer's instructions to reach the stripper; keep small parts and screws organized.
• Inspect the ice mold and surrounding components for damage or ice build-up; clear ice before installing the new stripper.
• After installation, restore power and run a test harvest cycle to ensure proper cube ejection.

Mounts in the dispenser to secure the ice housing assembly. Keeps the chute and door aligned for smooth dispensing. Replace if cracked, broken, or worn.

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

Ice maker stopped making ice? The cycling thermostat monitors temperature to control ice production. DIY-friendly repair with video instructions.

Replacement mounting screw for refrigerators. Secures panels, trim pieces, and small assemblies. Needed when original screw is missing or damaged.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

Ice maker not working or won't make ice? Failed wiring harness disrupts power to the ice maker. DIY-friendly repair, installs in minutes with basic tools.

Speed clip slides over panel edges to create captive threads for mounting screws. Replace worn, missing, or broken clips to restore secure attachment.

Ice maker stopped making ice or won't eject cubes? A failed motor module is often the cause. DIY repair in under an hour with our video guide.

Replacement icemaker fill tube that directs water from the valve to the ice tray. Replace if cracked, leaking, or causing water to freeze in the freezer.

This ice pan is the molded plastic tray that sits beneath the ice maker to collect melted ice and runoff, helping keep the freezer compartment dry and the ice maker area tidy. It replaces a cracked or warped tray to restore proper drainage. What it does

• Collects melted ice and minor overflow from the ice maker area to prevent water from pooling in the freezer
• Provides a stable platform and channeling for ice melt toward the drain
• Helps reduce nuisance leaks and moisture that can cause frost buildup around the ice maker
• Fits into the ice maker housing to maintain proper clearance and alignment

• One ice pan

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove the ice maker or access panel as needed to reach and remove the old pan; keep track of fasteners
• Inspect surrounding components and clear any debris before installing the new pan
• Reassemble panels and restore power, then check for proper seating and absence of leaks

The Replacement Icemaker is an OEM replacement part for Whirlpool made refrigerators including Whirlpool, Amana, Maytag, and many others. It is a component responsible for producing ice cubes or crushed ice, ensuring a constant supply of fresh ice for your convenience. Measuring approximately 11 inches long and 5 inches wide, this ice maker assembly is made of durable plastic and metal

Symptoms of needing a replacement icemaker include:

• No ice production or significantly reduced ice output
• Ice cubes appearing misshapen or clumped together
•  Leaks or water buildup in the icemaker area
• Strange noises or grinding sounds coming from the icemaker

Causes of a faulty icemaker can include normal wear and tear over time, water supply issues, clogging or blockages, or electrical malfunctions.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

Please note: that this ice maker is a replacement only and not suitable for add-ons or brand-new installations. It does not include the harness or hardware. For wire harness(Plug)order WPD7813010. For cover order WPW10289690. For shut off bail arm order WP67004028.
