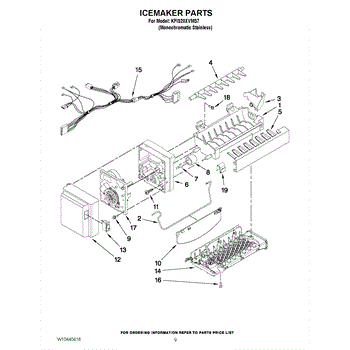

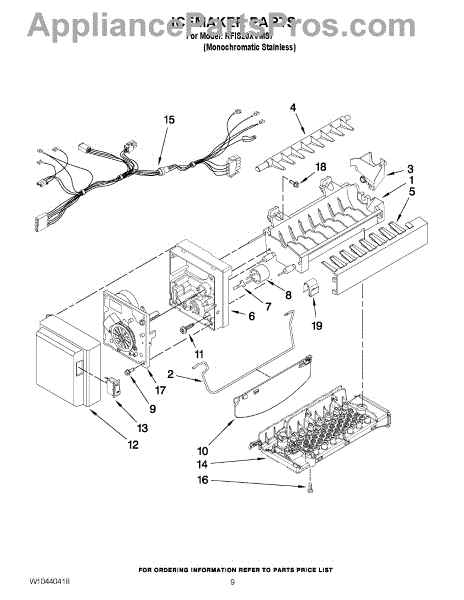

Parts for Kitchenaid KFIS20XVMS7: 05 - Icemaker Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This ice mold and heater assembly forms the ice cubes and warms the mold just enough during harvest so cubes release cleanly into the bin. Replacing a worn mold/heater restores reliable ice production and prevents jams or incomplete ejection.

• Forms the ice cube cavities and provides gentle heat for smooth release
• Can help resolve slow or no ice production due to cubes sticking in the mold
• Address misshapen cubes, ice jams, or incomplete harvest cycles
• Common when the coating is worn, the heater is open, or cubes consistently hang up

• Disconnect power to the refrigerator before servicing the icemaker
• Remove the icemaker assembly to access and swap the mold/heater unit
• Transfer any required brackets or hardware from the old part if applicable
• After reassembly, restore power and allow several hours for normal ice making

This is the mechanical shutoff arm for the ice maker. It lifts to pause ice production when the bin is full and lowers to resume, restoring proper on/off control to help prevent overfilling or a no-ice condition.

• Starts and stops ice production based on arm position (down = on, up = off)
• Replaces a bent, broken, or missing arm to restore proper shutoff function
• Helps address: ice maker won't stop making ice/overfills the bin
• Helps address: ice maker won't make ice because the arm is stuck in the up/off position

• Disconnect power to the refrigerator before servicing
• Remove the ice bin for access; withdraw the old arm from the pivot holes
• Insert the new arm into the ice maker pivot points; ensure smooth up/down movement
• Restore power and verify the arm raises to stop and lowers to start ice making

The Icemaker Fill Cup is an OEM part for Whirlpool bottom-mount and side-by-side refrigerators. Located inside the icemaker assembly, the fill cup sensor works to automatically detect when an ice scoop or bucket is in place below the icemaker chute. It signals the icemaker to drop ice cubes into the receptacle below.

Causes of a bad fill cup sensor can include mineral or dirt build-up inhibiting sensor response, moisture damage to its electronic functioning, or physical damage to the sensor head.

Symptoms of a bad fill cup sensor include:

• Ice failing to dispense or drop when a container is in place
• Ice clumping in the chute instead of dispensing properly
• The icemaker continuing to run even with ice present below
• Inability to sense when ice is removed from the bucket

This OEM Whirlpool replacement fill cup sensor is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore bottom-mount and side-by-side refrigerators.

This Arm Ejector secures and positions the dishwasher spray arm so it spins properly and distributes water for effective cleaning. Replacing a worn or broken ejector restores spray-arm stability and helps prevent uneven washing. What it does:

• Holds the spray arm in the correct position so it can rotate freely
• Prevents spray arm wobble, scraping, or falling off during cycles
• Helps maintain proper water distribution for consistent cleaning
• Can resolve symptoms like noisy spray arm movement or uneven wash performance

• Disconnect power and turn off the water supply before starting any repair
• Remove the lower spray arm and mounting cup as shown in your model's parts diagram to access the ejector
• Inspect surrounding components for wear when replacing the ejector
• Use only the exact replacement part number to ensure proper fit and function

This comb-shaped insert mounts at the front of the modular ice maker. It strips freshly ejected cubes from the rake and directs them into the bin to help prevent jams and cube hang-ups for consistent ice harvests.

• Guides cubes off the ejector fingers and into the bin
• Helps prevent cubes from re-entering the mold, bridging, or jamming
• Replaces a cracked, warped, or missing stripper to restore proper harvest path
• Typical symptoms: cubes stuck on the ejector, repeated jams, ice spilling or clumping

• Disconnect power to the refrigerator and turn off the ice maker before servicing
• Remove the ice maker front cover; release locking tabs or screws to remove the old stripper
• Position the new stripper over the ejector fingers; seat fully without forcing the rake
• Reinstall cover/ice maker, restore power, and allow a full cycle to verify operation

This support mounts in the dispenser area to secure the ice housing assembly. It helps keep the chute and door properly aligned so ice dispenses smoothly and the opening seals as designed.

• Supports and positions the ice housing/chute assembly in the freezer door
• Helps maintain proper alignment and sealing of the ice door/flapper
• Reduces wobble or flex that can affect dispensing performance
• Typical signs it may be needed: loose or misaligned dispenser housing, ice or air leaking at the chute, frost buildup around the dispenser, inconsistent ice dispensing

• Disconnect power to the refrigerator before servicing
• Remove the dispenser trim/control to access the housing; handle wiring and tabs carefully
• Remove mounting fasteners, replace the support, and transfer any reusable hardware
• Reassemble, restore power, and test ice dispensing and chute seal

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

The Icemaker Cycling Thermostat is an OEM part for Whirlpool refrigerators. This thermostat plays a crucial role in the icemaker's operation by monitoring the temperature in the icemaker and ensuring it is at the appropriate level for proper ice production. It reads the temperature to determine when the icemaker should cycle on and off.

Causes of a bad icemaker cycling thermostat can include electrical malfunctions, temperature sensor issues, or wear and tear.

Symptoms of a bad icemaker cycling thermostat may include:

• Inconsistent ice production.
• The icemaker not cycling properly.
• The icemaker not dumping the ice into the ice bin.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement screw fastener used to secure appliance components and panels. It restores proper fastening and helps stop loose parts from vibrating or shifting during operation. What it does:

• Secures panels, brackets, or components in place to maintain appliance stability
• Stops rattling, vibration noise, and intermittent contact caused by loose fasteners
• Restores proper alignment where original screws have stripped, corroded, or been lost
• Functions as a direct-fit hardware replacement when the OEM screw is needed

• One replacement screw (quantity: 1)

• Use appropriate driver and moderate torque to avoid stripping threads or damaging parts
• Disconnect power and follow appliance safety procedures before working on the unit
• Repair or replace the mating component as needed

This small extension mounts on the end of the ice maker's bail/shut-off arm. It restores the proper reach so the ice maker senses a full bin and stops production, helping prevent overfilling and ice jams. What it does:

• Attaches to the end of the ice maker bail/shut-off arm to extend its reach
• Helps the ice maker detect a full ice bin and pause ice production
• Replace if cracked, warped, or missing from the arm
• Common symptoms: ice maker won't stop making ice, ice overfilling or spilling into the freezer

• 1 shut-off arm extension

• Unplug the refrigerator before servicing
• Remove the ice bin for access and locate the ice maker bail/shut-off arm
• Install the extension on the arm as designed; ensure free movement and proper alignment with the bin
• Restore power and verify the arm moves freely and shuts ice production off when raised

This replacement screw secures panels, trim pieces and small assemblies so covers and components stay aligned and rattle-free. It's a simple, direct fastening part used when an original screw is missing or damaged. What it does:

• Fastens panels, trim, control housings and other small components to the appliance chassis
• Replaces missing, worn or stripped screws that cause loose panels or rattling noises
• Restores correct alignment of covers and trims after service or disassembly
• Provides a direct, hardware-level repair instead of temporary fixes

• Disconnect power (and gas, where applicable) and ensure the appliance is cool before starting.
• Use the correct screwdriver bit and turn until snug; do not overtighten to avoid stripping threads or damaging parts.
• Keep removed hardware for reference; replace like-for-like if threads or inserts are damaged.
• Wear eye protection and gloves when working on appliances.

A single-pole, single-throw rocker switch that restores reliable on/off control for one electrical circuit. Replacing a worn or failed rocker switch helps return consistent control and stops intermittent or unresponsive operation. What it does:

• Opens and closes a single electrical circuit when the rocker is pressed.
• Common replacement for switches that stick, fail to latch, or cause intermittent power.
• Can stop symptoms such as unresponsive controls, lights or functions that won't turn on/off, or sparks from a worn switch.
• Matches OEM form and function for direct replacement in compatible appliances.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Note wire locations or take a photo before removing terminals to ensure correct reconnection.
• Use appropriate tools and avoid pulling on wires; if terminals are damaged, replace wiring or connectors.

This impinger assembly directs heated airflow inside the oven/microwave cavity to help promote even cooking and consistent heating. It replaces a damaged or warped air baffle to restore proper airflow distribution. What it does:

• Routes and evens airflow across the cooking cavity to help reduce cold spots
• Helps maintain consistent internal temperatures during operation
• Prevents hot air from short-circuiting around food for more uniform results
• Replaces cracked, warped, or missing air-baffle components that impair airflow

• Disconnect power to the appliance before starting any repair
• Use appropriate hand tools and take care to avoid sharp sheet-metal edges
• Inspect mounting clips/fasteners and replace if damaged; follow OEM fitment orientation

This genuine replacement wire harness connects and routes power and signals between components to restore proper electrical function and safe operation. Designed to match original wiring layout for a straightforward repair. What it does:

• Replaces a damaged or burned wiring harness to restore electrical continuity
• Restores power/signal paths that can stop intermittent operation or failures
• Helps eliminate arcing, shorts, or loss of function caused by frayed or broken wires
• Maintains correct routing to prevent chafing and overheating when installed correctly

• Disconnect all power (unplug appliance or switch off breaker) before starting work
• Handle connectors by the plug body, not the wires; ensure secure, full seating of terminals
• Route harness along original clips and channels to avoid pinch points or hot surfaces
• Replace any connector, terminal, or mounting hardware that is missing or damaged before powering on

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Icemaker Motor Module is an OEM part for Whirlpool refrigerators. This module is the heart of the icemaker, responsible for controlling the ice production cycle. It manages the timing, water fill, and ice tray ejection, ensuring that your refrigerator consistently produces and dispenses ice.

Symptoms of a bad Icemaker Motor Module include:

• The icemaker failing to produce ice,
• Ice cubes not ejecting into the bin,
• The icemaker making unusual noises during operation.

Causes of motor module failure typically involve mechanical wear from continuous use, electrical failures such as short circuits, or water damage affecting the electronic components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

The Ice Maker Assembly is an OEM part for Whirlpool refrigerators, designed to replace your fridge's original ice-making unit. This assembly is responsible for ensuring a consistent and reliable supply of ice, featuring components such as the ice mold, the water inlet valve, and the ice ejector arms.

Causes for a malfunctioning Ice Maker Assembly can range from mineral build-up in the water filter or inlet valve, to mechanical failures in the motor or electrical components.

Symptoms of a bad Ice Maker Assembly include:

• Failure to produce ice
• Producing smaller or misshapen ice cubes
• Leaking water inside the freezer compartment
• Noisy operation or strange sounds during the ice-making process

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: IF ICEMAKER IS NOT COMPATIBLE WITH UNIT ORDER ICEMAKER KIT PART# W10882923 IT COMES WITH ALTERNATE MODULE COVER AND HARNESSES PER MELODY AT WHIRLPOOL PARTS
