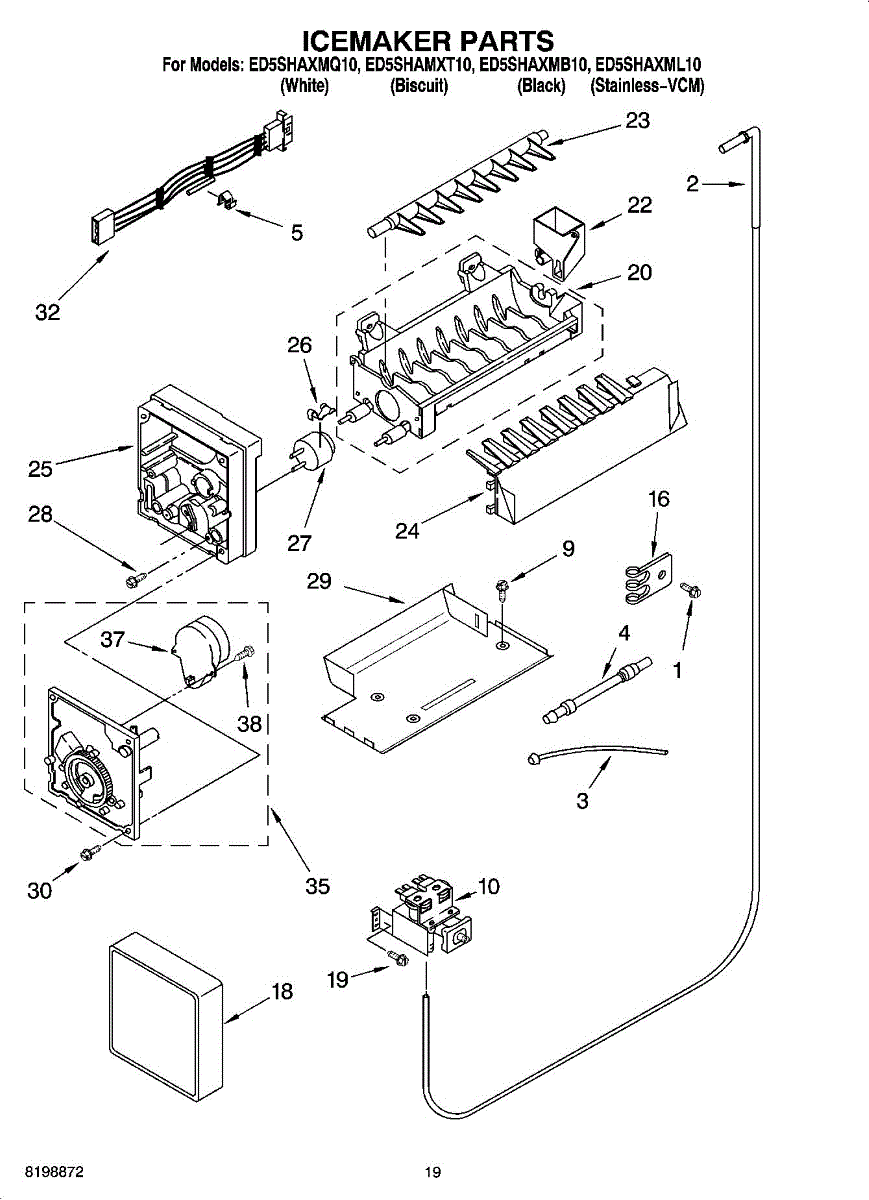

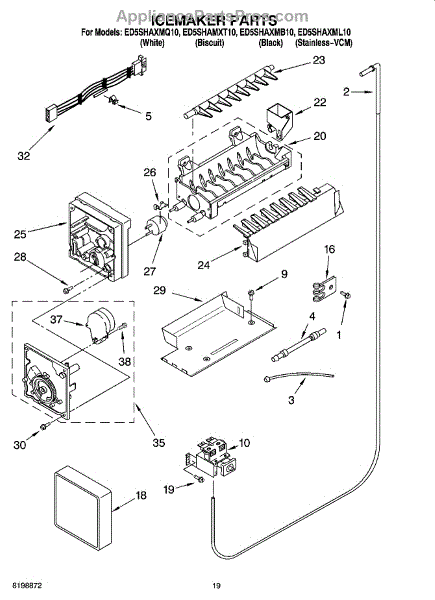

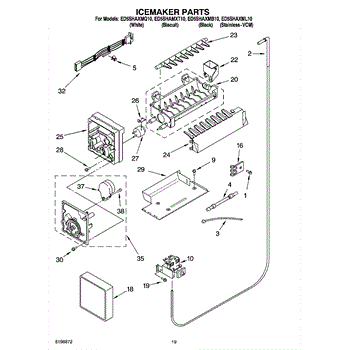

Parts for Whirlpool ED5SHAXML10: 12 - Icemaker Parts, Parts Not Illustrated Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Ice Maker Water Supply Tube is an OEM replacement part for Whirlpool built-in refrigerator models equipped with interior automatic icemakers. This plastic tube transports freshwater from the external water supply line into the upper ice maker assembly. It is precision-engineered by Whirlpool to provide a watertight seal resistant to repeated freeze-thaw stresses.

Symptoms of a faulty supply tube could include:

• Noticeably reduced ice production over time
• Water leaks inside the top of the refrigerator cabinet
• Blockages that stop water from reaching the ice mold

Causes involve the regular stress of daily thermal cycling. Mineral deposits left behind each refill may insulate plastic over the years, leading to cracks. Kinking from improper installation could potentially weaken the tube as well.

This ice maker water supply tube and fitting is also compatible with some KitchenAid, Jenn-Air, and Kenmore built-in models too.

The Water Tube is an OEM component specifically designed for Whirlpool refrigerators. This 1/4" diameter water tube provides a pathway for water to flow through the refrigerator's internal components during operations like ice production.

Causes of a bad water tube can include cracks or defects from manufacturing, damage from impact or abrasion during shipping or installation, or wear over time from cycles of use.

Symptoms of a bad water tube include:

• Water leaks or drips inside the refrigerator
• Insufficient or slow water flow to components
• Abnormal sounds from water not flowing smoothly
• Failure of components dependent on water flow like the ice maker

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore refrigerator models.

The Filter Inlet Water Tube Kit is an OEM part for Whirlpool refrigerators. This kit includes the necessary tubing and fittings to ensure a proper water supply to the refrigerator's filtration system. The inlet tube starts out as 1/4" tubing but transitions to a 5/16" diameter.

You should replace the filter inlet water tube kit if it becomes damaged or clogged. Common causes of issues include mineral buildup from hard water, wear and tear over time, or accidental damage during maintenance or installation. A faulty water tube can result in reduced water flow or leaks.

Symptoms of a bad filter inlet water tube include:

• Reduced water flow to the ice maker or water dispenser
• Leaks or water puddles near the refrigerator
• Ice maker not producing ice or producing ice slowly
• Unusual tastes or odors in the water or ice

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

Size: 8 x 1/2 ab.

The Water Inlet Valve is an OEM replacement part for Whirlpool refrigerators. It regulates the supply of water to the ice maker and water dispenser features. Properly functioning valves are essential for reliably producing ice and dispensing filtered water.

Symptoms of a faulty inlet valve include:

• Ice maker or dispenser not working properly
• Water leaking or spraying from the supply line connections
• Irregular water pressure when dispensing

Causes can involve mineral buildup overtime inhibiting flow control or a motor malfunctioning to switch the valve on and off.

This replacement valve is also compatible with brands like Maytag, KitchenAid, and Jenn-Air.

Note: If your original valve assembly had an additional connector bracket, the factory no longer includes that with the valve. The connector bracket can be ordered separately by ordering part# WPW10445062.

This spring-style tube clamp secures flexible tubing to fittings, helping prevent leaks and maintain proper flow. It's a simple replacement that restores a firm seal on water or drain lines. What it does:

• Keeps flexible tubing firmly clamped to barbed or nipple fittings
• Helps stop or reduce leaks from loose or corroded connections
• Prevents tubing from slipping off under pressure or vibration
• Useful where a compact, spring-action clamp is required

• Disconnect power and shut off water to the appliance before replacing parts
• Use pliers to expand the clamp, position it over the tube/fitting, then release to secure
• Inspect connected tubing and fittings for damage; replace if cracked or severely corroded

This ice maker cover shields the front of the ice maker assembly, protecting the module and moving parts from dust and accidental contact. Replacing a cracked or missing cover restores a clean, finished appearance and keeps components protected.

• Shields the ice maker's front components and control module
• Helps keep dust, splashes, and debris out of the mechanism
• Prevents accidental contact with moving ejector parts
• Replace if the cover is cracked, warped, missing, or will not stay attached

• Unplug the refrigerator before servicing
• Access the ice maker in the freezer compartment
• Carefully release the retaining tabs and remove the old cover; note orientation
• Align the new cover and press until it snaps securely into place—do not force the tabs

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

The Ice Mold is an OEM part for Whirlpool refrigerators. This component forms the ice cubes in the icemaker, shaping the water into cubes as it freezes. The ice mold is crucial for the efficient production of ice, ensuring that each cube is properly formed and easily released into the ice bucket.

You should replace the ice mold if it shows signs of wear or damage. Causes of a bad ice mold can include mineral buildup from hard water, physical damage to the mold surface, or malfunctioning heating elements that prevent ice from releasing properly.

Symptoms of a bad Ice Mold include:

• Ice cubes not forming correctly or being irregular in shape
• Ice cubes sticking to the mold and not dispensing
• The icemaker not producing ice at all
• Leaks around the icemaker area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This icemaker fill cup and bearing assembly directs water from the inlet tube into the ice mold and provides the pivot point for the shutoff arm. Replacing a cracked or missing cup helps stop leaks, misdirected fills, and inconsistent ice production.

• Channels incoming water into the ice mold to prevent splashing and overfilling
• Provides the pivot/bearing for the ice level (shutoff) arm
• Helps maintain consistent cube size and reliable icemaker shutoff
• Typical symptoms: water or ice buildup under the icemaker, overfilling or hollow/irregular cubes, or a loose/binding shutoff arm

• Unplug the refrigerator and shut off the water supply before servicing
• Remove the ice bin and detach the icemaker to access the side-mounted cup
• Position the new cup directly under the fill tube; secure with existing hardware and verify the shutoff arm pivots freely in the bearing
• Restore power and water; run a test fill and check for leaks

This replacement ejector is the plastic arm that pushes harvested ice cubes out of the ice mold and into the storage bin, helping restore proper ice ejection and reduce ice that sticks inside the tray. What it does:

• Pushes ice cubes out of the ice mold during the ice maker's harvest cycle.
• Works with the ice maker's motor/gear assembly to advance cubes into the bin.
• Replaces worn, cracked, or broken ejector arms that can leave ice stuck in the mold.
• Can help address symptoms such as cubes that don't eject, partial fills, or frequent ice jams.

• Disconnect power to the refrigerator before servicing to prevent electrical shock.
• Remove the ice bin and follow the OEM ice maker removal steps to access the ejector.
• Handle plastic components carefully to avoid cracking; inspect gears, mounts, and the ice tray for related wear.

The Ice Stripper Kit is an OEM part for Whirlpool refrigerators. This kit helps in the efficient removal of ice from the ice maker, ensuring smooth and continuous ice production.

Common causes include wear and tear from regular use, buildup of ice or debris, or damage from mishandling during maintenance.

Symptoms of a bad ice stripper kit include:

• Ice cubes not being properly ejected from the ice maker
• Ice jams or blockages
• Reduced ice production
• Unusual noises coming from the ice maker

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This support mounts in the dispenser area to secure the ice housing assembly. It helps keep the chute and door properly aligned so ice dispenses smoothly and the opening seals as designed.

• Supports and positions the ice housing/chute assembly in the freezer door
• Helps maintain proper alignment and sealing of the ice door/flapper
• Reduces wobble or flex that can affect dispensing performance
• Typical signs it may be needed: loose or misaligned dispenser housing, ice or air leaking at the chute, frost buildup around the dispenser, inconsistent ice dispensing

• Disconnect power to the refrigerator before servicing
• Remove the dispenser trim/control to access the housing; handle wiring and tabs carefully
• Remove mounting fasteners, replace the support, and transfer any reusable hardware
• Reassemble, restore power, and test ice dispensing and chute seal

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

The Icemaker Cycling Thermostat is an OEM part for Whirlpool refrigerators. This thermostat plays a crucial role in the icemaker's operation by monitoring the temperature in the icemaker and ensuring it is at the appropriate level for proper ice production. It reads the temperature to determine when the icemaker should cycle on and off.

Causes of a bad icemaker cycling thermostat can include electrical malfunctions, temperature sensor issues, or wear and tear.

Symptoms of a bad icemaker cycling thermostat may include:

• Inconsistent ice production.
• The icemaker not cycling properly.
• The icemaker not dumping the ice into the ice bin.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures panels, trim pieces and small assemblies so covers and components stay aligned and rattle-free. It's a simple, direct fastening part used when an original screw is missing or damaged. What it does:

• Fastens panels, trim, control housings and other small components to the appliance chassis
• Replaces missing, worn or stripped screws that cause loose panels or rattling noises
• Restores correct alignment of covers and trims after service or disassembly
• Provides a direct, hardware-level repair instead of temporary fixes

• Disconnect power (and gas, where applicable) and ensure the appliance is cool before starting.
• Use the correct screwdriver bit and turn until snug; do not overtighten to avoid stripping threads or damaging parts.
• Keep removed hardware for reference; replace like-for-like if threads or inserts are damaged.
• Wear eye protection and gloves when working on appliances.

This icemaker mounting bracket secures the ice maker to the freezer wall, keeping the assembly level and correctly aligned with the fill tube. Replacing a bent or broken bracket helps restore stable ice production and reduces rattling or leaks.

• Supports and stabilizes the ice maker assembly inside the freezer
• Maintains proper alignment with the fill tube and ejector mechanism
• Helps prevent vibration, rattling, and water overspray that can cause ice clumps or cubes missing the bin
• Common signs include a loose or sagging ice maker, crooked alignment, noise during harvest, or water/ice buildup near the fill area

• Unplug the refrigerator and shut off the water supply before servicing
• Remove the ice bin and ice maker to access; transfer and reuse existing screws to install the new bracket in the factory holes
• Level the ice maker and confirm fill-tube alignment before tightening fasteners
• Restore power and water; check for leaks and normal ice production

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Wire harness for the ice maker that restores factory wiring connections so the ice maker receives power and control signals. Replacing a damaged or corroded harness can resolve intermittent operation and loss of ice production. What it does:

• Routes power and control signals between the refrigerator and the ice maker assembly.
• Ensures proper connector fit and signal paths for timed harvest and fill cycles.
• Often fails from connector corrosion, broken or pinched wires, or heat damage.
• Common symptoms: ice maker won't cycle, no or reduced ice production, or intermittent/erratic ice operation.

• Disconnect power (and water supply if applicable) before servicing to avoid shock or damage.
• Handle connectors gently; match and seat each connector fully to avoid loose connections.
• Route and secure the harness away from moving parts, sharp edges, and heating elements.
• Inspect mating connectors for corrosion or damage and replace if necessary.

The Icemaker Motor Module is an OEM part for Whirlpool refrigerators. This module is the heart of the icemaker, responsible for controlling the ice production cycle. It manages the timing, water fill, and ice tray ejection, ensuring that your refrigerator consistently produces and dispenses ice.

Symptoms of a bad Icemaker Motor Module include:

• The icemaker failing to produce ice,
• Ice cubes not ejecting into the bin,
• The icemaker making unusual noises during operation.

Causes of motor module failure typically involve mechanical wear from continuous use, electrical failures such as short circuits, or water damage affecting the electronic components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ice Maker Control Module is an OEM replacement part for Whirlpool refrigerators. It acts as the brain of the ice maker, controlling and regulating its various functions to ensure efficient and consistent ice production.

Symptoms of a bad ice maker control module include:

• No ice production or intermittent ice production
• Ice maker not cycling on or off correctly
• Errors or error codes related to the ice maker on the refrigerator's display
• Unusual noises or clicking sounds from the ice maker

Causes of a bad control module can range from electrical issues, such as power surges or voltage fluctuations, to physical damage or wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This Icemaker Assembly is an OEM replacement for Whirlpool refrigerators. It is responsible for producing ice cubes, providing you with a convenient and steady supply of ice. Fits models that have the icebucket in the door. The bottom mounting bracket on the old icemaker must be reused.

A bad icemaker can be caused by various factors, such as electrical malfunctions or mechanical failures. It may also become damaged due to excessive ice buildup or regular wear and tear.

Symptoms of a bad icemaker include:

• Insufficient ice production or no ice at all.
• Leaking water from the icemaker.
• Misshapen or smaller ice cubes.
• Unusual noises during ice production.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Epoxy repair kit - aluminum tubing.

Size: 1/4 lb.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Color: Biscuit. Size: 1 qt. can uncut. Enamel paint.

Sealer for refrigerant line insulation.

This OEM grease is a purpose-made appliance lubricant that reduces friction and protects moving parts for smoother operation and longer component life. Use where specified by the manufacturer for bearings, slides, or motor shafts. What it does:

• Lubricates gears, bearings, rollers and shafts to reduce wear and noise
• Helps prevent binding, seizing, and grinding on moving components
• Protects metal parts from corrosion where grease is specified
• Keeps parts moving smoothly under normal operating temperatures

• Disconnect power before servicing any appliance; follow manufacturer service instructions
• Apply sparingly to clean, dry surfaces; avoid over-greasing which can attract debris
• Wear gloves and wipe excess grease from surrounding areas to prevent staining

Color: White. Size: 13 oz. Spray paint primer. can.

This clip kit secures small panels, wiring harnesses, or trim on compatible Whirlpool appliances to prevent rattling and keep components in their intended position. It restores proper fit and helps reduce noise from loose parts. What it does:

• Holds wiring harnesses and cables in place to prevent chafing or contact with moving parts
• Secures panels, trim, or hoses so assemblies stay aligned and quiet
• Reduces rattling, buzzing, or vibration caused by loose components
• Keeps parts positioned during normal use and transport

• Disconnect power (unplug or shut off breaker) before starting any repair
• Use basic hand tools; avoid forcing clips into place to prevent breakage
• Replace any damaged clips with the exact kit to ensure proper fit
• Re-check that fastened parts are secure and that there are no pinched wires before restoring power

This aerosol spray paint restores the graphite finish on appliance surfaces for quick, low-effort cosmetic touch-ups. Use it to cover small chips, scratches and scuffs so the exterior looks uniform again. What it does:

• Matches graphite appliance finishes for spot repairs and touch-ups
• Covers visible chips, scratches and minor surface scuffs
• Restores a uniform appearance on painted metal appliance surfaces
• Helps protect exposed metal from surface corrosion after repair

• Clean and dry the surface; remove grease, dirt and loose paint before spraying
• Shake can well and test spray on a scrap piece or inconspicuous area first
• Apply in light, even coats from a recommended distance; allow coats to dry between passes
• Use in a well-ventilated area, keep away from heat/open flames, and follow all safety and disposal instructions on the can

Color: Biscuit. Size: 13 oz. can. Enamel spray paint.

This ice container assembly collects and stores cubed ice produced by the freezer's ice maker, keeping ice contained and ready for dispensing or manual use. Durable molded design fits into the ice maker cavity and funnels ice into the dispenser area. What it does:

• Holds and contains ice made by the ice maker so ice stays organized and accessible
• Guides ice toward the dispenser or auger, helping ensure consistent flow
• Replaces cracked, warped, or damaged containers that cause ice jams or leaks
• Helps reduce spillage when removing or emptying the ice bucket

• Disconnect power to the refrigerator before beginning service
• Empty ice from the bucket and remove any loose ice before removal
• Handle the molded plastic carefully to avoid cracking; install until it seats securely

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Color: White. Size: 2 oz. can. Porcelain touch-up paint.

Bottle with brush. Color: Biscuit paint. It's point-six fluid ounces.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

This flexible, narrow brush reaches under and behind the cabinet to sweep dust and lint from condenser coils and vents. Cleaning built-up debris helps restore airflow and support proper cooling performance.

• Sweeps dust, lint, and pet hair from condenser coils and ventilation areas
• Flexible reach helps access coils beneath or behind the appliance
• Aids proper heat dissipation by clearing airflow paths
• Helpful when coils are visibly dirty, cooling seems weak, or the unit runs longer than usual

• Unplug or disconnect power before cleaning
• Remove the toe grille or rear access panel if needed to access coils
• Brush gently along the coil fins; avoid bending fins or damaging tubing
• Vacuum or wipe up loosened debris before replacing any panels and restoring power

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
