Parts for Whirlpool WRB329DMBM00: 09 - Icemaker Parts

Parts for Whirlpool WRB329DMBM00: 09 - Icemaker Parts

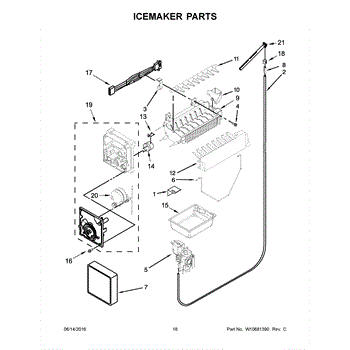

Location on Diagram
Part Description
Price & Availability
1
Product photo
By: Whirlpool
Part Number: WP2256087

Ice maker shifting or loose? This mounting bracket secures your ice maker assembly in place to restore stable positioning and reliable ice production.

More
$50.57

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
2
By: Whirlpool
Part Number: WPW10449192

Water tube that supplies water to the ice maker or dispenser. Replace if cracked, leaking, kinked, or damaged to restore proper water flow in your refrigerator.

More
$58.43

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
3
By: Whirlpool
Part Number: 10526701
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4
Product photo
By: Whirlpool
Part Number: WPW10068250
$8.77

IN STOCK
Ships Today Guaranteed
Add to Cart
5
Best Seller
Product photo
5.0 (34)
By: Whirlpool
Part Number: WPW10498976

Ice maker stopped working or not making ice? This water inlet valve controls flow to your ice maker and dispenser. Takes about 30 minutes to replace.

More
$93.51

IN STOCK
Ships Today Guaranteed
Add to Cart
6
Product photo
5.0 (2)
By: Whirlpool
Part Number: W11285509

The shut-off arm is the lever that tells the ice maker when to stop and start making ice. Replace a bent, missing, or jammed arm to restore proper ice production control and prevent bin overfilling. What it does:

  • Lowers to allow ice production; raises to stop cycles when the bin is full (down = on, up = off)
  • Helps prevent overfilling, spills, and auger jams
  • Common symptoms: ice maker won't stop making ice, no ice when the arm is stuck up, inconsistent ice production from misalignment
  • Restores proper ice level sensing when the original lever is damaged or missing
What's included:
  • One shut-off arm
Install notes:
  • Disconnect power and shut off water before servicing
  • Remove the ice bin to access the ice maker
  • Seat the arm's pivot ends fully in the ice maker head; avoid bending the lever
  • The arm moves freely up/down and clears the bin before restoring power

More
$71.95

IN STOCK
Ships Today Guaranteed
Add to Cart
7
Best Seller
Product photo
4.9 (12)
By: Whirlpool
Part Number: WPW10289690

Cracked or missing ice maker cover exposing internal components? This protective cover shields the ice maker assembly. Simple DIY install in minutes.

More
$7.48

IN STOCK
Ships Today Guaranteed
Add to Cart
8
Product photo
4.8 (5)
By: Whirlpool
Part Number: WPA3223101

Fix water leaks in your refrigerator's ice maker or water line. This tube insert reinforces plastic tubing for leak-resistant compression fittings.

More
$5.95

IN STOCK
Ships Today Guaranteed
Add to Cart
9
Product photo
5.0 (1)
By: Whirlpool
Part Number: WPW10300025

Ice cubes stuck in tray or not releasing? This ice mold and heater assembly warms the tray during harvest to release cubes cleanly into the bin.

More
$112.45

IN STOCK
Ships Today Guaranteed
Add to Cart
10
By: Whirlpool
Part Number: W10410073

The Icemaker Fill Cup Sensor is an OEM part for Whirlpool bottom-mount and side-by-side refrigerators. Located inside the icemaker assembly, the fill cup sensor works to automatically detect when an ice scoop or bucket is in place below the icemaker chute. It signals the icemaker to drop ice cubes into the receptacle below.

Causes of a bad fill cup sensor can include mineral or dirt build-up inhibiting sensor response, moisture damage to its electronic functioning, or physical damage to the sensor head.

Symptoms of a bad fill cup sensor include:

  • Ice failing to dispense or drop when a container is in place
  • Ice clumping in the chute instead of dispensing properly
  • The icemaker continuing to run even with ice present below
  • Inability to sense when ice is removed from the bucket

This OEM Whirlpool replacement fill cup sensor is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore bottom-mount and side-by-side refrigerators.

More
$45.30

IN STOCK
Ships Today Guaranteed
Add to Cart
11
By: Whirlpool
Part Number: W10318914

This ejector arm sweeps across the ice maker mold to push finished ice cubes out and into the storage bin. It is a dual-arm design for an 8-cube ice maker tray. Replace this part if ice cubes are not being released from the mold, the arm is bent or broken, or the ice maker is cycling but not dispensing ice into the bin.

More
$12.17

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
12
By: Whirlpool
Part Number: W10788834

This is an ice stripper arm that sweeps newly formed ice cubes out of the ice maker mold and into the storage bin. It is driven by the ice maker motor module during the harvest cycle. Replace this part if ice cubes are not ejecting properly, are jamming in the mold, or if the arm appears cracked or deformed.

More
$56.34

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
13
Product photo
By: Whirlpool
Part Number: WP628379

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

  • Secures the thermal fuse to the appliance housing or duct to prevent movement
  • Keeps the fuse in correct contact with temperature-sensing surfaces
  • Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
  • Useful when replacing a damaged or missing fuse retainer during fuse service
What's included:
  • One thermal fuse mounting clip
Install notes:
  • Disconnect power to the appliance before servicing to avoid shock or injury
  • Remove access panels per your model's service instructions to reach the fuse location
  • Install clip in the same orientation as the original; use pliers if needed to seat it firmly
  • Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

More
$7.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
14
Best Seller
Product photo
4.9 (30)
By: Whirlpool
Part Number: WP627985

Ice maker stopped making ice? The cycling thermostat monitors temperature to control ice production. DIY-friendly repair with video instructions.

More
$60.52

IN STOCK
Ships Today Guaranteed
Add to Cart
15
Best Seller
Product photo
5.0 (3)
By: Whirlpool
Part Number: WPW10171529

Cracked ice bin causing jams or leaks? This refrigerator ice container stores cubes beneath the icemaker and guides them to the dispenser door.

More
$81.95

IN STOCK
Ships Today Guaranteed
Add to Cart
16
Product photo
5.0 (1)
By: Whirlpool
Part Number: W10001240

This is a replacement screw fastener used to secure appliance components and panels. It restores proper fastening and helps stop loose parts from vibrating or shifting during operation. What it does:

  • Secures panels, brackets, or components in place to maintain appliance stability
  • Stops rattling, vibration noise, and intermittent contact caused by loose fasteners
  • Restores proper alignment where original screws have stripped, corroded, or been lost
  • Functions as a direct-fit hardware replacement when the OEM screw is needed
What's included:
  • One replacement screw (quantity: 1)
Install notes:
  • Use appropriate driver and moderate torque to avoid stripping threads or damaging parts
  • Disconnect power and follow appliance safety procedures before working on the unit
  • Repair or replace the mating component as needed

More
$11.23

IN STOCK
Ships Today Guaranteed
Add to Cart
18
Product photo
4.8 (5)
By: Whirlpool
Part Number: WPM0114003

Speed clip slides over panel edges to create captive threads for mounting screws. Replace worn, missing, or broken clips to restore secure attachment.

More
$7.95

IN STOCK
Ships Today Guaranteed
Add to Cart
19
Best Seller
Product photo
4.8 (77)
By: Whirlpool
Part Number: 8201515

Ice maker stopped making ice or won't eject cubes? A failed motor module is often the cause. DIY repair in under an hour with our video guide.

More
$98.95

IN STOCK
Ships Today Guaranteed
Add to Cart
100
Best Seller
Product photo
4.9 (323)
By: Whirlpool
Part Number: W10884390

Fix a refrigerator that stopped making ice with this complete ice maker assembly. DIY-friendly installation takes about 10 minutes with basic tools.

More
$104.40

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
