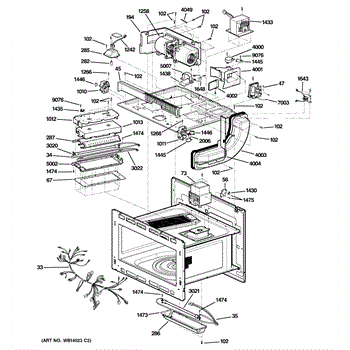

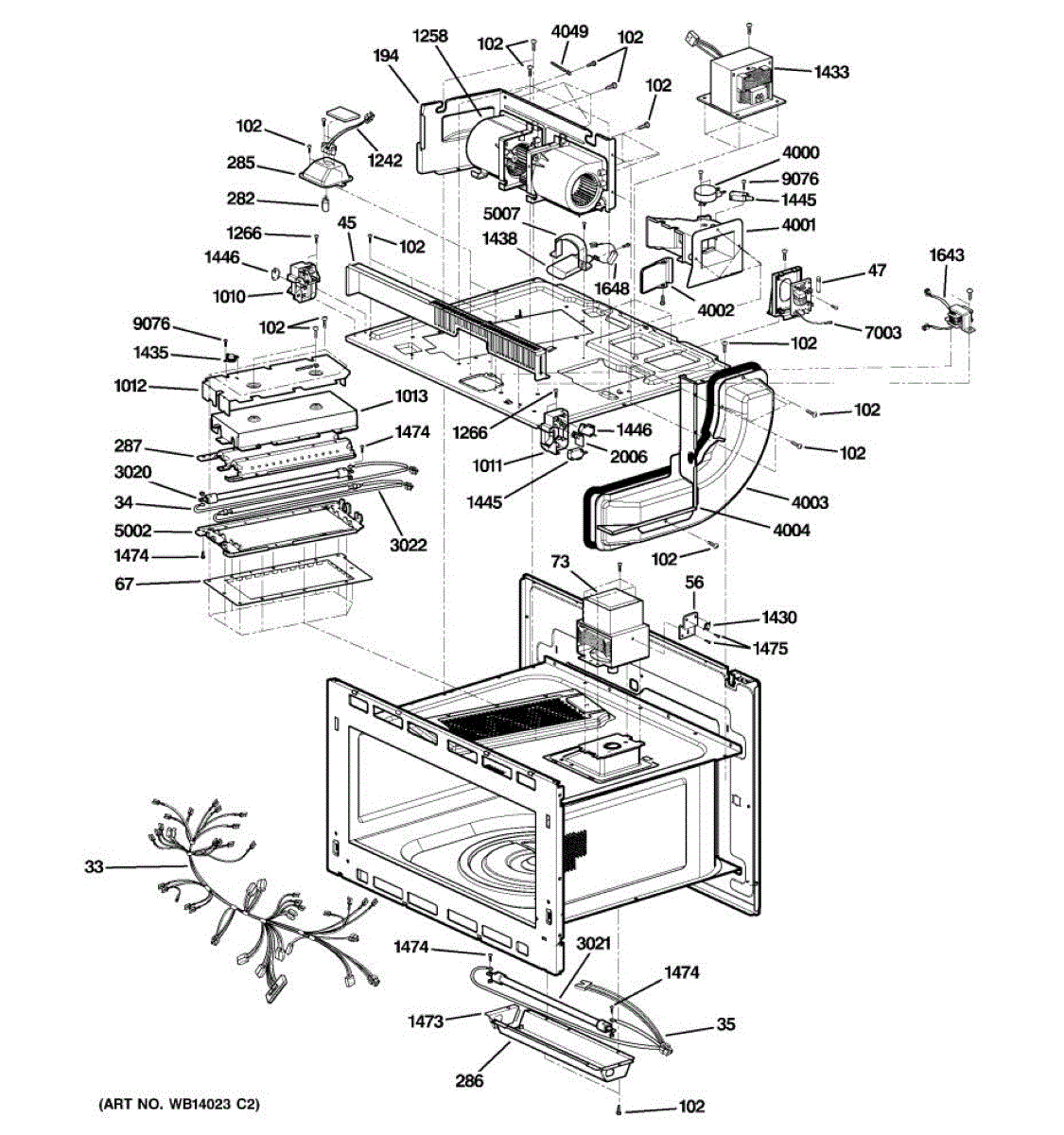

Parts for Ge SCB1000MBB001: 05 - Interior Parts (2) Parts

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement mounting bracket that secures internal panels to the frame. Install this bracket if your original is cracked, bent, or missing.

Microwave not heating? The magnetron generates the radiation that cooks food. Moderate DIY repair—discharge capacitor first, then swap 3 screws.

Truss head tapping screw for microwave assembly. Secures internal components and panels. Replace if screw is stripped, missing, or lost during repair.

This halogen light bulb restores bright, reliable illumination inside your appliance, making it easier to check food and read controls. Replace a burned-out or broken lamp to bring back safe, convenient visibility while cooking.

• Provides bright lighting for the appliance cavity or work area
• Direct replacement for a failed, flickering, or shattered bulb
• Helps you monitor cooking progress without opening the door
• Typical symptoms: light won't turn on, intermittent flicker, blackened or broken glass

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Allow the light area and lens to cool completely
• Handle halogen bulbs with a clean cloth or gloves; avoid touching the glass
• Install per your appliance's instructions and ensure the bulb is fully seated and any cover is secured

The Latch/Switch Holder (Left Side) is an OEM component specifically designed for GE microwaves. It is responsible for securely mounting the latch and door switch components on the left side of the microwave door.

Symptoms of a bad latch/switch holder include:

• Loose, unstable, or improperly functioning door latch
• Inoperative or faulty door switch preventing the microwave from operating
• Physical damage or cracks in the holder plastic

Causes can include normal wear over time exposing internal wires, moisture damage compromising electronics or impact damage weakening the holder structure.

This GE replacement is compatible with Hotpoint, RCA, and Kenmore models.

The Latch/Switch Holder (Right Side) is an OEM component specifically designed for GE microwaves. It is responsible for securely mounting the latch and door switch components on the right side of the microwave door.

Symptoms of a bad latch/switch holder include:

• Loose, unstable, or improperly functioning door latch
• Inoperative or faulty door switch preventing the microwave from operating
• Physical damage or cracks in the holder plastic

Causes can include normal wear over time exposing internal wires, moisture damage compromising electronics or impact damage weakening the holder structure.

This GE replacement is compatible with Hotpoint, RCA, and Kenmore models.

Light bulb holder assembly for your microwave. Replace if bulb won't stay secure, light flickers, or socket is damaged. Verify fit with your model number.

Uneven heating or poor ventilation? This circulation motor powers the fan to move air and maintain even temperatures inside your microwave or wall oven.

The Thermostat is an OEM part for GE ovens. This critical component functions as a temperature sensor and controller within the oven, ensuring that the oven heats to the set temperature and maintains it throughout the cooking process. The thermostat prevents the oven from overheating by cycling the heat on and off as needed.

Symptoms of a failing thermostat include:

• Oven not reaching the desired temperature
• Overheating beyond the set temperature
• Uneven cooking or baking results
• Oven temperature fluctuating more than usual

Causes of thermostat failure generally include age-related wear and tear, calibration issues, or exposure to extreme temperatures that can damage its internal components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Microwave not heating or making loud buzzing sounds? The high-voltage transformer powers the magnetron. Requires caution when testing or replacing.

Microwave won't turn on but turntable rotates? This thermal fuse shuts off power when overheating occurs. Moderate DIY repair taking 2-4 hours.

Microwave not heating? High voltage capacitor stores energy to power the magnetron. DIY repair typically takes 30-60 minutes with proper safety care.

Fix a microwave that won't start or stops mid-cycle with this door interlock monitor switch. Ensures safe operation when door closes. DIY repair.

The Door Interlock Switch is an OEM part for GE microwaves. It ensures the safety of the microwave by preventing the appliance from operating while the door is open. This switch is part of a microwave's safety mechanism, which includes multiple interlock systems designed to stop the generation of microwaves immediately once the door is opened, thereby protecting users from exposure to microwave radiation.

Signs that it's time to replace your door interlock switch include the microwave not starting or stopping unexpectedly, the microwave continuing to operate with the door open, or a failure to heat food even though the appliance seems to be running.

Symptoms of a bad Door Interlock Switch include:

• Microwave does not start
• Microwave stops unexpectedly
• The microwave operates with the door open
• Microwave turns on but does not heat food

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Secures the lead wire assembly inside your microwave. Replace if screw is stripped, missing, or no longer holds wiring securely in place.

Microwave not heating? A failed diode prevents the magnetron from generating heat. This high-voltage component converts AC to DC power. DIY repair.

The Microwave Lever is an OEM part for GE built-in and over-the-range microwaves. This metal lever links to the door handle and activates the door switch when the handle is pulled open.

Causes of a bad lever can include wear from daily use over many years. Repeated opening and closing of the microwave door puts stress on the lever and surrounding components.

Symptoms of a bad lever include:

• Power not disabling when door opened
• Loose or improper connection to door handle
• Door not shutting or latching completely
• Delayed microwave engagement or shut-off

This GE part is also compatible with Hotpoint, RCA, and select Kenmore models.

This Miraclon heater is a direct-replacement heating element assembly that restores proper heat generation in compatible appliances. It provides reliable, OEM-matching heating performance to help your appliance reach and maintain operating temperatures. What it does

• Replaces the appliance's failed internal heater assembly to restore heat production.
• Heats quickly and evenly to support cooking, drying, or defrosting cycles (depending on appliance).
• Common symptom: no heat or weak heat during normal operation.
• Common symptom: appliance runs but items fail to warm or dry as expected.

• Disconnect power and gas before starting any repair.
• Handle the heater carefully; avoid bending or damaging terminals and mounting tabs.
• Follow the appliance service manual for access, mounting, and wiring instructions.

A halogen heater heating element that restores radiant oven heat for even cooking and broiling. Use this direct-replacement heater when the oven's halogen element is burnt out or not producing heat. What it does:

• Provides targeted radiant heat used for baking and broiling in compatible ovens
• Replaces a failed or burned-out halogen heating element to restore normal oven temperatures
• Commonly used when oven is unevenly cooking, won't reach set temperature, or broil function is weak
• Operates as the oven's primary radiant heat source where applicable

• Disconnect power to the appliance before servicing to avoid electrical shock
• Handle the glass element carefully; avoid touching the glass with bare hands to prevent oils and premature failure
• Verify the part number before installation

Fix a microwave clock or timer that won't advance with this AC synchronous motor. Restores gear-driven timing functions. Straightforward repair.

Fix a loose or rattling capacitor with this microwave capacitor bracket. Secures the high-voltage capacitor in place. Simple repair for most DIYers.
