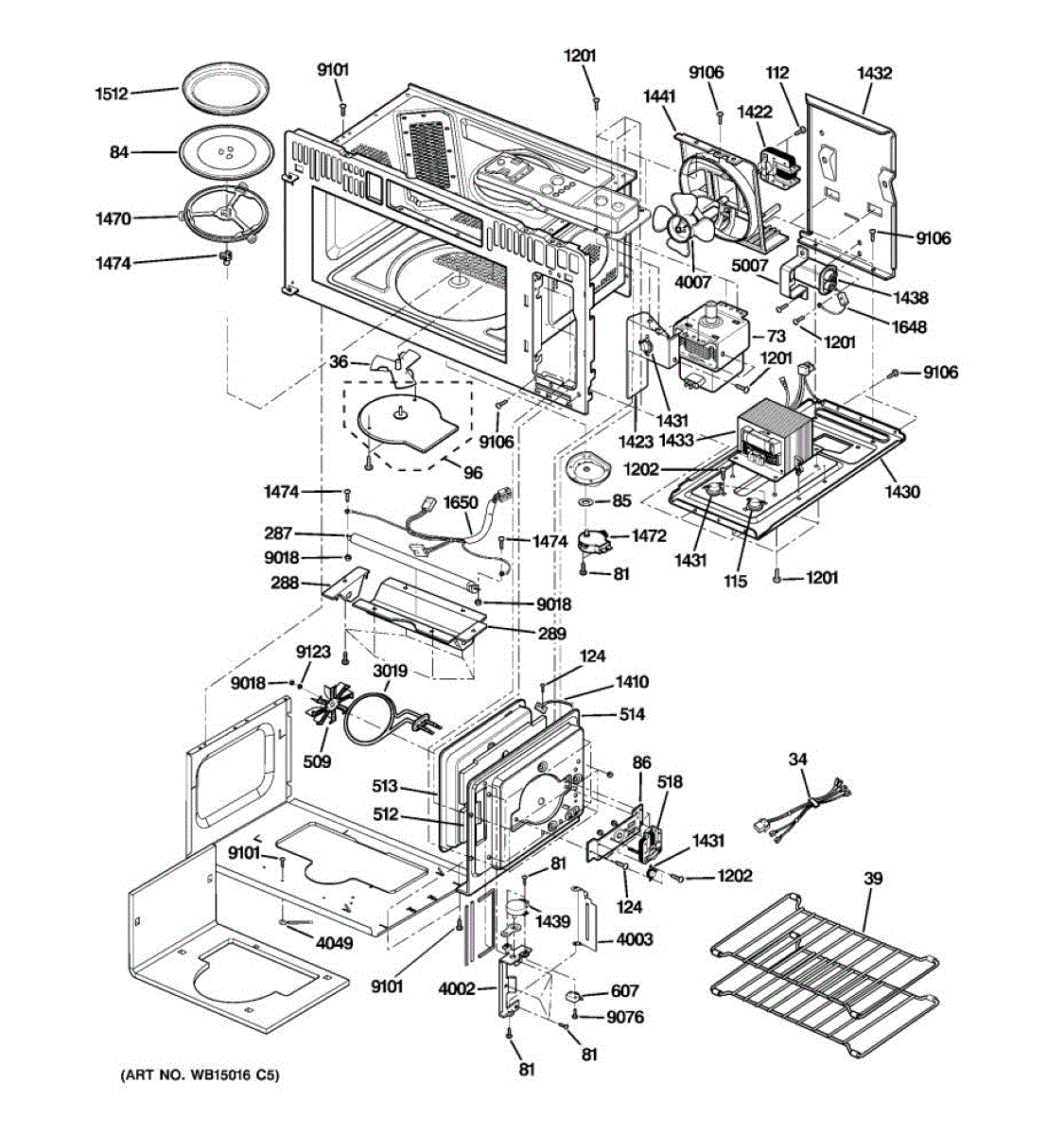

Parts for Ge CSA1201RSS01: 05 - Interior Parts (1) Parts

This wiring harness connects the appliance's control and power circuits so switches, sensors and the control board can communicate and receive power. Replacing a damaged harness restores reliable electrical connections and component signaling. What it does:

• Carries power and signals between the control board and components
• Routes multiple connector leads to the correct appliance parts
• Prevents intermittent or lost connections caused by broken or burned wires
• Helps resolve failures where controls, lights or functions are unresponsive

• Disconnect power before starting work to avoid shock or damage
• Label or photograph connector locations for correct reassembly
• Inspect mounting points and routing to avoid pinching or contact with sharp edges
• If connectors are corroded or damaged, replace the harness rather than splicing

This fan stirrer assembly is a direct-replacement air circulation component that helps move air inside the appliance cavity for more even temperature distribution and improved venting performance. Restores correct airflow when the original stirrer is worn or damaged. What it does:

• Circulates air to promote more even heating or cooling across the cavity
• Replaces cracked, broken, or missing stirrer blades that reduce airflow
• Helps reduce hot/cold spots and poor cooking or cooling performance
• Can eliminate unusual noises caused by a damaged or unbalanced stirrer

• Disconnect power to the appliance before starting any repair
• Remove access panels or interior liners as required to reach the existing stirrer
• Handle the plastic blades carefully to avoid damage; ensure proper alignment and secure mounting hardware
• Test appliance operation after installation and reassemble panels per OEM guidance

This oven rack restores a stable, level surface for cookware inside your range. Replace a bent, missing, or hard-sliding rack to maintain safe support and proper spacing for baking, roasting, and broiling.

• Provides a sturdy, level platform for pans and dishes on adjustable oven positions
• Slides on the side rails to change rack height as recipes require
• Replace if bent, rusted, or missing to prevent unstable cookware
• Common signs: won't slide smoothly, wobbles or sags, damaged wires

• Disconnect power and let the oven cool completely before installing
• Tilt the front up, align the rear of the rack with the side rails, then lower and slide fully in
• Wear gloves to protect hands from sharp edges

This magnetron is the microwave's RF generator—the tube that creates the microwave energy used to heat food. Replacing a failed unit restores proper heating performance so your oven reliably cooks, reheats, and defrosts as intended. What it does:

• Produces high-frequency microwave energy to heat food inside the cavity
• Common failure symptoms: runs but no heat, loud humming/buzzing, burning odor, breaker trips or shutting off shortly after start
• Resolves weak heating and unusually long cook times when the magnetron has degraded

• 1 magnetron

• Unplug the microwave and discharge the high-voltage capacitor before servicing; high voltage can remain even when unplugged
• Handle the tube by the metal body; avoid stressing the ceramic insulators or antenna
• Reinstall using the original mounting hardware; ensure correct orientation and reconnect wires as noted
• Test with a cup of water after reassembly; if no heat persists, further diagnosis of the HV diode, capacitor, or transformer may be required

Color: clear. Measures about 14 inches in diameter.

This plate side heater is the oven heating element that produces heat along the oven side to help maintain even cooking temperatures. Designed to restore proper heating when the side element is worn or failed. What it does:

• Heats the side area of the oven cavity to support even cooking and baking.
• Replaces a damaged or open side heating element that can cause weak or uneven oven heat.
• Helps address symptoms such as oven not reaching set temperature, uneven baking, or visible element damage.
• Works as a direct replacement when the original side plate heater fails.

• One plate side heater

• Disconnect power to the appliance at the breaker before starting any repair.
• Allow the oven to cool completely and use proper PPE when handling the element.
• Remove mounting screws and electrical connectors carefully; note wire locations for reinstallation.
• Reconnect securely and test the oven on a low heat setting to verify proper operation.

The Stirrer Fan Cover Assembly is an OEM part for GE microwaves. It covers and protects the stirrer fan, which distributes microwave energy evenly within the cooking cavity, ensuring food is heated uniformly.

Causes of a bad stirrer fan cover assembly can include exposure to high heat, physical damage from improper handling, or buildup of food particles and grease over time.

Symptoms of a bad stirrer fan cover assembly include:

• Uneven cooking or heating of food
• Rattling or unusual noises during operation
• Visible damage or warping of the cover
• The cover not fitting securely in place

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Thermostat (Plate) is an OEM part for GE microwaves. This thermostat helps to prevent overheating, which can cause damage to the microwave and potentially pose a safety risk.

Over time, the thermostat can wear out or fail due to electrical issues, repeated heating cycles, or manufacturing defects.

Symptoms of a bad thermostat include:

• The microwave not heating properly
• The microwave shutting off unexpectedly during use
• Error codes or warning signals related to temperature issues
• The microwave not starting at all

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This fan assembly circulates air inside the appliance to help maintain proper cooling and airflow, restoring efficient operation and reducing temperature and moisture-related issues. What it does:

• Moves air through the appliance evaporator and cabinet to support temperature regulation
• Helps prevent warm spots and excess frost buildup by improving airflow
• Reduces overheating of components by improving ventilation
• Stops unusual noise or vibration when a worn fan is replaced

• Disconnect power before servicing to avoid electrical shock.
• Handle the fan blades carefully to avoid damage or injury.
• Verify proper mounting orientation and connector seating during installation.
• Test operation after installation and reassemble panels securely.

This circulation motor powers air movement inside the appliance to maintain proper airflow and even temperatures. Replacing a failed motor restores circulation for more consistent cooling and reduces noise or performance issues. What it does:

• Spins the fan to circulate air through the cooling/ventilation path
• Helps maintain even temperatures and proper airflow in the appliance
• Commonly replaced when airflow is weak, cooling is uneven, or the motor is noisy
• Stops operation if the motor fails, which can lead to frost buildup or reduced performance

• Disconnect power to the appliance before starting any repair
• Access and mounting steps vary by model; follow the appliance's service manual or wiring diagram
• Handle wiring connectors carefully and confirm proper fan rotation before reassembly

The Switch Monitor Interlock is an OEM replacement part for GE microwaves. This safety component ensures that the microwave operates only when the door is securely closed. It prevents the microwave from running if the door is open, providing a critical safety feature to protect users from exposure to microwave radiation.

Causes of a bad switch monitor interlock can include wear and tear over time, mechanical damage from frequent door opening and closing, or electrical malfunctions that impact its performance.

Symptoms of a bad Switch Monitor Interlock include:

• The microwave not starting or operating intermittently
• The microwave running with the door open
• Error messages or safety warnings displayed on the control panel
• Unusual clicking or buzzing noises when the microwave door is opened or closed

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a binding-head screw used to fasten panels and components on compatible GE appliances. It provides secure, low-profile fastening where a binding head design is required for proper fit and alignment. What it does

• Secures panels, brackets, or small assemblies to prevent movement or rattling.
• Replaces a missing or stripped screw that causes loose parts or squeaks.
• Restores proper alignment for components that rely on the binding-head profile.
• Works where a shallow, rounded head and threaded shaft are specified.

• Use the correct driver size to avoid cam-out or head damage.
• Do not overtighten; snug until secure to avoid stripping threads or damaging parts.
• Disconnect power and follow all appliance-specific safety procedures before accessing panels.

This NTC thermistor is a temperature sensor that feeds real-time temperature data to the control. Replacing a failing sensor helps restore accurate temperature regulation, reduce nuisance shutdowns, and improve consistent cycle timing and performance.

• Monitors temperature by changing resistance as heat rises or falls
• Sends a signal to the electronic control to manage heating and fan operation
• A failed sensor can cause inaccurate temperatures, short/long cycles, or sensor-related error messages
• May prevent certain cycles from starting

• Disconnect power and allow the appliance to cool completely before servicing
• Note connector orientation and wire routing; take a photo for reference
• Install the sensor in the original location/clip and route wires away from hot or moving parts
• Restore power and run a test cycle to proper temperature response

This AC fan motor is the refrigerator fan motor that circulates air to maintain proper cooling and airflow. It replaces a worn or failed fan motor to help restore steady airflow and consistent temperatures. What it does:

• Spins the evaporator/condenser fan blade to move air through the refrigerator cooling system
• Restores airflow when fan has stopped running or runs intermittently
• Reduces unusual fan noise or vibration caused by a failing motor
• Helps correct uneven cooling or frost build-up linked to poor air circulation

• Disconnect power to the appliance before starting any work
• Handle the fan blades carefully to avoid bending or injury
• Verify fan blade seating and clearances during reassembly to prevent rubbing

The Thermostat is an OEM part for GE microwaves. This part regulates the temperature within the microwave, ensuring it operates within safe and efficient temperature ranges. It helps prevent overheating by monitoring and controlling the internal temperature, protecting both the appliance and the user.

Causes of a bad thermostat can include wear and tear over time, electrical malfunctions, or damage from power surges.

Symptoms of a bad thermostat include:

• Microwave not heating properly
• Overheating or shutting off unexpectedly
• Error codes related to temperature issues
• Inconsistent cooking times

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the microwave's high-voltage capacitor. It stores and releases energy in the high-voltage circuit to power the magnetron so food heats. A failed capacitor can cause no heat, loud humming, or blown fuses.

• Works with the high-voltage transformer and diode to supply the magnetron with operating voltage
• Stores and smooths high-voltage DC in the microwave's power circuit
• Failure may result in no heat while lights and turntable still run
• Can cause loud buzzing, sparking, or a burning smell during operation
• May open the internal fuse or trip a breaker when the cycle starts

• Unplug the appliance; capacitors can retain a dangerous charge—properly discharge the capacitor before servicing
• Photograph wire routing; transfer leads one at a time and secure the capacitor firmly in its bracket

This AC synchronous motor drives timed or fixed-speed rotations in compatible appliances to restore reliable timing and rotation. Ideal when a worn motor prevents timers, clocks or small gear-driven functions from operating. What it does:

• Turns at a constant, AC-synchronous speed to drive timers, clocks or small mechanical linkages.
• Replaces a failed or noisy timer/clock motor to restore timed functions.
• Common symptoms: appliance clock or timer won't advance, no rotation of small mechanisms, or intermittent timer operation.
• Operates as a direct replacement for the listed part number when matched to the appliance's OEM specification.

• Always disconnect power at the breaker or unplug the appliance before starting any repair.
• Note or photograph original wire locations and mounting orientation to ensure correct reconnection.
• Use basic hand tools; some models require removing a control panel or control box to access the motor.

This suction guide positions and supports the appliance's suction component to help ensure proper fit and reliable operation. Replacing a damaged guide restores alignment so the suction assembly can work as intended. What it does:

• Holds and guides the suction component or cup into the correct position
• Prevents misalignment that can cause vibration, rubbing, or reduced suction performance
• Helps maintain a consistent seal where the suction component interfaces with the appliance
• Useful when the original guide is cracked, broken, or worn

• Disconnect power (and water, if applicable) before servicing the appliance
• Access may require removing an outer cover or access panel and a few fasteners
• Handle plastic parts carefully to avoid cracking during removal and installation

This ring assembly replaces a worn or damaged trim ring to restore proper fit and finish on your appliance. It helps secure surrounding components and reduces vibration or misalignment for smoother operation. What it does

• Acts as the trim/mounting ring that holds or aligns adjoining parts in place
• Restores proper fit and reduces rattling or loose gaps around the opening
• Helps prevent misalignment-related wear on adjacent components
• Common symptom: visible gap, loose trim, or vibration/noise during operation

• One ring assembly

• Disconnect power to the appliance before starting any repair
• Use basic hand tools; refer to the appliance's parts diagram for exact placement
• Handle mounting surfaces and adjacent trim carefully to avoid scratching or bending
• Reinstall components in reverse order and verify proper fit before restoring power

This turntable motor drives the glass tray in your microwave for even heating. Replace it when the tray stops turning, turns intermittently, or the motor makes unusual noises to restore smooth, reliable rotation.

• Rotates the turntable tray/plate for more even cooking and reheating
• Provides steady drive to the tray via the center coupler
• Typical fix for a non-spinning or intermittently spinning turntable
• Can address loud humming or grinding noises from beneath the oven floor

• Disconnect power before servicing; microwaves contain high-voltage components
• Access is typically from the bottom by removing the motor cover or base panel
• Note wire orientation; transfer connectors, align the shaft with the coupler, and secure with the original screws
• After reassembly, place a microwave-safe cup of water on the tray and run briefly to ensure the turntable rotates

Turntable shaft that connects the microwave motor to the glass tray so the turntable rotates smoothly for more even heating. Replacing a worn or broken shaft helps stop wobbling, slipping, or scraping during rotation. What it does:

• Transfers rotation from the motor to the glass turntable so dishes rotate while cooking.
• Centers and supports the glass tray to reduce wobble and ensure consistent rotation.
• Use when the tray won't turn, slips on the motor coupler, or makes knocking/scraping noises.
• Fits into the turntable coupler and works with the roller ring and glass tray to maintain stable motion.

• 1 turntable shaft

• Disconnect power before servicing and remove the glass tray and roller ring to access the shaft.
• Shaft typically presses into the motor coupler; remove the old shaft and press the replacement into place.
• Inspect the roller ring and glass tray for damage when replacing the shaft; replace any worn pieces for best results.

This nonstick metal tray sits inside compatible microwave/convection models to support food during the correct cooking cycles. Replacing a warped, worn, or missing tray helps restore stable placement, even heating, and reliable browning.

• Provides a stable, heat-conductive surface for baking, roasting, or crisping as directed in your owner's manual
• Promotes even results and surface browning during convection or other approved cooking cycles
• Replace if the pan is warped or dented, or if the nonstick coating is scratched or flaking
• Common symptoms: poor browning, uneven cooking, tray rocks or won't sit properly, visible damage or peeling

• Allow the oven cavity and tray to cool completely before handling
• Position the tray on the turntable or rack exactly as specified in your model's owner's manual
• Use only on cycles your model approves for metal cookware
• Hand-wash with non-abrasive cleaners to preserve the nonstick surface

The Diode Assembly is an OEM part for GE microwaves. It plays a crucial role in converting alternating current (AC) to direct current (DC), which is essential for the microwave’s high-voltage functions, including powering the magnetron to generate microwave energy.

Over time, diodes can fail due to electrical surges, excessive heat, or wear and tear. A faulty diode assembly can lead to inefficient or non-functional microwave operation, impacting its ability to heat food properly.

Symptoms of a bad diode assembly include:

• Microwave not heating food
• Sparking or arcing inside the microwave
• Burning smell or unusual noises during operation
• Microwave turning on but failing to generate heat

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This single wiring harness connects control and heating components to restore reliable electrical connections and circuit routing in your appliance. It replaces a damaged or worn harness to help re-establish proper function. What it does:

• Routes power and signals between the control board and heating/functional components
• Restores interrupted electrical paths that can cause burners or elements to stop working
• Helps resolve intermittent or no-heat symptoms caused by frayed or broken wiring
• Provides the correct plug-and-play connector ends for direct replacement

• One wiring harness

• Disconnect power to the appliance before servicing to avoid shock or injury
• Inspect matching connectors and routing; replace only when connectors and pin counts match
• Secure harness away from heat sources and moving parts to prevent premature failure

This heater sheath is the protective metal sleeve that surrounds a dryer/oven heating element, helping protect the element and focus heat where needed for reliable appliance heating performance. What it does:

• Protects and supports the heating element inside the appliance
• Helps direct and contain heat for efficient operation
• Can prevent direct contact between the element and surrounding components
• Commonly replaced when the sheath is corroded, dented, or damaged
• Linked to uneven heating or visible element damage

• High-level replacement only; disconnect power before servicing to avoid shock hazard
• Inspect surrounding components (element, terminals, mounting clips) and replace any damaged parts
• Use proper fasteners and ensure sheath is seated securely to avoid contact with other components

This replacement blower fan mounts on the blower motor to move air through the appliance's ventilation path and cool internal components. It restores proper airflow to help clear steam/smoke and reduce noise from a cracked or warped wheel. What it does:

• Couples to the blower motor to push/pull air through the exhaust or recirculation ducts
• Helps cool internal parts while venting cooking steam and odors
• Typical failure signs: scraping/rattling noises, reduced or no airflow, poor venting performance, or intermittent overheating shutdown

• 1 blower fan wheel

• Disconnect power at the breaker or unplug before servicing
• If over-the-range or built-in, support the unit and follow manufacturer procedures to access the blower housing
• Match the original wheel orientation and seat fully onto the motor shaft
• Spin by hand to ensure free rotation and clearance; reassemble and test all fan speeds

This is a truss-head self-tapping screw used to secure appliance panels and trim. It replaces a lost or damaged mounting screw to restore proper fit and stop rattles or loose parts. What it does

• Secures trim, panels, brackets or small components where a low-profile, wide-head screw is required
• Self-tapping design cuts threads into sheet metal or similar substrates—no nut required
• Restores tight mounting to reduce vibration, rattling or misaligned panels
• Commonly used in refrigerators, ranges and other household appliances

• One truss-head self-tapping screw

• Disconnect power to the appliance before servicing and work on a cool appliance
• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten—turn until snug and the part is secure but not distorted
• Replace with the exact part number to ensure fit and function
