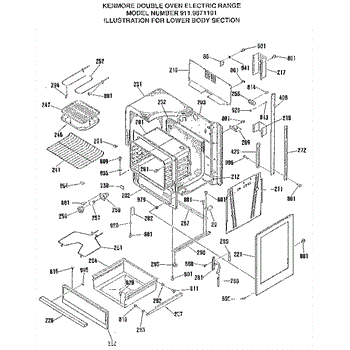

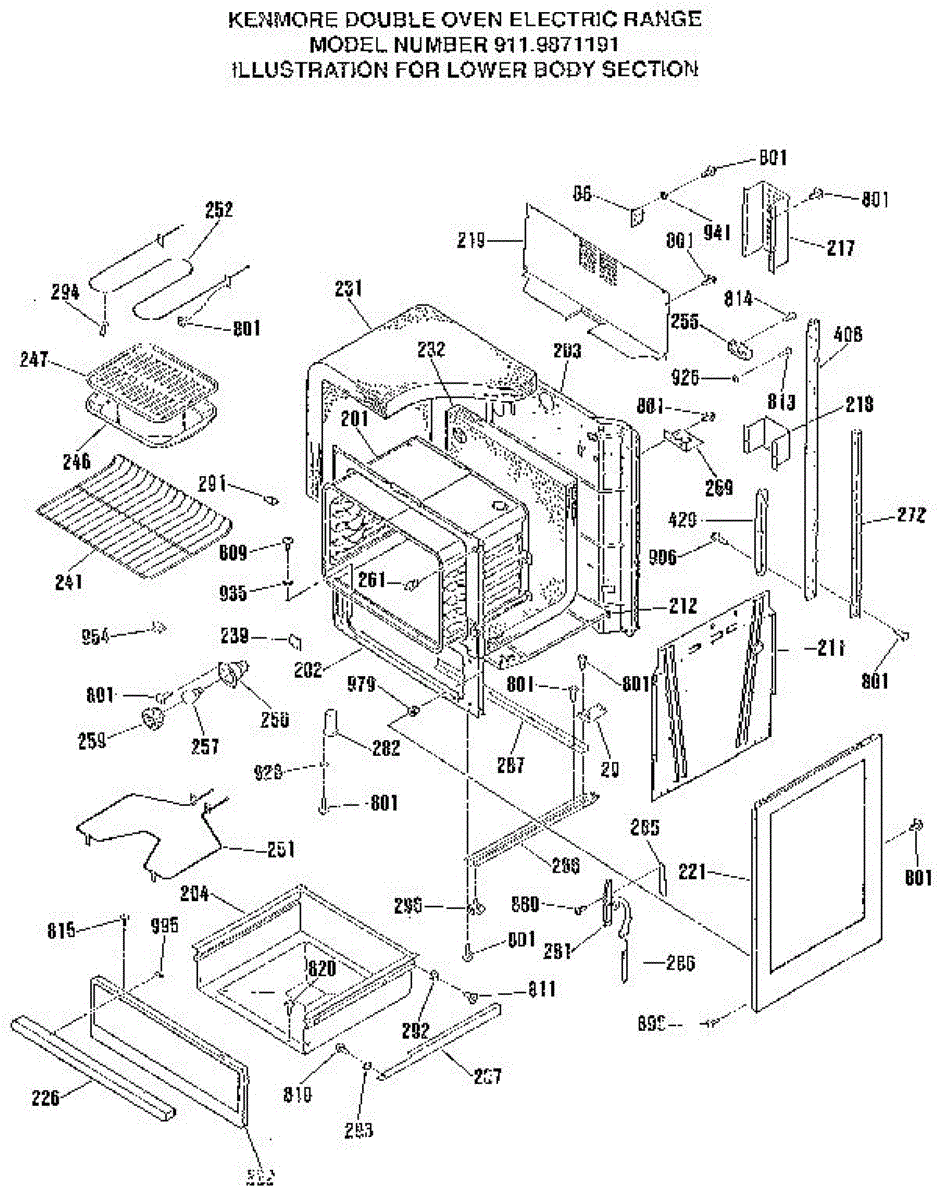

Parts for Kenmore 911.9871191 (9119871191, 911 9871191): Lower Body Section Parts

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven won't heat or bakes unevenly? A failed bake element is often the cause. Located at the bottom of the oven, this part is a straightforward DIY fix.

Broil element broken or not heating? This top heating element restores high-heat broiling in electric ovens. DIY-friendly repair, typically done in under 30 minutes.

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

NOTICE: Part has been redesigned. Wire terminals are no longer straight off the the back they are from the side. Depending on your model you may have to make changes to make it fit.

Silicone Oven Door Gasket About 44.5" Long. Cross Section Resembles '2'.

Left side oven door hinge provides smooth opening and closing operation. Replace if cracked, seized, worn, or binding. Mounts to oven cavity interior.

Replaces a cracked, worn, or broken oven door hinge. Installs on the right side, allowing the door to open and close smoothly and securely.

Replacement hinge shim for your range door. This small spacer ensures proper door alignment and gap spacing. Order a new shim if yours is cracked or missing.

The Support Bracket is an OEM part for GE ovens, designed to provide stability and support for the broiling element. This bracket is essential for ensuring the broiling element is securely positioned at the top of the oven, allowing for even heat distribution and optimal cooking performance when broiling foods.

Causes of damage to the support bracket often involve high heat exposure, accidental impacts during cleaning or cooking, or general wear and tear over time.

Symptoms of a bad Support Bracket include:

• The broiling element hanging lower than usual or touching the oven cavity, which can affect cooking performance and potentially damage the oven's interior.
• Unstable or loose broiling element, leading to uneven cooking or broiling.
• Visible signs of wear, damage, or corrosion on the bracket itself, indicating it may no longer provide adequate support.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

ST10-16 X 7/16"

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Replacement screw for securing components inside your range or oven. Needed when original fasteners are stripped, lost, or damaged during repairs.

Package of 12

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

Expansion nut spacer for electric ranges and ovens. Secures components and maintains proper spacing. Replace if cracked, stripped, or missing.

Mounting nut for ovens and ranges. Secures internal components and panels. Replace if stripped, corroded, or missing to restore proper assembly.
