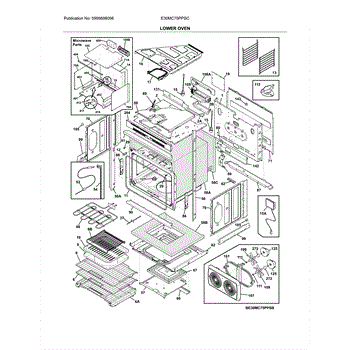

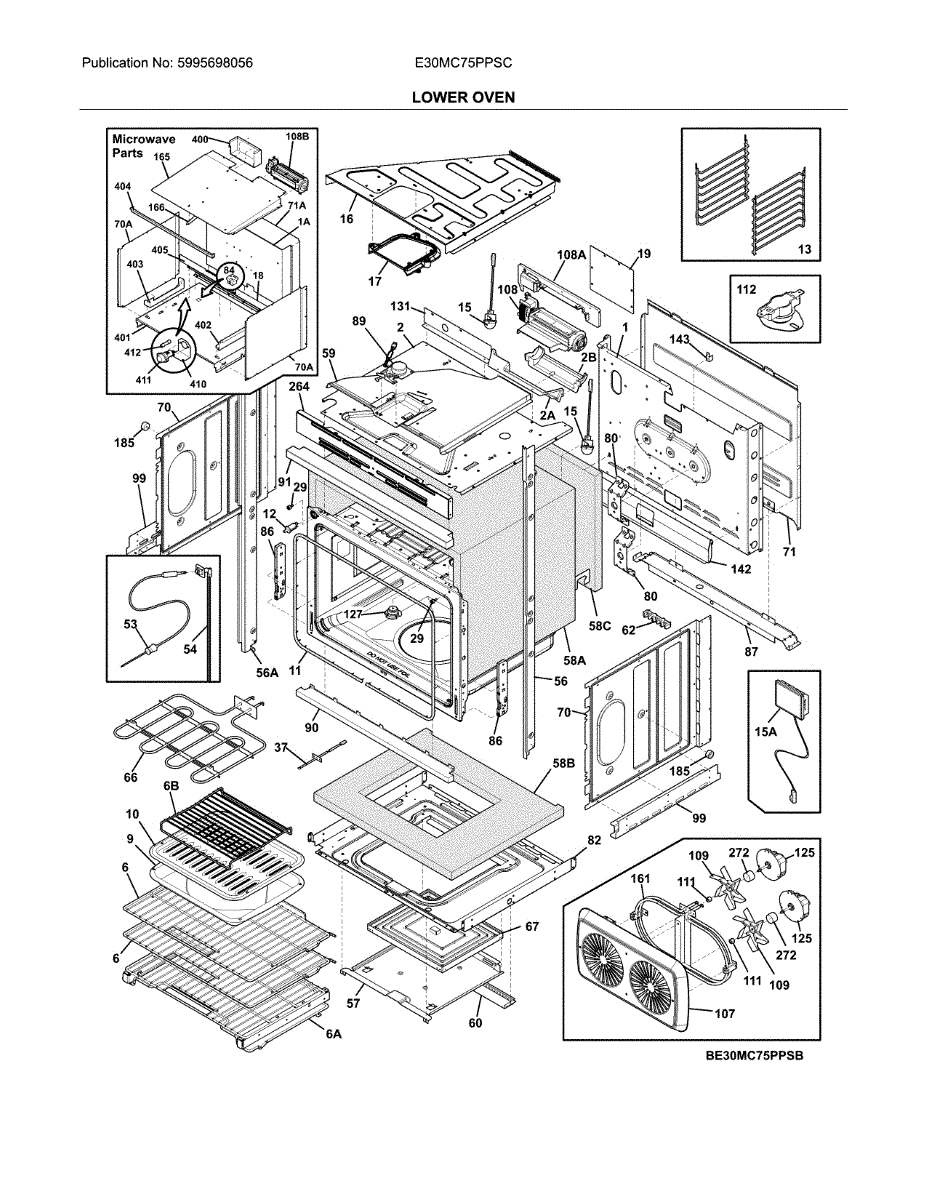

Parts for Electrolux E30MC75PPSC: Lower Oven Parts

This pan-broiler is the oven broiler pan used to catch drippings and support food while broiling, restoring safe, even broiling and easier cleanup. Replaces a warped, damaged or missing broiler pan. What it does:

• Catches grease and drippings to protect the oven floor and reduce smoke while broiling
• Provides a stable surface for broiling foods so they brown and crisp more evenly
• Helps contain flare-ups from drips, improving broil performance and safety
• Restores proper fit and clearance in the broiler compartment when the original pan is damaged

• Allow the oven and broiler pan to fully cool before handling
• Slide the pan into the broiler compartment; no special tools typically required
• Inspect for proper fit and avoid forcing a warped pan into position
• Follow OEM cleaning and care instructions; use appropriate protective gloves when handling hot surfaces

This broiler insert is the oven pan insert that sits under the broiler burner to catch drips and help direct heat for even browning. It restores a stable cooking surface and keeps the broiler area cleaner. What it does:

• Holds food and catches grease and drips during broiling to prevent mess and flare-ups
• Directs heat from the broiler for consistent browning and searing
• Replaces damaged, warped, or corroded inserts that cause uneven cooking
• Helps prevent food from falling into the burner area

• One broiler insert

• Disconnect power to the appliance and allow the oven to cool completely before servicing
• Remove oven racks and slide the old insert out; position the new insert so it seats securely in the broiler cavity
• Wear heat-resistant gloves when testing the broiler after installation and inspect for proper fit before use
• Do not modify the part; use only as designed for the oven broiler assembly

This seal creates a watertight barrier at a critical joint inside the dishwasher. Replacing a flattened, cracked, or missing seal helps stop leaks during the cycle and protects surrounding components from moisture. What it does:

• Maintains a watertight seal between mating parts in the wash system
• Helps prevent drips and pooling water under or around the appliance
• Restores proper sealing after wear, hardening, or deformation
• Common signs include leaks during a cycle, moisture beneath the unit, or visible wear on the old seal

• 1 seal

• Disconnect power and shut off the water supply before servicing
• Access the sealed area per your model's service information; remove the old seal
• Clean the groove/mating surfaces; seat the new seal evenly without twisting or stretching
• Restore power and water, then run a short cycle to check for leaks

This replacement switch restores reliable control of a selected function by opening or closing an electrical circuit inside your appliance. When the original switch wears out, buttons may stop responding or features may not activate consistently.

• Opens/closes an electrical circuit when the button/actuator is engaged
• Routes power or sends a signal to the control or component
• Common symptoms: no response when pressed, intermittent operation, or function won't start
• May show signs of heat damage, loose terminals, or inconsistent "click" feel

• Disconnect power at the breaker before servicing
• Photograph or label wire positions to ensure correct transfer to the new switch
• Move wires one at a time; fully seat connectors on the correct terminals
• Reassemble, restore power, and test the function activated by the switch

This oven light bulb illuminates the interior of your range or wall oven. Replace a burned-out bulb to restore clear visibility while cooking, checking doneness through the window, and cleaning.

• Provides interior illumination when the oven light is activated
• Common fix for no oven light, dim or flickering light, or a failed bulb
• Helps you monitor food without opening the door

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the oven to cool completely to avoid burns
• Remove the lens/cover if present; replace the bulb per your model's socket; do not overtighten
• Restore power and test; if the light still doesn't work, inspect the socket and switch

The Range Lamp Assembly is an OEM part for Frigidaire stoves and ranges. It consists of the halogen light bulb, lens cover, and wiring harness necessary to illuminate the oven cavity. This lamp assembly provides light to the cooking and baking space, making it easier to view food and monitor cooking progress.

Symptoms of a bad range lamp assembly include:

• The oven light not turning on at all
• Dim, flickering, or intermittent light
• Burned out or blown light bulb
• Cracks or damage to the lens cover

Causes of failure can be a burned out light bulb, broken wiring, or damage from impact or heat over time.

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Temperature Sensor is an OEM part for Frigidaire ovens. It monitors and helps regulate the oven's internal temperature, ensuring consistent cooking results by accurately detecting temperature changes. This sensor is crucial for the oven's control system to maintain the desired cooking temperature.

Symptoms of a bad Temperature Sensor include:

• Inaccurate oven temperature readings,
• Oven not heating to the set temperature,
• Oven overheating,
• Frequent temperature fluctuations during use.

Causes of a sensor failure can include prolonged exposure to high temperatures, electrical surges, or a breakdown of the sensor's components due to normal wear and tear.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Restore reliable heat to your electric cooking appliance with this replacement heating element. It delivers consistent, controllable heat so your cooktop zone or oven cavity reaches and maintains the temperature needed for proper cooking results. What it does:

• Converts electrical energy into heat for a single heating zone in the appliance
• Helps the oven or surface zone reach and maintain set temperature
• Can address visible damage such as hot spots, blistering, or burn-through on the element

• 1 heating element

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow all components to cool; wear cut-resistant gloves and eye protection
• Note and photograph wire positions before transfer; ensure tight, clean terminal connections
• Handle the element carefully to avoid flexing or damaging the heating coil and supports

The Bake Element is an OEM component for Frigidaire wall ovens. It is an integrated heating coil that generates heat through electric resistance when powered. Located near the bottom of the oven cavity, the bake element facilitates heating for various cooking functions like baking, roasting, or warming. This element measures approximately 13 x 11 inches.

Symptoms of a bad bake element include:

• Oven failing to reach or maintain desired cooking temperatures
• Bake cycles taking excessively long periods of time
• Hot or cold spots developing inside oven cavities
• Error codes appearing related to upper heating issues

Causes can be cracks in ceramic sheathing allowing arcing, or mineral deposits coating coils over extended use impeding heat transfer.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This replacement outlet restores a secure power connection inside compatible Frigidaire appliances, helping re-establish reliable electrical contact for the unit. Designed to replace a worn, cracked, or damaged internal receptacle. What it does:

• Provides a secure connection point for the appliance power cord or internal wiring.
• Replaces outlets that cause intermittent power, arcing, burning smell, or visible damage.
• Ensures proper seating of wires or plug blades to prevent loose connections and overheating.
• Restores safe electrical contact when the original receptacle is cracked, melted, or corroded.

• One outlet

• Disconnect power at the breaker or unplug the appliance before starting work.
• Secure all wire connections tightly.
• Use appropriate tools and avoid damaging surrounding wiring or insulation.

This mounting bracket secures appliance components in place to restore stable operation and alignment. It's a simple, durable replacement that helps prevent loose parts and rattling for safer, quieter performance. What it does:

• Provides structural support for internal components and assemblies
• Holds panels, modules or hardware in correct alignment to prevent movement
• Helps eliminate rattling, vibration noise, or loose-fitting parts
• Restores proper fit where a worn or broken bracket allowed misalignment

• Turn off power to the appliance and unplug before beginning work
• Remove only the panels or fasteners necessary to access the old bracket
• Reuse original fasteners or replace with equivalent-size hardware; tighten securely

This console cover replaces a damaged or worn dispenser trim to restore a clean, finished look and protect internal dispenser components from spills and debris. It helps maintain dispenser function and appearance. What it does

• Covers and protects dispenser/console components from moisture, food, and everyday wear
• Restores a flush, finished appearance to the dispenser area
• Prevents debris from entering control openings and trim seams
• Can reduce rattles or movement caused by a broken or loose trim piece

• One console cover (trim) as pictured

• Disconnect power to the refrigerator before beginning any work
• Remove any screws or retainers holding the old cover; keep hardware if reusing is intended
• Align the replacement cover carefully and secure with original screws or clips

This replacement fan blade mounts to the appliance's fan motor to move air as designed. Installing a new blade restores proper airflow and helps reduce vibration or noise caused by bent, cracked, or worn fins. What it does

• Attaches to the fan motor shaft to move air through the cavity or across internal components
• Supports even air circulation or cooling performance, depending on model
• Helps resolve issues such as loud scraping/whirring, vibration/wobble, weak airflow, or visible blade damage

• One fan blade

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Access the fan assembly from the rear panel or inside the oven behind the fan cover (varies by model); wear gloves—edges can be sharp
• Note blade orientation/rotation and securely reinstall using the original fastener(s)
• Hand-spin the blade to ensure clearance and free movement before reassembly and testing

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

The Motor is an OEM component specifically designed for Frigidaire wall ovens. It is crucial for powering internal functions such as convection fans and oven doors.

The motor works behind the scenes to provide smooth operation. It allows for precise temperature control during baking and broiling via fan-driven airflow. Seamless door movement is also enabled.

Symptoms of a bad motor include:

• The oven failing to preheat or reach set temperatures
• Doors not opening or closing properly
• Loud grinding or clicking sounds being emitted

Causes of motor failure can be normal wear and tear over extended use. Overheating, dirt buildup, or power surges could potentially damage electrical components as well.

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore wall oven models. Replacement restores intended functionality.


This Tube Assembly routes water inside the refrigerator to the dispenser and ice-maker, restoring proper water flow and preventing leaks when the original line is damaged. Reliable replacement for delivery and fill connections. What it does:

• Transports water from the inlet to the ice maker/dispenser assembly
• Replaces cracked, kinked, or leaking tubing that causes puddles or low water flow
• Helps restore normal ice production and dispenser operation when the tube is the fault
• Matches OEM routing and connector types for correct fit and seal

• One tube assembly as shown

• Disconnect power and shut off the water supply before starting
• Remove ice maker or access panel as needed to reach routing; follow OEM service instructions
• Inspect fittings and replace any damaged clamps or seals; avoid kinking the new tube
• After installation, turn on water, check for leaks, and run dispenser/ice cycles to confirm proper flow

This radiant cooktop surface element provides direct heat for one burner, restoring normal cooking performance on electric ranges. It replaces a damaged or non-heating round element to return even, reliable heat to the cooktop. What it does:

• Heats cookware by providing the cooktop's radiant heating surface
• Restores a burner that is not heating, heating unevenly, or not reaching set temperatures
• Works with the cooktop's infinite switch to regulate cooking temperatures
• Suitable when the visible element is cracked, oxidized, or no longer functions

• Disconnect power to the range at the breaker before servicing
• Handle the element and any glass or ceramic surfaces carefully to avoid breakage
• Verify proper fit and connection to the terminal block before restoring power

This deflector directs cold air inside the refrigerator to help maintain even temperature and proper airflow in affected compartments. It replaces a damaged or missing airflow guide to restore consistent cooling performance. What it does

• Guides and directs internal airflow to reduce hot or cold spots
• Helps prevent localized frost or moisture buildup by ensuring proper circulation
• Restores designed cooling patterns after the original deflector is cracked, warped, or missing
• Works with existing vents and ducting to maintain appliance efficiency

• Disconnect power to the appliance before starting any repair
• Replaceable with basic hand tools; some models may require removing shelves or interior panels
• Handle carefully to avoid cracking plastic; align tabs/slots before snapping into place

This spacer positions and supports components to maintain proper alignment and clearance in the appliance. It prevents rubbing and ensures panels or parts sit correctly for reliable operation. What it does:

• Keeps panels, brackets or assemblies spaced correctly to prevent contact and wear
• Restores proper alignment to reduce vibration, noise or rubbing symptoms
• Maintains clearance for airflow or moving parts where specified
• Provides a stable mounting point for adjacent components

• One spacer

• Install in the location shown in the service diagram and secure with the original fasteners
• Disconnect power to the appliance before beginning service to avoid shock or injury
• If the original spacer shows damage or distortion, replace it to restore correct fit

Replacement water-line tube that routes water inside the refrigerator to the ice maker or dispenser, helping restore proper water flow and reduce leaks. Designed to match factory routing so the line fits and seals correctly at the connections. What it does:

• Carries water from the cabinet valve to the ice maker or dispenser.
• Restores normal dispenser flow and ice production when the tube is cracked, pinched, or clogged.
• Helps stop visible leaks or pooling caused by damaged or misrouted tubing.
• Matches factory bends for correct routing and clearance behind panels.

• Disconnect power and shut off the water supply before starting any work.
• Remove shelves or panels as needed for access; watch for sharp edges.
• Check and replace any worn clamps or fittings; tighten connections and test for leaks with water on before reassembling.

This fuse and fuse holder assembly replaces the appliance's inline protective fuse and its mounting holder to restore proper overcurrent protection and reliable electrical connection. Use this part when a blown fuse or damaged holder interrupts power. What it does

• Protects appliance circuits by interrupting power when a fault or surge occurs
• Provides a secure, replaceable mounting point for the protective fuse
• Commonly associated with symptoms like no power, intermittent power loss, or an appliance that won't start
• Restores a safe electrical path when the original fuse or holder is damaged or corroded

• One fuse and one matching fuse holder

• Disconnect power to the appliance before inspecting or replacing the fuse and holder
• Verify the replacement matches the original fuse type and holder configuration before installation
• Inspect wiring and connectors for heat damage; replace damaged wiring or connectors as needed

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

This fuse and fuse holder assembly replaces the appliance's inline protective fuse and its mounting holder to restore proper overcurrent protection and reliable electrical connection. Use this part when a blown fuse or damaged holder interrupts power. What it does

• Protects appliance circuits by interrupting power when a fault or surge occurs
• Provides a secure, replaceable mounting point for the protective fuse
• Commonly associated with symptoms like no power, intermittent power loss, or an appliance that won't start
• Restores a safe electrical path when the original fuse or holder is damaged or corroded

• One fuse and one matching fuse holder

• Disconnect power to the appliance before inspecting or replacing the fuse and holder
• Verify the replacement matches the original fuse type and holder configuration before installation
• Inspect wiring and connectors for heat damage; replace damaged wiring or connectors as needed

This harness assembly is the factory-style wiring harness that connects electrical components to restore reliable electrical paths and component control. It replaces damaged or worn harnesses to stop intermittent or failed component operation. What it does:

• Provides factory routing and multi-pin connections between control, sensors, and powered components
• Restores power and signal continuity to components that are intermittent, dead, or non-responsive
• Prevents electrical shorts and poor connections caused by frayed or broken wires
• Maintains OEM-fit routing to reduce strain and interference with moving parts

• Disconnect power (unplug or shut off breaker) before beginning any work
• Handle connectors by the housings, not the wires; avoid pulling on wires
• Route and secure harness with existing clips or fasteners to prevent pinching or abrasion
• If connectors are corroded or pins are bent, replace the harness rather than attempting repair

This harness assembly is the factory-style wiring harness that connects electrical components to restore reliable electrical paths and component control. It replaces damaged or worn harnesses to stop intermittent or failed component operation. What it does:

• Provides factory routing and multi-pin connections between control, sensors, and powered components
• Restores power and signal continuity to components that are intermittent, dead, or non-responsive
• Prevents electrical shorts and poor connections caused by frayed or broken wires
• Maintains OEM-fit routing to reduce strain and interference with moving parts

• Disconnect power (unplug or shut off breaker) before beginning any work
• Handle connectors by the housings, not the wires; avoid pulling on wires
• Route and secure harness with existing clips or fasteners to prevent pinching or abrasion
• If connectors are corroded or pins are bent, replace the harness rather than attempting repair

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

This is a replacement mounting screw used to secure the appliance power/control board, restoring a solid electrical board connection and preventing vibration or loose contacts. Ideal for repairs where the original screw is missing or damaged. What it does:

• Fastens the power/control board to the appliance chassis to keep connections stable
• Helps prevent board movement that can cause intermittent electrical issues or noise
• Restores proper mounting after service or component replacement

• Turn off and unplug the appliance before starting any repair
• Use appropriate screwdriver and avoid over-tightening to prevent board or thread damage
• Wear eye protection and keep small parts away from children and pets

This mounting bracket secures internal panels or components to the appliance frame, restoring stable support and alignment for proper operation. Use when a bracket is bent, broken or missing to reduce rattling and keep parts positioned correctly. What it does:

• Anchors panels or components to the cabinet/frame to prevent movement and vibration
• Restores proper alignment of doors, panels or internal assemblies
• Stops rattling or buzzing caused by loose or damaged support hardware
• Helps maintain safe clearance between parts and wiring or moving components

• Disconnect power to the appliance before starting any repair
• Basic hand tools typically required; follow OEM instructions for correct fastener locations
• Inspect adjacent fasteners and mounting surfaces; replace any damaged screws or clips
• If bracket is corroded or severely deformed, replace rather than re-bend to ensure proper fit

This factory screw secures components in your appliance, restoring a tight, rattle-free fit. Replace missing or damaged hardware to keep panels, brackets, and trim properly fastened and aligned for safe, reliable operation.

• Secures panels, brackets, trim, or internal components to the chassis
• Replaces lost, rusty, stripped, or cross-threaded screws
• Helps eliminate looseness, gaps, and vibration/rattling
• Common signs: loose/misaligned panels or trim, rattling noises, missing or rounded screw heads

• Disconnect power (and shut off gas if applicable); allow the unit to cool completely
• Match to the original location and replace one at a time to maintain alignment
• Hand-start to prevent cross-threading; tighten snugly—do not overtighten
• Use light torque when threading into plastic or thin sheet metal

This harness assembly is the appliance wiring connector bundle that carries power and signals between controls and components, restoring proper electrical connections for normal operation. What it does:

• Routes power and control signals between the control board and key components
• Replaces damaged, burned, or loose wiring that can cause intermittent operation
• Helps resolve symptoms like unresponsive controls, failure to start, or component loss of power
• Restores factory wiring layout and connector fit for reliable connections

• Disconnect power before starting; confirm power is off at the breaker
• Compare connectors and wire colors to the old harness before removal
• Route and secure harness to avoid heat or pinch points; use existing clips/mounts

This spacer sets the correct gap between mating parts in your appliance's assembly, preventing rubbing and misalignment. Replace a missing or worn spacer to restore a solid fit, reduce noise, and protect surrounding components.

• Maintains proper spacing between components for correct alignment and operation
• Reduces metal-to-metal contact, squeaks, and premature wear
• Helps fasteners and panels seat securely
• Typical symptoms when failed: loose or rattling parts, uneven gaps, or visible wear marks

• Disconnect power; for gas models, shut off the gas. Allow the appliance to cool completely.
• Access the assembly per your model's diagram; note the original orientation/stack-up before removal.
• Reuse original fasteners if serviceable; hand-start threads and tighten snugly to avoid damaging the spacer.
• Verify alignment and clearances before fully reassembling. Quantity and location vary by model.

Replacement screw that secures panels, trim and internal components in compatible appliances. Restores proper fit and helps reduce rattling or loose parts when the original fastener is missing, worn, or damaged. What it does:

• Fastens panels, brackets, trim pieces and small component assemblies to the appliance frame
• Helps eliminate noise and vibration caused by loose or missing fasteners
• Replaces stripped, corroded or missing screws to restore secure mounting
• Matches OEM fit when the identical screw is required for proper alignment

• Disconnect power to the appliance before starting any repair
• Use the correct driver size to avoid cam-out or damage to the screw head
• Do not overtighten; overtightening can strip threads or crack plastic parts

This replacement light bulb restores bright, dependable illumination inside your oven so you can monitor cooking without opening the door. Swap it in when the oven light is out, very dim, or flickers during use. What it does:

• Illuminates the oven cavity in a range or wall oven
• Lets you check food without opening the door and losing heat
• Common fix for no light, dim light, or intermittent flickering
• Replaces a burned-out/broken bulb as the first step in troubleshooting

• One light bulb

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely.
• Remove the light cover/lens per your model; handle glass components carefully.
• Install the new bulb securely; avoid touching the glass with bare hands—use a clean cloth or gloves.
• Reinstall the cover, restore power, and test the oven light.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
