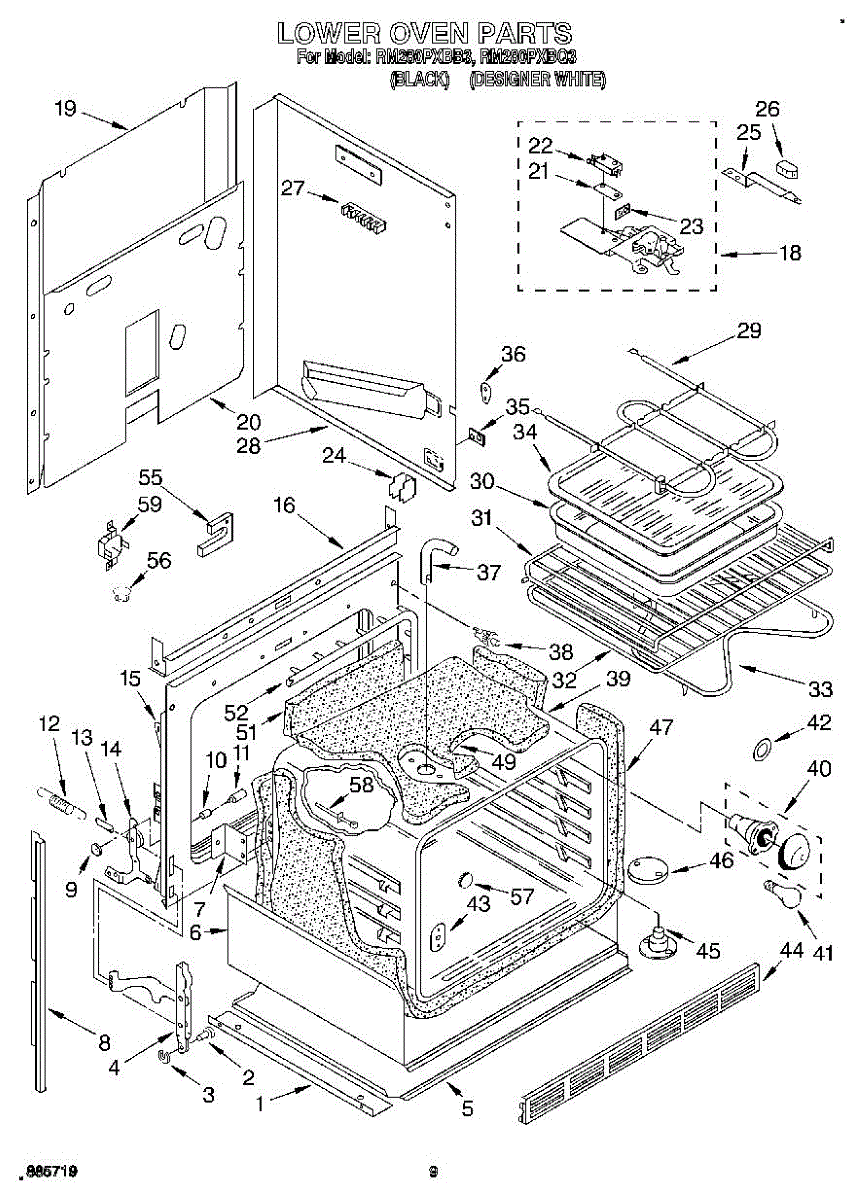

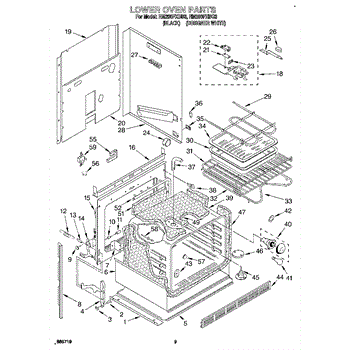

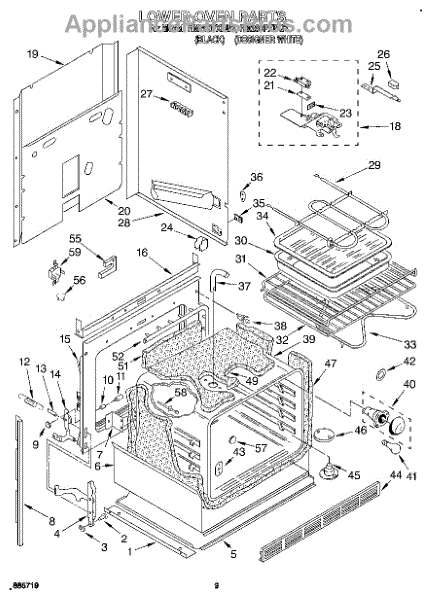

Parts for Whirlpool RM280PXBB3: 07 - Lower Oven Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This hinge pin is the pivot that connects a door hinge to the appliance cabinet or door. Replacing a worn pin restores smooth, aligned door movement and reliable closing.

• Provides the hinge's pivot point the door swings on
• Helps maintain door alignment for smooth opening and closing
• Common symptoms: loose or sagging door, binding, difficulty latching, excessive play at the hinge
• Visual clues: worn/flattened pin surfaces or a missing pin at the hinge location

• Disconnect power (and gas if applicable) and allow the appliance to cool completely before service
• Support the door to prevent strain on the remaining hinge while you work
• Note hinge orientation, remove any retaining clip/screw, slide out the old pin, and seat the new pin fully
• Inspect related hinge bushings or washers while open and replace if worn

This retaining ring secures a component in its groove on a shaft or housing, keeping parts aligned and in place during operation. Replace a bent, stretched, or missing ring to restore a tight hold and reduce movement or noise.

• Secures a component by seating in a groove on a shaft or inside a bore
• Maintains correct axial position so parts don't slide off during use
• Helps reduce wobble, vibration, or rattling caused by loose assemblies
• Typical symptoms: part won't stay seated, excess play or movement, scraping/rattling noises, or a visibly deformed ring

• Disconnect power; shut off water or gas if applicable. Wear eye protection and gloves
• Note ring orientation; use appropriate snap-ring/circlip pliers or picks—avoid overstretching
• Clean the groove and seat the ring fully; secure fit
• Replace any damaged spacers, washers, or seals found during service

Specs: 10-16 x 1/2 inch.

This part has been discontinued by the manufacturer and is no longer available.

The Spring is an OEM part for Whirlpool ranges. This part provides the necessary tension to open and close the oven door smoothly. The spring ensures that the door stays securely shut during cooking and opens effortlessly when needed, contributing to the overall functionality and safety of the range.

Causes of a bad range door spring can include wear and tear over time, exposure to high temperatures, or damage from accidental impacts.

Symptoms of a bad range door spring include:

• The oven door not staying closed
• Difficulty in opening or closing the door
• Uneven or incomplete sealing of the door
• A door that feels loose or unstable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This anchor spring maintains tension on the parts it secures, keeping the associated component aligned and stable during use. Replacing a fatigued or broken spring restores a snug fit and reliable, rattle-free operation.

• Provides spring tension to anchor a bracket, lever, or panel in place
• Helps prevent looseness, vibration, and rattling from lost spring force
• Failure signs can include a loose/shifting component, misalignment, difficulty holding position, or abnormal noise
• Replace if the spring is broken, stretched, corroded, or missing

• Disconnect appliance power; if gas is present, also shut off the gas supply
• Access the spring per your model and note its routing/attachment points before removal (a quick photo helps)
• Use needle-nose pliers or a spring hook; wear gloves and eye protection—springs are under tension
• Ensure both ends are fully seated and the connected mechanism moves/tensions correctly before reassembly

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Specs: 6 x 3/8B

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Size: 10-32 inch.

This terminal block is the insulated connection point where the appliance's incoming power ties into the internal wiring. Replacing a heat-damaged or loose block restores a safe, reliable electrical path and helps prevent arcing and intermittent power loss.

• Connects the supply conductors to the unit's internal wiring
• Provides insulated posts to securely fasten and distribute power
• Helps maintain tight, low-resistance connections
• Common failure signs: melted/discolored plastic, burned or loose terminals, arcing, scorching, or intermittent/no power after confirming the cord and breaker

• Disconnect power at the breaker or unplug the appliance; verify no voltage before servicing
• Photograph or label wire positions to ensure correct reassembly
• Inspect and replace any heat-damaged wire ends or lugs; use appropriate terminals
• Tighten connections securely and ensure wires are fully seated and strain-relieved as originally installed

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Broil Element is an OEM component for Whirlpool wall ovens and ranges. Located at the top of the oven cavity, the broil element is responsible for providing intense heat from above for searing and browning foods. The element measures approximately 12" wide x 19" long.

Symptoms of a bad broil element include:

• The broil function not working or heating very little
• Oven takes a long time to preheat

Over many uses, the coil filaments within the broil element can weaken and break from prolonged exposure to high heat. Cracks and breaks in the coil will diminish the element's ability to efficiently produce quality broiling results.

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: chrome. Measures about 22 inches wide by 16 inches deep.

The Oven Bake Element is an OEM part for Whirlpool ovens. This part heats the oven's interior during the baking process. Located at the bottom of the oven, the bake element heats up when electricity passes through it, allowing for consistent and even cooking.

Causes of damage to the Oven Bake Element can include normal wear and tear from regular use, a buildup of food debris causing hot spots and potential burns out, or electrical issues leading to shorts or surges that damage the element.

Symptoms of a bad Oven Bake Element include:

• Visible signs of damage to the element, such as blistering, holes, or breaks in the element itself.
• The oven failing to heat up at all
• A lack of visible glowing from the element during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a fastener screw used to secure appliance panels and components where a 10-24 thread is required. It provides a reliable hold for reattaching parts during repairs and maintenance. What it does:

• Fastens panels, brackets, or components with a 10-24 threaded hole
• Restores original attachment points that have missing or damaged screws
• Helps reduce vibration and rattling when properly tightened
• Works with metal or reinforced plastic mating components designed for 10-24 hardware

• One screw (quantity: 1)

• Use the matching 10-24 driver/socket and turn until snug; avoid over-tightening
• Verify mating threads and alignment before driving to prevent cross-threading
• Disconnect power and follow appliance safety procedures before servicing
• Check for proper washer or spacer if originally present

Size: 10-32 x 1/2 inch.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Light switch for door.

The Light Socket Assembly is an OEM part for Whirlpool ranges and wall ovens. This part houses the oven light bulb, providing the necessary electrical connections to illuminate the oven's interior. It ensures that you can monitor the cooking process without opening the oven door, thereby maintaining a consistent temperature and energy efficiency.

Causes of damage to the light socket assembly often include excessive heat, electrical surges, or physical damage during cleaning or maintenance.

A malfunctioning light socket assembly can lead to several issues, including:

• The inability to turn the oven light on
• Flickering or inconsistent lighting caused by loose connections or damage to the socket
• Complete failure of the light feature, due to wear and tear or electrical faults

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This oven light lens gasket seals the lens to the oven liner, helping keep heat, steam, and grease out of the light housing. It maintains a secure fit for the lens and protects the bulb and wiring.

• Creates a heat-resistant seal between the light lens and oven cavity
• Helps block heat, steam, and grease from entering the light assembly
• Stabilizes the lens/retainer so the lens sits flush and secure
• Common signs of failure: torn/brittle gasket, lens feels loose, condensation or grease inside the lens, or scorching around the light opening

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Remove the lens retainer and lens to access the gasket; note orientation before removal
• Seat the new gasket evenly around the opening, then reinstall the lens and retainer without overtightening
• The lens sits flush and the seal is even after reassembly

This part has been discontinued by the manufacturer and is no longer available.

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This part has been discontinued by the manufacturer and is no longer available.

Size: 6-32 x 9/32 inch.

This part has been discontinued by the manufacturer and is no longer available.

Size: 8 x 3/8 inch.

Size: 6 inches long. Includes ceramic wire connectors.

This lower oven thermostat regulates oven temperature for accurate baking and roasting. Replaces a failed temperature-sensing thermostat to restore consistent oven heat and reliable cooking results. What it does:

• Senses oven cavity temperature and signals the control to cycle the heating element
• Stops oven overheating or underheating when the thermostat is functioning correctly
• Commonly replaced for inconsistent temperatures, oven running too hot/too cold, or no temperature control
• Works as the lower-oven temperature regulator in ranges with separate upper/lower oven controls

• Disconnect power to the appliance before beginning any service
• Handle the sensing bulb and capillary tube carefully; do not kink or sharply bend
• Verify oven is fully cooled and remove oven racks for access before installation
