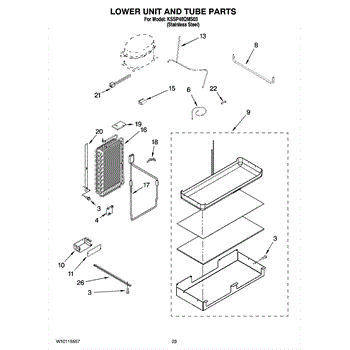

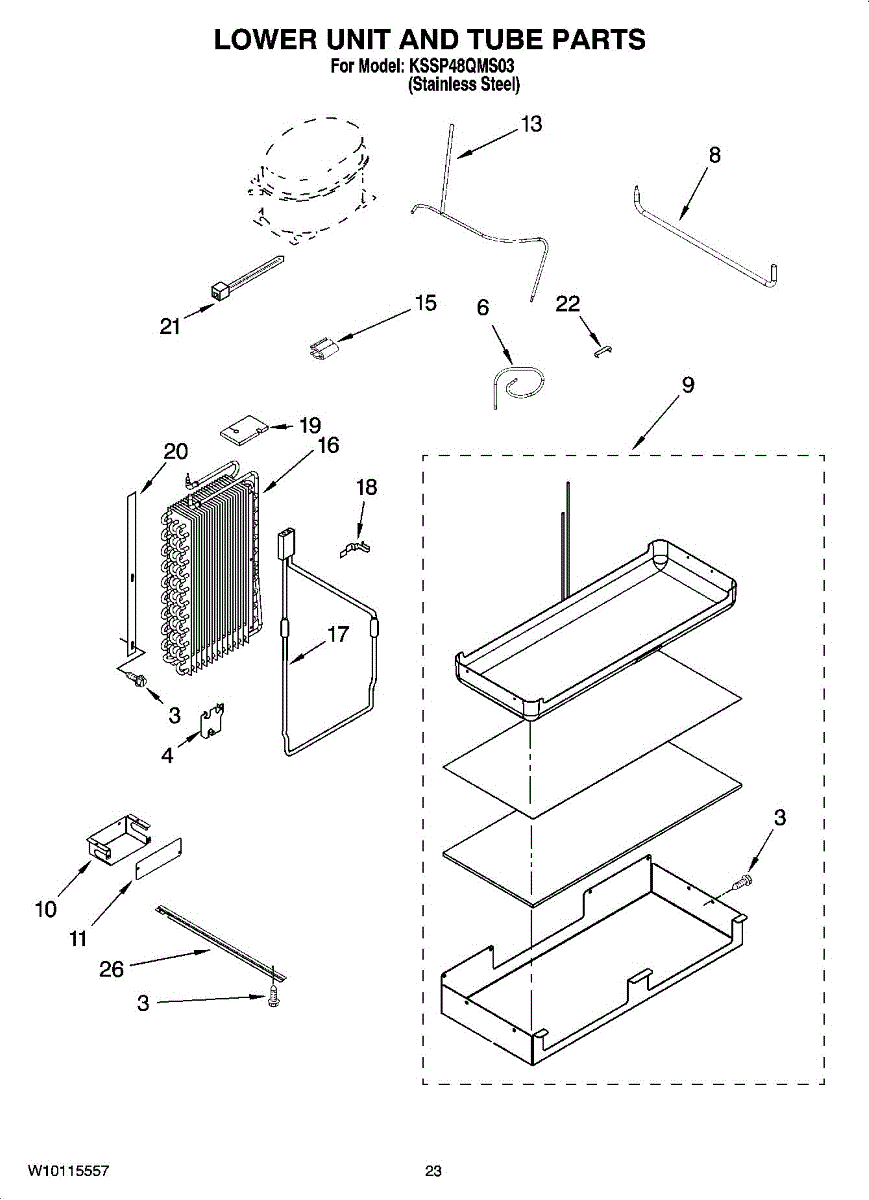

Parts for Kitchenaid KSSP48QMS03: 14 - Lower Unit And Tube Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

A small metal retaining clip that secures a bi-metal thermostat or temperature sensor in place, helping maintain proper contact and accurate temperature sensing for reliable appliance operation. Simple, durable replacement part. What it does

• Holds a bi-metal thermostat or temperature sensor firmly against its mounting point or probe.
• Maintains consistent contact to support accurate temperature sensing and control.
• Can help stop intermittent temperature-related issues caused by a loose or damaged clip.
• Designed for direct replacement where a spring-style or formed metal retainer is required.

• One bi-metal retaining clip (single clip).

• Disconnect power to the appliance before attempting any repair.
• Removal/installation typically requires small pliers or a flat screwdriver; avoid excessive force to prevent damage.
• Verify clip orientation and that the sensor/thermostat is seated fully before securing.

This 48-inch defrost heater melts frost and ice off the evaporator coil so the refrigerator can maintain proper cooling. Replaces a failed or broken evaporator heater to help restore normal defrost cycles and airflow. What it does:

• Heats the evaporator coil during the defrost cycle to remove built-up ice
• Helps restore proper airflow and consistent cooling when frost is blocking the coil
• Commonly used when you see heavy frost buildup, extended cooling cycles, or a warm refrigerator/freezer compartment
• Works with the appliance's defrost control and thermostat to operate only during defrost cycles

• One 48-inch defrost heater

• Disconnect power to the appliance before servicing to avoid electric shock
• Access the evaporator by removing the back panel inside the freezer; handle the heater and evaporator fins carefully to avoid damage
• Reassemble panels and restore power; run a manual defrost cycle to confirm operation

This heater clamp secures a heating element in the correct position within the appliance. Proper support keeps the element stable so it operates quietly and melts frost as designed for consistent, reliable performance.

• Holds the heater firmly in place to maintain correct alignment
• Reduces movement and vibration that can cause noise or wear
• Helps promote even frost melt during defrost for steady cooling
• Symptoms of a damaged or missing clamp can include recurring frost/ice buildup, a heater out of position, or rattling from the freezer area

• Disconnect power before servicing; wear cut-resistant gloves
• Access the heater/evaporator by removing the freezer panel as applicable
• Note the original clamp orientation and routing before removal
• Use needle-nose pliers to install; avoid damaging evaporator fins and do not deform the heater—position it exactly as originally placed

Right hand side

This bracket provides a secure mounting point for internal appliance components, restoring proper alignment and reducing vibration for smooth operation. Use it to replace a worn, bent or missing support bracket. What it does:

• Secures panels, assemblies or components to the appliance frame to prevent movement
• Restores proper alignment and fit where a bracket has failed or been removed
• Helps eliminate rattling, vibration or misaligned parts caused by a damaged bracket
• Simple, passive component—no electrical function

• Bracket

• Disconnect power (and water, if applicable) before starting any repair
• Inspect mounting holes and mating surfaces for damage before installing
• Reuse or replace original fasteners as appropriate; tighten securely but avoid over-torquing
