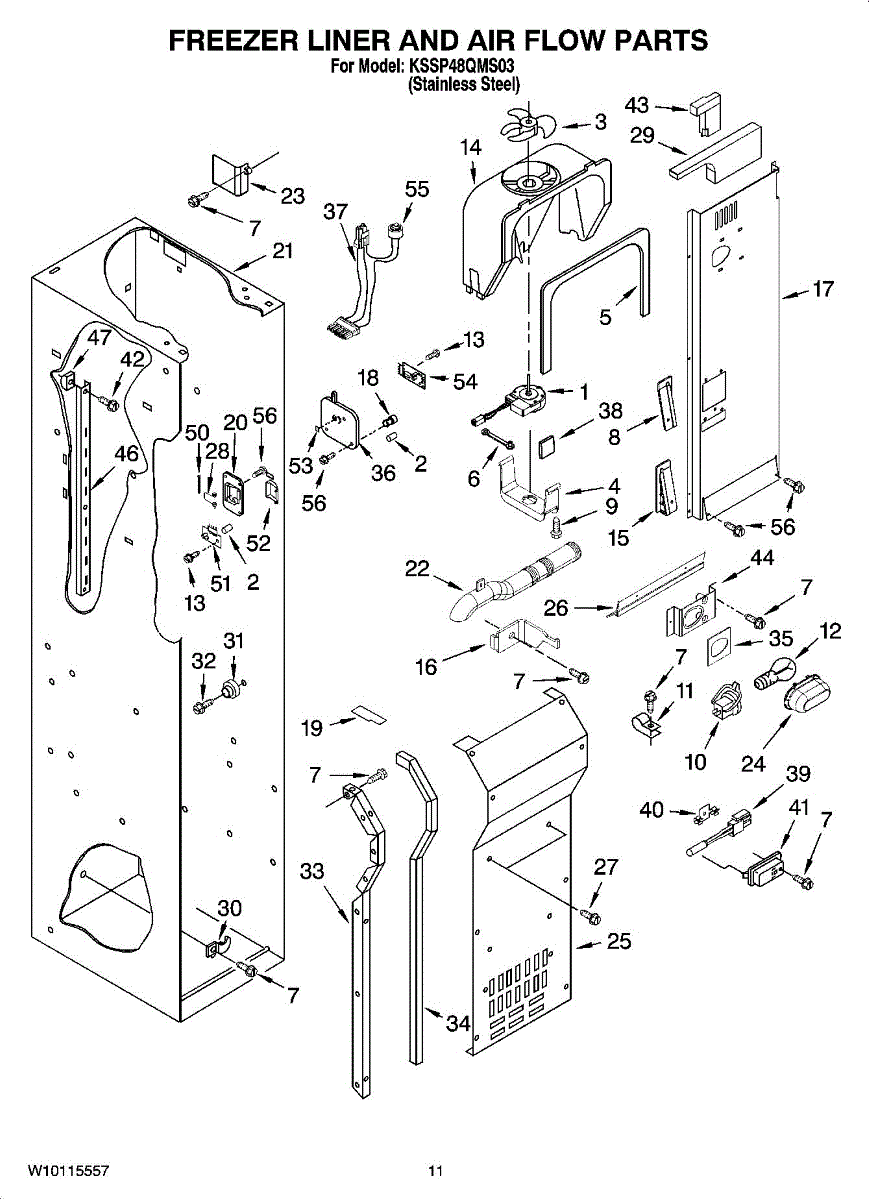

Parts for Kitchenaid KSSP48QMS03: 08 - Freezer Liner And Air Flow Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This evaporator fan motor circulates cold air across the evaporator coils and throughout the fresh food and freezer compartments. Replacing a weak or failed motor restores proper airflow for consistent cooling and ice production.

• Moves air over the evaporator to maintain even temperatures
• Common failure signs: freezer getting warm, fridge section not cooling well, weak or no airflow from vents, intermittent humming or squealing, motor not running
• May help resolve frost buildup around the evaporator due to poor airflow
• Electrical component; match connectors and orientation during install

• Unplug refrigerator before service; wear cut-resistant gloves
• Access from the rear of the freezer/evaporator cover; remove shelves/panels as needed
• Transfer any mounting hardware, grommets, or fan blade from the original if not reusable
• Ensure fan spins freely and blade is correctly oriented before reassembly

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Instruction sheet included.

Instruction sheet included.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Screw: 8-16 x 3/8 inch.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

6 - 19 x .250

This fan scroll is the plastic housing that surrounds the evaporator fan in the freezer section. It directs air across the evaporator coils and into the ducts, helping your refrigerator move cold air evenly and maintain stable temperatures.

• Channels airflow from the evaporator fan through the coils and into the air ducts
• Helps balance cooling between freezer and fresh food compartments
• Positions the fan motor and blade for proper clearance and reduced vibration
• If cracked, warped, or missing, you may notice weak airflow, temperature swings, rattling noises, or frost buildup on the evaporator cover

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the rear panel to access the fan area
• Transfer the existing fan motor, blade, and hardware to the new scroll
• The fan spins freely and wiring is clear before reassembly and restoring power

This replacement receiver lens covers and protects the appliance's infrared/receiver area and indicator light while allowing signals and status lights to show through clearly. It restores proper protection and visibility for the sensor/indicator assembly. What it does:

• Protects the IR/receiver and indicator area from dust, spills, and impact
• Allows remote/IR signals and indicator lights to pass through without obstruction
• Replaces cracked, discolored or missing lens that can hide status lights or reduce signal clarity
• Helps maintain original appearance of the control/console area

• Disconnect power to the appliance before beginning any repair.
• Remove the control console or front panel per the service manual to access the lens.
• Handle the lens gently to avoid scratching; seat it into the bezel until it snaps or rests securely.

Left hand side

Right hand side

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This flipper spring returns the refrigerator's ice dispenser door (chute flapper) to the closed position after dispensing. It helps keep warm air and moisture out to minimize frost at the chute and reduce ice clumping in the bin.

• Provides the closing tension for the ice chute door/flapper
• Helps maintain a proper seal at the dispenser opening
• If worn or broken, you may notice the flapper not closing fully
• Frost/condensation around the chute or ice clumping in the bucket may occur

• Disconnect power to the refrigerator before servicing
• Remove dispenser trim/control to access the ice chute door assembly; note spring orientation and anchor points
• Install the new spring in the same orientation; the flapper moves freely and closes under spring tension
• Wear gloves and use caution—metal edges in the dispenser area can be sharp

The Shelf Stud is an OEM part for Whirlpool refrigerators. It serves as a support peg that holds the refrigerator shelves in place, ensuring they remain stable and properly positioned.

Causes of a bad shelf stud can include wear and tear from regular use, accidental impact that causes the stud to break, or repeated removal and reinstallation of shelves leading to loosening or damage.

Symptoms of a bad shelf stud include:

• Shelves not staying securely in place
• Shelves tilting or collapsing
• Visible cracks or damage to the stud
• Difficulty in inserting or removing shelves

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a rear stud with a screw. For the front stud with screw use part number W11223328. For studs with no screw use kit part number 4388538.

This is a replacement #8-18 screw used to fasten components in compatible Whirlpool appliances. It restores worn or missing fasteners so panels and parts stay securely mounted and function safely. What it does

• Secures panels, brackets, and small appliance components to the frame or mounting points
• Restores proper fit where a stripped, missing, or corroded screw causes rattling or loose parts
• Provides the correct thread engagement to prevent backing out under normal use
• Small fastener intended for interior and light-duty exterior appliance applications

• One #8-18 screw

• Use the matching screwdriver or bit to avoid damaging the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic parts
• Replace any damaged mating clips or inserts for a secure repair
• Disconnect power and follow appliance safety instructions before accessing internal components

Left hand side

Right hand side

This evaporator cover gasket seals the evaporator cover to the refrigerator cabinet, helping maintain proper airflow and reducing frost buildup behind the back wall. It restores a tight seal for more reliable cooling performance. What it does:

• Seals the evaporator cover to prevent air leaks that can cause frost or ice buildup
• Helps maintain consistent cold-air circulation in the freezer/refrigerator compartment
• Reduces chances of excessive frost, water pooling, or longer run cycles tied to air infiltration
• Supports normal defrost operation by keeping warm, moist air out of the evaporator cavity

• Disconnect power before servicing and allow the appliance to defrost if needed
• Remove the evaporator cover carefully; watch for sharp sheet-metal edges and retain fasteners
• Position gasket evenly around the cover mating surface; avoid stretching or creasing the seal
• If adhesive or clips are used, replace or reapply per OEM guidance to ensure a secure fit

A replacement receiver cover that protects and conceals the receiver/control housing, keeping internal components safe from dust and damage while restoring the appliance's finished appearance. Fits where the original receiver cover was installed. What it does:

• Covers and protects the receiver/control housing from dust, moisture, and accidental contact
• Helps secure wiring and small components inside the control area
• Restores the appliance's exterior appearance when the original cover is cracked or missing
• Can reduce intermittent issues caused by exposed connections when used as intended

• Disconnect power (unplug appliance or turn off breaker) before servicing to avoid electrical shock
• Remove the old cover by removing visible screws or clips; keep hardware if reusing is possible
• Align the replacement cover carefully and fasten with the original screws or clips; do not force parts into position
• If you see damaged wiring or mounting tabs, inspect further.

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

The Thermistor is an OEM replacement part for Whirlpool refrigerators. This temperature-sensitive sensor monitors conditions inside refrigerator and freezer compartments. It provides critical feedback to the electronic control module, regulating cool air temperature in both sections.

Symptoms of a faulty thermistor include:

• Fluctuating temperatures where sections become too warm or cold
• Frequent cycling of evaporator fans and cooling components
• Defrost issues or Er/Ed error codes shown on displays

Causes can involve regular exposure to changing interior environments over many years. Mineral deposits accumulating may lead to sensor surfaces becoming insulated. Physical stress from overloading could potentially crack the thermistor over time as well.

This OEM replacement part is compatible with some Kenmore Elite models too.

This thermistor clip secures the refrigerator/freezer temperature sensor in the correct position for accurate temperature readings and consistent cooling. It helps keep the sensor stable so the control can properly monitor and adjust appliance temperature. What it does:

• Holds the thermistor/sensor in place on evaporator or cabinet surfaces to ensure reliable contact
• Helps prevent sensor movement that can cause incorrect temperature readings or erratic cooling cycles
• Supports proper airflow around the sensor for accurate thermostat feedback
• Simple, passive mounting solution that maintains sensor location after service

• Includes: 1 thermistor clip

• Designed for a direct replacement; remove power to the appliance before servicing
• Handle the sensor and wiring gently to avoid damage to the probe or connector
• Confirm sensor location per manufacturer guidance before clipping to ensure correct placement

This replacement screw secures appliance panels and components to restore proper fit and stop loose or rattling parts. A simple, OEM-compatible fastener that helps maintain safe, stable operation and original assembly alignment. What it does:

• Secures panels, trim, brackets or components to prevent movement and vibration
• Restores proper fit when a screw is missing or stripped
• Helps eliminate rattling, gaps, or misaligned parts
• Fits the OEM threaded holes and fastening points

• Disconnect power (and gas if applicable) before accessing internal components
• Use the correct driver to avoid stripping the head; hand-start threads before final tightening
• Do not overtighten—stop when snug to avoid damaging threads or plastic parts
• Keep removed hardware organized to ensure correct reassembly

Right hand side

A small replacement pin that secures the flipper emitter assembly, restoring correct movement and alignment so the flipper can engage and operate reliably. Ideal when the original pin is bent, worn, or missing. What it does:

• Holds the flipper emitter or lever in place so the mechanism can pivot correctly
• Restores proper movement when a loose or broken pin causes misalignment
• Helps stop clicking, scraping, or intermittent operation related to a damaged fastener
• Serves as a direct-fit replacement designed for the OEM emitter/lever assembly

• One replacement pin as shown

• Disconnect power to the appliance before beginning any repair
• Handle small parts carefully; keep screws and pins organized during disassembly
• Use basic hand tools; no special tools or adhesives are typically required

The Ice Level Control Board is an OEM part for Whirlpool refrigerators. It is an electronic component responsible for monitoring and regulating ice production in the icemaker. The board works with sensors to detect the level of ice in the bucket and control the icemaker accordingly. It plays a vital role in ensuring a consistent ice supply.

Symptoms of a bad control board include:

• Irregular or inconsistent ice production
• The icemaker failing to turn on at all
• Error codes displayed related to the icemaker
• Sensors providing inaccurate readings to the control board

Causes of a bad control board can include failure over time due to normal wear and tear, exposure to moisture or temperature fluctuations, or damage due to electrical surges.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Emitter Cover is an OEM part for Whirlpool refrigerators. It is designed to protect the ice maker's emitter sensor, which plays a crucial role in detecting the level of ice in the ice bin and controlling the ice production process. This cover ensures the sensor operates correctly by shielding it from debris and damage.

Common causes of a bad emitter cover include accidental impacts, wear and tear from regular use, or exposure to moisture.

Symptoms of a bad emitter cover include:

• Inconsistent ice production
• The ice maker not turning off when the bin is full
• Visible damage or cracks on the cover
• The ice maker failing to detect the ice level properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ice Level Control Board is an OEM part for Whirlpool refrigerators. It is an electronic component responsible for monitoring and regulating ice production in the icemaker. The board works with sensors to detect the level of ice in the bucket and control the icemaker accordingly. It plays a vital role in ensuring a consistent ice supply.

Symptoms of a bad control board include:

• Irregular or inconsistent ice production
• The icemaker failing to turn on at all
• Error codes displayed related to the icemaker
• Sensors providing inaccurate readings to the control board

Causes of a bad control board can include failure over time due to normal wear and tear, exposure to moisture or temperature fluctuations, or damage due to electrical surges.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Defrost Thermostat is an OEM part for Whirlpool refrigerators. It is responsible for monitoring the temperature of the evaporator coils. When the coils reach a certain temperature, the thermostat signals the defrost heater to turn on and melt any ice or frost buildup. This ensures proper airflow and prevents excessive ice formation.

Causes of a bad defrost thermostat can be attributed to normal wear and tear over time or electrical malfunctions.

Symptoms of a bad defrost thermostat include:

• Excessive ice buildup in the freezer section.
• Inadequate cooling in the refrigerator compartment.
• Frost or ice accumulating on the evaporator coils.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw fastens panels, brackets, and internal components so they stay secure during operation. Replace worn, rusted, or missing screws to restore a solid fit and help reduce vibration, rattles, and misalignment.

• Secures appliance parts to maintain proper fit and alignment
• Helps reduce noise and vibration from loose panels or trim
• Replaces stripped, corroded, or missing fasteners
• Can resolve issues like rattling, gaps, or shifting components

• Disconnect power; turn off gas/water if applicable before servicing
• Match to the original screw and start threads by hand to avoid cross-threading
• Use the correct driver and tighten snugly; do not overtighten into plastic or thin sheet metal
• Replace additional worn fasteners in the same location if needed for even clamping
