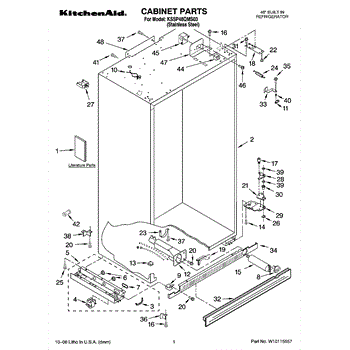

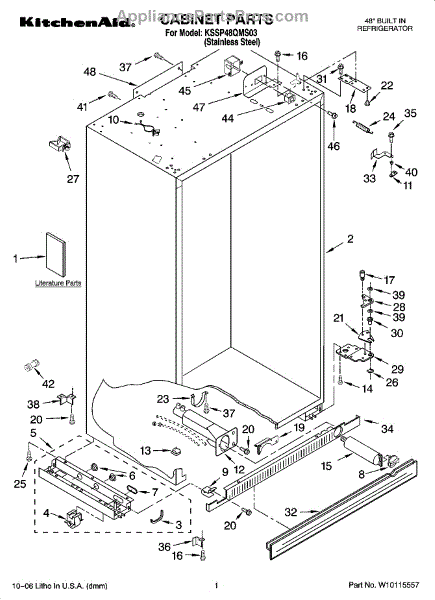

Parts for Kitchenaid KSSP48QMS03: 01 - Cabinet Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This replacement roller fits the front or rear position of a slide mechanism, restoring smooth, even movement and reducing noise when a wheel is worn or broken. It helps racks or drawers glide properly and stay aligned. What it does:

• Provides low-friction rolling support for the slide track
• Helps slide-out assemblies move freely without binding or scraping
• Worn or damaged rollers can cause sticking, squeaking, or uneven travel
• Restores proper alignment and smooth operation when replaced

• 1 roller assembly

• Disconnect power and allow the appliance to cool before servicing
• Remove the slide-out assembly; note roller orientation and hardware
• Transfer/reuse existing screws, clips, or retainers as required
• Do not lubricate unless the manufacturer specifies a lubricant

This Support (mounting bracket) secures internal components and stabilizes the appliance's assembly to help prevent sagging, misalignment and excess vibration. It's a small replacement that restores proper fit and reduces rattling. What it does:

• Provides a stable mounting point for panels or internal assemblies
• Keeps components aligned to prevent binding or wear
• Reduces noise caused by loose or sagging parts
• Helps stop intermittent contact or rubbing that can cause rattles

• Disconnect power (and water, if applicable) before servicing
• Access may require removing outer panels or trim; keep track of fasteners
• Support the assembly while replacing the bracket to avoid strain

This Support bracket holds internal components in place to restore proper alignment and reduce rattling or sagging. It's a simple replacement that helps stabilize the appliance's interior structure. What it does:

• Secures internal panels or assemblies to prevent movement and vibration
• Restores proper alignment when a factory support is damaged or missing
• Can reduce noise caused by loose components
• Helps maintain safe, stable operation of the affected area

• One Support bracket

• Disconnect power and unplug the appliance before beginning any repair
• Inspect surrounding fasteners and mounting points; replace any damaged hardware as needed
• Use appropriate hand tools; avoid over-tightening to prevent cracking plastic or stripping threads

The Water Filter Cap is an OEM part for Whirlpool refrigerators. It secures the water filter in place, ensuring a proper seal and preventing leaks. This cap also facilitates the easy replacement of the water filter by providing a handle to twist the filter in and out.

You should replace the water filter cap if it becomes damaged or worn out. Causes of a bad water filter cap can include repeated use, cracking from excessive force, or wear and tear from regular filter replacements.

Symptoms of a bad water filter cap include:

• Leaking water from the filter area
• Difficulty in securing the water filter
• The cap being cracked or visibly damaged
• The filter not staying in place properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This refrigerator water filter housing holds the filter cartridge and routes water through the dispenser and ice system. Replacing a cracked or leaking housing restores proper sealing, water flow, and smooth, reliable filter changes.

• Secures the water filter and seals the inlet/outlet connections
• Channels water through the filter to the dispenser and ice maker
• Helps correct leaks around the filter area
• Common symptoms: low/no dispenser flow, ice maker not filling, filter won't seat or release

• Disconnect power and turn off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Access location varies by model; remove the grille or interior cover, then disconnect the water lines and mounting hardware from the old housing
• Install the new housing, ensure tubing is fully seated, restore water and power, check for leaks, and purge air by dispensing water

2 pack. For a single pack order EDR5RXD1.

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

Size: 8-32 x .312 inch.

This replacement screw is a small fastener used to secure appliance panels and components. It restores lost or damaged screws so parts stay mounted and appliances run quietly and safely. What it does:

• Secures panels, trim, brackets or housings to prevent rattling and movement
• Replaces missing or stripped screws that allow parts to come loose
• Helps maintain correct alignment of assemblies for safe operation
• Small hardware solution for common repair and reassembly needs

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or driver bit to avoid cam-out or damage
• Do not overtighten; snug until secure to avoid stripping threads or cracking plastic
• Keep small parts away from children and pets

This top door hinge secures the refrigerator door to the cabinet and lets the door pivot smoothly. Replace a worn hinge to restore proper door alignment and even sealing for better cooling performance. What it does

• Supports the top of the refrigerator door and provides the pivot point for opening and closing.
• Helps keep the door aligned so the gasket seals properly and cold air stays inside.
• Worn or damaged hinge can cause door sag, uneven gaps, rubbing, or noisy operation.
• Restoring the hinge can reduce stress on the door and other hinge components.

• One top door hinge.

• Basic hand tools are usually required; support the door while removing or installing hinges to prevent injury or door damage.
• Disconnect power only if working near electrical components; this hinge replacement typically does not require electrical disconnection.
• If the door was removed, recheck alignment and gasket contact after reinstalling; adjustments may be needed.
• Follow OEM instructions and use proper safety equipment.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

A small replacement bushing that secures and centers the appliance's rotating plate or tray for smooth, stable rotation. Restores proper alignment and reduces noise or wobble caused by a worn or damaged bushing. What it does:

• Centers and locks the rotating plate/tray to the drive hub for steady rotation
• Prevents the plate from wobbling, slipping, or scraping during use
• Helps eliminate grinding, rattling, or uneven rotation symptoms
• Durable replacement for a worn, cracked, or deformed bushing

• One adjustable plate locking bushing

• Disconnect power before servicing and handle any glass plate or trim carefully
• Remove the plate/tray and access the bushing location according to the appliance service instructions
• Test rotation before use

The door closure spring restores the tension that pulls the door closed and holds it securely. Replacing a fatigued spring brings back smooth, reliable closing action and helps prevent doors that drift open or feel loose.

• Provides return tension to assist door closing and latch engagement
• Replaces a stretched, broken, or missing spring
• Can help with symptoms like a door that won't stay shut, pops open, or closes weakly
• Restores a consistent, even feel to the door movement

• Disconnect power to the appliance before servicing; wear gloves and eye protection
• Support the door/drawer to relieve spring tension before removal
• Note the spring's routing and hook locations; take a photo for reference
• Use pliers to detach/attach the spring; keep hands clear of pinch points and avoid overstretching

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

A retainer ring that secures components in place to prevent axial movement and maintain proper alignment. Replacing a worn or damaged ring helps stop rattling and shifting, restoring quieter, more reliable operation. What it does:

• Holds shafts, bearings or seals in position to prevent side-to-side movement
• Keeps mating parts aligned so assemblies run smoothly
• Common symptom of failure: rattling, grinding, wobbling or loosened parts
• Small, inexpensive part that prevents larger component misalignment or wear

• Disconnect power and water before servicing the appliance
• Access the affected assembly by removing the appropriate panel(s)
• Installation may require snap-ring/retaining-ring pliers or small hand tools

Bottom

Bottom refrigerator hinge. For bottom freezer hinge use part number W10527053.

This adjustable bushing supports and centers a rotating shaft to reduce wobble and wear, helping the appliance run quieter and maintain smooth operation. It's a direct-fit service part used where a replaceable bearing surface is needed. What it does:

• Centers and supports a rotating shaft to maintain proper alignment
• Provides a replaceable bearing surface to reduce metal-on-metal wear
• Helps stop rubbing, scraping, or loud bearing-type noises from worn mounts
• Can restore smooth rotation when the original bushing is worn or damaged

• One adjustable bushing

• Disconnect power (and gas if applicable) before servicing
• Inspect adjoining components (shaft, housing, clips) and replace if worn
• Follow OEM torque and alignment guidance; avoid forcing parts into place
• Use only OEM-approved lubrication or none if OEM specifies dry install

Color: Black

Replacement extension that secures or supports a component on select Whirlpool appliances to restore proper fit and alignment. Helps reduce panel or drawer movement and improves smooth operation when a factory extension is damaged or missing. What it does:

• Secures and supports a panel, drawer, or internal component to maintain correct alignment.
• Restores smooth movement and prevents binding or sagging caused by a missing or broken extension.
• Reduces rattling and improves overall fit to help prevent further wear on adjacent parts.
• Works as a direct-fit replacement for the exact OEM extension designed for specific models.

• Disconnect power (and water, if applicable) before beginning any repair.
• Remove required trim or access panels to reach the mounting area; retain any factory fasteners unless replacement hardware is provided.
• Refer to the appliance's service manual or exploded parts diagram to fit and proper orientation before installing.

Front left hand side

Front left hand side

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This door bearing fits the washer door assembly to restore smooth opening and closing and reduce noise, wobble, or binding. Replacing a worn bearing helps maintain proper door alignment for reliable operation. What it does:

• Supports the door hinge so the door pivots smoothly without sagging or sticking
• Reduces squeaks, grinding, or rough movement when opening or closing the door
• Helps keep the door aligned to reduce stress on the latch and door seal
• Addresses symptoms like door wobble, uneven closing, or noisy operation

• Disconnect power (and water if accessing near waterlines) before starting any repair
• Removing the door panel or inner door trim may be required; retain all fasteners and document their locations
• Inspect surrounding parts (hinge, seal, latch) and replace if damaged; improper alignment can cause premature wear

Color: Stainless steel

Size: 5/16 to 1/4. Universal John Guess Push On

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

Left hand side
