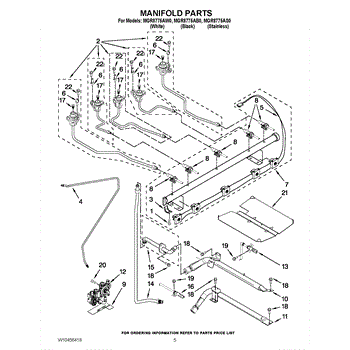

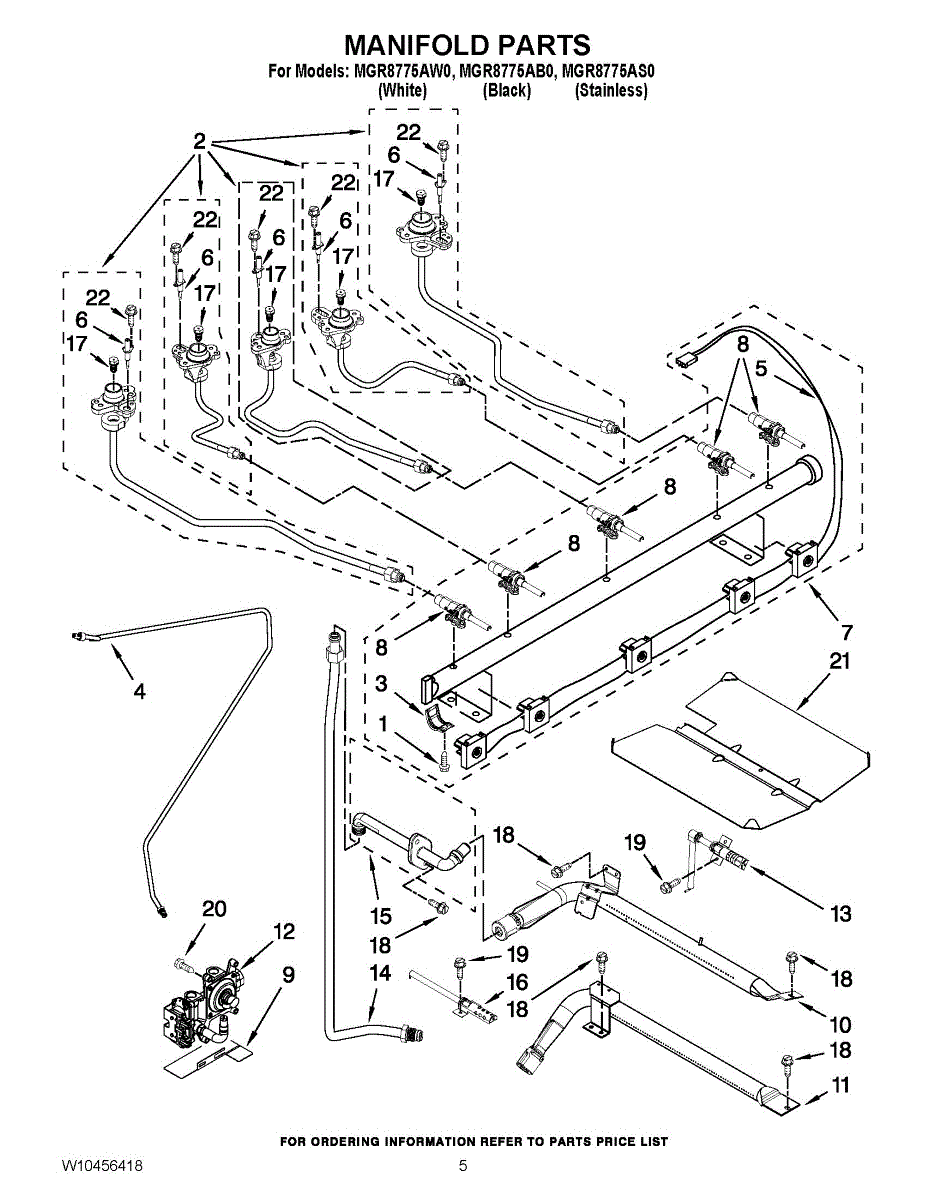

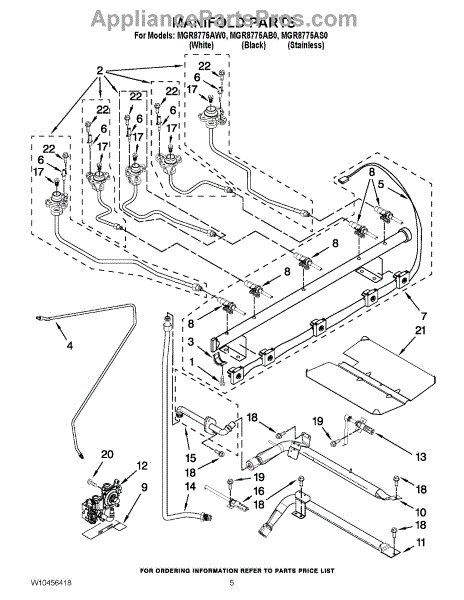

Parts for Maytag MGR8775AB0: 04 - Manifold Parts

This is a direct-replacement screw used to secure appliance panels, brackets and other small components. It restores proper fastening where the original screw is missing, stripped, or corroded to help reduce rattles and looseness. What it does

• Fastens panels, trim, brackets and similar small appliance parts
• Restores a secure connection when the original fastener is missing or damaged
• Helps stop vibration-related rattling and movement of mounted components
• Matches the original mounting point to maintain proper alignment

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to the mating part
• Replace only with the same part number or equivalent for proper fit

An orifice holder assembly that secures the gas orifice for proper burner operation, guiding fuel to the burner for stable ignition and flame control. Replaces a worn or damaged holder to restore correct gas flow alignment and safe burner performance. What it does:

• Holds the gas orifice in the correct position so the burner receives fuel at the proper outlet
• Helps ensure consistent ignition and a steady flame; can address intermittent lighting or weak flames
• Restores proper alignment after damage or corrosion to the original holder
• Used on gas ranges/ovens where the orifice mounts into a removable holder

• One orifice holder assembly

• Turn off the gas supply and electrical power before attempting service
• Inspect surrounding gaskets and fittings; replace any damaged seals for a safe gas connection
• Hand-tighten per OEM guidance; avoid over-tightening which can damage the holder or orifice

This orifice holder assembly secures the burner orifice and helps direct gas flow to the burner for reliable ignition and steady flames. Replacing a worn or damaged holder restores proper burner operation and consistent heat. What it does:

• Holds the burner orifice in the correct position for proper gas flow
• Helps maintain consistent flame size and burner performance
• Can resolve symptoms like weak or uneven flames and difficulty lighting
• Works with the burner and valve to ensure safer, more reliable ignition

• Turn off the gas supply and electrical power before starting any work
• Inspect surrounding gaskets and fittings; replace any damaged seals
• Hand-start threads, then tighten to manufacturer torque; avoid overtightening

This orifice holder assembly secures the burner orifice to the gas valve so the cooktop gets the correct gas feed for reliable ignition and consistent flame control. Replaces a worn or damaged holder to restore proper burner operation. What it does

• Holds the burner orifice in place at the valve outlet for correct gas flow
• Helps maintain consistent flame size and even heating across the burner
• Can address symptoms like weak or uneven flames or a burner that won't light reliably
• Prevents orifice movement that can cause improper combustion or intermittent ignition

• Turn off gas supply and electrical power before servicing; follow local codes
• Inspect the orifice and surrounding fittings for damage or debris during replacement
• Tighten to manufacturer torque; avoid overtightening which can damage threads

This wire harness connects the igniter/spark switch to the range's ignition system, restoring reliable spark transmission for gas burner ignition. It helps re-establish spark signals when the original harness is damaged or corroded. What it does:

• Routes electrical connections between the spark/igniter switch and the ignition module
• Enables consistent sparking at burner igniters for reliable ignition
• Common fix when burners won't ignite or sparking is intermittent
• Replaces frayed, burned, or loose wiring that can interrupt spark signals

• Disconnect power and shut off gas supply before starting any repair
• Inspect harness routing and connector seating; replace any damaged clips or retainers

This surface burner spark electrode creates the arc that lights the gas at the burner. Replacing a worn or cracked electrode restores quick, reliable ignition on your gas cooktop or range.

• Generates a high-voltage spark to ignite the surface burner gas
• Sits beside the burner head and fires when a control knob is turned
• Common symptoms: burner won't light, no/weak/intermittent spark at one burner, visible cracks in the ceramic, arcing to the cooktop
• Helps restore consistent ignition when the original electrode is damaged or contaminated

• Disconnect power and shut off gas; allow the appliance to cool completely
• Remove burner cap and head to access the electrode; access may be from the top or beneath the cooktop per your model's service information
• Transfer any mounting hardware from the old part; route the spark wire as originally and seat the tip at the same gap/position to the burner
• Avoid striking or overtightening the ceramic insulator; keep the tip clean and dry during installation

This burner valve is a direct-replacement valve that controls gas flow to a cooktop or range burner, restoring proper ignition and steady flame for safe cooking. What it does:

• Regulates gas flow to an individual burner for normal ignition and flame control
• Helps correct issues like burners that won't light or have weak/uneven flames
• Prevents continuous flow when the valve is in the off position (safety-related function)
• Works as the component between the appliance gas line/manifold and the burner port

• Always shut off the appliance gas supply and power before beginning service
• Check all connections for leaks after installation (soap-and-water test recommended) and follow local codes
• Do not test for leaks with an open flame; follow OEM instructions and safety precautions

The Burner Valve (RR) is an OEM part for Whirlpool ranges. It controls the flow of gas to the rear-right burner, allowing for precise regulation of the flame during cooking. The valve ensures safe and efficient operation by opening and closing as needed to adjust the burner’s heat output.

Over time, burner valves can become faulty due to wear and tear, grease buildup, or internal damage. Exposure to high heat and repeated use may cause the valve to stick, leak, or fail to regulate gas properly. If the valve becomes obstructed or worn out, it can compromise cooking performance and safety.

Symptoms of a bad burner valve include:

• Inconsistent or weak flame
• Gas smell near the burner when turned off
• Difficulty igniting the burner
• The burner not shutting off completely

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This surface burner valve controls gas flow to an individual cooktop or range burner, enabling safe, precise flame adjustment. Replacing a worn valve restores reliable ignition, smooth flame control, and proper shutoff at the knob.

• Regulates gas supply to one surface burner as you turn the control knob
• Helps address a burner that won't ignite, erratic or unresponsive flame adjustment, or a stiff/stripped valve stem
• Provides positive shutoff when the knob is in the Off position
• Saddle-style mounting on the gas manifold

• Shut off gas supply and disconnect power; allow the appliance to cool
• Access the manifold and note knob orientation and tubing/orifice connections for reassembly
• Use an approved thread sealant only where specified by the manufacturer; do not overtighten fittings
• After installation, leak-check all joints with a soap-and-water solution and verify ignition and low-flame adjustment

This broil burner assembly supplies the focused heat for the oven's broiling function so you can brown and crisp foods quickly. It replaces a worn or damaged broil burner to restore proper broil performance. What it does:

• Directs and emits the high, concentrated flame used during oven broiling.
• Restores even browning and searing when the broil function produces weak or spotty heat.
• Addresses issues such as little/no broil flame or uneven broiling when burner damage or clogging is present.
• Works with the oven's gas supply and ignition system to produce consistent broil heat.

• One broil burner assembly

• Turn off and disconnect gas supply and electrical power before attempting service.
• Follow OEM service manual or parts diagram for correct alignment and secure mounting.
• Use proper tools; verify gas connections are leak-free and ignition lights properly before use.

This oven bake burner feeds gas evenly along the flame ports to deliver a consistent bake flame. Replacing a warped, corroded, or clogged burner helps restore reliable preheat and even baking.

• Distributes gas along the burner rail during the bake cycle to produce an even flame
• Helps maintain stable oven temperatures and consistent cooking results
• Common symptoms: no heat in bake, very long preheat, or uneven baking
• Visible damage, rust, or blocked ports on the burner indicate replacement

• Disconnect power and shut off gas before servicing; allow the oven to cool
• Remove the oven bottom panel and flame spreader/shield to access the burner
• Note orientation; transfer any mounting hardware from the original and seat the burner over the orifice before securing
• Restore gas, check all connections for leaks with an approved solution, and verify proper ignition and flame

Note: For LP Broil orifice order WPW10400497. For LP bake orifice order WPW10400494.

The Oven Igniter is an OEM part for Whirlpool ovens. It is responsible for igniting the gas in the oven burner to produce the heat needed for cooking and baking. The igniter ensures a consistent and reliable flame each time the oven is used.

Causes of a bad igniter can include normal wear and tear, electrical faults, or exposure to high temperatures over extended periods. A worn or damaged igniter may fail to produce the necessary spark or heat to ignite the gas.

Symptoms of a bad igniter include:

• The oven not heating up
• Uneven cooking or baking
• A delay in the oven igniting
• The smell of gas without ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This gas tubing is the replacement flexible line that routes fuel from the gas valve to the burner assembly, restoring a secure gas connection for safe ignition and operation. Designed to match OEM fit and function. What it does

• Carries natural or LP gas from the control valve to the burner or main manifold.
• Restores a sealed gas path when original tubing is cracked, pinched, or disconnected.
• Helps eliminate symptoms such as gas smell near the appliance, burner failing to light, or intermittent pilot/burner operation.
• Works with appliance gas systems that use a flexible tubing connection.

• One gas tubing as shown.

• Turn off the gas supply and unplug the appliance before starting any work.
• Use correct fittings and thread sealant approved for gas.
• After installation, test all connections for leaks using a soapy water solution or a gas leak detector; never use an open flame.

This fitting is a small connector that joins or secures a fluid line inside the appliance, helping restore a safe, leak-free connection so water or other fluids flow where needed without escaping. What it does:

• Connects or secures a hose or tubing to an internal port so fluid can flow properly
• Helps stop leaks caused by cracked, loose, or worn fittings
• Restores a proper sealed connection when the original fitting is damaged or missing
• Works as a replacement plumbing connector used in common appliance water lines

• Fitting

• Turn off power to the appliance and shut off the water supply before starting
• Remove any retaining clips or clamps and replace the old fitting with the new one, ensuring a snug fit
• Use only the correct clamps or seals for your appliance; tighten to manufacturer guidance without over-torquing
• After installation, restore water and power, then check thoroughly for leaks during a test cycle

This broil burner spark electrode generates the ignition spark at the oven's broil burner so the flame lights reliably when you select Broil. Replacing a worn or cracked electrode restores consistent broil ignition and reduces repeated clicking.

• Provides a high-voltage spark at the broil burner to ignite gas
• Works with the range's spark/ignition module to light the broiler
• Common symptoms: broiler won't light, intermittent or delayed ignition, continuous clicking with no flame, cracked ceramic insulator
• Spark-style component (not a glow-bar igniter)

• Disconnect electrical power and shut off gas; allow the oven to cool completely.
• Remove oven racks and any flame spreader/guard to access the broil burner area.
• Note electrode position and gap to the burner port; transfer mounting hardware and avoid stressing the ceramic insulator.
• Route and reconnect the ignition wire/harness away from heat and sharp edges; restore gas and power and test ignition.

This precision-drilled natural-gas orifice (8K) meters gas to a single burner on your range or cooktop. It helps restore a correct, consistent flame when the original orifice is clogged, damaged, or the wrong size. What it does:

• Regulates gas flow to one burner in a natural-gas configuration
• 8K size matches the designated burner output specified for certain positions
• Can help resolve low/uneven flame, yellow tipping/sooting, or poor simmer control
• Useful when correcting issues after a fuel-type conversion

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool; remove grates and burner caps to access the orifice holder
• Thread in the new orifice and tighten gently
• Restore gas, leak-check with soapy water, and confirm proper flame height and color per the service manual

This natural-gas orifice spud is sized for the 5K burner position on compatible gas cooktops and ranges. It meters gas to the burner to set proper flame height, helping restore consistent heat when the original orifice is clogged, damaged, or incorrect. What it does:

• Regulates gas flow for the designated burner; calibrated for the 5K position on natural gas systems
• Can help resolve weak or oversized flames, yellow/lazy flames, uneven heating, or intermittent ignition
• Required when converting back to natural gas on applicable units; not for LP gas
• Installs in the orifice holder/manifold beneath the burner head

• Shut off gas supply and power; allow the cooktop/range to cool completely
• Remove burner cap and head to access the orifice
• Use the correct nut driver; hand-start threads and tighten snugly—do not overtighten
• Reassemble, leak-check connections with soapy water, and verify flame quality per the service instructions

This natural-gas burner orifice spud meters the correct fuel flow for a 15,000-BTU surface burner. Replacing a clogged, damaged, or wrong-size orifice restores proper flame size, cleaner combustion, and reliable cooktop performance. What it does:

• Meters gas through a calibrated opening to the burner head for correct flame height
• Sized for a 15,000-BTU surface burner using natural gas
• Installs in the orifice holder/valve body beneath the burner
• Typical symptoms of a faulty or mismatched orifice: weak/small flames, yellow/sooty flames, uneven heating, delayed ignition, burner won't reach high heat

• 1 natural-gas 15,000-BTU orifice spud

• Shut off gas supply and disconnect power; allow all burners to cool completely
• Remove grates, caps, and burner heads; lift the top or access the orifice holder as required
• Match each orifice to the correct burner location by BTU rating; do not overtighten
• After reassembly, check all connections for leaks with a non-corrosive soap solution and verify proper flame color/size

• For natural gas applications only; use the correct LP/propane orifice when converting fuel types

Precision-machined orifice spud that meters natural gas to a range or cooktop burner. The #9 size restores correct fuel flow and flame characteristics when replacing a clogged or damaged orifice or when installing the model's specified natural-gas orifice.

• Regulates gas flow to the burner for proper flame size with natural gas
• Replaces a worn, blocked, or stripped orifice to improve flame quality
• Used during fuel conversion when the model calls for a #9 NG orifice
• Helps with symptoms: small/weak flame, uneven flame pattern, or a burner that won't stay lit

• Disconnect power and shut off the gas supply; allow the appliance to cool
• Hand-start threads, then snug gently—do not overtighten; keep the orifice and holder free of debris
• Restore gas, check all connections for leaks with a soapy-water solution, and verify proper flame

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

Note: LP Broil Orifice  (#100 on the orifice)

Note: LP Bake Orifice  (#56 on the orifice)

The LP Orifice Kit is an OEM part for Whirlpool gas ranges. It contains a set of five orifices designed specifically for use with liquid propane (LP) gas. Note: For the oven orifices, on some models they are adjustable and some they are not. Refer to parts list for your model when oven orifices are needed. LP orifice kit includes 5 orifices.

Causes of a bad LP Orifice Kit may stem from incorrect orifice size for the specific LP gas supply, wear or damage to the orifices over time, or improper installation.

Symptoms of needing to replace the LP Orifice Kit can include:

• Uneven heating or incomplete combustion of the burners
• Yellow or flickering flames instead of a steady blue flame
• Reduced cooking performance or inefficient heating

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
