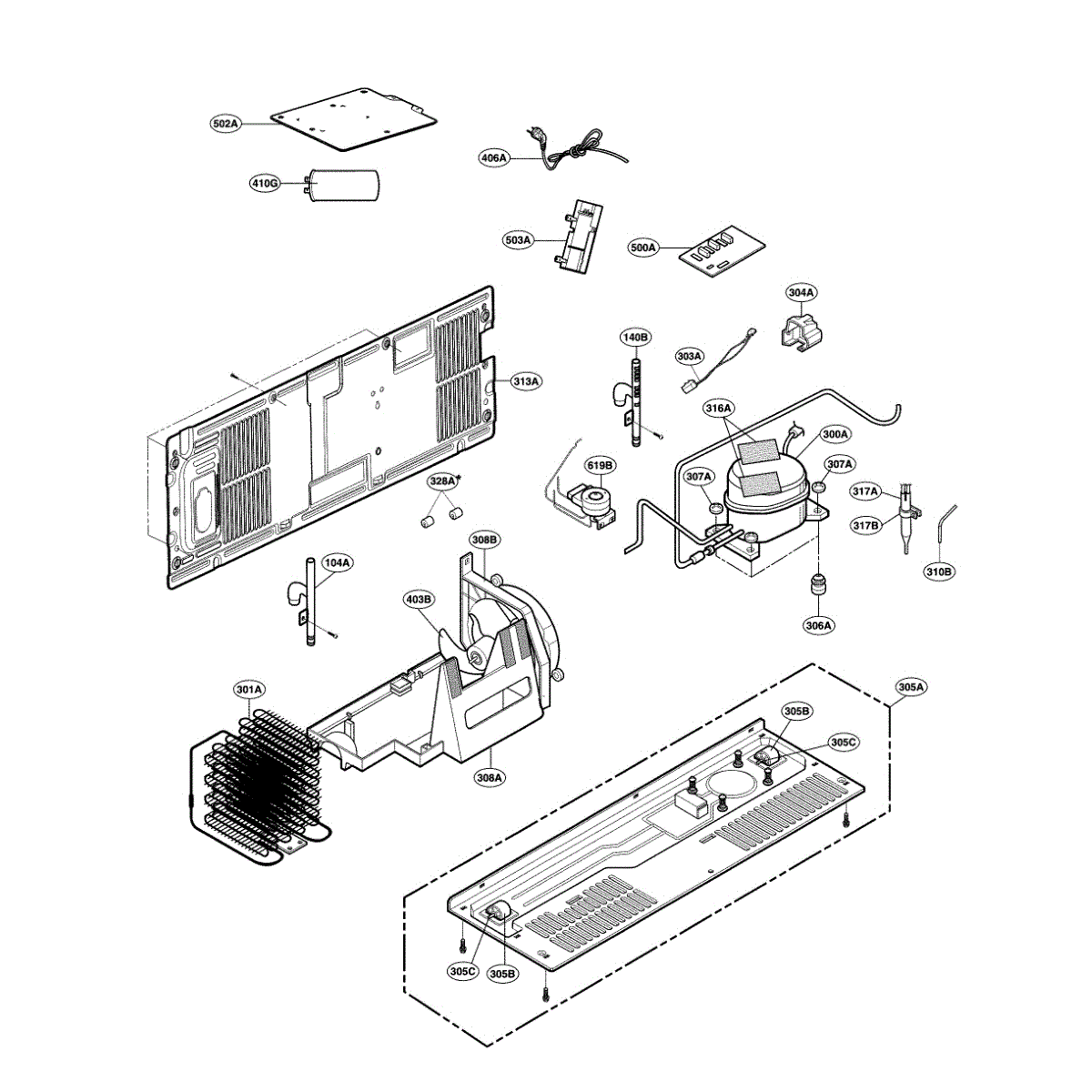

Parts for Lg LSC24971ST/00: Mechanical Compartment Parts

The Handle Mounting Stud is an OEM replacement part for LG refrigerator doors. It provides a sturdy mounting point for the door handle assembly. Reliable handle connection and support is crucial for dependable door function and access.

Causes of a faulty stud can include damage from excess weight or impact over time rendering the stud loose or unstable.

Symptoms of a bad stud include:

• Loose or sagging door handle
• Difficulty opening and closing the refrigerator door
• Potential for the handle to detach completely
• Safety concerns if the handle connection fails

This OEM LG replacement stud is also compatible with Sears/Kenmore models.

This leveling leg assembly stabilizes and levels your refrigerator so it sits solidly on the floor and the doors align correctly. Replacing a worn or stripped leg helps reduce rocking and vibration and restores smooth leveling adjustment.

• Provides height adjustment to level the cabinet on uneven floors
• Supports the unit to prevent rocking or wobbling
• Helps doors close and seal properly when the cabinet is level
• Symptoms may include persistent wobble, vibration/rattling, or a stripped/bent foot or screw

• Unplug the refrigerator and use a helper to prevent tipping injuries.
• Protect flooring; remove the kickplate/grille for access if present.
• Thread out the worn leg; hand-thread the new assembly and adjust height—do not over-extend.
• Level side-to-side and front-to-back per your owner's manual, then reattach any panels.

The Drain Tube Assembly is an OEM part for LG refrigerators. This drain tube assembly is responsible for directing condensation and melt water that accumulates in the refrigerator away to the evaporator pan.

Causes can include cracks developing from limescale or mineral accumulation, flexing fatigue from repeatedly catching drips, or damage from improper cleaning methods.

Symptoms of a bad drain tube assembly include:

• Puddles or leaks developing underneath the refrigerator
• Poor air flow from vents and higher temperatures
• Ice or moisture buildup in refrigerator walls and seals
• Water stains or corrosion appearing inside the unit

This OEM LG part is also compatible with some Kenmore models.

This DC motor assembly drives the refrigerator's fan to move air across the coils and through the cabinet, helping maintain stable temperatures. Replacing a worn, noisy, or non-running motor restores proper airflow for reliable cooling.

• Powers the fan that circulates air across the coils and throughout the compartment
• Supports even temperatures and consistent cooling performance
• Common symptoms: fan won't run, intermittent or loud fan noise, weak/no airflow, warmer than normal temperatures
• Longer run times when failing due to reduced airflow

• Disconnect power to the appliance before servicing; use cut-resistant gloves
• Access location varies by model; remove the rear cover or interior panel to reach the fan motor
• Note connector orientation before unplugging; secure wiring fully on reassembly
• Ensure the fan spins freely after installation before restoring power

The Door Stopper Assembly is an OEM component specifically designed for LG refrigerators. It secures the fridge door in fully closed and aligned positions.

The stopper assembly utilizes a pneumatic cylinder and integrated mounts to softly cushion door movement. This allows for smooth closing with an audible click to confirm proper sealing.

Causes of a bad stopper assembly can include cracked or leaking air cylinders after years of use. Loose or sheared mounting hardware may also cause improper alignment and restricted closure.

Symptoms of a bad door stopper assembly include:

• Gaps forming around the door seal when closed
• Doors difficult to latch fully or align correctly
• Premature cooling loss from unsealed openings

Replacing this LG part restores a snug, confirmed door shut. The OEM stopper components ensure dependable closing effort for efficient operation. This replacement is compatible with some Kenmore models as well.

This Door Basket Assembly is the molded storage bin that mounts to a refrigerator door to keep bottles, jars and small items organized and secure. It restores lost or broken door storage so your fridge holds more and stays tidy. What it does:

• Provides a stable shelf on the inside of a refrigerator door for bottles, condiments and small containers
• Replaces cracked, warped or detached door bins that allow items to fall or shift
• Helps restore proper door storage depth and item containment for everyday convenience
• Uses the factory mounting points to align and secure to the door liner

• One Door Basket Assembly

• Verify the correct location and orientation before installing; part mounts to the interior door liner
• Installation typically requires removing items from the door and snapping or securing the bin into the factory mounting positions
• If clips or fasteners are damaged, replace those components as needed for a secure fit
• Always follow the appliance manufacturer's instructions and disconnect power if required for your model before servicing

This Door Basket Assembly is the molded storage bin that mounts to a refrigerator door to keep bottles, jars and small items organized and secure. It restores lost or broken door storage so your fridge holds more and stays tidy. What it does:

• Provides a stable shelf on the inside of a refrigerator door for bottles, condiments and small containers
• Replaces cracked, warped or detached door bins that allow items to fall or shift
• Helps restore proper door storage depth and item containment for everyday convenience
• Uses the factory mounting points to align and secure to the door liner

• One Door Basket Assembly

• Verify the correct location and orientation before installing; part mounts to the interior door liner
• Installation typically requires removing items from the door and snapping or securing the bin into the factory mounting positions
• If clips or fasteners are damaged, replace those components as needed for a secure fit
• Always follow the appliance manufacturer's instructions and disconnect power if required for your model before servicing

This upper hinge assembly supports the refrigerator door at the top and acts as the pivot point for smooth opening and closing. Replacing a worn hinge restores proper alignment and helps the door seal and close consistently.

• Supports and pivots the door at the top hinge point
• Maintains door alignment with the cabinet and gasket
• Helps ensure complete closure and proper sealing
• A worn hinge may cause door sagging, rubbing, popping/creaking noises
• Misalignment may lead to air leaks, frost, or temperature fluctuations

• Disconnect power and, if applicable, shut off the water supply.
• Remove the hinge cover, support the door, and note shim/bushing positions.
• Remove hinge screws, lift the door off, transfer any spacers/bushings, and install the new hinge.
• Align the door and verify gasket contact all around before restoring power.

This hinge lever mounts on the refrigerator door hinge to guide door movement and closure, helping the door seal properly. Replacing a worn or broken lever restores smooth operation and consistent sealing.

• Guides hinge motion so the door opens and closes smoothly
• Helps maintain door alignment for a reliable gasket seal
• Replace if the lever is visibly cracked, worn, or deformed

• Disconnect power and support the door to prevent injury or damage
• Remove the hinge cover and fasteners; note the lever's orientation before removal
• Install the new lever in the same position and reassemble the hinge components
• Adjust hinge per model procedures if needed

The Lower Hinge Assembly is an OEM part for LG refrigerators. It is responsible for supporting the refrigerator door and allowing it to open and close smoothly. The hinge assembly ensures the door stays aligned and securely in place, preventing cold air from escaping and maintaining the efficiency of the appliance.

You should replace the lower hinge assembly if it becomes faulty. Causes of a bad lower hinge assembly can include wear and tear over time, excessive force or weight on the door, or damage from accidental impacts.

Symptoms of a bad lower hinge assembly include:

• Difficulty in opening or closing the door
• Door not sealing properly
• Squeaking or grinding noises when the door moves
• Door misalignment

This OEM LG part is also compatible with Sears/Kenmore models.

This dispenser lever holder is the mounting bracket behind the refrigerator's dispenser paddle. It supports and aligns the lever and switch so water or ice dispenses reliably when the paddle is pressed.

• Holds and guides the dispenser lever and actuator switch inside the dispenser housing
• Provides a secure pivot point for smooth paddle movement
• Helps ensure consistent activation of water and ice dispensing
• Damage can cause a loose or stuck paddle, intermittent dispensing, or no dispense

• Disconnect power and shut off the water supply before servicing
• Remove the dispenser panel/escutcheon to access the lever assembly; note part orientation
• Transfer the lever, switch, and return spring to the new holder and secure with the original fasteners
• Restore power/water and test dispensing before reinstalling trim

The Ice Door Lever Spring is an OEM component compatible with LG refrigerators. It is part of the mechanism that opens and closes the ice door on LG French door refrigerators. Over time, springs can lose resiliency or become misaligned.

Causes may be extensive usage over years or damage like kinking that compromises spring function.

Symptoms of a bad ice door lever spring include:

• The ice door not latching fully when closed
• Difficulty opening or poor balance while moving the door
• The lever rubbing or catching instead of moving smoothly

This OEM LG part is also compatible with Sears/Kenmore side-by-side refrigerators.

The Actuator Lever is an OEM part for LG refrigerators. It plays a crucial role in the dispensing mechanism of the refrigerator, allowing for the controlled release of water and ice. The lever is designed to interact seamlessly with the internal components of the dispenser to ensure smooth and reliable operation.

Over time, the actuator lever can wear out or become damaged due to frequent use or mishandling. Causes of a bad actuator lever include physical wear, breakage from excessive force, or deformation due to constant usage.

Symptoms of a bad actuator lever include:

• Difficulty in dispensing water or ice
• The lever sticking or not returning to its original position
• Unresponsive dispenser mechanism
• Unusual noises when using the dispenser

This OEM LG part is also compatible with Sears/Kenmore.

This replacement compressor is made by LG. The compressor is the heart of the refrigerator and keeps pressure in the system while also adding the heat required to ensure the refrigerant works properly. This is the hardest-working component in the refrigerator and continually cycles on and off to do its job. That creates a great deal of wear and tear and will eventually cause the compressor to fail.Signs of a failing or failed compressor include hearing it cycle much more often than usual, the refrigerator not being as cold as usually, or the compressor not working at all. Replacing the compressor will require moving any perishables from the refrigerator to a safe, cold space. Unplug the refrigerator and pull it away from the wall. Locate the bottom access panel on the back of the appliance and remove it. The compressor will be located behind it.This compressor is a genuine OEM part and it is sold individually. It is compatible with LG refrigerators.

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

This damper assembly controls airflow between compartments to help maintain consistent refrigerator temperatures and restore proper air distribution. It replaces a damaged or stuck damper that interferes with cooling balance. What it does:

• Regulates fresh food/freezer airflow by opening and closing the inlet
• Helps correct uneven temperatures or reduced cooling caused by a stuck or broken damper
• Stops unwanted drafts when the damper is closed
• Operates with the fridge's control system to respond to temperature changes

• Disconnect power to the appliance before starting any repair
• Access typically requires removing interior panels or shelving to reach the damper housing
• Handle plastic parts and wiring gently; avoid forcing connectors

Replacement fan guide that directs airflow from the refrigerator fan to improve cooling distribution and help keep the fan blade clear of nearby components. Restores proper airflow and can reduce rubbing or scraping noises. What it does:

• Channels airflow from the fan to promote even temperatures throughout the compartment.
• Keeps the fan blade aligned and away from cabinet walls and other components.
• Commonly replaced when cracked, warped, or broken parts cause rubbing or unusual fan noise.
• Helps maintain efficient cooling by restoring the intended airflow path.

• Disconnect power (unplug or shut off breaker) before servicing the appliance.
• Access typically requires removing the interior cover or rear evaporator cover.
• Handle the plastic guide carefully to avoid cracking; align mounting tabs and secure using the original fasteners.
• Inspect the fan blade and motor for damage while replacing the guide; replace any damaged components to avoid repeat issues.

This restrainer is a small retaining clip that helps secure moving or removable components in place, reducing rattles and keeping parts aligned for reliable operation. It's a simple replacement for worn or broken clips. What it does:

• Holds a cover, panel, or door-related component in proper position to prevent shifting
• Reduces noise caused by loose or vibrating parts
• Restores original fit where a broken or missing clip allows movement
• Simple mechanical function — no electrical connections or calibration

• One restrainer

• Disconnect power (and water if applicable) before beginning repairs
• Inspect surrounding mounting points for damage; replace any broken tabs or fasteners
• Typically installs with basic hand tools; align clip and press or snap into place until secure

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

The Dispenser Micro Switch is an OEM part for LG refrigerators. It is a component of the ice and water dispensing system, responsible for activating the dispenser when the lever is pressed.

Causes of a bad Dispenser Micro Switch can include mechanical wear from frequent use, failure due to moisture or debris affecting the switch’s contacts, or electrical faults that prevent proper signaling.

Symptoms of a bad Dispenser Micro Switch include:

• The dispenser not releasing ice or water when the lever is pressed.
• Continuous dispensing or dripping after the lever is released.
• Intermittent or no response from the dispenser controls.

This OEM LG part is also compatible with Sears/Kenmore.

The Condenser Fan Motor Assembly is a genuine OEM replacement part that plays a crucial role in the functioning of your LG refrigerator. The assembly includes the fan blade, which directs air across the condenser, and the motor that powers the fan blade. Operating at DC11V with 176mA and 1.93W, this DC motor includes an electrical plug with a 3-pin harness.

Causes of a bad DC motor can include wear and tear over time, bearing failure, electrical issues, or exposure to excessive heat or moisture. A failing motor may cause the refrigerator to malfunction or stop working altogether.

Symptoms of a bad Motor DC include:

• The refrigerator not cooling properly or not cooling at all
• Strange noises coming from the refrigerator
• The ice maker not producing ice or dispensing ice
• The compressor not running or running continuously

This OEM LG part is also compatible with Sears/Kenmore models.

The Ice Dispenser Door Motor is an OEM part for LG refrigerators. This motor is responsible for the operation of the ice dispenser door, controlling its opening and closing mechanism to allow ice to be dispensed without letting warm air into the freezer.

Symptoms of a bad Ice Dispenser Door Motor include:

• The dispenser door not opening or closing properly,
• Ice not being dispensed when activated,
• Unusual noises coming from the dispenser mechanism.

Causes of ice dispenser door motor failure can include electrical issues such as shorts or wiring problems, mechanical wear over time, or blockages that strain the motor.

This OEM LG part is also compatible with Sears/Kenmore.

This motor start/run capacitor helps the appliance motor or compressor start and run more reliably, restoring proper motor performance and reducing symptoms caused by a weak or failed capacitor. What it does:

• Provides the momentary electrical boost motors or compressors need to start
• Helps maintain stable motor operation during run cycles
• Resolves symptoms like motors that hum but won't start, intermittent starting issues, or cycling problems
• Replaces a worn or failed capacitor to restore consistent performance

• One replacement capacitor as shown

• Disconnect power before servicing and verify the appliance is de-energized
• Capacitors can hold charge — discharge safely before touching terminals
• Match terminal type and mounting location to the original part; do not force connections

This display power control board assembly powers and drives the appliance user display and front-panel controls, restoring visible readouts and responsive input when the display electronics fail. What it does:

• Supplies power and signal control to the digital display and touch/keypad interface
• Translates button/touch inputs for the main control board
• Helps maintain correct display illumination and segment operation
• Commonly replaced for a blank display, unresponsive buttons, or erratic/garbled readouts

• Disconnect power before beginning service to avoid shock or damage
• Handle the board by the edges and avoid touching components; use ESD protection if available
• Carefully disconnect and reconnect ribbon/plug connectors; do not force connections
• Reassemble panels and test the unit before finalizing installation

The Ice Maker Assembly is an OEM replacement part for LG refrigerators. As the main ice production component, it contains all the components needed to automatically mold, harvest, and store ice within the freezer compartment.

Causes of failure can be normal wear and tear of internal gears, wiring issues, or failure of the temperature control sensor. Mineral build-up may also affect performance over time.

Symptoms of a faulty ice maker assembly include:

• Inability to produce ice or fill the ice tray
• Erratic or intermittent ice production
• Broken or dysfunctional ice cube release mechanism
• Water pooling inside the freezer from the icemaker leaking

This OEM LG part is also compatible with some Sears/Kenmore models.

The Water Line Connector is an OEM replacement part for LG refrigerators. It is responsible for connecting the water supply line from the home plumbing to the refrigerator's internal water distribution system, allowing for ice and water dispenser functionality.

Causes of a bad water line connector can include cracking, leaks, or deterioration of the connector material over time due to regular water pressure and temperature fluctuations. Connectors may also become damaged if exposed to impact.

Symptoms of a bad water line connector include:

• Leaks at the connection point between the line and refrigerator
• Loose, slipping, or disconnected water line fitting
• Reduced water pressure or no water flow to the dispenser
• Error codes related to water flow from the refrigerator diagnostics

 This OEM LG part is also compatible with Sears/Kenmore refrigerators.

The Clip is an OEM part for LG refrigerators. This clip secures the water tube in place, preventing it from moving or becoming disconnected. It plays a crucial role in maintaining the proper flow of water to the ice maker and water dispenser.

Causes of a bad water tube clip can include physical damage, wear and tear from regular use, or brittleness due to temperature fluctuations. If the clip fails, it can result in leaks or disconnections, disrupting the water supply.

Symptoms of a bad water tube clip include:

• Water leaks inside or outside the refrigerator
• The water tube becoming loose or disconnected
• Reduced or no water flow to the ice maker or water dispenser

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

The Water Line is an OEM part for LG refrigerators. It is designed to transport water from the home’s supply to the refrigerator, enabling the production of ice and the dispensing of fresh water. This tubing is essential for the refrigerator's water and ice features to function correctly, ensuring clean, clear water is available at all times.

Symptoms of a bad Water Line include:

• Noticeable leaks or dampness along the line's path.
• Decreased water flow to the dispenser or ice maker.
• Unusual noises like buzzing or humming from the line when the dispenser is used.

Causes of a bad water line can include physical damage such as cracks or punctures, blockages from mineral buildup inside the line, or deterioration due to aging or environmental factors such as heat or pressure.

This OEM LG part is also compatible with Sears/Kenmore, ensuring broad compatibility across multiple refrigerator models.

The Water Supply Line is an OEM part for LG refrigerators. It is responsible for delivering water from the household supply to the refrigerator's water dispenser and ice maker. This line ensures a consistent flow of water, crucial for producing ice and dispensing chilled water.

Over time, water supply lines can wear out or become damaged due to factors such as mineral buildup, kinks, or punctures. These issues can lead to leaks or reduced water flow, affecting the refrigerator's functionality.

Symptoms of a bad Water Supply Line include:

• Leaks or puddles around the refrigerator
• Reduced or no water flow to the dispenser
• Ice maker not producing ice
• Unusual noises when the dispenser is used

This OEM LG part is also compatible with Sears/Kenmore.

This valve assembly pipe routes water between the refrigerator's valve components to enable controlled water flow to dispensers and ice systems. It replaces a damaged or leaking piping assembly to restore proper water delivery and prevent leaks. What it does:

• Channels water between the appliance valve and downstream components for dispenser or ice functions
• Replaces cracked, kinked, or corroded tubing that can cause leaks or reduced flow
• Helps stop visible leaks and intermittent water delivery issues when tubing is the failure point
• Works as the factory replacement pipe assembly designed to match original fit and routing

• One valve assembly pipe

• Turn off power and water supply before starting work; relieve any line pressure and drain remaining water
• Inspect adjoining fittings and clamps; replace any damaged fasteners to ensure a leak-free connection
• Tighten fittings to OEM torque recommendations where specified; avoid overtightening plastic fittings

This water valve assembly controls water flow into the appliance's dispenser and ice-making system, restoring water delivery when the original valve fails. It replaces a worn or leaking inlet valve to help stop leaks and restore filling. What it does:

• Opens and closes to allow water into the dispenser and/or ice maker when the unit calls for water.
• Commonly used when the dispenser or ice maker won't fill, fills slowly, or water is leaking from the valve area.
• Helps stop intermittent water flow caused by a stuck or damaged valve.
• Works with the appliance's existing water supply and tubing to restore normal operation.

• One water valve assembly as shown.

• Shut off water supply and disconnect power before starting any repair.
• Replace only with the exact valve specified for your model; secure fittings and wiring per OEM routing.
• After installation, turn water and power back on and check carefully for leaks.

Replacement tube connector (mechanical) that secures and routes tubing in compatible LG appliances, helping restore proper fluid flow and reduce leaks from loose or damaged connections. A literal OEM-style connector used where a secure tube-to-component join is required. What it does:

• Joins and secures tubing to appliance components or chassis to maintain a stable connection
• Keeps tubing aligned to prevent kinks or dislodging that can interrupt flow
• Commonly replaced when you see dripping, visible leaks, loose tubing, or poor water flow
• Fits the original mounting interface for reliable mechanical retention

• Disconnect power and shut off the water supply before starting any repairs
• Inspect tubing and nearby fittings for damage; replace any compromised tubing before installing the connector
• Seat the connector fully and secure per the appliance's service instructions; avoid overtightening which can damage tubing
• After installation, restore water and power and check the connection for leaks during a short test cycle

The Connector (Mech), Tube is an OEM part for LG refrigerators. It is used to securely connect water tubing within the refrigerator, ensuring a reliable flow of water to components such as the ice maker and water dispenser.

Causes of a bad connector can include wear and tear over time, physical damage from improper installation or handling, or degradation due to exposure to varying temperatures and water pressure.

Symptoms of a bad connector include:

• Leaks or drips around the connector area
• Reduced water flow to the ice maker or water dispenser
• Water pooling inside or around the refrigerator
• The ice maker or water dispenser not functioning properly

This OEM LG part is also compatible with Sears/Kenmore models.

The water filter cover 3550JD1128E attaches over the water filter and protects the water filter and head.

This is a water filter intended for use with LG refrigerators. It is used in tandem with the water dispenser on the refrigerator door to purify drinking water. Replacing thee water filter every six months on average is recommended. It is necessary to swap out every year at a minimum, depending on how frequently it is used.Indications that the water filter needs to be switched include water with unusual odors or tastes. The components used to filter the water will stop working, allowing contaminants that could be dangerous to break off and enter the drinking water. Replacement of the LG water filter is simple. Remove the old filter and screw the new one into place in just a few seconds.This LG water filter is a genuine OEM replacement part. It is sold individually. The LG water filter comes sourced directly from the manufacturer and is made of high-quality, durable materials. The LG water filter is only compatible with LG brand refrigerators.

This cover tube is a molded protective housing that shields internal components and wiring from wear, heat, and debris. It helps maintain safe operation and prevents rubbing or chafing that can lead to damage. What it does:

• Covers and protects internal wiring, hoses or assemblies from contact and abrasion
• Helps direct airflow and keeps debris away from sensitive parts
• Reduces noise caused by rubbing or loose components
• Preserves component alignment and prevents premature wear

• Disconnect power to the appliance before beginning any repair.
• Installation requires partial disassembly of the appliance; keep track of screws and clips.
• Use OEM replacement and follow the service manual for correct orientation and torque of fasteners.
• If you see damaged wiring or other compromised parts, replace or repair those items before reinstalling the cover tube.
