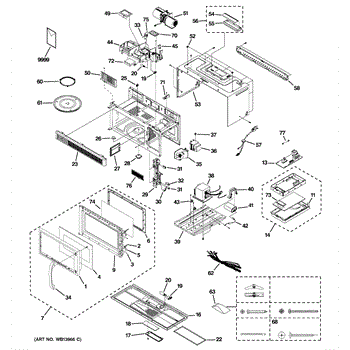

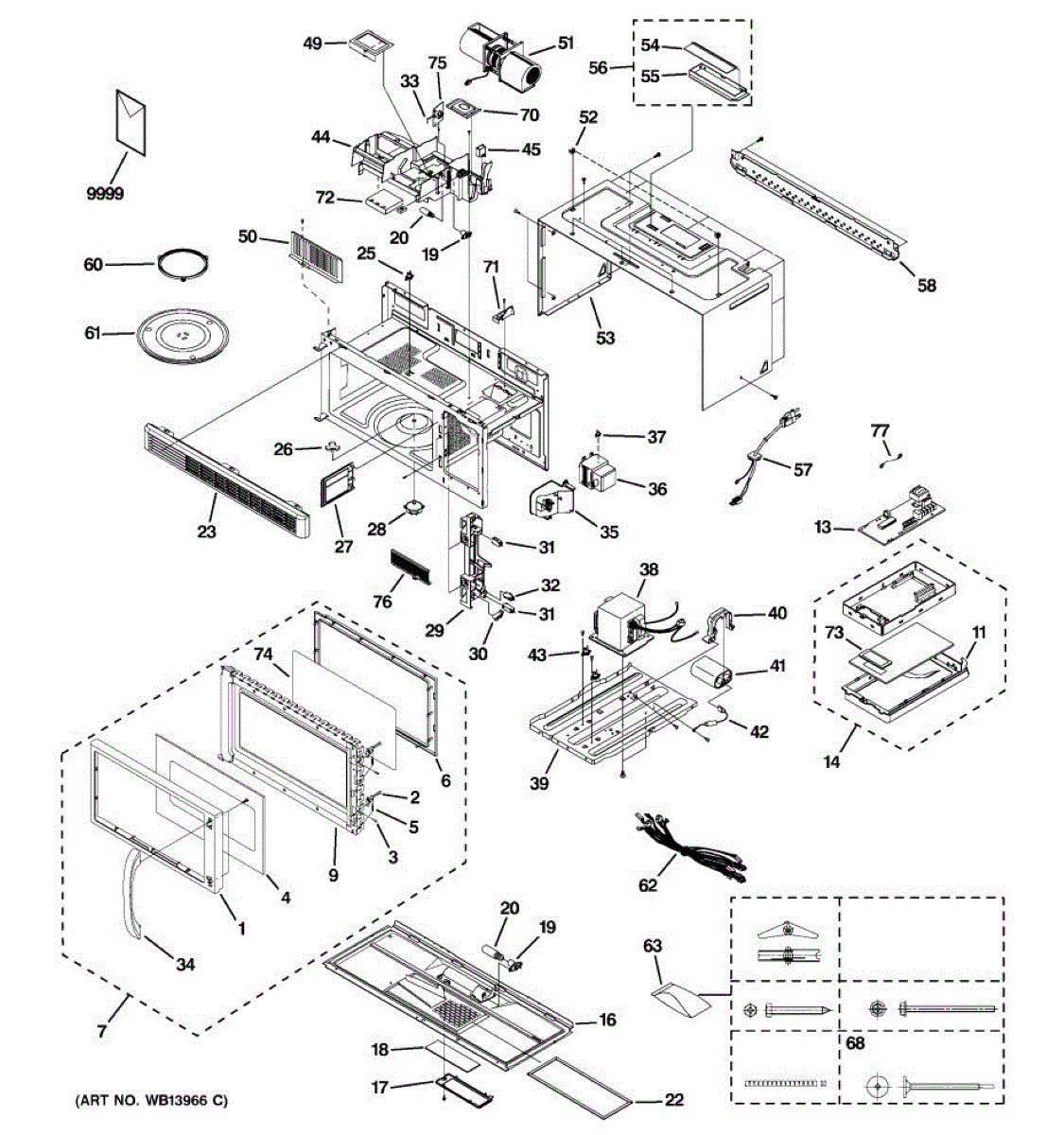

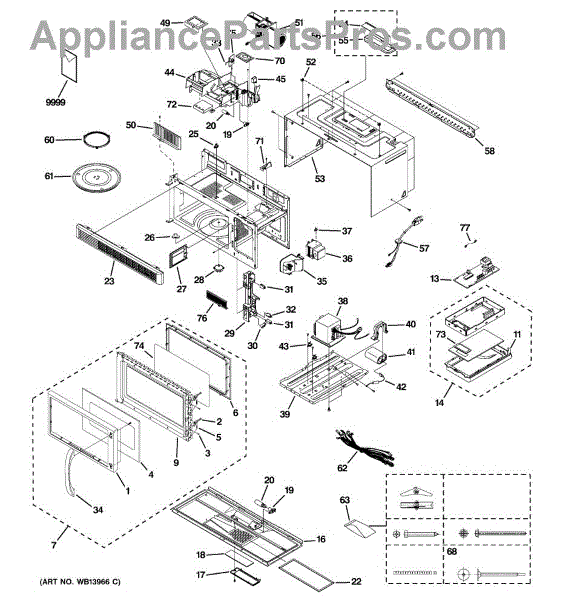

Parts for Ge JVM1530DM1BB: 01 - Microwave Parts

This screen door is a direct-fit door panel that restores the interior appearance and function of the appliance door. It replaces a damaged, dented or worn door panel to help maintain proper sealing and finish. What it does:

• Replaces a damaged or dented door panel to restore door appearance and fit
• Helps the door close and seal correctly by providing the proper panel surface
• Stops drafts, visible gaps, and moisture intrusion caused by a compromised panel
• Useful when the exterior finish is scratched, cracked, or cosmetically worn

• One screen door panel

• Disconnect power and empty the door before removing panels to prevent injury or damage
• Handle sharp edges carefully; wear gloves and eye protection
• Secure all mounting clips/screws to prevent rattles or gaps

This glass light cover shields and diffuses the cooktop light, protecting the bulb from heat, grease, and splatter while maintaining clear, even illumination over your cooking surface.

• Covers and protects the cooktop light bulb
• Diffuses light for more even illumination and reduced glare
• Helps keep grease and debris out of the light cavity
• Replace if cracked, missing, discolored, or not staying secured

• Disconnect power to the appliance before servicing and allow the area to cool
• Support the cover while removing any retaining screw(s) or release tabs
• Reuse original hardware/clips as applicable and seat the cover fully
• Restore power and test the light for proper operation

This is the clear glass lens that covers the cooktop light on select GE over-the-range units. It shields the bulb from grease and splatters while allowing bright, even illumination of the cooking surface below.

• Protects the cooktop light bulb from grease, moisture, and debris
• Restores proper lighting if the original lens is missing, cracked, or stained
• Helps maintain safe, even illumination of the range area
• Common symptoms: broken or missing lens, dim or uneven light due to a damaged cover

• Disconnect power to the appliance before servicing
• Allow bulbs and surrounding area to cool completely
• Handle glass carefully to avoid chipping; wear cut-resistant gloves
• Ensure the lens seats fully and any retaining tabs/screws are secured per the product's service instructions

The Glass Light Lens is an OEM part for GE microwaves. It covers the light bulb inside the microwave, protecting it from food splatters and ensuring even illumination.The lenses measure approximately 7" x 3".

Causes of a bad glass light lens can include accidental impact, exposure to high heat, or general wear and tear.

Symptoms of a bad glass light lens include:

• Cracks or breaks in the glass
• Diminished visibility inside the microwave
• Light not being properly diffused
• Potential exposure of the light bulb to food splatters

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Light Bulb Socket is an OEM part for GE microwaves. It holds the light bulb securely in place within the microwave, ensuring proper illumination of the interior when the door is opened or the microwave is in operation.

Causes of a bad light bulb socket can include wear and tear over time, exposure to high heat, electrical faults, or damage from replacing the bulb improperly.

Symptoms of a bad light bulb socket include:

• The interior light not turning on when the microwave is in use
• Flickering or intermittent lighting
• Difficulty securing the light bulb in the socket
• Visible damage or discoloration to the socket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Light Bulb is an OEM part for GE microwaves. This bulb illuminates the interior of the microwave during operation, enhancing visibility so you can monitor the cooking process without opening the door. It is designed to withstand the high temperatures and vibrations typically found in microwave ovens.

Over time, the light bulb can burn out or become damaged due to the harsh environment of the microwave. Frequent on and off cycles can also shorten the lifespan of the bulb. Replacing a non-functioning or dim bulb will restore visibility and improve the functionality of your microwave.

Symptoms of a bad light bulb include:

• Dim lighting inside the microwave.
•  Flickering or inconsistent performance.
• Complete lack of light when the microwave is operating.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Air Filter is an OEM part for GE microwaves. This component is essential for trapping grease, smoke, and odors during cooking, maintaining a clean and safe kitchen environment. It is typically located above the cooking surface or within the microwave's ventilation system. The filter measures approximately 6.5 inches deep by 13.5 inches wide

Causes of a bad air filter can include clogging from grease and food particles, physical damage, or general wear over time. A compromised air filter can reduce the efficiency of the microwave's ventilation, leading to poor air quality and potential buildup of contaminants.

Symptoms of a bad air filter include:

• Reduced ventilation efficiency
• Increased smoke or odors during cooking
• Visible grease buildup on the filter
• The filter appearing damaged or excessively dirty

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This microwave thermostat is a temperature-sensitive safety switch that helps protect the unit from overheating. When the preset limit is reached, it interrupts power to the affected circuit to help prevent damage and erratic shutdowns.

• Monitors temperature at its mounting location and opens the circuit if overheating is detected
• Helps protect internal components from excessive heat
• Common symptoms of a failed thermostat include: unit shuts off during cooking, won't start until it cools down, or has no power/no heat due to an open safety
• Replace if the original tests open when it should be closed

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Microwaves contain a high-voltage capacitor that can retain a dangerous charge; only qualified persons should service and discharge the capacitor
• Note wire locations before removal and transfer connections firmly to the new thermostat
• Mount the thermostat securely and in the same position to ensure proper temperature sensing

This latch body is the door latch component that secures the appliance door during operation, restoring reliable closure so cycles can run normally. Use it to replace a worn or damaged latch that won't hold the door closed. What it does:

• Engages the door striker to hold the door closed and maintain a proper seal during operation
• Works with the door latch mechanism so the appliance can complete cycles that require a closed door
• Common symptom: door won't stay closed, is difficult to latch, or feels loose at the latch point
• Replacing a damaged latch body can prevent intermittent door-open errors and restore normal door operation

• Disconnect power (unplug or turn off circuit breaker) before starting any repair
• Remove the door or access panel as needed; keep track of fasteners and any trim pieces
• Handle door glass and trim carefully to avoid damage; test latch engagement before full reassembly

The Lower Lever Switch is an OEM replacement part for GE microwaves. This component activates the door interlock switch when the microwave door is closed. It ensures that the microwave only operates when the door is securely closed, preventing any operational hazards.

Symptoms of a bad Lower Lever Switch include:

• The microwave not starting, indicating the door isn't recognized as closed
• The appliance operating with the door open, a clear safety hazard
• Unusual sounds or issues when attempting to start the microwave
• The need to apply extra pressure to keep the door closed

Common causes for a malfunctioning Lower Lever Switch can be attributed to mechanical wear from frequent use, damage incurred during cleaning or use, or internal issues affecting the switch’s activation mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Handle is an OEM part for GE microwaves. This handle provides a secure and convenient grip for opening and closing the microwave door, ensuring easy access to the interior.

Causes of a bad handle can include regular wear and tear, physical damage from impacts, or exposure to high temperatures.

Symptoms of a bad handle include:

• The handle becoming loose or wobbly
• Visible cracks or breaks in the handle material
• Difficulty in gripping the handle securely
• The handle detaching from the microwave door

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This main electronic control board assembly manages the refrigerator's core functions so the unit responds correctly to user inputs and cycles components for cooling and defrost. Replacing a failed board restores normal control and operation. What it does:

• Manages compressor, fans and defrost cycles by sending signals to subsystem components
• Interprets front-panel inputs and adjusts settings and modes
• Controls display/status indicators and error reporting for diagnostics
• Helps regulate cooling behavior when functioning correctly
• Commonly linked to symptoms like unresponsive controls, incorrect temperatures, or erratic cycles

• One main control board assembly

• Disconnect power to the appliance before starting to avoid shock or damage
• Handle the board by edges and avoid static discharge; use proper ESD precautions
• Verify connectors are fully seated and routed as originally installed; photograph wiring before disassembly
• After installation, restore power and confirm proper operation of controls, display and cooling functions

The High Voltage Diode is an OEM part for GE microwaves. This high-voltage diode is crucial for converting alternating current (AC) to direct current (DC), enabling the magnetron to generate the microwave energy needed for cooking. Measuring approximately 3-1/2" in length, this diode features a banded side with a #8 ring terminal and a non-banded side with a 1/4" female quick connect.

You should replace the diode-H.V assembly if it becomes faulty due to electrical issues, wear and tear, or physical damage. Continuous exposure to high voltage can cause the diode to deteriorate over time, leading to malfunction.

Symptoms of a bad diode-H.V assembly include:

• The microwave not heating food
• A burning smell or unusual noises during operation
• The microwave shutting off unexpectedly
• Visible damage or burn marks on the diode

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This run capacitor helps the appliance motor start and run smoothly by storing and releasing electrical energy. Replacing a worn capacitor can restore reliable motor operation and reduce abnormal motor noise or cycling. What it does:

• Provides the brief power boost motors need to start and maintain RPM
• Helps stabilize motor voltage and improve run efficiency under load
• Commonly linked to symptoms such as motors that hum but won't start, slow or intermittent motor operation, or unusual motor noise
• Reduces stress on motor windings that can lead to premature failure when functioning properly

• One motor capacitor

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a charge; discharge safely
• Observe proper polarity and mounting location during installation; secure wiring and connectors

This holder nut assembly secures a component to the appliance frame, restoring proper mounting and reducing vibration or movement. Replace a damaged or missing holder nut to keep connected parts stable and functioning. What it does:

• Secures a component or assembly to the appliance frame or mounting bracket
• Prevents looseness, rattling, and misalignment caused by worn or missing mounting hardware
• Restores a safe, stable connection that helps maintain normal operation
• Matches OEM mounting geometry for a direct replacement when the original nut is damaged

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access the mounting area by removing the appropriate panel or cover per your model's service instructions
• Start threads by hand to avoid cross-threading, then tighten with the correct tool; do not overtighten
• If any fasteners or nearby components are damaged, replace them as needed for a secure installation

The Hood Damper Assembly is an OEM part for GE microwave ovens. This part controls the flow of exhaust air to minimize odors and smoke from cooking. This damper opens to allow air to vent outside during microwave operation and closes to prevent outside air from entering when the microwave is not in use.

Causes of a bad hood damper assembly can include mechanical failure such as a stuck or broken damper, deterioration of the linkage or springs that operate the damper, and blockage caused by grease or debris accumulation, which can impair its functionality.

Symptoms of a bad Hood Damper Assembly include:

• Ineffective venting of smoke or cooking odors
• External air leakage into the microwave system
• Unusual noises during operation indicating a damper misalignment or obstruction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Hood Damper Assembly is an OEM part for GE microwave ovens. This part controls the flow of exhaust air to minimize odors and smoke from cooking. This damper opens to allow air to vent outside during microwave operation and closes to prevent outside air from entering when the microwave is not in use.

Causes of a bad hood damper assembly can include mechanical failure such as a stuck or broken damper, deterioration of the linkage or springs that operate the damper, and blockage caused by grease or debris accumulation, which can impair its functionality.

Symptoms of a bad Hood Damper Assembly include:

• Ineffective venting of smoke or cooking odors
• External air leakage into the microwave system
• Unusual noises during operation indicating a damper misalignment or obstruction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Hood Damper Assembly is an OEM part for GE microwave ovens. This part controls the flow of exhaust air to minimize odors and smoke from cooking. This damper opens to allow air to vent outside during microwave operation and closes to prevent outside air from entering when the microwave is not in use.

Causes of a bad hood damper assembly can include mechanical failure such as a stuck or broken damper, deterioration of the linkage or springs that operate the damper, and blockage caused by grease or debris accumulation, which can impair its functionality.

Symptoms of a bad Hood Damper Assembly include:

• Ineffective venting of smoke or cooking odors
• External air leakage into the microwave system
• Unusual noises during operation indicating a damper misalignment or obstruction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Cooking Tray is an OEM replacement part for GE microwaves, designed to support and rotate food for even cooking. This glass tray fits within GE microwave models, allowing for the optimal distribution of microwave energy throughout the food. By rotating, it ensures that meals are evenly heated, preventing cold spots and promoting a uniform cooking process. Microwave Glass Turntable Tray, 12 1/2" Dia. Might Be Smaller Than Original.

Causes of a bad Microwave Cooking Tray can include cracking, chipping, or breaking due to accidental drops or heavy impact. Over time, repeated use can also wear down the tray, potentially compromising its structural integrity.

Symptoms of a bad Microwave Cooking Tray include:

• Inability to rotate, affecting the microwave's ability to cook food evenly.
• Unstable movement or wobbling during operation.
• Cracks or breaks in the tray, which can lead to unsafe conditions or further damage to the microwave.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This flat bolt is a factory fastener used to secure appliance components. Replace a missing, stripped, or corroded bolt to restore a tight, secure assembly and help prevent loosening, rattling, or misalignment during normal operation.

• Fastens panels, brackets, and other components as designed by the manufacturer
• Restores a secure fit when the original hardware is missing or damaged
• Helps reduce looseness and vibration-related noises
• Built to original specifications for proper fit and function

• Disconnect power and allow the unit to cool before servicing
• Support the part being fastened; align holes before inserting the bolt
• Start threads by hand to avoid cross-threading; tighten securely without overtightening
• Reuse any original washers or spacers if present

This noise filter assembly is a direct-replacement line filter that helps reduce electrical interference and appliance noise for compatible GE appliances. It restores cleaner power to control boards and can help stop buzzing or interference-related behavior. What it does:

• Suppresses incoming electrical noise and RF interference on the power line
• Helps prevent control glitches and erratic behavior caused by voltage transients
• Can reduce humming, buzzing, or audio/EMI interference from the appliance
• Supports stable operation of electronic controls and sensors

• Disconnect power at the breaker or unplug the appliance before servicing
• Handle wiring and connectors carefully; match wires/terminals exactly on reassembly
• Secure the filter in its mounting location and ensure wiring is routed clear of moving parts

This front cover protects the range/oven control area and restores the appliance's finished appearance. It keeps wiring and controls enclosed while preventing debris and splashes from reaching internal parts. What it does:

• Replaces a cracked, warped, or missing front cover that exposes control components
• Shields control board and wiring from spills, grease, and accidental contact
• Restores the appliance's cosmetically finished front for a clean look
• Helps prevent sharp edges and loose trim that can catch clothing or cause injury

• One front cover

• Disconnect power (unplug or flip breaker) before servicing to avoid shock
• Access may require removing adjacent panels or control console screws; handle trim gently to avoid breaking tabs
• Use appropriate tools and keep fasteners organized for reassembly
