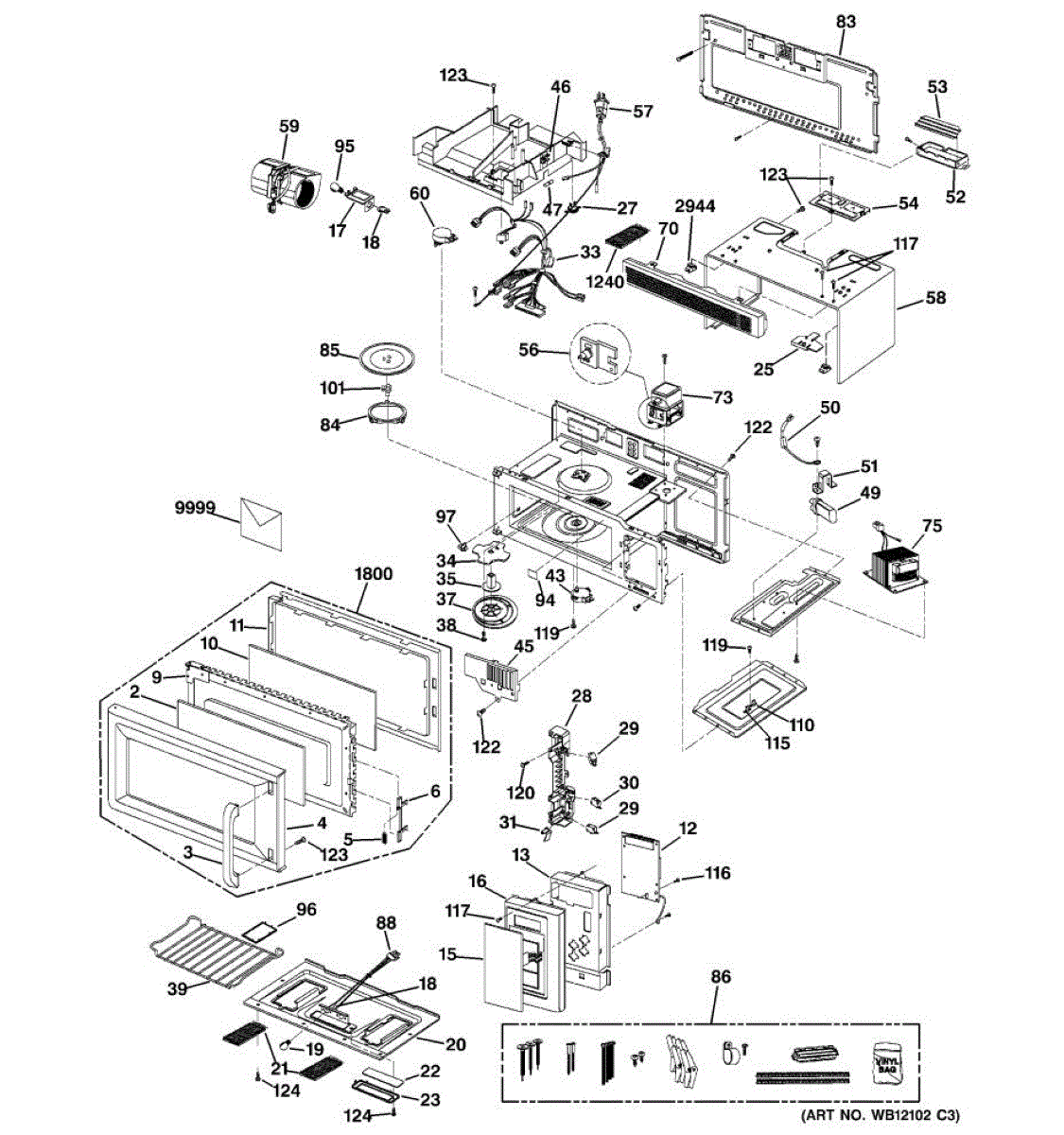

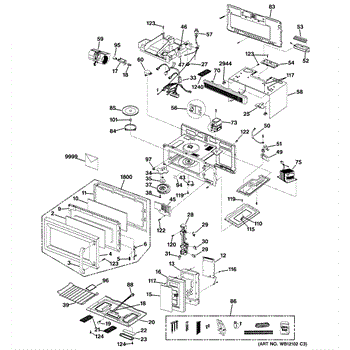

Parts for Ge JVM1533BD002: 01 - Microwave Parts

The Lamp is an OEM replacement part for GE microwave ovens. It plays an essential role in enhancing visibility within the microwave, facilitating users to keep an eye on their food without opening the door. This high-quality bulb is engineered to withstand the heat and vibration commonly associated with microwave use, ensuring longevity and reliability.

Causes of a malfunctioning Lamp can include filament wear over time, which is a common issue with incandescent bulbs, or damage from microwave vibrations or power surges. Regular usage can naturally lead to the lamp's eventual dimming or failure, necessitating its replacement to maintain optimal microwave functionality.

Symptoms of a bad Lamp include:

• No illumination inside the microwave when in use
• Flickering or intermittent light operation
• A sudden pop or crack sound indicating the bulb has burnt out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Air Filter is an OEM part for GE microwaves. This filter is designed to remove grease, smoke, and odors from the air that passes through the microwave's ventilation system, particularly in over-the-range models.The filter measures about 5 inches wide by 7-1/2 inches deep.

Over time, regular cooking can cause buildup on the filter, reducing its effectiveness. Regular maintenance is essential to ensure proper air filtration.

Symptoms of a bad Air Filter include:

• Persistent cooking odors in the kitchen
• Reduced ventilation performance
• Visible grease buildup on the filter
• Smoke not being effectively filtered during cooking

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This factory glass panel replaces a cracked, shattered, or missing original, restoring a clean, safe cover/viewing surface on your appliance. It helps protect internal areas from splatter and keeps the assembly looking and fitting the way it should.

• Replaces a damaged glass component within the original assembly on applicable models
• Restores a clear, smooth surface for proper appearance and function
• Helps shield underlying parts from spills, grease, and debris
• Common symptoms: cracked or shattered glass, missing piece, sharp edges, looseness/rattling

• Disconnect power before servicing; allow all surfaces to cool
• Wear cut-resistant gloves and eye protection; handle edges carefully
• Support the panel/door during removal and installation to prevent stress on frames/hinges

This thermostat regulates oven temperature to help maintain consistent cooking results and prevent under- or over-heating. It replaces a failed temperature control component to restore accurate oven cycles. What it does:

• Senses oven temperature and signals the control to cycle the heating element or burner
• Helps correct symptoms like oven not reaching set temperature or running too hot/too cold
• Works with the oven's control system to maintain stable cooking temperatures
• Functions as the temperature-sensing switch for bake/oven operation

• Disconnect power to the appliance before servicing to avoid shock or injury
• Handle the thermostat and sensing bulb carefully; avoid kinking or damaging the capillary tube if present
• Mount and secure per the OEM layout; confirm correct orientation and probe placement for accurate sensing

The Door Interlock Switch is an OEM part for GE microwaves. It ensures the safety of the microwave by preventing the appliance from operating while the door is open. This switch is part of a microwave's safety mechanism, which includes multiple interlock systems designed to stop the generation of microwaves immediately once the door is opened, thereby protecting users from exposure to microwave radiation.

Signs that it's time to replace your door interlock switch include the microwave not starting or stopping unexpectedly, the microwave continuing to operate with the door open, or a failure to heat food even though the appliance seems to be running.

Symptoms of a bad Door Interlock Switch include:

• Microwave does not start
• Microwave stops unexpectedly
• The microwave operates with the door open
• Microwave turns on but does not heat food

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Switch Monitor Interlock is an OEM replacement part for GE microwaves. This safety component ensures that the microwave operates only when the door is securely closed. It prevents the microwave from running if the door is open, providing a critical safety feature to protect users from exposure to microwave radiation.

Causes of a bad switch monitor interlock can include wear and tear over time, mechanical damage from frequent door opening and closing, or electrical malfunctions that impact its performance.

Symptoms of a bad Switch Monitor Interlock include:

• The microwave not starting or operating intermittently
• The microwave running with the door open
• Error messages or safety warnings displayed on the control panel
• Unusual clicking or buzzing noises when the microwave door is opened or closed

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rivet assembly is a direct-replacement fastening piece used to secure appliance panels and components, restoring a stable, rattle-free fit and preventing movement caused by worn or broken rivets. What it does:

• Secures panels, brackets, or component mounts to restore proper alignment and support
• Stops rattling, vibration, or loose hardware caused by damaged or missing rivets
• Provides a durable mechanical fastener where original rivets have sheared or loosened
• Helps maintain safe operation by keeping parts properly retained

• Disconnect power (and gas/water if applicable) before attempting any repairs
• Removal may require drilling out the old rivet; installation typically needs a rivet gun or equivalent tool
• Keep hardware orientation the same as the original; replace any damaged surrounding parts

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Diode Assembly is an OEM part for GE microwaves. It plays a crucial role in converting alternating current (AC) to direct current (DC), which is essential for the microwave’s high-voltage functions, including powering the magnetron to generate microwave energy.

Over time, diodes can fail due to electrical surges, excessive heat, or wear and tear. A faulty diode assembly can lead to inefficient or non-functional microwave operation, impacting its ability to heat food properly.

Symptoms of a bad diode assembly include:

• Microwave not heating food
• Sparking or arcing inside the microwave
• Burning smell or unusual noises during operation
• Microwave turning on but failing to generate heat

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Microwave Exhaust Adapter is an OEM replacement part for GE built-in microwave ovens. Located at the top or rear of the microwave, the exhaust adapter connects the ventilation system that removes steam, smoke, and odors produced during cooking.

Symptoms of a bad exhaust adapter can include:

• Moisture or steam films accumulating on interior surfaces
• Strange vibration noises coming from the ventilation connection
• Reduced cooking efficiency as hot air lingers inside the cavity
• Visible cracks, separations, or blockages in the adapter itself

Causes of a bad exhaust adapter microwave include natural wear from repeated heating cycles, cracks or damage from installation/removal, or blockages from grease/ residue accumulation over time.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore built-in microwave models.

The Damper is an OEM part for GE microwaves. This part controls the airflow within the microwave, allowing steam and hot air to be vented properly during cooking. The damper opens and closes to regulate the release of excess moisture and heat, ensuring optimal cooking performance and preventing overheating.

Causes of a bad damper can include wear and tear from regular use, buildup of grease or food particles, or mechanical failure.

Symptoms of a bad damper include:

• Excessive steam or heat buildup inside the microwave
• Unusual noises during operation
• The microwave overheating or shutting down unexpectedly
• Inconsistent cooking results

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a bracket only. For magnetron protector order WB27X10506.

The Cooking Tray is an OEM part for GE microwaves. This tray sits on the turntable in the microwave and holds the food items being heated or cooked, allowing for even rotation and uniform cooking.

Causes of a bad cooking tray can include cracks or breaks from heavy use, exposure to extreme temperatures, or accidental drops.

Symptoms of a bad cooking tray include:

• Cracks or chips on the tray
• Difficulty in rotating or the tray not rotating at all
• Unstable placement of food items
• Uneven cooking results

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This lamp drawing is the appliance lighting assembly that provides interior illumination for safe visibility and operation. It restores proper lighting so you can check contents and settings without opening the appliance in the dark. What it does

• Houses and positions the interior lamp to produce even light where needed.
• Connects to the appliance wiring to deliver power to the lamp.
• Commonly replaces assemblies that are cracked, broken, loose, or no longer illuminating.
• Resolve symptoms such as dim, flickering, or non-working interior lights.

• One lamp drawing lighting assembly.

• Always disconnect power (unplug or shut off breaker) before accessing electrical components.
• Handle lamp sockets and wiring gently to avoid damage; replace bulbs per manufacturer specifications.
• Verify fit and connector type before installation.

Female D shaft

The Thermostat is an OEM part for GE ovens. This critical component functions as a temperature sensor and controller within the oven, ensuring that the oven heats to the set temperature and maintains it throughout the cooking process. The thermostat prevents the oven from overheating by cycling the heat on and off as needed.

Symptoms of a failing thermostat include:

• Oven not reaching the desired temperature
• Overheating beyond the set temperature
• Uneven cooking or baking results
• Oven temperature fluctuating more than usual

Causes of thermostat failure generally include age-related wear and tear, calibration issues, or exposure to extreme temperatures that can damage its internal components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This tapping pan-head screw secures interior panels and components in appliances, providing a low-profile head and threads that form into metal for a firm hold. It's a direct-fit fastener for repairs and replacements. What it does

• Fastens panels, brackets and small appliance components where a self-tapping screw is required
• Pan-head profile gives a flush, low-profile finish that resists snagging
• Threads cut into mating metal to create a secure attachment without a nut
• Commonly used where sheet-metal or thin-frame fastening is needed

• One tapping pan-head screw

• Use the correct screwdriver bit that matches the screw recess to avoid stripping
• Start in a pilot hole or with light initial pressure to ensure proper thread formation
• Tighten until snug; do not over-torque — overtightening can strip threads or deform panels
• Wear eye protection when working with metal fasteners and sheet metal

This is a truss-head self-tapping screw used to secure appliance panels and trim. It replaces a lost or damaged mounting screw to restore proper fit and stop rattles or loose parts. What it does

• Secures trim, panels, brackets or small components where a low-profile, wide-head screw is required
• Self-tapping design cuts threads into sheet metal or similar substrates—no nut required
• Restores tight mounting to reduce vibration, rattling or misaligned panels
• Commonly used in refrigerators, ranges and other household appliances

• One truss-head self-tapping screw

• Disconnect power to the appliance before servicing and work on a cool appliance
• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten—turn until snug and the part is secure but not distorted
• Replace with the exact part number to ensure fit and function

This control mounting panel secures the appliance control/console assembly, providing a stable mounting surface that helps keep buttons, switches, and electronics aligned for reliable operation and easier repairs. What it does:

• Provides a rigid mounting surface for the control/console assembly
• Keeps control board and user interface components properly aligned
• Helps prevent movement or vibration-related contact issues
• Common replacement for cracked, bent, or damaged control panels that misalign controls

• Disconnect power to the appliance before starting any repair
• Typically accessed by removing the console or outer panel; keep fasteners organized
• Handle the control board and connectors carefully to avoid damage

This charcoal filter captures odors and fine particles from the air as it recirculates through the microwave, helping keep your kitchen fresher and reducing buildup inside the unit.

• Adsorbs cooking odors when the microwave is set up for recirculating operation
• Helps maintain airflow by trapping grease and fine particulates
• Replace when saturated or damaged; common signs include lingering odors, reduced capture of smoke/steam, or a visibly dirty filter
• Regular replacement supports effective ventilation and protects internal components

• Disconnect power before servicing
• Access panel/grease filter removal may be required to reach the charcoal filter
• Note airflow orientation and seat the new filter securely
• Do not wash; replace at recommended intervals for best performance

This nut assembly secures an appliance component to its mounting point, restoring a solid connection and preventing unwanted movement. Replace a damaged or missing nut to stop rattling and keep parts aligned for reliable operation. What it does:

• Fastens a panel, bracket or component to its mounting stud or bolt to maintain proper alignment.
• Restores a secure connection when the original nut is stripped, corroded or missing.
• Helps stop rattling, looseness or parts that won't stay in place.
• Works as a direct replacement to restore proper fit and function.

• Disconnect power (and water if applicable) before beginning any repair.
• Use the correct-size socket or wrench; avoid cross-threading when installing.
• Tighten snugly but do not overtighten — replace mating hardware if threads are damaged.
