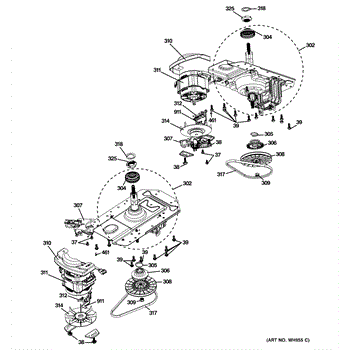

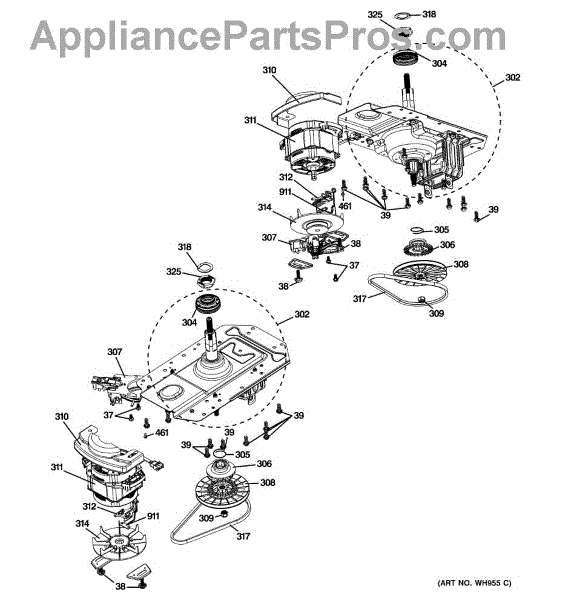

Parts for Ge GTUP240EM2WW: 04 - Motor & Drive Assembly Parts

This 1/4-20 Taptite hex washer-head screw secures panels and internal components in your appliance. Its thread-forming design creates a tight, vibration-resistant hold in untapped metal to keep assemblies aligned when a fastener is missing or stripped.

• Fastens brackets, panels, and hardware to the cabinet/frame
• Taptite design forms threads in pre-punched, untapped holes for a secure fit
• Replaces missing, stripped, or rusted screws
• Helps reduce vibration and rattling from loose mounts

• Unplug the appliance; if servicing a washer, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the appropriate nut driver or socket until snug—do not overtighten

This 5/16-18 hex screw secures appliance panels and components with a common coarse thread. Durable fastening for repairs where the original hex screw has stripped, broken, or gone missing — restores proper fit and alignment. What it does:

• Fastens panels, brackets, and assemblies that use a 5/16-18 hex fastener
• Replaces missing or damaged screws that cause loose or rattling parts
• Helps re-establish secure mechanical connections after disassembly
• Matches OEM thread form and head style for correct seating and torque

• Use the correct hex socket or wrench to avoid rounding the head
• Tighten to secure fit; avoid over-torquing which can strip threads or damage parts
• Check mating threads for damage before installation; replace if worn
• Handle sharp threads carefully and wear gloves if needed

This is a hex pan thread screw used to secure appliance panels and components. It replaces missing or damaged fasteners to restore proper fit and reduce vibration or rattling. What it does

• Secures panels, brackets, or components to the appliance frame
• Restores tight fit where a worn or missing screw caused loose panels or rattling
• Provides a hex head drive for easy tightening with the correct socket or bit
• Matches OEM fastening points when replacing the original screw

• One hex pan thread screw

• Use the correct hex socket or driver to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or damage components
• Disconnect power or follow appliance safety procedures before servicing
• Keep removed hardware organized to confirm correct replacement

This washer suspension support kit replaces the supports that steady the wash tub. It helps control vibration and balance during wash and spin for smoother operation, reduced noise, and fewer out-of-balance interruptions.

• Supports and centers the tub assembly to reduce vibration during agitation and spin
• Helps prevent banging, walking, and excessive movement
• Aids the washer in reaching proper spin speed without balance-related pauses
• Symptoms of wear include shaking, thumping, or a leaning tub

• Disconnect power and shut off water supply before servicing; wear gloves
• Support the tub before removing old supports and release spring tension carefully
• Install new supports evenly and ensure each end is fully seated in its sockets
• Re-level the washer and run a rinse/spin test to verify smooth operation

The Tub Seal is an OEM part for GE washing machines. It is a critical component responsible for sealing the gap between the outer tub and the inner wash basket, preventing water leaks and ensuring proper containment during the wash cycle.

Causes of a faulty Tub Seal include wear and tear over time, exposure to excessive heat or chemicals, or physical damage from sharp objects or improper installation.

Symptoms of a bad Tub Seal include:

• Water leaking from the washing machine during cycles
• Excessive moisture or dampness around the tub area
• Mold or mildew buildup due to leaks
• Vibrations or noise from an improperly sealed tub

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This shifter spring helps engage and return the transmission shifter mechanism in select top-load washers, allowing smooth changes between agitation and spin for reliable wash performance.

• Maintains proper tension on the shift mechanism between agitate and spin
• A worn or broken spring can cause no spin, no agitate, or loud shifting noises
• May also lead to intermittent shifting or incomplete cycles
• Restores consistent mechanical engagement of the drive system

• Unplug the washer and shut off water supply before servicing
• Access is typically from the cabinet/rear; support the tub to prevent movement
• Note spring orientation and attachment points before removal
• Use needle-nose pliers or a spring tool; replace any severely worn mating parts

This shifter hub connects the drive system to the agitator/spin mechanism in the washer, allowing the machine to shift between wash and spin modes reliably for proper cleaning and water extraction.

• Transfers motor/gearcase motion to the basket during spin and to the agitator/wash plate during wash
• Worn or cracked hub can cause no spin, weak/erratic spin, grinding or clicking noises, or poor wash performance
• Designed to fit the original drive components for dependable shifting between cycles

• Unplug washer and turn off water supply before servicing
• Access is typically from the bottom; remove drive components as needed to reach the hub
• Inspect mating parts (splines, clutch/shifter, belt, pulley) for wear and replace if damaged
• Tighten fasteners to spec and verify smooth basket engagement by hand before reassembly

This fork support assembly kit replaces a damaged or worn support that holds and stabilizes the appliance fork/prong component, restoring secure alignment and reliable operation. It's a direct-fit replacement designed to match the original part. What it does:

• Provides structural support and proper positioning for the fork/prong component to prevent sagging or misalignment
• Restores secure attachment so the fork works consistently during normal use
• Helps eliminate symptoms like a loose, shifting, or unstable fork/prong
• Matches OEM fit and function for a straightforward replacement

• One fork support assembly kit

• Disconnect power (and shut off gas if applicable) before attempting service
• Follow the appliance's service manual or OEM instructions for removal and installation
• Basic hand tools are typically required; handle small fasteners and clips carefully

This pulley nut secures the washing machine's drive pulley to its shaft, helping keep the belt aligned so the basket can agitate and spin smoothly. Replacing a worn or missing nut helps prevent pulley wobble and belt issues. What it does:

• Fastens the drive pulley securely to the shaft
• Helps maintain proper belt tracking and drive engagement
• A loose, stripped, or missing nut may cause rattling or scraping noises, belt slippage or the belt coming off, and intermittent or no spin/agitation

• One pulley nut

• Disconnect power and water; wear appropriate PPE
• Access the drive pulley from the rear or bottom per the service instructions
• Support the pulley while loosening/tightening the nut to avoid stressing the shaft
• Pulley seating and belt alignment before reassembly and test run

This replacement kit combines the washer's drive motor with a protective tub shield. It restores agitation and spin performance and helps guard the new motor from splash-related moisture so your washer runs reliably through complete cycles. What it does:

• Provides the mechanical power for the washer's agitation and spin functions
• Tub shield deflects water and debris away from the motor area to reduce moisture exposure
• Helps with symptoms such as no spin or no agitation, a motor that only hums, or a burning odor from the motor area
• Useful when the original motor was damaged by leaks or corrosion

• One drive motor and one tub shield

• Disconnect power and water supply before servicing; wear gloves and eye protection
• Access the motor from the underside/front depending on the model; support the washer securely if tilting
• Move wiring connectors one at a time and transfer any brackets or pulley/belt components as configured on your unit
• Seat the tub shield properly, ensure wires are clear of moving parts, then run a test cycle to check operation and for leaks

This 3L-profile drive belt transfers motor power to the appliance's pulley system so driven components operate as designed. Replacing a worn or slipping belt restores reliable motion and helps eliminate squealing or burning-rubber odors.

• Transfers motor rotation to the drive system via the pulleys
• Enables proper movement of driven components
• A stretched or glazed belt can slip, causing weak or no motion
• Common signs include squealing/chirping sounds, a hot or burnt-rubber smell, or visible cracks/glazing on the belt

• Disconnect power (and water, if applicable) before servicing; wear gloves
• Access the belt from the bottom or rear by removing the appropriate panel(s)
• Note belt routing; remove the worn belt and install the new belt around motor and drive pulleys
• Rotate the large pulley by hand to seat the belt and verify alignment before reassembly and testing

The Nut Hub is an OEM replacement part for GE top-load washing machines. This component plays an integral role during the spin cycle, transmitting rotational force from the motor to the tub for the removal of water from clothes. The Nut Hub connects directly to the drive shaft and incorporates several mounting points to securely join additional drum parts.

Causes of a bad Nut Hub can include cracks, fractures, or stripped threads due to overloading or excessive strain during spinning. Loose or ineffective connections between the Nut Hub and other components impair power transmission.

Symptoms of a bad Nut Hub include:

• Vibrations or shaking during the spin cycle
• Noisy or grinding sounds
• Incomplete water removal, resulting in soggy clothes
• Failure of the tub to rotate

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-32 t. Includes 12 screws.

The Kit Sensor Speed is an OEM part for GE washing machines. It plays a crucial role in monitoring the drum's speed and movement, ensuring that the washer operates with optimal efficiency and precision. This sensor helps adjust the spin cycle based on the load, which is essential for proper balancing and to prevent excessive vibration and noise.

Symptoms of a failing Kit Sensor Speed include:

• The washer experiencing unbalanced loads frequently
• Excessive vibration during the spin cycle
• The washing machine making louder than normal noises
• Error codes related to the drum speed appearing on the display

Causes of a bad sensor can stem from electrical faults like wiring issues or component malfunctions, physical damage from overload or impacts, or simply wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
