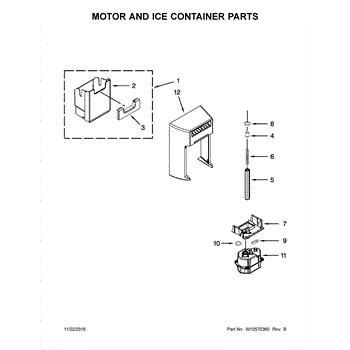

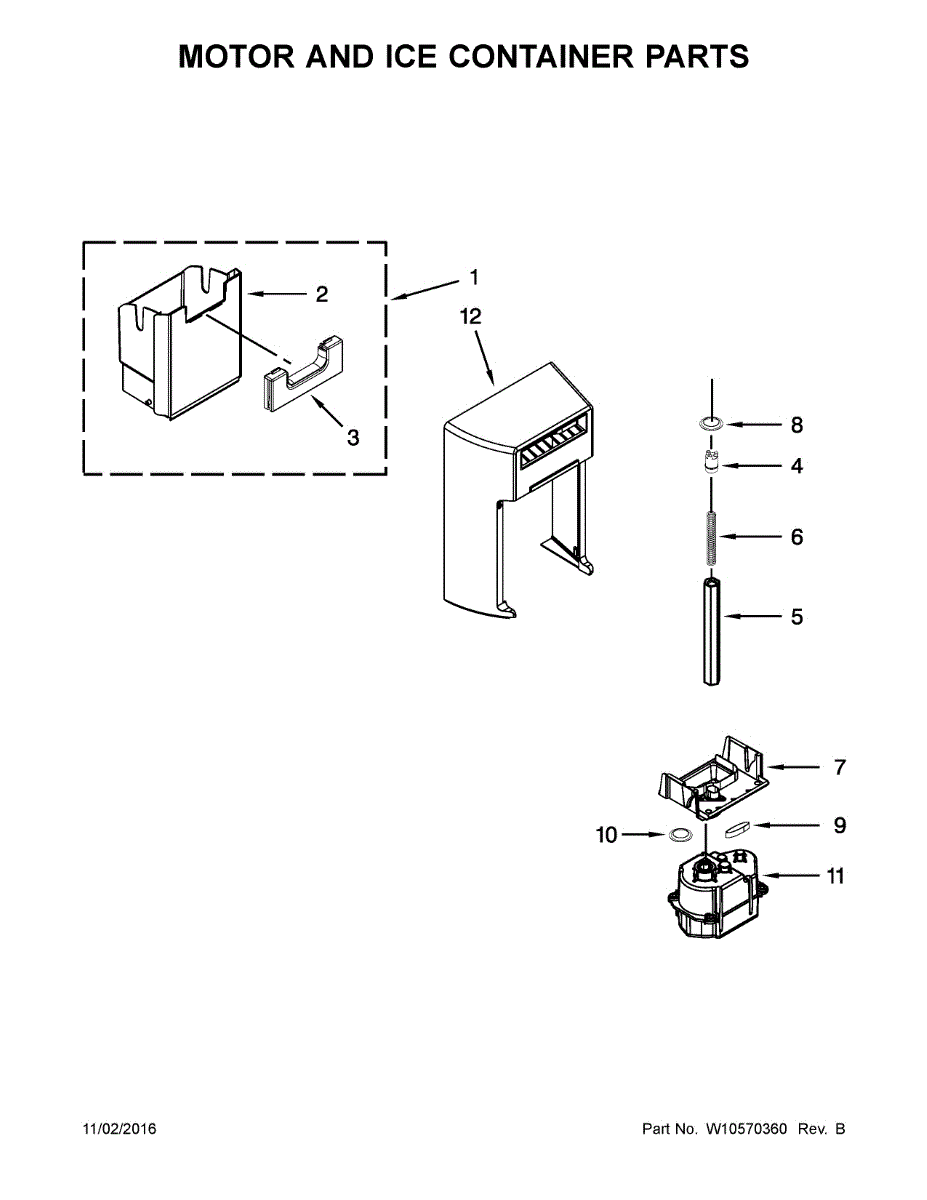

Parts for Kenmore 106.41163310 (10641163310, 106 41163310): Motor And Ice Container Parts

Purifies circulating air in your refrigerator to reduce odors. Replace every 6 months for optimal freshness. Verify fit with your model number.

Ice bucket won't stay in place or dispenser not working? This latch assembly secures the bin and aligns it with the auger. Snaps in by hand in minutes.

Fix ice not dispensing or auger not turning issues. This coupler connects the motor to the ice bin auger. DIY-friendly repair, about 20 minutes.

Ice won't dispense but you hear the door open? This hex drive shaft connects the motor to the auger. Simple 30-minute fix restores ice dispensing.

The Spring is an OEM part for Whirlpool refrigerators. It is a small but important internal part that applies pressure to dispense cubed or crushed ice from the refrigerator door. The spring is located within the ice dispenser mechanism and works with a lever to push ice out through the dispenser chute upon activation.

Causes of a bad spring can include wear and tear over time, putting undue pressure on the dispenser by jamming items into the chute, or damage from excessive force applied during dispensing.

Symptoms of a bad spring include:

• Ice cubes or crushed ice becoming jammed or failing to dispense properly
• The ice dispenser failing to push ice fully through the chute
• Excessive pressure needs to be applied to activate the dispenser
• Ice cubes are dispensed in irregular sizes or clumps rather than individual pieces

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Mounting plate assembly secures your refrigerator to its support structure. Replace if bent, stripped, or missing to restore safe installation.

Ice won't dispense or auger not turning? This drive shaft holder secures the ice maker shaft for proper rotation. Easy 10-minute DIY fix with video guide.

Fix frost buildup, condensation, or drips around your ice dispenser. This gasket seals the chute to keep warm air out. Easy DIY install with video guide.

The Coupling is an OEM replacement part for Whirlpool French door bottom-mount refrigerators equipped with an interior automatic icemaker. As an internal part, this coupling connects the auger motor to the ice mold assembly, allowing the motor to transmit rotational force during the ice harvest cycle.

Causes of a damaged coupling can include regular wear from years of exposure to changing temperatures inside the refrigerator. Mineral deposits accumulating on surfaces over many harvest seasons have the potential to deteriorate plastic material. Physical obstructions lodged in the icemaker mechanism could potentially bend or crack the coupling.

Symptoms of a failing coupling involve:

• Inability of the auger motor to engage fully and eject frozen cubes
• Grinding or knocking sounds emitting from the icemaker
• Restricted or incomplete ice harvest that leaves cubes in molds

This OEM replacement is compatible with some Kenmore Elite French door models.

Ice won't dispense when you press the button? This auger motor powers the mechanism that moves ice from bin to chute. Moderate DIY repair with video guide.

Front cover for refrigerator ice maker assembly. Mounts to inner door panel and conceals ice maker components. Replace if cracked, broken, or missing.
