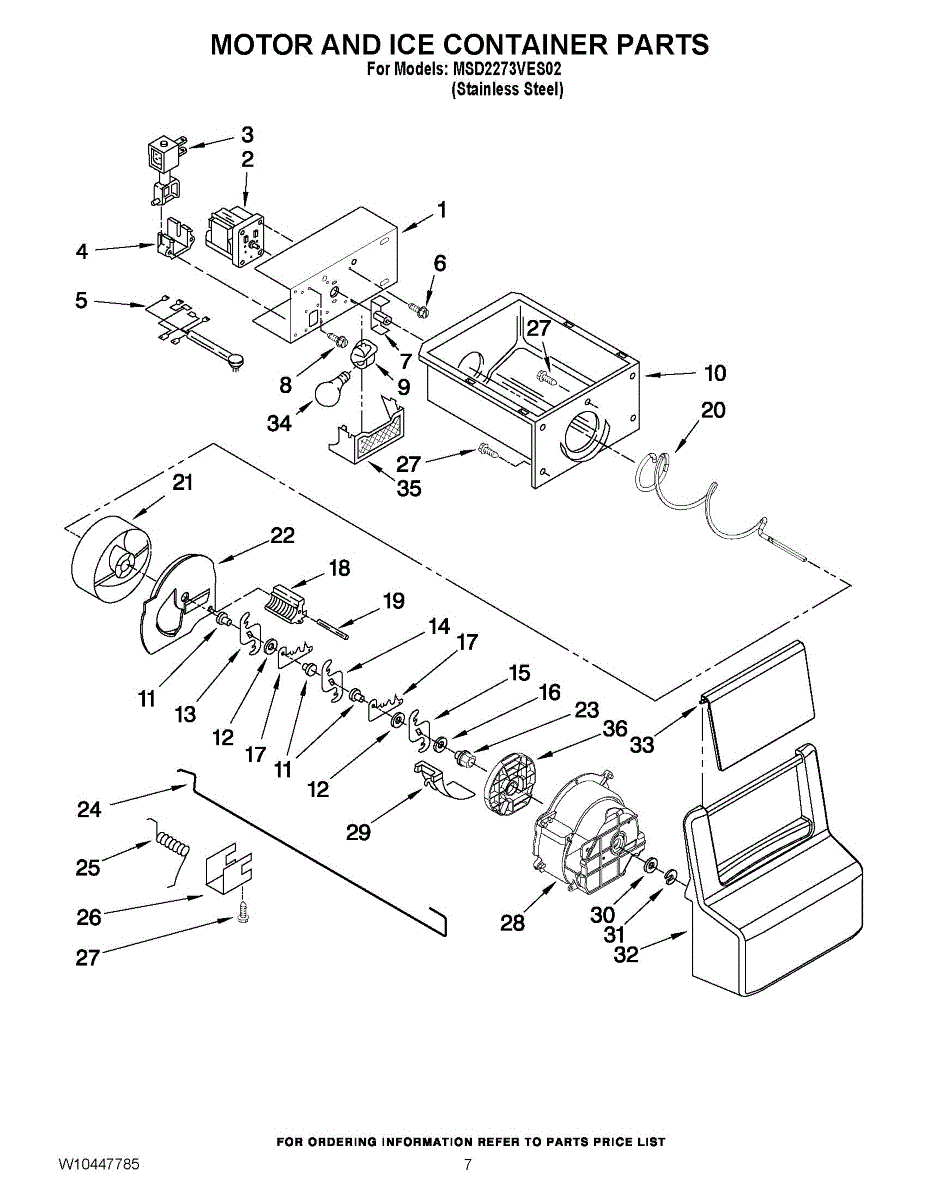

Parts for Maytag MSD2273VES02: 05 - Motor And Ice Container Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

The Whirlpool ice dispenser motor is an OEM replacement part responsible for driving the mechanism that dispenses ice from the ice maker in a refrigerator. This motor is typically located within the ice container assembly, where it powers the auger or paddle responsible for pushing ice cubes through the dispenser chute and into a container or glass. When a user activates the ice dispenser on the refrigerator's exterior, the motor engages, causing the auger or paddle to rotate, delivering ice efficiently.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This part fixes the following symptoms

• Failure to dispense ice when the ice dispenser is activated.
• Unusual noises, such as grinding or squeaking, coming from the ice dispenser.
• Slow or intermittent ice dispensing, resulting in inconvenience for users.
• Ice cubes getting stuck or jammed in the dispenser chute.

The Ice Dispenser Solenoid is an OEM part for Whirlpool refrigerators. It controls the mechanism that opens and closes the ice chute door, allowing ice to be dispensed from the ice maker to the user.

Causes of a bad ice dispenser solenoid can include electrical failures, wear and tear from frequent use, or damage from moisture or debris buildup.

Symptoms of a bad ice dispenser solenoid include:

• The ice dispenser not dispensing ice
• The chute door not opening or closing properly
• Unusual noises during dispensing
• Ice clogging or jamming in the chute

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This guide helps align and support the dryer drum so it turns smoothly and reduces wear on the drum and bulkhead. Replacing a worn guide restores quieter operation and proper drum rotation. What it does:

• Centers and supports the dryer drum to prevent scraping and uneven wear
• Reduces squeaks, grinding noises, and rubbing during rotation
• Helps maintain proper drum alignment to improve drying performance
• Works with existing drum glides, bearings, and rollers to stabilize rotation

• One replacement guide

• Disconnect power before servicing to avoid electric shock
• Access may require removing the dryer front or top panel; your model's service instructions
• Inspect adjacent glides, rollers, and seals; replace any worn parts to prevent premature wear
• Retain all screws and clips; install the guide in the same orientation as the original

This dispenser harness is the wiring assembly that connects the refrigerator dispenser components to power and control signals, restoring electrical continuity so the dispenser, water, or ice functions can operate correctly. What it does:

• Routes power and signal connections between the dispenser controls and the appliance wiring
• Replaces damaged or corroded wiring that can cause intermittent dispenser, water, or ice operation
• Restores reliable connector fit and electrical contact to resolve connection-related faults
• Works with dispenser switches, solenoids, and control modules that use this harness

• Disconnect power to the appliance before starting any repair to avoid shock
• Inspect connectors and routing; match connector shapes and terminal counts before connecting
• Secure the harness away from moving parts and sharp edges to prevent wear

Size: 8-32 x .312 inch.

The Motor Coupling is an OEM part for Whirlpool refrigerators. This coupling connects the ice dispenser motor to the ice dispensing mechanism, allowing the motor to drive the ice auger and dispense ice effectively.

Causes of a bad motor coupling can include wear and tear from regular use, overloading the ice dispenser, or mechanical failure of the dispenser motor.

Symptoms of a bad motor coupling include:

• The ice dispenser not functioning or dispensing ice intermittently
• Unusual noises such as grinding, clicking, or rattling during operation
• The ice auger not turning or dispensing ice properly
• Visible cracks, breaks, or wear on the coupling

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 8 x 1/2 ab.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ice Container is an OEM part for Whirlpool refrigerators. It is designed to store ice produced by the icemaker, providing a convenient and accessible solution for dispensing ice.

Causes of a bad Ice Container can include cracks or breaks due to regular use, impact damage, or warping from exposure to varying temperatures. Accumulation of ice or frost can also lead to problems with the container’s integrity and function.

Symptoms of a bad Ice Container include:

• Ice spilling out or not being contained properly
• Cracks or visible damage to the container
• Difficulty in removing or inserting the container
• Ice clumping or melting due to poor insulation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement blade is the rotating element used within the appliance assembly to deliver the intended action. Installing a new blade restores smooth, efficient operation when the original is cracked, bent, worn, or missing.

• Provides the mechanical action required by the assembly (rotation/agitation)
• Helps maintain consistent performance and smooth operation
• Common failure signs: rattling or scraping noises, vibration/wobble
• Other symptoms: reduced performance in that section of the appliance, visible chips, cracks, or deformation

• Disconnect power before servicing; turn off water supply if applicable
• Wear cut-resistant gloves; edges may be sharp
• Note the original blade's orientation and spacing before removal; install the new blade the same way
• Hand-rotate after installation to ensure free movement and clearance before restoring power

A roll pin (spring pin) that secures rotating or sliding components by fitting into matched holes to hold shafts, levers, or brackets in place. Replaces a worn or damaged pin to restore proper mechanical engagement. What it does:

• Holds shafts, levers or hinges in position by expanding into drilled holes for a snug, vibration-resistant fit
• Keeps pulleys, rollers, or linkages from moving out of alignment or sliding off their shafts
• Common symptom: loose or wobbling pulley, lever, or shaft where the retaining pin is worn or broken
• Common symptom: noisy or intermittent operation caused by a pin that no longer secures moving parts

• Inspect mating holes and shaft for wear; replace pin with correct size to ensure secure fit
• Use appropriate pliers or a pin punch and hammer to drive the pin in or out; support the assembly to avoid damage
• Wear eye protection when installing or removing roll pins—pins can snap or fly out under force
• If pin is difficult to remove or install, consider using penetrating oil or heating only per OEM guidance

PLEASE NOTE: Due to manufacturer changes, the auger is now metal

The Ice Dispenser Drum is an OEM replacement part for Whirlpool refrigerators. This drum is located in the ice maker assembly and is responsible for dispensing ice when activated. It rotates to push ice through the chute and into your glass or container.

Causes of a bad ice dispenser drum include wear and tear from regular use, damage from ice jams, or breakage due to accidental mishandling. Accumulation of ice and debris can also cause the drum to malfunction.

Symptoms of a bad ice dispenser drum include:

• Ice not dispensing properly
• Grinding or clicking noises during operation
• Inconsistent ice output
• The dispenser becoming jammed frequently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This baffle sits in the ice bin and supports the auger so ice feeds smoothly to the dispenser. Replace a cracked or worn baffle to restore reliable dispensing and reduce jams or grinding from the ice bucket.

• Supports and aligns the ice auger inside the bin
• Guides cubes/crushed ice toward the crusher/dispenser
• Helps prevent auger wobble, binding, or excessive noise
• Failure can show as weak/no ice dispensing or intermittent jams

• Disconnect power; remove the ice bin from the freezer/door
• Empty the bin and remove any screws/clips securing the baffle
• Transfer any reusable hardware; orient the baffle correctly around the auger
• Tighten fasteners without overtightening; reinstall bin and test dispense

This bearing nut secures a bearing and related rotating components on the shaft, keeping the assembly tight and aligned for smooth, dependable operation. Replacing a worn or stripped nut helps stop wobble, noise, and drive slippage.

• Locks the bearing/stack onto the shaft to prevent loosening
• Maintains alignment for smooth rotation and reduced vibration
• Helps restore consistent drive in shaft-driven assemblies
• Typical symptoms: loose or non-turning drive, rattling/grinding, or visible thread damage

• Disconnect power before servicing; shut off water if working near dispenser components
• Remove the related assembly to access the shaft; note part order for reassembly
• Hand-start the nut to avoid cross-threading; verify thread direction against the original
• Tighten securely; inspect the bearing, washers/spacers, and shaft for wear

This small plastic control arm extension links to the mechanism it serves, restoring proper movement and engagement so the appliance can operate as intended. It's a simple, direct-replacement component designed to snap in and align correctly.

• Connects to the existing control arm to extend its reach and function
• Helps correct issues like improper engagement or intermittent operation
• Can address symptoms such as sticking, misalignment, or failure to activate
• Sized to fit the original mounting points for consistent motion

• Disconnect power (and water if applicable) before servicing
• Note the orientation of the original part to match during reassembly
• Inspect the mating control arm and linkage for wear or damage
• Test operation before fully reassembling panels or covers

This genuine OEM return spring restores proper return/tension for the appliance component it connects to, helping controls, latches or hinges snap back into place. Replacing a worn spring can stop sticking, sagging or failed return action. What it does:

• Provides tension to return a lever, latch or door component to its resting position
• Restores crisp return action when a control or hinge feels loose or fails to snap back
• Helps reduce rattling or intermittent contact caused by a weak or broken spring
• Functions quietly once replaced, improving normal operation of the affected mechanism

• Disconnect power and gas before servicing; follow appliance-specific safety instructions
• Springs can be under tension — use proper tools and caution to avoid injury or part damage
• Compare the old spring to the new one for correct length and end type before installation

Rod retainer clip secures a support rod or shaft to keep moving parts aligned and stable during operation. Replacing a worn or broken clip prevents rattling, binding, or components falling out and helps restore proper mechanical function. What it does:

• Holds a support rod or shaft in place to maintain alignment of moving components.
• Prevents rods from sliding out or shifting, which can cause rattling, binding, or misalignment.
• Replace if the clip is bent, cracked, corroded, or no longer grips the rod securely.
• Common symptom: loose or misaligned parts, unusual noises, or components that detach during use.

• Disconnect power (unplug or shut off breaker) before servicing the appliance.
• Access may require removing panels, covers, or nearby components—follow the OEM service manual.
• Remove the old clip and carefully press or snap the replacement into place; avoid over-bending the clip.

Size; 8-18 x 1/2 inch.

This ice deflector guides ice cubes from the icemaker into the ice bin to help keep ice delivery consistent and reduce cube jams or spills. It's a simple replacement that restores proper ice routing in compatible refrigerators. What it does:

• Directs ice cubes from the icemaker into the ice bin for orderly dispensing
• Helps prevent ice clumping and blockages that can stop ice flow
• Keeps ice moving away from the icemaker assembly and into the bin
• Restores proper alignment and function after a cracked or missing deflector

• Disconnect power to the refrigerator before servicing to avoid electrical or mechanical injury
• Remove the ice bin or access panel per your model's service instructions to reach the deflector
• Part typically snaps or slides into place; reuse existing fasteners unless new hardware is supplied
• After installation, reconnect power and run the icemaker through a cycle; discard any ice made during the repair if contamination is suspected

This is a flat plain washer used to distribute load and space hardware on appliance assemblies. It helps keep bolts and screws seated and reduces wear on mating surfaces for more secure fastener connections. What it does:

• Provides a flat bearing surface to spread clamp load and protect parts from fastener damage
• Maintains proper spacing and alignment for mounted components
• Helps prevent fastener loosening from vibration when used with the correct bolt or screw
• Commonly used on chassis, suspension, and bracket connections

• One plain flat washer

• Disconnect power and water supply before servicing the appliance
• Replace only with the same washer size and thickness as the original for proper fit
• Tighten fasteners to secure but avoid over-torquing which can deform the washer

A retainer ring that secures components in place to prevent axial movement and maintain proper alignment. Replacing a worn or damaged ring helps stop rattling and shifting, restoring quieter, more reliable operation. What it does:

• Holds shafts, bearings or seals in position to prevent side-to-side movement
• Keeps mating parts aligned so assemblies run smoothly
• Common symptom of failure: rattling, grinding, wobbling or loosened parts
• Small, inexpensive part that prevents larger component misalignment or wear

• Disconnect power and water before servicing the appliance
• Access the affected assembly by removing the appropriate panel(s)
• Installation may require snap-ring/retaining-ring pliers or small hand tools

This cover is an access panel that protects internal components and helps keep your appliance clean and safe. It provides a simple, durable barrier to prevent debris and accidental contact with wiring or mechanisms. What it does:

• Protects internal controls and wiring from dust, lint, and accidental contact
• Keeps moving parts and electrical components enclosed to reduce risk during normal use
• Helps maintain appliance appearance by covering internal openings
• Can reduce minor drafts and exposure that allow debris into the cabinet

• One cover

• Always disconnect power to the appliance before beginning any repair
• Remove and reinstall using the appliance's existing mounting points and hardware
• Handle edges carefully to avoid scratches or cuts; align cover before tightening fasteners

The Ice Door is an OEM component specifically designed for Whirlpool side-by-side refrigerators. Located at the top freezer compartment, it provides access to interior ice and water dispensing functions.

Causes of a faulty ice door can include damage due to impact or warping from temperature fluctuations. Friction between the door seal and frame may prevent smooth opening and closing over time as well.

Symptoms of a bad ice door include:

• Difficulty opening or closing the door fully
• Ice dispenser malfunctions or leakage occurs
• Seals no longer form an adequate barrier
• Warping causes misalignments or binding

This OEM Whirlpool replacement ice door restores reliable access and sealing. Installed promptly to resolve any issues, it prevents further performance deterioration.

Compatible also with some GE and Kenmore side-by-sides, this part maintains convenient dispensing functions. Protect your refrigerator investment with an OEM ice door replacement when needed.

Replacement light lens for the dispenser assembly that protects the bulb and restores clear, even illumination around the dispenser. Use this lens to replace a cracked, cloudy or missing lens and improve dispenser visibility. What it does:

• Protects the dispenser light bulb and helps diffuse light for more even illumination.
• Replaces cracked, chipped or cloudy lenses that reduce visibility at the dispenser.
• Helps keep debris and moisture away from the bulb and housing.
• Restores the intended appearance and function of the dispenser lighting.

• Disconnect power to the appliance before starting any repairs to avoid electrical shock.
• Accessing the lens may require removing the dispenser bezel or housing; handle the lens carefully to avoid scratches.
• Use the exact OEM part number to ensure fit; do not force or modify the part.

The Ice Bucket and Auger Assembly is an OEM replacement part for Whirlpool refrigerators. It includes both the ice storage bucket located in the freezer as well as the internal auger component. The auger works to periodically eject ice from the icemaker out into the conveniently accessible bucket area.

Causes of a bad assembly can include wear and tear of the auger motor or gears over extended use. Damage may also occur from chewing or impact within the unit.

Symptoms of a bad ice bucket and auger assembly include:

• Ice backing up and not dispensing properly from the icemaker
• Ice accumulating inside the refrigerator walls
• The bucket not filling completely or ice spilling out
• Loud grinding or clicking noises coming from inside the wall

This OEM replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
