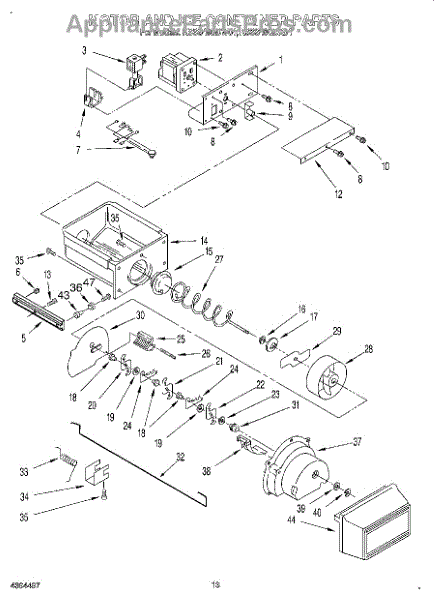

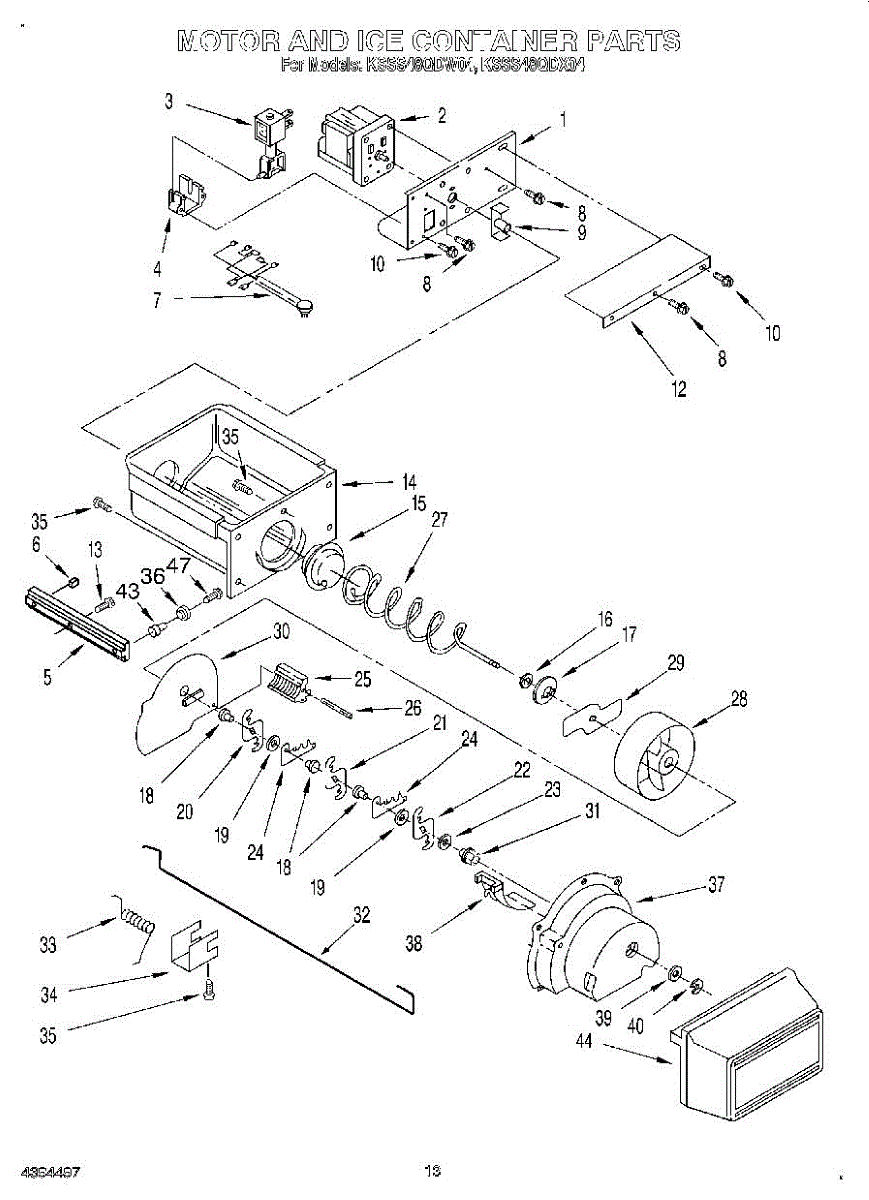

Parts for Kitchenaid KSSS48QDW04: 10 - Motor And Ice Container Parts

Ice dispenser not working or making noise? This motor powers the auger that delivers ice. Moderate DIY repair with video guide. Fits many models.

This is a mounting bracket or guide used in the ice dispenser area of a refrigerator. It supports and positions the dispenser solenoid or related components to ensure proper alignment and operation. Replace this part if the ice dispenser is not functioning correctly, the solenoid is loose or misaligned, or if the bracket is cracked or broken.

Replacement drawer track for refrigerators. Guides drawer movement and maintains alignment. Needed when original track is cracked, broken, or worn.

Rubber stop bumper that prevents refrigerator rollers from over-extending. Replace if cracked, worn, or missing to stabilize appliance movement.

Size: 8-32 x .312 inch.

Ice dispenser not working or coupling spins freely? This motor coupling connects the dispenser motor to the auger. 10-minute fix with channel lock pliers.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Ice dispenser not working or auger keeps falling off? This coupling connects the motor to the auger. Simple 15-minute DIY fix restores ice dispensing.

Positions and supports the refrigerator step or kickplate. Replace this spacer if worn, missing, or broken to restore secure alignment and fit.

Flat spacer for refrigerator door hinges. Maintains proper clearance between hinge and door for smooth operation and tight seal. Replace if worn or missing.

Fix ice that won't crush or dispense with this refrigerator crusher blade. Solves bent or damaged blades preventing ice from dispensing. Easy DIY repair.

Fix ice not dispensing properly with this ice crusher blade. Replaces free-wheeling or worn blades on the auger assembly. DIY-friendly repair.

Ice crusher not working or producing inconsistent crushed ice? This rotating crusher blade restores proper ice crushing when worn, bent, or cracked.

Plain washer distributes load under fasteners in refrigerator assemblies. Replace when worn or missing to secure brackets, hinges, and mounts. Verify fit.

Fix ice dispenser issues with crushed ice not dispensing properly or ice cubes coming out instead. This crusher blade restores proper ice crushing function.

Secures rotating shafts and levers in your refrigerator's ice dispenser mechanism. Replace if pin is sheared, worn, or missing to restore alignment.

The Ice Dispenser Drum is an OEM replacement part for Whirlpool refrigerators. This drum is located in the ice maker assembly and is responsible for dispensing ice when activated. It rotates to push ice through the chute and into your glass or container.

Causes of a bad ice dispenser drum include wear and tear from regular use, damage from ice jams, or breakage due to accidental mishandling. Accumulation of ice and debris can also cause the drum to malfunction.

Symptoms of a bad ice dispenser drum include:

• Ice not dispensing properly
• Grinding or clicking noises during operation
• Inconsistent ice output
• The dispenser becoming jammed frequently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ice Dispenser Drum is an OEM replacement part for Whirlpool refrigerators. This drum is located in the ice maker assembly and is responsible for dispensing ice when activated. It rotates to push ice through the chute and into your glass or container.

Causes of a bad ice dispenser drum include wear and tear from regular use, damage from ice jams, or breakage due to accidental mishandling. Accumulation of ice and debris can also cause the drum to malfunction.

Symptoms of a bad ice dispenser drum include:

• Ice not dispensing properly
• Grinding or clicking noises during operation
• Inconsistent ice output
• The dispenser becoming jammed frequently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Ice dispenser jammed or grinding? A cracked baffle prevents smooth ice flow. This support aligns the auger inside the bin. Moderate DIY with video guide.

This bearing nut secures a bearing and related rotating components on the shaft, keeping the assembly tight and aligned for smooth, dependable operation. Replacing a worn or stripped nut helps stop wobble, noise, and drive slippage.

• Locks the bearing/stack onto the shaft to prevent loosening
• Maintains alignment for smooth rotation and reduced vibration
• Helps restore consistent drive in shaft-driven assemblies
• Typical symptoms: loose or non-turning drive, rattling/grinding, or visible thread damage

• Disconnect power before servicing; shut off water if working near dispenser components
• Remove the related assembly to access the shaft; note part order for reassembly
• Hand-start the nut to avoid cross-threading; verify thread direction against the original
• Tighten securely; inspect the bearing, washers/spacers, and shaft for wear

Return spring provides tension for ice maker levers, door latches, or control rods. Replace if broken, stretched, or missing to restore proper snap-back.

Secures support rods or shafts to keep moving parts aligned in your refrigerator. Replace if the clip is broken, worn, or missing to prevent rattling.

Size; 8-18 x 1/2 inch.

Comes with two rollers and two eyelets

Ice not dispensing properly or spilling? This crusher housing secures ice-crushing components and guides crushed ice to the chute. Fixes cracked housings.

This ice deflector guides ice cubes from the icemaker into the ice bin to help keep ice delivery consistent and reduce cube jams or spills. It's a simple replacement that restores proper ice routing in compatible refrigerators. What it does:

• Directs ice cubes from the icemaker into the ice bin for orderly dispensing
• Helps prevent ice clumping and blockages that can stop ice flow
• Keeps ice moving away from the icemaker assembly and into the bin
• Restores proper alignment and function after a cracked or missing deflector

• Disconnect power to the refrigerator before servicing to avoid electrical or mechanical injury
• Remove the ice bin or access panel per your model's service instructions to reach the deflector
• Part typically snaps or slides into place; reuse existing fasteners unless new hardware is supplied
• After installation, reconnect power and run the icemaker through a cycle; discard any ice made during the repair if contamination is suspected

Flat plain washer that distributes load and spaces hardware on appliance assemblies. Replace if worn, missing, or needed for secure fastening.

Secures components to prevent axial movement and rattling. Replace worn rings to restore quiet, stable operation. Confirm fit with your model number.

Secures panels, brackets, and internal components. 10-16 thread fastener for sheet metal and plastic mounting. Replace missing or stripped screws.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/4 inch.
