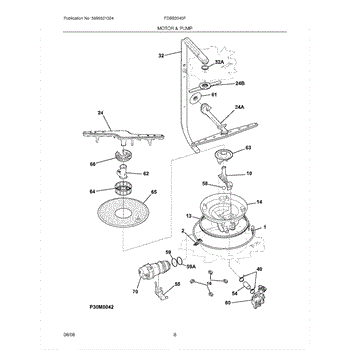

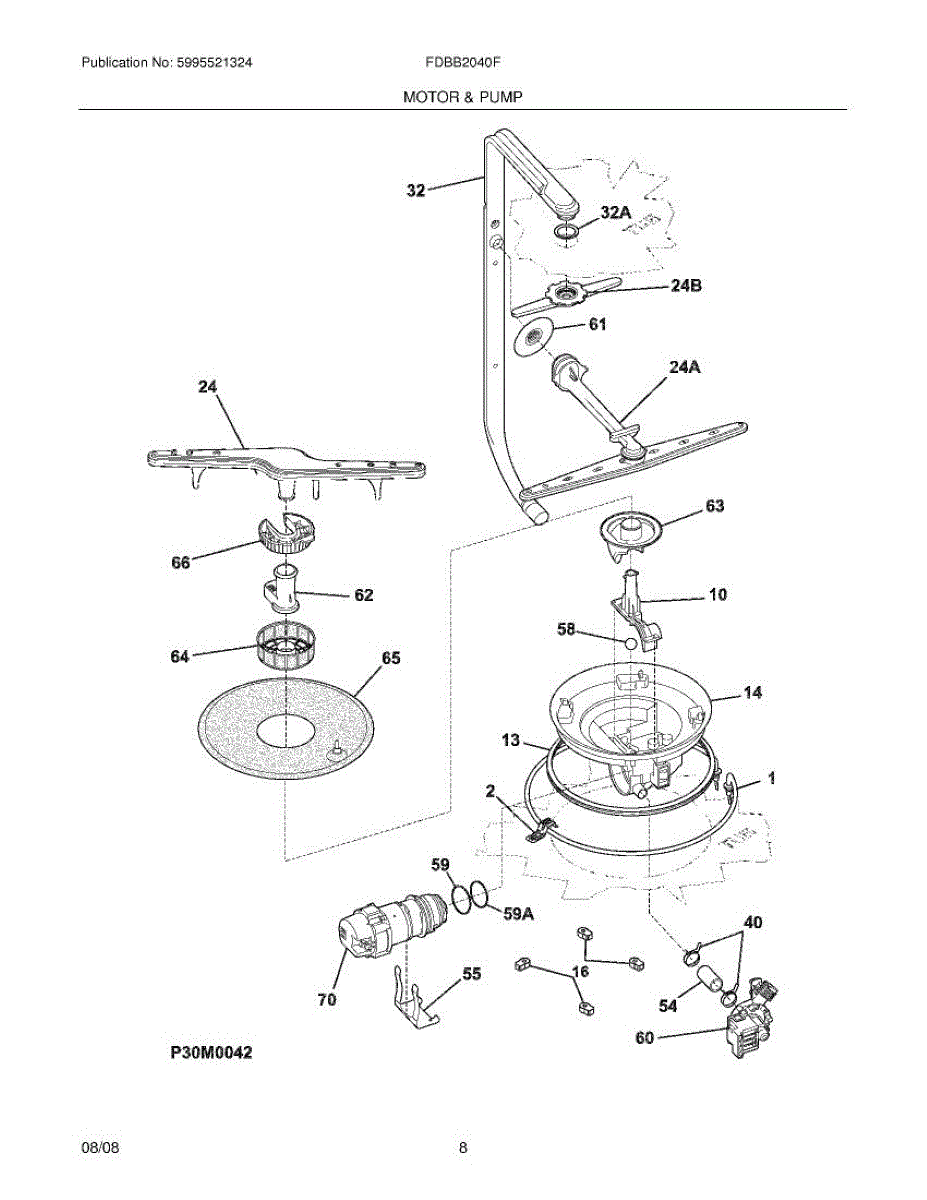

Parts for Frigidaire FDBB2040FC2: 09 - Motor & Pump Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Heating Element is an OEM part for Frigidaire dishwashers. It heats water to the right temperature for washing dishes and aids in drying by promoting evaporation. Situated at the dishwasher's bottom, this element is vital for excellent cleaning and dry dishes.

Over time, the Heating Element may fail due to reasons like mineral buildup from hard water, corrosion, or electrical problems. A faulty heating element can cause issues, impacting the dishwasher's cleaning and drying performance.

Symptoms of a bad Heating Element include:

• Dishes not being cleaned properly due to the water not reaching the required temperature.
• The dishwasher not drying dishes at the end of the cycle.
• Visible signs of damage to the element
• The dishwasher taking longer than usual to complete a cycle.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This replacement bracket is used in Frigidaire-made dishwashers to secure an associated component or panel. Replacing a broken or missing bracket restores a tight fit, alignment, and stability so parts don't loosen, rattle, or shift during cycles. What it does:

• Provides a rigid mounting point for the connected part or panel
• Maintains proper alignment and stability during operation
• Helps reduce rattling or vibration from a loose component
• Replaces a broken, bent, rusted, or missing bracket

• 1 bracket

• Disconnect power and turn off the water supply before servicing
• Access and mounting location vary by model; refer to your service or installation manual
• Wear cut-resistant gloves; bracket edges may be sharp
• Save and reuse the original screws/fasteners; install in the same orientation and tighten securely

The Lower Spray Arm Support is an OEM part for Frigidaire dishwashers. This support provides a secure attachment point for the lower spray arm, ensuring it rotates freely and distributes water evenly throughout the dishwasher for effective cleaning. It helps maintain the stability and proper function of the lower spray arm.

Common causes of a bad lower spray arm support include wear and tear, physical damage from loading or unloading dishes, and blockages that impede the spray arm's movement.

Symptoms of a bad lower spray arm support include:

• The lower spray arm not rotating properly
• Poor cleaning performance on the lower rack
• Unusual noises during the wash cycle
• The lower spray arm falling off or becoming loose

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This sump gasket seals the connection between the dishwasher tub and the sump/pump assembly. Replacing a flattened or cracked gasket restores a watertight barrier to help stop leaks from the base and protect floors and cabinetry.

• Creates a seal between the tub and sump to contain wash water
• Helps prevent leaks during fill, wash, and drain cycles
• Replace if the gasket is cracked, brittle, deformed, or compressed
• Common symptoms: water under the dishwasher, dripping from the base, moisture around the toe-kick

• Disconnect power and shut off the water supply; pull the dishwasher out if needed for access
• Access the sump area (often by removing the lower rack, spray arm, and filters); note gasket orientation
• Clean mating surfaces; seat the gasket evenly without twists. Do not use sealants unless specified by the manufacturer
• Reassemble and run a short test cycle while inspecting for leaks

This sump retainer secures the appliance sump assembly and helps keep the pump seal and surrounding components properly positioned to reduce leaks and maintain correct water flow. It's a small replacement part used during sump or pump repairs. What it does:

• Holds the sump housing or pump assembly in place to maintain a reliable seal
• Helps prevent water leaks from the pump/sump area when installed correctly
• Keeps internal components aligned for proper water circulation and drainage
• Commonly replaced when sump hardware is cracked, warped, or no longer secures the pump

• One sump retainer

• Power off and unplug the appliance before starting any repair
• Verify you have full access to the sump/pump area; removal of panels or racks may be required
• Inspect surrounding seals and gaskets; replace if damaged to ensure a watertight fit

The Upper Rack Assembly is an OEM part for Frigidaire dishwashers. It is designed to hold dishes, glasses, and other items in the upper section of the dishwasher, allowing for efficient and organized cleaning.

Causes of a bad Upper Rack Assembly can include wear and tear over time, damage from heavy or improperly placed items, or issues with the rollers and tracks that allow the rack to slide in and out smoothly.

Symptoms of a bad Upper Rack Assembly include:

• Difficulty sliding the rack in or out
• The rack falling off its tracks
• Rust or corrosion on the rack
• Broken or missing tines that hold dishes in place

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Upper Spray Arm is an OEM part for Frigidaire dishwashers. This component is crucial for the cleaning process as it rotates and sprays water onto dishes located in the upper rack, ensuring they are thoroughly washed and rinsed. The spray arm is designed to distribute water evenly, enhancing the dishwasher's efficiency and performance.

Symptoms of a failing Upper Spray Arm include:

• Dishes in the upper rack coming out dirty or not thoroughly cleaned
• The spray arm not rotating or spinning during the wash cycle
• Low water pressure or uneven water distribution from the spray arm
• Visible cracks, clogs, or damage to the spray arm

Causes of a bad spray arm can include blockages from food particles or mineral deposits, wear and tear from regular use, or physical damage from improper loading of the dishwasher.

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Lower Spray Arm is an OEM replacement part for Frigidaire dishwashers. It rotates within the lower dishrack, spraying water during cycles to thoroughly clean dishes. This arm measures approximately 16.00 x 3.10 x 3.10 Inches (L x W x H) NEED TO ORDER 5304518968 SUPPORT,SPRAY LOWER when ordering the lower spray arm

Causes of a bad lower spray arm include normal wear and tear over extended use. Clogs within the arm can also reduce water pressure.

Symptoms of issues with the lower spray arm are:

• Inadequate cleaning performance, especially on lower rack dishes
• Reduced or uneven water coverage
• Difficulty rotating or getting stuck

This OEM replacement part is compatible with Electrolux, Gibson, and Kenmore brand dishwashers too.

Upper dishwasher washarm delivery tube gasket.

The Delivery Tube is an OEM replacement part for Frigidaire dishwashers. This tube is designed to supply water to the upper spray arm from the pump assembly. By doing so, it plays a role in ensuring that the upper rack of dishes receives adequate water coverage for effective cleaning.

Causes for a malfunctioning Delivery Tube can include blockages from food particles or mineral deposits, general wear and tear from regular use, or damage incurred during maintenance or installation.

Symptoms of a bad Delivery Tube include:

• Inadequate cleaning of dishes on the upper rack
• Water not reaching the upper spray arm
• Unusual sounds during the wash cycle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This hose clamp secures flexible water or drain hoses to fittings to prevent leaks and keep connections tight. It's a simple replacement that restores a secure seal and helps stop drips or loose hoses. What it does:

• Holds a rubber or plastic hose firmly to a barb or nipple to prevent leaks
• Restores a tight connection when original clamp is corroded, bent, or broken
• Helps eliminate water dripping, puddling, or intermittent leaks at hose joints
• Prevents hoses from slipping off during vibration or normal appliance use

• Disconnect power and shut off water supply before starting any repair
• Tighten clamp securely with pliers or the appropriate tool; avoid over-tightening which can damage the hose
• After installation, restore water and power, then check the connection for leaks

This flexible replacement hose routes water between appliance components to restore proper water flow and prevent leaks. It's a direct-fit service part when the original hose is cracked, split, or clogged. What it does:

• Carries water safely between the pump, valve, tank or dispenser as designed
• Restores proper drainage or water delivery when the original hose is leaking or collapsed
• Prevents water damage by replacing worn, brittle, or pinched tubing
• Helps eliminate noises and poor performance caused by restricted flow

• One replacement flexible hose

• Disconnect power and shut off the water supply before beginning any work
• Use appropriate clamps or fittings; tighten to manufacturer torque recommendations without over-tightening
• Inspect connections and run a water test after installation to check for leaks

This replacement bracket secures a component to the appliance frame, keeping it aligned and stable during operation. Install it to replace a bent, cracked, or missing bracket and restore a solid, rattle-free mount.

• Provides a rigid mounting point to hold the specified part in place
• Helps maintain alignment to reduce vibration, rubbing, or noise
• Replaces damaged or corroded hardware to restore a secure fit
• Common symptoms: loose or sagging component, unusual vibration/noise, or part shifting out of position

• Disconnect power before servicing; shut off water supply if working near water lines
• Note original orientation and fastener locations; take a reference photo
• Transfer and reuse existing screws/clips as needed; tighten fasteners evenly without over-torquing
• Verify alignment and test operation before final reassembly

This small check ball helps control water flow inside the refrigerator's water/ice system to prevent backflow and ensure proper filling. It restores reliable water seating where valves or distributor ports use a ball-style check. What it does:

• Acts as a one-way seal to stop water from flowing backward into the supply line or valve bore
• Helps the ice maker and dispenser fill correctly by allowing water in but not back out
• Common symptom: intermittent or incomplete ice maker fills
• Common symptom: slow or continuous dripping from dispenser or valve area

• Shut off water supply and unplug the appliance before starting
• Small part — handle carefully and note orientation/seat before removal
• Inspect valve bores and seals for debris; clean area before installing new check ball

The Rear O-Ring is an OEM part for Frigidaire dishwashers. This small but crucial component ensures a watertight seal within the dishwasher's internal systems, preventing leaks by sealing connections between various parts, such as the pump or valve assemblies. The front O-ring is part number AP2109102

Causes of a bad rear O-ring can include regular wear and tear, drying out or cracking due to age, and damage from chemical exposure or improper installation. A compromised O-ring can lead to water leaks and reduced efficiency of the dishwasher.

Symptoms of a bad rear O-ring include:

• Water leaking from the dishwasher
• Puddles forming underneath the appliance
• Reduced washing performance due to water pressure loss
• Noticeable wear, cracks, or deformation on the O-ring

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Front O-Ring is an OEM part for Frigidaire dishwashers. This component is essential for maintaining a watertight seal in the front areas of the dishwasher's internal systems, such as around the pump or valve connections. It prevents water leaks and ensures the efficient operation of the dishwasher. The rear O-ring is part number AP2109101

Causes of a bad front O-ring can include regular wear and tear, exposure to high temperatures, and chemical degradation from detergents and rinse aids. Over time, the O-ring may dry out, crack, or become deformed, leading to leaks and decreased performance.

Symptoms of a bad front O-ring include:

• Water leaking from the front of the dishwasher
• Puddles forming under the appliance
• Reduced cleaning performance due to water pressure issues
• Noticeable wear, cracks, or deformation on the O-ring

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Drain Pump Assembly is an OEM part for Frigidaire dishwashers. It is responsible for removing wastewater from the dishwasher tub during the drain cycle, ensuring that the dishwasher operates efficiently and effectively.

Causes of a bad drain pump assembly can include clogging from food particles and debris, damage to the pump impeller, or electrical failures within the pump motor. Over time, regular use can lead to wear and tear that affects the pump's performance.

Symptoms of a bad drain pump assembly include:

• Water not draining from the dishwasher
• Standing water at the bottom of the dishwasher after a cycle
• Unusual noises during the drain cycle
• Error codes related to drainage issues

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

A rubber mounting grommet that cushions and positions components to reduce vibration and wear, helping parts seat securely for reliable operation. What it does:

• Cushions and isolates parts to reduce noise and vibration.
• Protects metal components and wiring from abrasion where they pass through openings.
• Helps maintain proper alignment and fit of the mounted component.
• Prevents premature wear by absorbing movement and impacts.

• Disconnect power to the appliance before servicing.
• Press-fit into place; ensure proper orientation and full seating.
• Inspect surrounding parts for damage and replace if worn.
• Use manufacturer-recommended replacement; do not use solvents or adhesives unless specified.

This support is a refrigerator mounting bracket that stabilizes internal components and keeps assemblies aligned for reliable operation. It replaces worn or broken supports to help reduce rattling and improper panel fit. What it does

• Secures and aligns internal cabinet or component panels to prevent shifting during normal use
• Helps maintain proper spacing for doors, panels, or internal assemblies
• Reduces vibration or rattling caused by loose or damaged supports
• Commonly replaced when a support is cracked, broken, or no longer holds mating parts securely

• High-level replacement: typically accessible from inside the cabinet or behind a trim panel; exact steps depend on model
• Use proper tools and retain all fasteners during removal for reinstallation
• Disconnect power before servicing any electrical components or removing panels near wiring

This base is the lower cabinet support that helps keep the appliance stable and holds internal components in their correct position. Replacing a damaged base restores proper fit, alignment and reduces cabinet movement. What it does:

• Provides structural support for the appliance cabinet and mounting points
• Keeps internal components aligned and maintains correct clearance
• Helps prevent rocking, vibration and gaps at the bottom of the cabinet
• Protects lower components from contact with floor-level debris or uneven surfaces

• Disconnect power and, if applicable, water before beginning work
• Access may require removing the toe kick or lower access panels
• Keep track of mounting screws and brackets; use replacement hardware if original fasteners are corroded

This base is the lower cabinet support that helps keep the appliance stable and holds internal components in their correct position. Replacing a damaged base restores proper fit, alignment and reduces cabinet movement. What it does:

• Provides structural support for the appliance cabinet and mounting points
• Keeps internal components aligned and maintains correct clearance
• Helps prevent rocking, vibration and gaps at the bottom of the cabinet
• Protects lower components from contact with floor-level debris or uneven surfaces

• Disconnect power and, if applicable, water before beginning work
• Access may require removing the toe kick or lower access panels
• Keep track of mounting screws and brackets; use replacement hardware if original fasteners are corroded

The Dishwasher Filter is an OEM part for Frigidaire dishwashers. It plays a crucial role in trapping food particles and debris, preventing them from recirculating in the dishwasher and ensuring that dishes come out clean.

 Causes of a bad filter can include regular wear and tear, accumulation of food particles, or physical damage from sharp objects. A compromised filter can lead to poor cleaning performance and potential damage to the dishwasher’s internal components.

Symptoms of a bad dishwasher filter include:

• Dishes not coming out clean
• Debris or food particles left on dishes after a cycle
• Water not draining properly from the dishwasher
• Unusual noises during the wash cycle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dishwasher Drain Trap is an OEM part for Frigidaire dishwashers. It plays a crucial role in preventing debris from clogging the dishwasher's drain system, ensuring efficient water flow during the wash cycle. The drain trap collects food particles and other debris, preventing them from entering the drain pump and causing blockages.

You should replace this drain trap if it becomes clogged, damaged, or worn out. Causes of a bad drain trap include the buildup of food particles, grease, and other debris over time, or physical damage from sharp objects or mishandling during maintenance.

Symptoms of a bad drain trap include:

• Water not draining properly from the dishwasher
• Foul odors coming from the dishwasher
• Visible debris in the bottom of the dishwasher
• Frequent clogging or backup issues

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

NO.8 - .625 Truss

No.10 - 16 x 3/8

This genuine replacement screw secures appliance panels and components so assemblies stay tight and stable. It's a simple, direct fix when a missing or damaged screw causes loose trim, rattling, or misaligned parts. What it does:

• Fastens panels, brackets, and trim to restore proper alignment and stability
• Stops rattling or vibration caused by loose hardware
• Replaces stripped or corroded screws to ensure secure connections
• Works wherever the OEM screw is specified in the appliance

• Use the matching driver and proper torque to avoid stripping the head or threads
• Replace only with the exact OEM screw to maintain fit and function
• Disconnect power before accessing internal components; follow appliance safety instructions
• Replace all like-for-like for best results

The Side Mount Kit is an OEM replacement part for Frigidaire dishwashers. It contains mounting brackets, screws, and other hardware required to securely install the dishwasher against cabinetry in a side-by-side configuration. Proper attachment is necessary for stability and safety during operation.

Symptoms of damaged or missing mounting hardware include:

• Excessive movement or rocking of the dishwasher body
• Potential detachment from cabinets
• Screws pulling loose from repeated vibrations
• Improper door alignment causing difficulty closing fully

Causes related to normal wear over extended use periods. Damage may occur if weight is applied during improper lifting or installation attempts.

Compatible models include Electrolux, Gibson, and select Kenmore units.

The Heating Element Nut is an OEM part for Frigidaire dishwashers. It plays a crucial role in securing the heating element in place, ensuring it functions effectively to heat water during the wash cycle. This component ensures the stability and proper operation of the dishwasher's heating element, contributing to the machine's overall efficiency and performance.

Causes of a bad part can include physical damage during maintenance or installation, corrosion over time due to exposure to water and detergents, or general wear and tear that affects its ability to securely hold the heating element in place.

Symptoms of a bad Heating Element Nut include:

• Loose heating element, leading to inefficient heating or water not heating at all
• Water leakage from the heating element area, potentially caused by a poor seal
• Unusual noises during the dishwasher cycle

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
