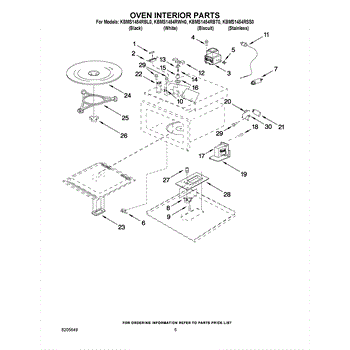

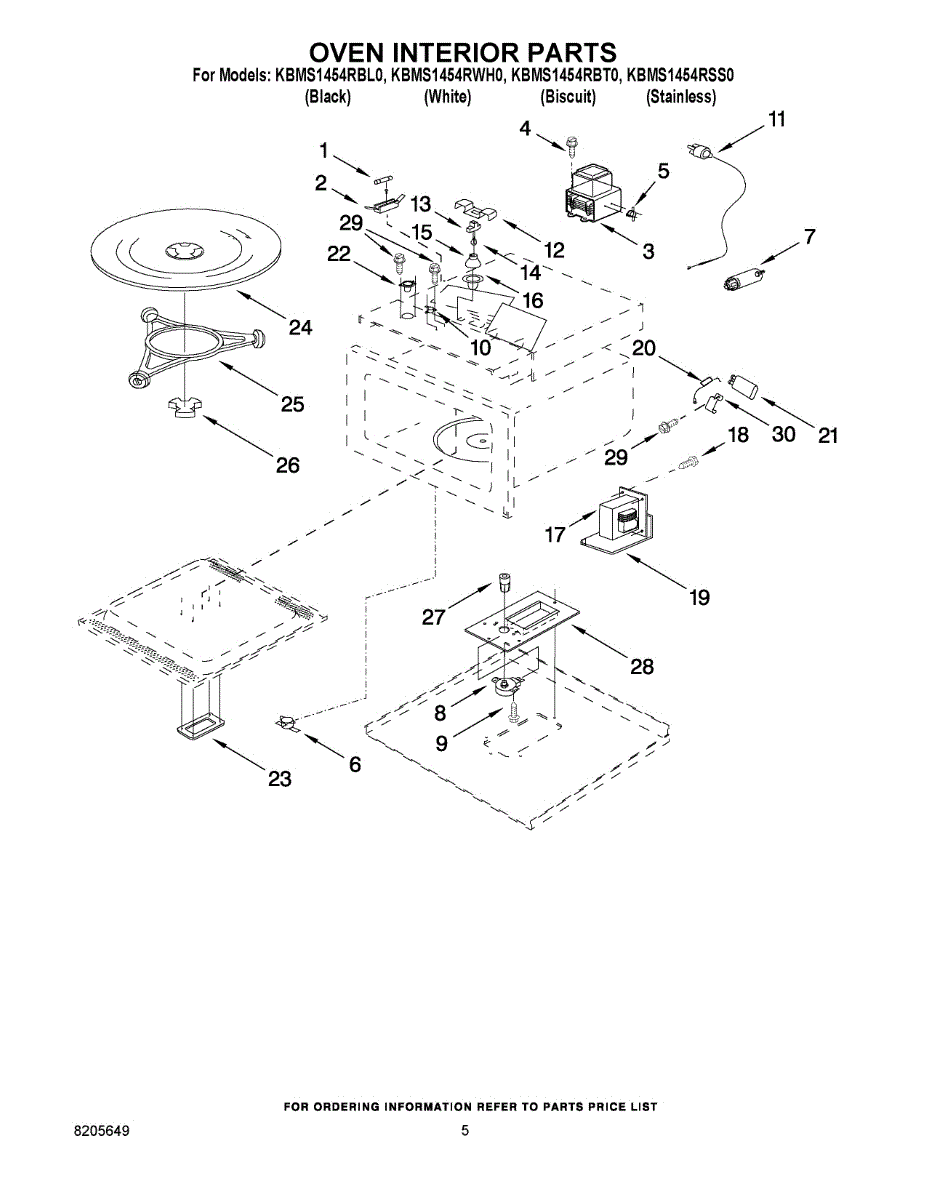

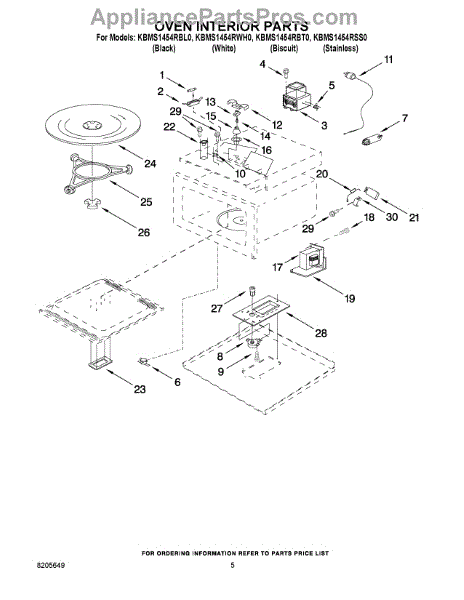

Parts for Kitchenaid KBMS1454RSS0: 05 - Oven Interior Parts

This line fuse protects the appliance's incoming power circuit by opening if an overload or short occurs. Replacing a blown fuse can help restore power once the underlying issue is corrected, preventing further damage to sensitive components.

• Interrupts line voltage when excessive current or a short circuit is detected
• Typical symptoms: unit completely dead, no display or interior lights, won't start or run
• Fuse tests open/no continuity with a multimeter when blown
• A blown fuse often points to another fault that must be addressed

• Disconnect power at the breaker/unplug before servicing; microwaves contain high-voltage parts that can retain a dangerous charge even when unplugged
• Replace only with the same type and rating as the original fuse
• Ensure the fuse seats firmly in its holders; do not bypass or jumper a fuse

The Magnetron is an OEM part for Whirlpool microwaves. This part generates the microwave energy necessary for cooking and heating food.

Causes of a bad Magnetron can include normal wear and tear over time, power surges or electrical issues, or physical damage from impact or mishandling.

Symptoms of a bad Magnetron include:

• The microwave not heating or cooking food properly
• Arcing or sparking inside the microwave cavity
• Strange noises or buzzing sounds during operation
• Burning smells or smoke coming from the microwave

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This thermostat temperature limiter helps regulate oven temperature and prevents overheating by signaling the control when set limits are reached. It replaces a faulty limiter to restore proper temperature control and safer operation. What it does

• Acts as a temperature-sensitive switch that opens or closes at a set temperature to limit heat.
• Prevents the oven from exceeding safe temperatures by cutting power to the heating circuit when triggered.
• Commonly used when the oven won't reach or maintain set temperatures, or when it overheats and shuts down.
• Works as a safety/limit device in the appliance's temperature control system.

• One thermostat temperature limiter

• Disconnect power at the breaker or unplug the appliance before servicing.
• Handle terminals carefully and secure wiring to original connections; avoid bending or stressing the sensor.

The Turntable Motor is an OEM part for Whirlpool microwave ovens. It is responsible for rotating the turntable or carousel tray inside the microwave, ensuring even heating and cooking of food.

Causes of a bad Turntable Motor can include wear and tear over time, lack of proper lubrication, or issues with the motor's bearings or electrical connections.

Symptoms of a bad Turntable Motor may include:

• The turntable not rotating or spinning erratically
• Loud grinding or squeaking noises during operation
• Potential uneven heating or hot/cold spots in food

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This high-limit thermostat is a safety temperature limiter that stops heating when temperatures climb too high, protecting the appliance and preventing overheating. Use it to restore proper temperature cutoff and improve safe operation. What it does

• Acts as a temperature safety cutoff to interrupt power when temps exceed safe limits
• Prevents continuous heating and reduces fire/overheat risk
• Can cause loss of heat, no heating cycles, or oven/range failing to reach temperature when faulty
• Restores the appliance's built-in over-temperature protection when replaced

• Disconnect power to the appliance before servicing to avoid shock or injury
• Located behind panels or at the heating assembly; access may require removing exterior panels
• Verify electrical continuity with a multimeter before installation

This lamp holder secures and powers the oven/cabinet G4-base bulb so interior lighting works reliably and safely. It restores proper bulb contact and helps prevent flickering or intermittent lighting. What it does:

• Holds the G4-base light bulb in place and provides the electrical connection
• Restores interior lighting when the socket is loose, corroded, or damaged
• Helps stop flickering or intermittent on/off issues caused by a faulty holder
• Compatible with the oven/cabinet light assembly that uses a G4-style bulb

• Disconnect power to the appliance before servicing to avoid shock
• Allow the appliance and bulb to cool before touching components
• Inspect wiring and connectors; replace the holder if terminals are corroded or melted
• Use the correct G4 bulb type and wattage per the appliance manufacturer's instructions

The Microwave Light Bulb is an OEM part for Whirlpool microwaves. It illuminates the interior of the microwave, allowing you to monitor the cooking process and ensuring visibility while using the appliance.

You should replace this light bulb if it burns out or becomes damaged. Causes of a bad light bulb can include natural burnout over time, electrical surges, or damage from accidental impact.

Symptoms of a bad light bulb include:

• The microwave interior remaining dark during operation
• Flickering light inside the microwave
• The light not turning on at all when the door is opened

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This lens-lamp assembly replaces a damaged or missing interior light lens and lamp, restoring clear, protected illumination inside the appliance. It provides a covered light source that reduces glare and shields the bulb from food and debris. What it does:

• Covers and protects the appliance interior light bulb from spills, splashes, and impact
• Diffuses light for more even interior illumination
• Restores proper visibility when the original lens is cracked, cloudy, or missing
• Helps prevent direct exposure to the bulb, improving safety during use

• One lens-lamp assembly

• Disconnect power to the appliance before starting any repair
• Allow the bulb to cool before handling; wear gloves to protect hands and avoid fingerprints on bulb
• Test the light function after installation to ensure proper fit and operation

This replacement screw secures appliance components and restores proper fit where the original fastener is missing or stripped. A plain, direct replacement when a standard appliance mounting screw is needed. What it does:

• Secures trim, panels, brackets, or small components to prevent rattling or loss of alignment
• Helps restore proper contact between joined parts for safe operation
• Common fix when fasteners are missing, loose, or worn
• Small size fits in confined appliance mounting points

• Verify head type and length match the original before installing
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Use appropriate screwdriver or bit for the head style to prevent cam-out
• Disconnect power or follow appliance safety procedures when working on electrical areas

The Diode is an OEM part for Whirlpool microwaves. This part convers AC power to DC power to ensure proper operation of the magnetron, which generates the microwaves for cooking.

Causes of a bad diode can include electrical surges, wear and tear over time, or damage due to excessive heat.

Symptoms of a bad diode include:

• The microwave not heating or only heating intermittently
• Unusual noises such as buzzing or humming during operation
• The microwave running but not producing heat
• Visible damage or burn marks on the diode

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This magnetron capacitor is the microwave high-voltage capacitor that helps supply the magnetron with the pulse of energy needed to produce heat. Replacing a failing capacitor restores normal heating performance and reduces arcing or loud humming. What it does

• Stores and releases the high-voltage pulse required by the magnetron so the microwave can generate heat.
• Prevents unstable magnetron operation that can cause weak or no heating.
• Common symptoms of a failing capacitor: oven runs but doesn't heat, intermittent heating, loud buzzing/humming, or visible arcing inside the cavity.
• A failed capacitor can also cause blown internal fuses or tripped circuits.

• One capacitor.

• Disconnect power and verify the appliance is completely de-energized before servicing.
• Capacitors can hold dangerous charge; discharge the capacitor safely with an insulated tool.
• Use the exact replacement part and follow the appliance service manual for routing and connections.

This oven temperature sensor detects internal oven temperature so the control can regulate heating for even cooking and accurate bake cycles. Replaces a failed or intermittent sensor to restore proper temperature control. What it does

• Senses oven cavity temperature and sends readings to the control board
• Can cause oven to run too hot, too cool, or display temperature-related errors when failing
• Often used when bake/broil cycles are inconsistent or the oven won't reach set temperatures
• Works as the temperature feedback component for electronic oven controls

• Disconnect power to the appliance before testing or replacing the sensor
• Handle the sensor probe and wiring gently; avoid pulling on wires or kinking the lead
• Verify replacement by visually inspecting connections and testing continuity with a multimeter

The Waveguide Cover is an OEM part for Whirlpool microwave ovens. This component serves as a protective cover for the waveguide, which is responsible for directing and distributing the microwave energy within the oven cavity.

Symptoms of a bad waveguide cover:

• Sparking or arcing inside the microwave oven cavity
• Uneven or inconsistent heating of food
• Damage or discoloration to the interior walls or components
• Potential leakage of microwave radiation

Causes of a faulty waveguide cover can include physical damage from impact or mishandling, exposure to excessive heat or moisture, or general wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave oven models.

The Turntable Tray is an OEM part for Whirlpool microwaves. This circular plastic tray sits atop the cavity within the microwave. The turntable tray is responsible for smoothly rotating food items during cooking cycles to ensure even heating exposure. It prevents hot and cold spots that can ruin prepared meals. The tray measures approximately 16 inches in diameter.

Causes relate to extended use over time, warping from high heat exposure, or accumulating residue that impedes free movement.

Symptoms of a worn turntable tray include:

• Inconsistent cooking results with some portions remaining underdone
• Squeaking or scraping noises emitting from below during operation
• The tray no longer spinning smoothly on its post seal track

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This turntable support ring sits beneath the microwave's glass tray and lets it roll smoothly during cooking. Replacing a worn or damaged ring restores stable rotation for more even heating and prevents tray wobble or binding.

• Supports the glass turntable as it rotates
• Provides a low-friction track for smooth, consistent movement
• Helps keep the tray level and centered during operation
• Typical symptoms: turntable not turning, uneven heating, grinding/scraping noises, tray wobbling or coming off track

• Disconnect power to the microwave before servicing
• Remove the glass tray and lift out the old ring
• Clean the turntable deck of debris before installing the new ring
• Center the new ring on the deck, reinstall the tray, and test rotation with a cup of water

The Turntable Coupler is an OEM part for Whirlpool microwaves. This part rotates the turntable, ensuring even cooking by moving the food inside the microwave.

Common causes of a bad coupler include wear and tear from frequent use, cracks or breaks from heavy loads, or misalignment due to improper placement.

Symptoms of a bad turntable coupler include:

• The turntable not rotating
• Uneven heating of food
• Grinding or clicking noises during operation
• The turntable wobbling or not sitting correctly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This turntable drive shaft connects the turntable motor to the coupler and glass tray so the microwave can rotate food for even heating. Replacing a worn or damaged shaft restores smooth, reliable turntable rotation.

• Transfers motor torque to the coupler and tray to spin the turntable
• Helps ensure even cooking and reheating performance
• Common symptoms: turntable not turning, intermittent or jerky rotation, tray wobbling or uneven heating, grinding/clicking from under the tray

• Unplug the appliance before service; microwave components can retain dangerous voltage
• Remove the glass tray and support, then access the shaft from inside the cavity
• Inspect the coupler and motor for wear; replace related parts if damaged
• Align the shaft properly to avoid stripping or noise on startup

This motor cover protects and secures the appliance motor assembly, keeping wiring and components shielded from debris and wear. It restores the motor's protective housing for safer, quieter operation. What it does:

• Shields the motor and wiring from lint, dust, and foreign objects
• Helps maintain proper airflow and component alignment around the motor
• Replaces cracked, broken, or missing housings that leave the motor exposed
• Can reduce rattle or rubbing caused by a damaged motor cover

• Disconnect power to the appliance before beginning any work
• Remove access panels or panels obstructing the motor to reach the mounting location
• Align the cover over the motor and secure with the original fasteners
• Inspect wiring and nearby components while installing; ensure no wires are pinched or contacting moving parts
